Высокотемпературная машина для окрашивания

Категория: Машина для текстильного окрашивания >>>
Поставщик: Wuxi,Sunsky,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.17 $*	0.46 $*
Aug-16-2025	0.48 $*	0.71 $*
Jul-16-2025	0.44 $*	0.81 $*
Jun-16-2025	0.0 $*	0.36 $*
May-16-2025	0.7 $*	0.81 $*
Apr-16-2025	0.30 $*	0.66 $*
Mar-16-2025	0.54 $*	0.50 $*
Feb-16-2025	0.40 $*	0.41 $*
Jan-16-2025	0.56 $*	0.71 $*

Характеристики

Product Description

Applicable Cloth Varieties:

Sprayed water flow with high pressure and flow rate up to 3KG/cm2 is useful for dyeing non-splitting and non-pilling cloth,like high count,new synthetic satin,tricot,suede cloth,peach-skin processing,Talon,Tsctel,Figured cloth,Bengaline,rib fabric,interlock fabric,poplin.fluting,crepe,mesh fabric,oxford cloth,taffeta,middy twill and curled edge cloth,woven with T 100%,T/C,CVC,T/R,N/C,N/T,N/R,R/T,CD/T/R and NC/TR,as well as union cloth interwoven and blended with various chemical fibers or long staple ,cut fibers,spraying in the proper range 0.5~1kg/cm2 can satisfy special operating requirements of resilient fabric and low-tension fabric.

Main Technical Features:

a),Extra large capacity:

1,Short investment recovery period.

2,Rduction of dyeing difference between throughs in batch production.

3,Increasing productive efficiency.

b),Flexible water flow produces smaller impact on surface of high-grade cloth to ensure cloth to be non-pilling and yarn to be non twisting.

c),Specially designed bending heads can meet the requirements of no dead corner,small tension and bath ratio.

HTHP Rapid Dyeing Machine/Horizontal sample jet dyeing machine

Technical Data

Low Liquor Ratio; 1:3.5~5 at full load
Operating Speed: 450M per minute
Maximum working temperature: 1400C
Maximum working pressure: 0.36Mpa
Temperature increase rate: 50C per minute on average from 25 to 1000C, 20C per minute on average from 100 – 1300C (Pressure of dry saturated vapor: 0.7Mpa)
Temperature deduction rate: 30C per minute on average from 130 to 1000C, 20C per minute on average from 100 to 850C (Cooling water pressure: 0.3Mpa, 250C).

Model	Nrs of Tubes	Load (KG)	Length(mm)	Width(mm)	Height(mm)	MainPump	Running Power(KW)
Model	Nrs of Tubes	Load (KG)	Length(mm)	Width(mm)	Height(mm)	Power(KW)	Running Power(KW)
OH-300-1	1	300	3500	5400	3400	5.5	13
OH-300-2	2	600	4800	5400	3400	7.5	19
OH-300-3	3	900	5900	5400	3400	15	26
OH-300-4	4	1200	7100	5400	3400	18.5	34
OH-300-6	6	1800	9500	5400	3400	30	47
OH-300-8	8	2400	12500	5400	3400	45	56

Flow chart comparasi

QQ20150930085628

Eco-friendly

Min running liquor ratio (does not include water in the material) is as low as 1:1.5. The water consumption of the whole dyeing process for cotton fabric (per KG) by using reactive dyes is analyzed as follows.

Light Color: 27.2kgs
Medium Color: 37.5kgs
Dark color: 47.4kgs

Good and stable repeatability

Leading dyeing control system, in combination with dually balancing flow feeding system as well as constant pressure and flow rate nozzle control enhance fabrics dyeing to achieve a good dye uniformity and high repeatability.

Ergonomics Vat Design

The height of machine and operation platform is lowered and size of the operation platform is resized much smaller than usual, which makes operation much more convenient. The bottom of the dye vat is specially designed so as to reduce water storage and liquor ratio effectively

With unique main vat circulation system, the temperature difference of entire dye vat from top and bottom and evenness of feeding is controlled at optimum conditions.Rotating spray is adopted for main vat cleaning and the whole vat is within the range of cleaning, ensuring more complete cleaning.

Company Information

Sunsky is an experienced machinery manufacturer since 2004,it's located in Wuxi,JiangSu Province,China(50mins by train from Shanghai).We're focusing on dyeing and finishing machines for various textiles.After a decade of innovations and development, Sunsky becomes an expert in the field of textile dyeing machines, including normal temperature dyeing machine, high temperature dyeing machine, pre-treatment and after-treatment machines. We make designs according our customer's requirement, continuously improve our techniques, optimize designs and also take the issue of environment into consideration. Sunsky dyeing machine has been well received by domestic and foreign customers.On the basis of 10years professional manufacturing experience,we have successfully developed a new generation of liquor ratio 1:3.5~5, energy saving type OH/UH,and 1:2.8~3.5 yarn dyeing machine.

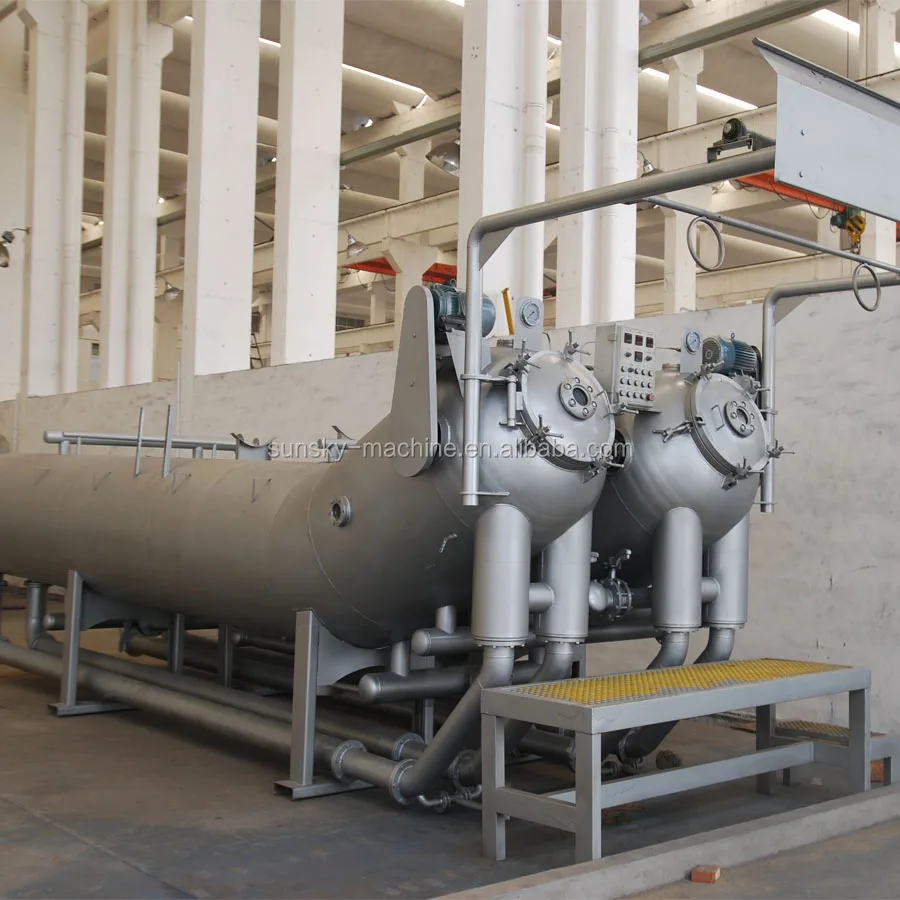

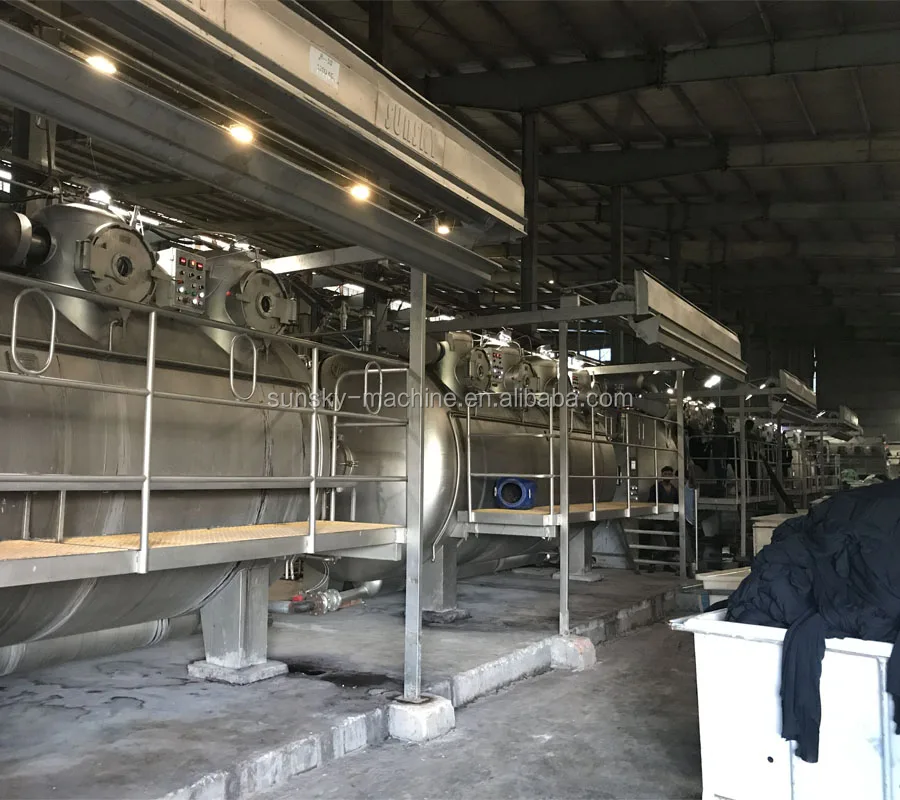

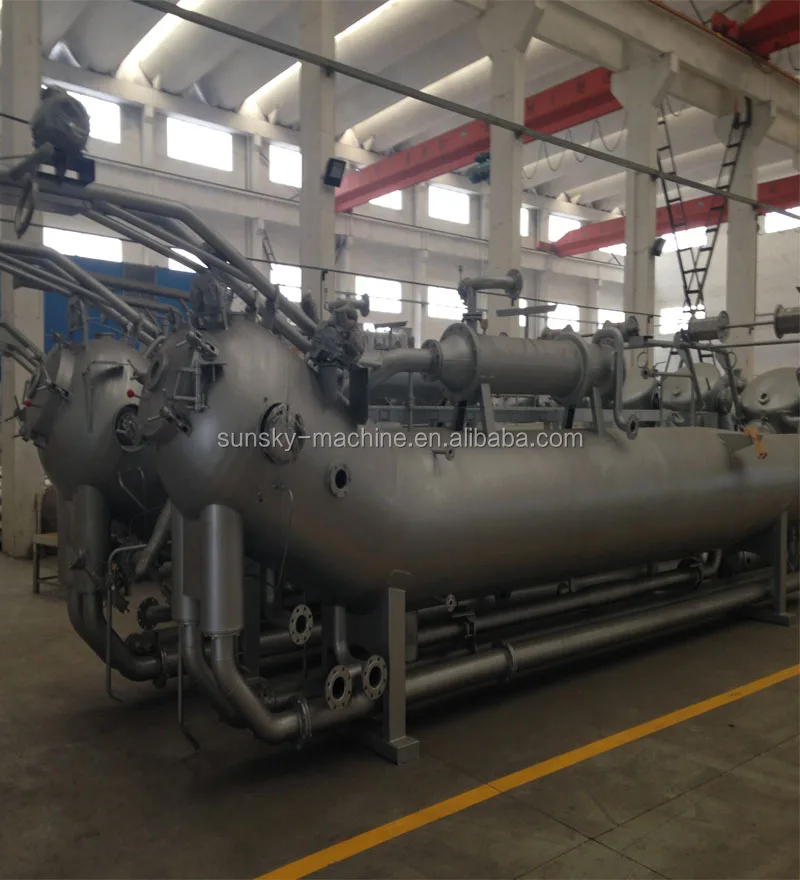

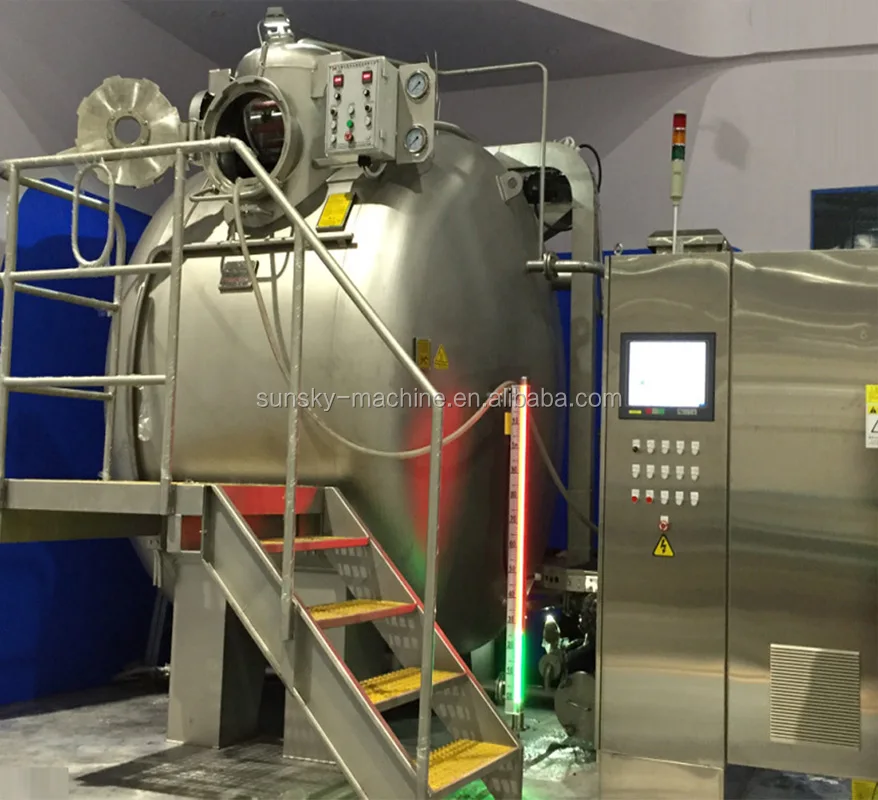

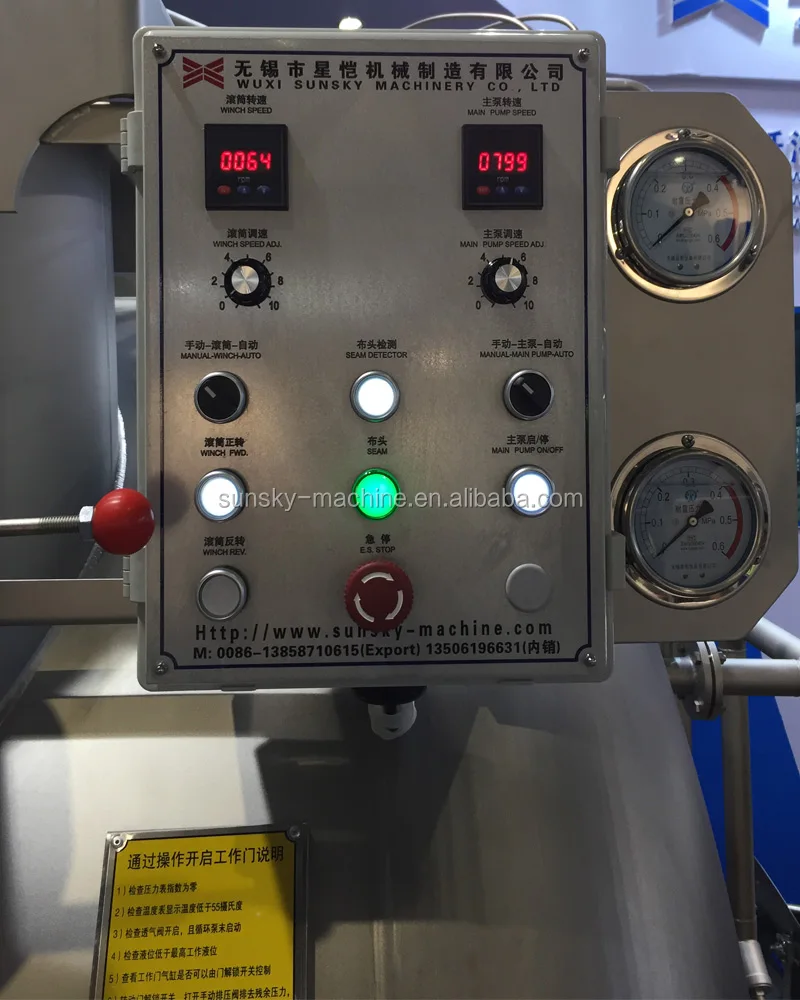

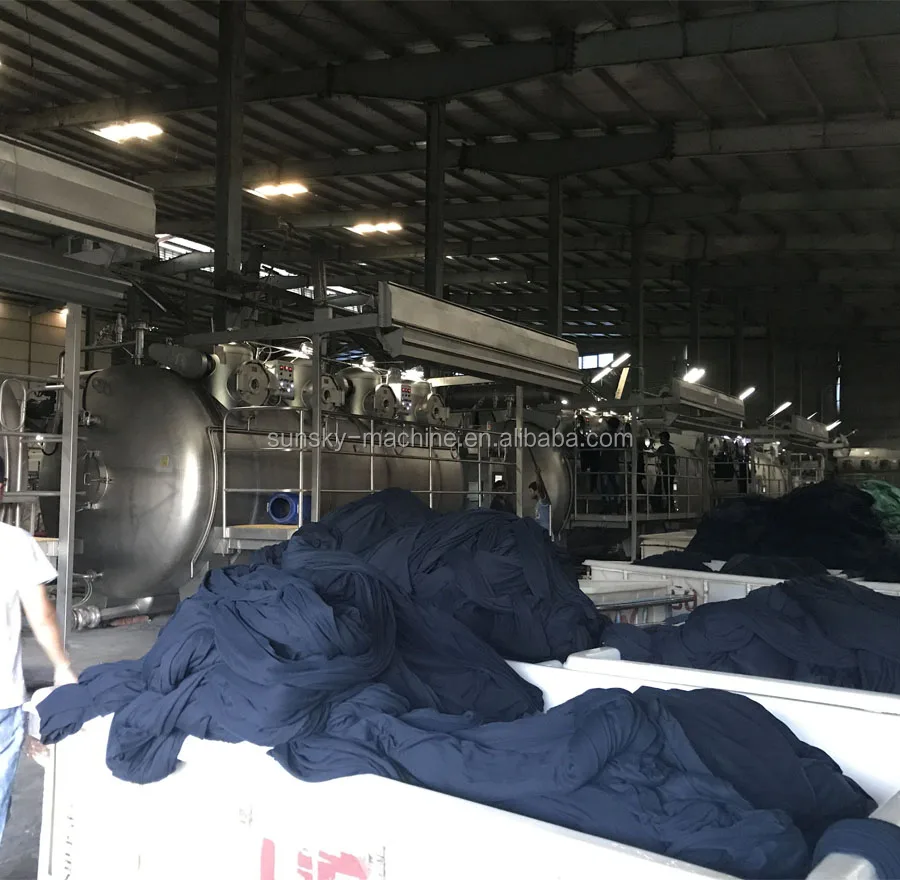

Detailed Images

Packaging & Shipping

Our Services

Your any inquiries will be replied within 12 hours.
We offer you professional service in fluent English.
Quality: we have QC on each process in production.
We will give the right schedule and quality machine.
Without man-made faults,the warranty is 18mths,spare parts can be replaced within 3months since the delivery of dyeing machine.
Engineers available to service machinery overseas,commissioning and technical support,etc.
