Product Overview

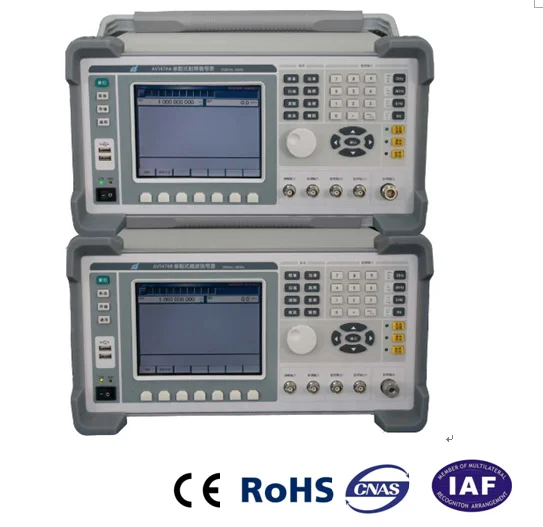

AV1476A/AV1476B Microwave Signal Generator is a military electronic measuring instrument, mainly used for the detection, maintenance and training guarantee of modern electronic warfare equipment, with multiple modulation systems, and it can not only be used as a common signal generator but also realize the analog generation of multiple complex signals in communication, radar and navigation etc. as well as can be edited to generate specific signal mode according to actual demand so as to apply to more occasions. In particular, it is also designed with shortcut key of special functions for the convenience and flexibility of operation.

This Microwave Signal Generator has self-checking and calibration functions, and store/recall function which simplifies the complex operation of special function button; has compound modulation and power output control functions, and CW, amplitude modulation, frequency modulation, phase modulation, pulse modulation and frequency agile output functions, can analog multiple general and special system signals in radar and navigation etc. and has the radar signals analog output capability of pulse modulation, pulse agile, PRF jittering and PRF staggering etc. multiple special systems; it is also designed with GPIB, USB, LAN, and RS232 remote control interface for flexible setting configuration, function optimization and upgrade, which could be more attuned to user’s needs.



Main Features:

1Hz frequency resolution
Microsecond fast frequency hopping ability
Wide dynamic range of power and high power accuracy
Digital baseband signal generation and vector modulation
Frequency modulation/Amplitude modulation/Phase modulation/Pulse modulation and Compound modulation
Multiple radar signal analog capability
Programmable capability of some complex signal
Built-in digital synthesis modulation source
Multiple sweep modes: digital step, frequency hopping, phase continuation


Microsecond fast frequency hopping ability

Frequency bandwidth is up to 60MHz, and frequency hopping rate is up to over 2000h/s, which can meet most frequency agility applications.

Wide dynamic range of power and high power accuracy
Dynamic range of output power is up to more than 120dB with high power accuracy so as to flexibly analog signal transmission in space and amplitude strength.

Multiple sweep modes: digital step, frequency hopping, phase continuation
Digital step sweep has main advantages of wide range of sweep frequency, frequency synthesis, checking the characteristics of wideband radio frequency device quickly and finishing the detection of wideband RF devices such as wideband filter, RF amplifier, mixer etc. quickly. Without discrete frequency step, phase continuous sweep can measure devices with high Q more quickly than digital step sweep and fast frequency hopping sweep, which guarantee not to lose some key peaks and depressions, therefore, it is especially suitable for the precise test for narrowband devices’ features.

Frequency modulation/Amplitude modulation/Phase modulation/Pulse modulation and Compound modulation
It offers multiple compound simultaneous modulations.
Amplitude modulation: frequency modulation, phase modulation; Frequency modulation: amplitude modulation, pulse modulation;
Phase modulation: amplitude modulation, pulse modulation; Pulse modulation: frequency modulation, phase modulation.

Digital baseband signal generation and vector modulation
Digital baseband signal generation and vector modulation offer multiple digital modulation modes including BPSK, QPSK, 2FSK, 4FSK and MSK. Communications signals that user requires can be generated by changing modulation mode, RB, filter form and filter coefficient etc., which is used for testing of receiver.

Multi radar signal analog ability
It can generate frequency agile signal, chirp signal, pulse PRF jittering, PRF staggering signal and antenna sweep analog signal etc., as well as can analog continuous wave radar, frequency agile radar, pulse compression radar, pulse PRF jittering radar, pulse PRF staggering radar and pulse Doppler radar.

Data transmission, communication and printing functions
With multiple communication modes such as network interface, USB interface and GPIB interface etc., waveform files can be operated by remote control through the network interface and USB interface.

USB interface
With fast USB interface that is plug and play and can realize storage and recall of files quickly or software upgrading of instrument, the instrument supports U disk and MP3.with protocol 1.0

Network interface
With the network interface, the instrument software can be upgraded quickly. Computer can be connected directly or through Huber with more than two holes with the instrument for remote control.

GPIB interface
With GPIB interface, computer can realize remote control to the instruments, as well as compose test system with other instruments so as to realize automation of testing.

Typical Applications :

Military communication and radar countermeasures are important parts of modern electronic warfare. Electronic counter reconnaissance is an important aspect of electronic countermeasure, which mainly works as the reconnaissance and receiving, interception and identification of electromagnetic signals ,in order to obtain communications signal, radar signal, navigation signal and satellite communication signal etc. and can further analyze enemy’s weapon station of radar and hand radar and technical parameters of radar guidance weapon system or wireless communication system as well as military deployment condition, so as to guide our army electronic interference equipment to carry out electronic interference, electronic spoofing and electronic attack to the enemy for the purpose of weakening and destroying the operational effectiveness of enemy’s electronic system. The working frequency of modern communication receiving equipment covers shortwave and ultra-short wave. The main technical features of AV1476 Series Signal Generator include frequency hopping, digital modulation and spread spectrum etc., wherein digital modulation modes include multi-system and multi-purpose radar of which working modes include common pulse radar, common continuous wave radar, frequency agile radar, chirp radar, PRF staggering radar and PRF jittering radar etc. The instrument is mainly used for the function test of reconnaissance equipment of communication countermeasure, radar countermeasure, navigation countermeasure and satellite countermeasure, etc. types as well as offer analog signals for troop operators in training.

Technical Specifications:

Product model	AV1476A	AV1476B
Frequency range	250kHz ~ 3GHz	50MHz ~ 18GHz
Frequency resolution	1Hz	1Hz
Power accuracy	±1.2dB (-10dBm ~ +10dBm)	±1.2dB (-10dBm ~ +5dBm)
Stable amplitude power range	-110dBm ~ +10dBm	-110dBm ~ +5dBm
SSB phase noise	-90dBc/Hz (1GHz, 20kHz frequency offset)	-90dBc/Hz (10GHz, 100kHz frequency offset)
Frequency hopping rate	2000h/s	2000h/s
Frequency switching time	≤ 100μs(Sequence hopping)	≤ 100μs(Sequence hopping)
Frequency hopping frequency range	Maximum 60MHz	Maximum 60MHz
Max number of frequency hopping channel	8000	8000
Digital modulation format	BPSK, QPSK, MSK, 2FSK, 4FSK	BPSK, QPSK, MSK, 2FSK, 4FSK
RB	1kHz ~ 2MHz	1kHz ~ 2MHz
Modulation bandwidth		10MHz
Pulse PRF jittering		1% ~10%
Antenna beam		Sinx/x function in shape
Antenna sweep simulation cycle		300ms ~ 20s
Audio frequency output	10Hz ~ 400kHz	10Hz ~ 400kHz
Input port	10MHz external reference, AM input, PM input	10MHz external reference, AM input, PM input
Output port	N-type female - 50Ω impedance, frequency hopping synchronous output, AF output, (BNC-50Ω female), I/Q circuit input/output	SMA male - 50Ωinpedance, frequency hopping synchronous output,  AF output, (BNC-50Ω female), I/Q circuit input/output
Interface characteristics	GPIB interface, complied with the requirements of IEE-488 interface Fast frequency hopping bus interface: 25-core D-type female connector LAN interface USB interface	GPIB interface, complied with the requirements of IEE-488 interface Fast frequency hopping bus interface: 25-core D-type female connector LAN interface USB interface
Power supply	AC220V ±10%, 50Hz±5% Power consumption 200W	AC220V ±10%, 50Hz±5% Power consumption 200W
Dimensions	L×W×H = 360×515×177	L×W×H= 360×515×177
Weight	25kg	25kg

Ordering Information:
Main unit: AV1476A/AV1476B Microwave Signal Generator

Standard Configuration:

(1) Power Cord
(2) User’s Guide
(3) Certificate of Conformity
