MODEL NO.

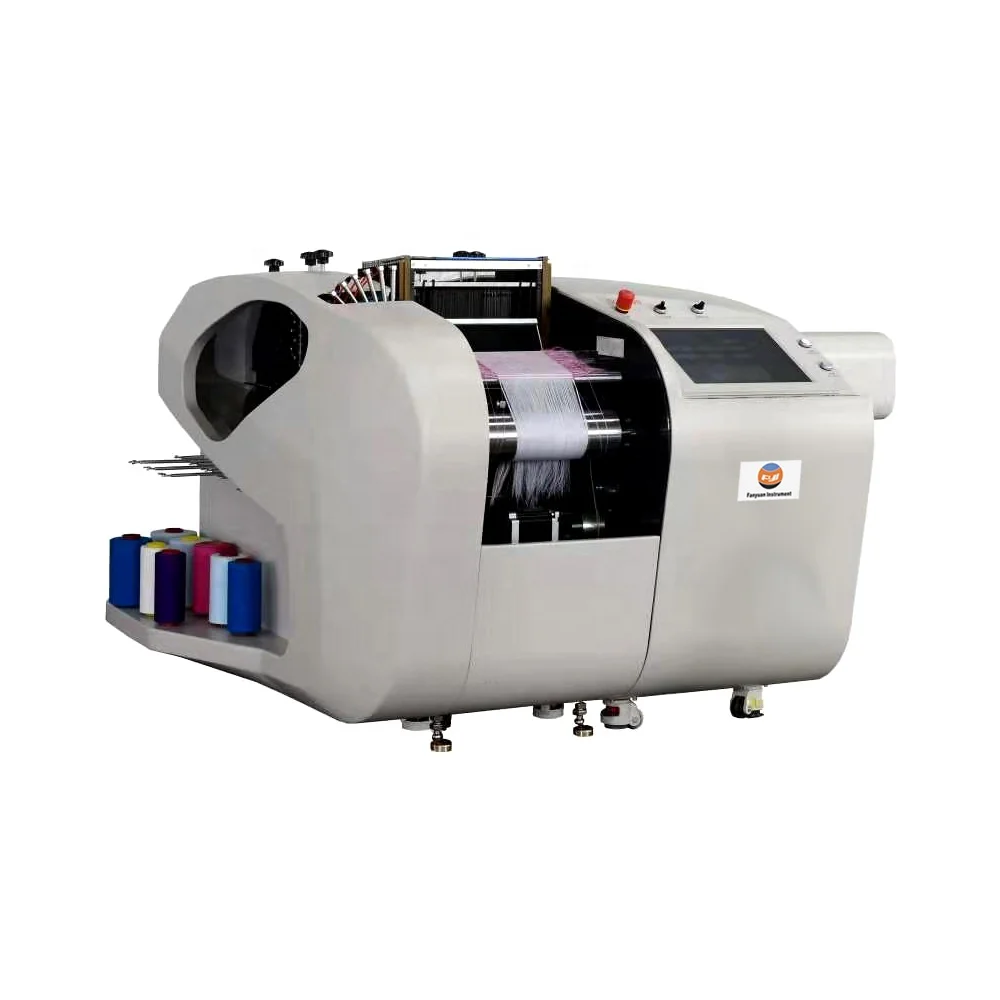

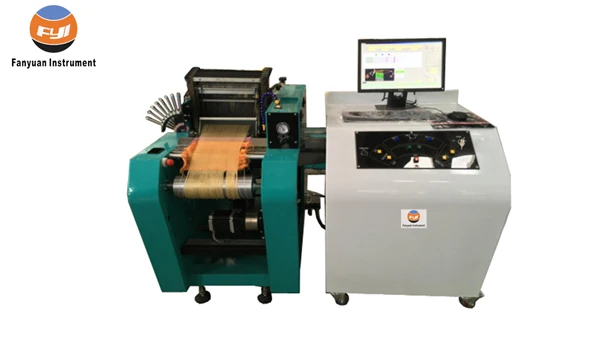

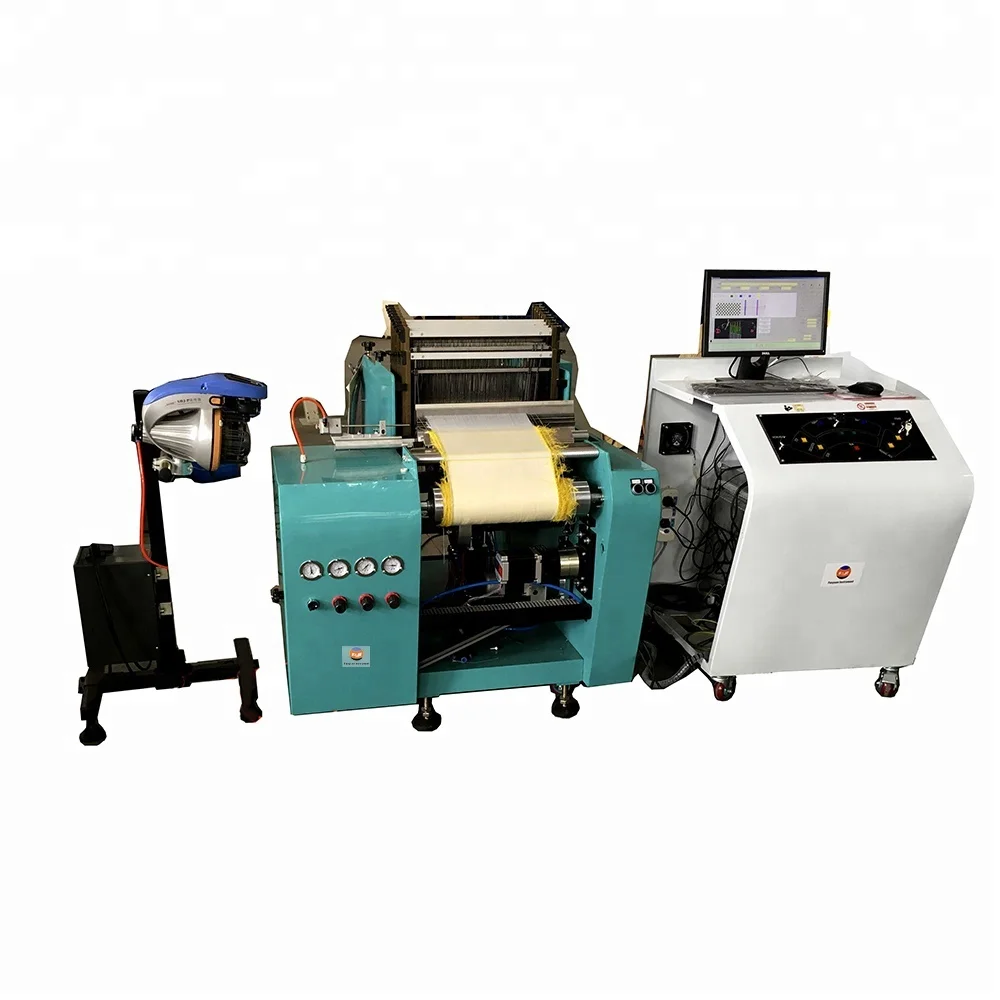

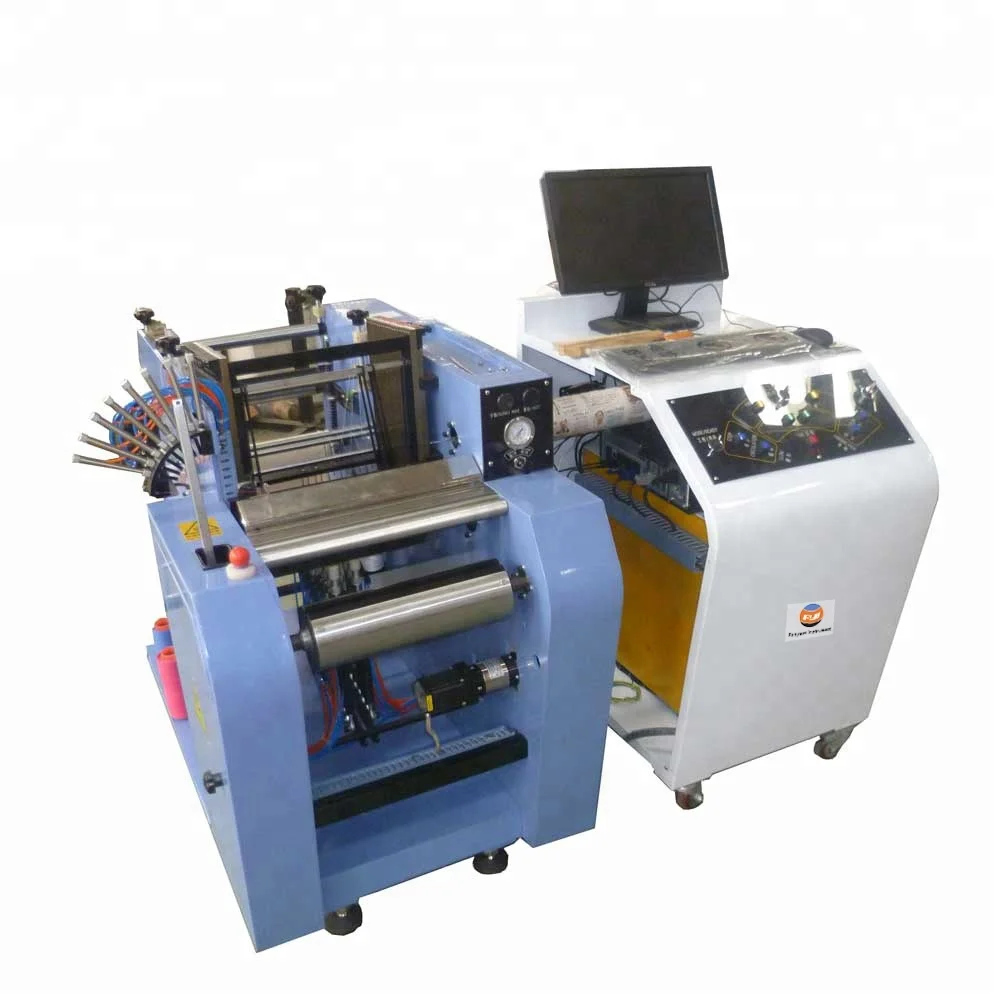

DW598   Automatic electronic weaving rapier loom



Application:

Automatic electronic weaving rapier loom is used for sample weaving of various fabrics, such as cotton, wool, flax, silk, chemical fibre, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, automatic weft selection mechanism, weft break stop motion, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.



Features:

l Consists of control part (computerized control platform) and mechanical part (loom);

l Weft inserting with rigid rapier, suitable for 7s~100s cotton, terylene/cotton, chemical fibre and other fabrics;

l Stepper motor driving let-off device, automatically adjust warp tension;

l Imported pneumatic control element, can control 20pcs heald frame at most, easy to mount and dismount heald frame;

l Heald frame adopts die drawing aluminium alloy profile, with hard oxidation wear-resisting treatment;

l Adjustable pneumatic controlled beating-up mechanism, large force and adjustable moment of force, suitable for fabrics of

       high count and high density;

l Electronic control take-up mechanism driving by imported stepper motor and reducer, 10~300pcs/inch of weft density.



Key Specification:

Reed width	12 or 20 or 24 inches (optional)
Yarn range	5-500tex
Speed	30~45 weft/min, adjustable
Color selection	8 color, full automatic,pneumatic control
No. of heald frame	4~20
Take-up	stepper motor control
Let-off	active electronic control
Shedding	computer control, pneumatic
Beating-up	pneumatic control or servo motor driving
Weft insertion	pneumatic control or servo motor driving
Air source
Pressure	0.45~0.75MPa
Air consumption	530L/min max. (12”), 630L/min (20”, 24”)
Power supply	220V, 50Hz
