Пожарный шланг DIN 14811 ISO 9001 ПВХ пожарный труба 200

Описание и отзывы

Трекер стоимости

Характеристики

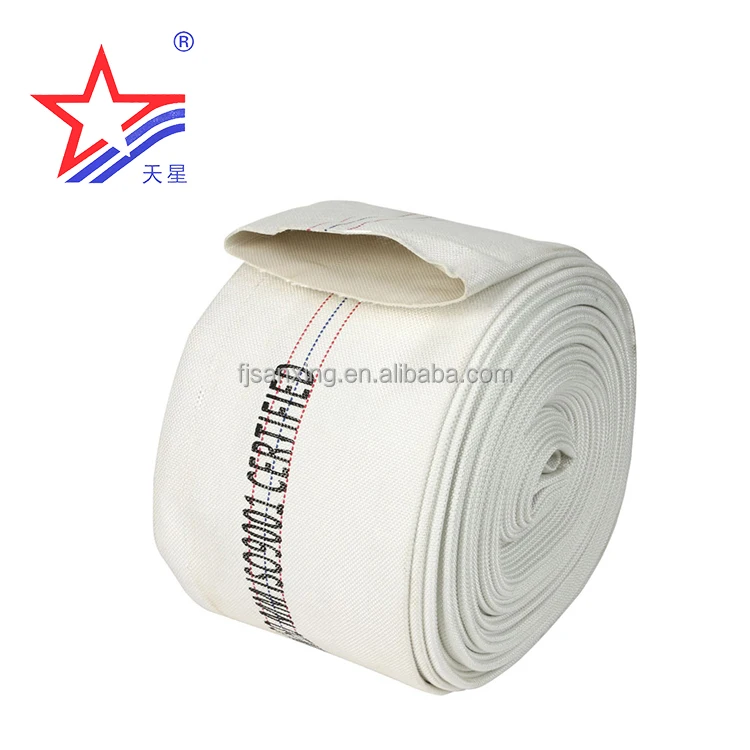

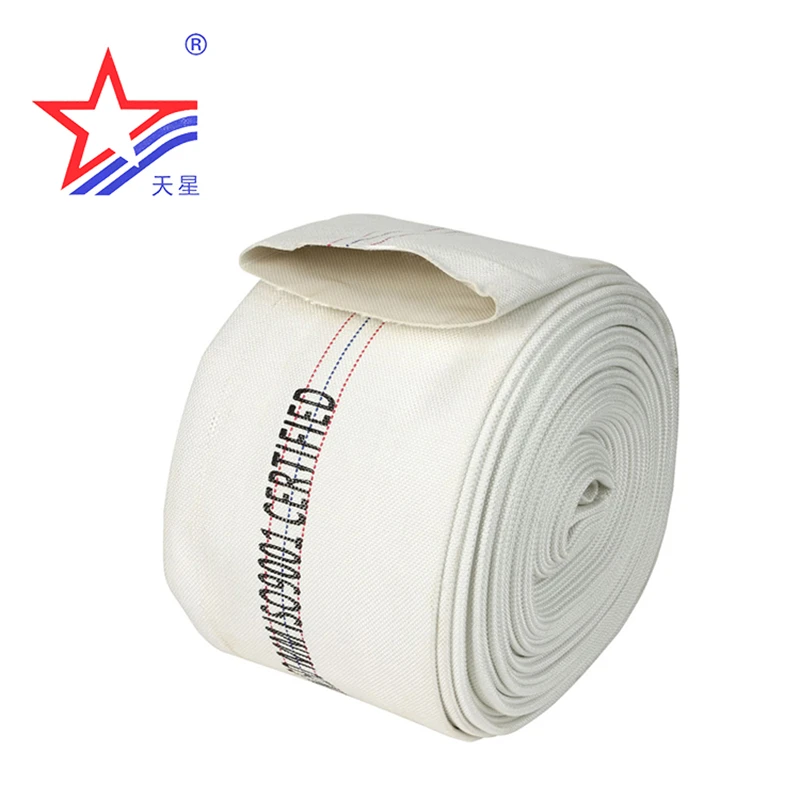

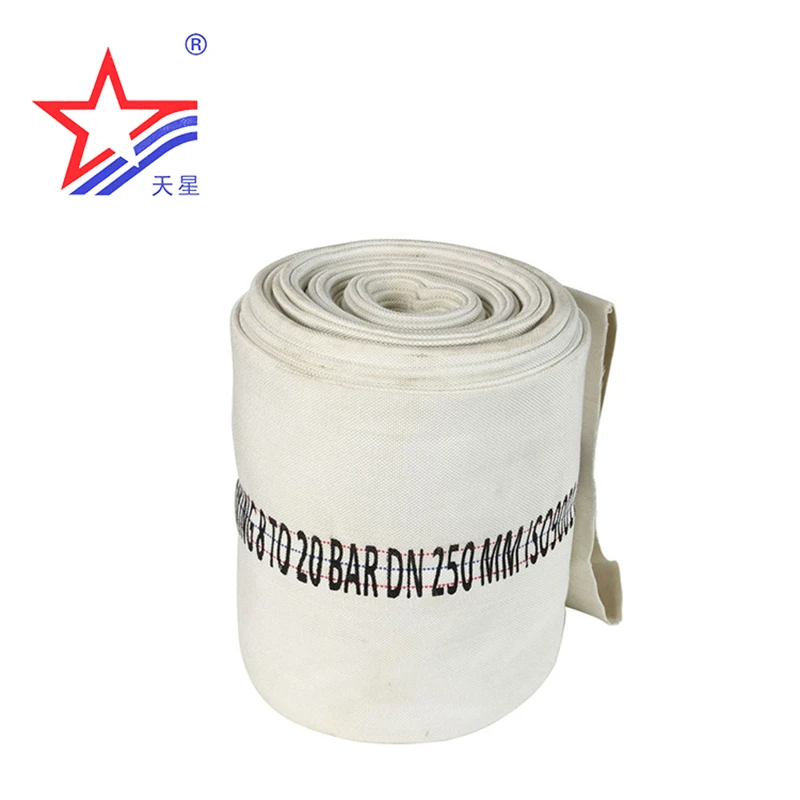

DIN 14811 ISO 9001 PVC Fire Hose Fire Fighting Hose Fire Hose Pipe 200MM:

1.PVC Lining

2.The jacket is polyester filament or polyester short-fiber.

3.There are special adhesive between the jacket and the hose. The DIN 14811 ISO 9001 PVC Fire Hose Fire Fighting Hose Fire Hose Pipe 200MM is soft and highly polished to reduce the flow resistance.

4.The DIN 14811 ISO 9001 PVC Fire Hose Fire Fighting Hose Fire Hose Pipe 200MM is thinner and more soft, lighter and more convenient to use.
5.High pressure resistance, low temperature resistance, anti-corrosion, aging resistance, wear-resisting.
6. Different color lining of DIN 14811 ISO 9001 PVC Fire Hose Fire Fighting Hose Fire Hose Pipe 200MM we can provide: blue, black, transparent, etc or according to your requirement.

7.The length of DIN 14811 ISO 9001 PVC Fire Hose Fire Fighting Hose Fire Hose Pipe 200MM we can provide: 10m - 30m or according to your requirement.



Technical Parameters:



Diameter (Inch/mm)	Working Pressure (MPa/BAR/PSI)	Testing Pressure (MPa/BAR/PSI)	Bursting Pressure (MPa/BAR/PSI)	Length (M/FEET)
1          25	0.8/ 8/120 1.0/10/150 1.3/13/195 1.6/16/240 2.0/20/300	1.2/12/180  1.5/15/220 2.0/20/300 2.4/24/360 3.0/30/450	2.4/24/360 3.0/30/450 3.9/39/580 4.8/48/720 6.0/60/900	10 15/50 20 25 30/100
1-1/2     40
2          50
2-1/2      65
3          80
3-1/2      90
4         100
4-1/2     115
5         125
5-1/2     140
6         150
8         200
10        250
