APPLICATION

 Used for Electromagnetic flowmeter



SPECIFICATIONS

Power supply:	220VAC/24VDC/85-264VAC
Operating temperature:	-20~70 Degree ( with LCD)
Support:	50Hz or 60Hz
Reistance range	30-110 ohms







FEATURES

 1,  Intelligent Excitation: Sensor resistance ranges from 30 to 110 ohms. The excitation voltage can be automatically adjusted according to the impedance, which can reduce heat of the circuit board and the temperature drift.

 2, Real-time drift control technology: Eliminate automatically the potential drift of measuring electrode and the amplifier circuit drift.

 3,  Turndown ratio 150:1

 4,  Multiple variables can be displayed simultaneously: instantaneous flow, total flow, flow rate, positive flow, negative flow, and the alarm state.

 5,  Data backup and restore.

 6,  Various alarm functions: support excitation, pipes empty, upper and lower alarm.

 7,  Small flow linear correction functions: Support small flow four-point linear correction.

 8, Converters and sensors coefficients can be set independently. Converter interchangeable.

9, Various output interfaces are available:

         Analog output: 4 ~ 20mA or 0 ~ 10mA current loop output

         Pulse or frequency output

         Switch alarm output

10,  RS485 communication, or HART communication option , PROFIBUS-PA communication;etc.

11,  Modular design, ensuring high reliability, consistency, and long-term stability.



The flow and the flow rate corresponding table:

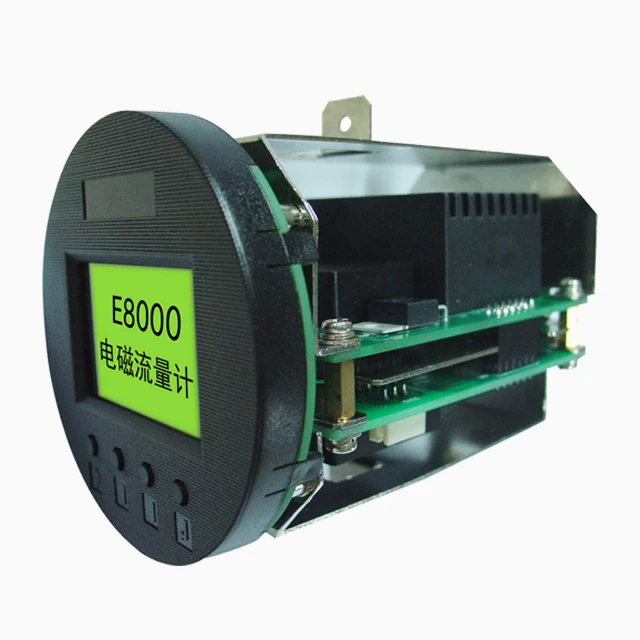

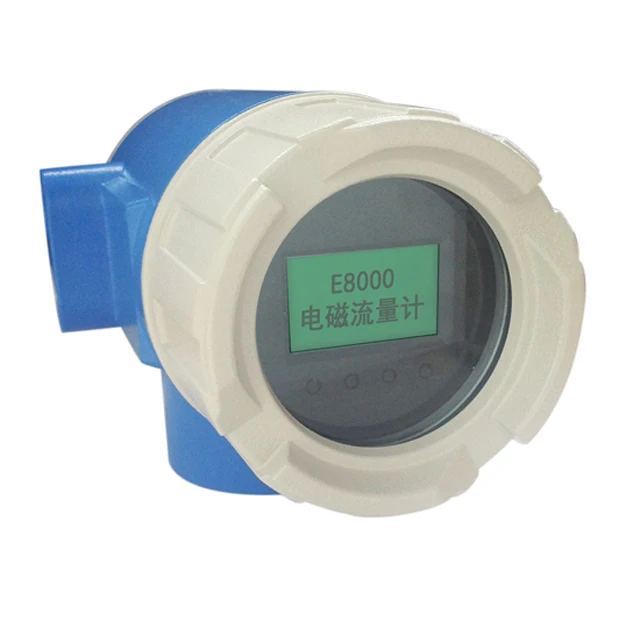

One-piece Intelligent electromagnetic circuit board



1, Various output interfaces are available: 4-20mA / 0-10mA / Pulse or Frequency output / RS232 or RS485-MODUSBUS interfaces.

2,  Dot matrix LCD 128*64, Chinese / English / Korea support.

3,  High-brightness(emerald) backlight for dark environment.

4,  Modular design, ensuring high reliability, consistency, and longer stability.

5, Product model series:

• E8000AR: 220VAC, RS485-MODBUS RTU, 4-20mA , 0-10 mA , Pulse/Frequency
• E8000DR: 24VDC, RS485-MODBUS RTU, 4-20mA , 0-10 mA , Pulse/Frequency
• E8000AH: 220VAC , HART, 4-20mA, Pulse Equipment /Frequency Output
• E8000DH: 24VDC, HART, 4-20mA ,  Pulse Equipment /Frequency Output

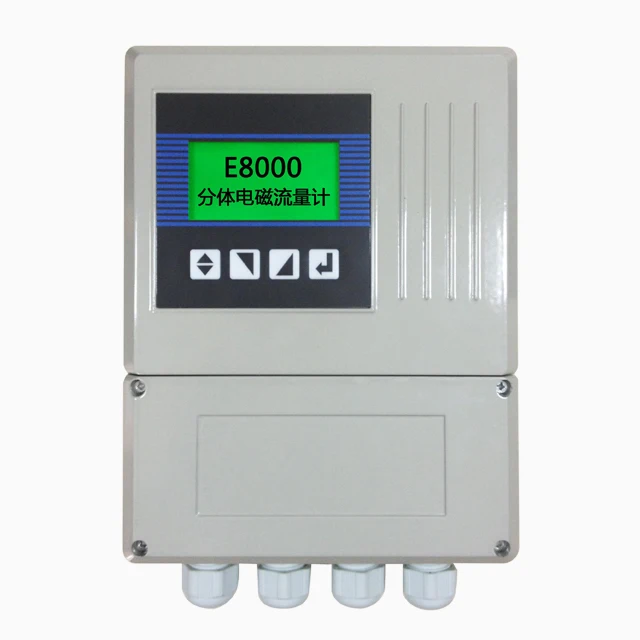

 Split type Intelligent electromagnetic circuit board



 1, Various output interfaces are available: 4-20mA / 0-10mA / Pulse or Frequency output , RS232 or RS485-MODUSBUS interfaces.

 2,  Dot matrix LCD 128*64, Chinese / English support.

 3,  High-brightness(emerald) backlight for dark environment.

 4,  Modular design, ensuring high reliability, consistency, and longer stability.

 5, Product model series:

•  E8000F-AR: 220VAC, RS485-MODBUS RTU, 4-20mA , 0-10 mA , Pulse/Frequency
•  E8000F-DR: 24VDC, RS485-MODBUS RTU,  4-20mA , 0-10 mA , Pulse/Frequency
•  E8000F-AH: 220VAC , HART, 4-20mA,  Pulse Equipment Output /Frequency Output
•  E8000F-DH: 24VDC, HART, 4-20mA ,  Pulse Equipment Output /Frequency Output



E8000 Wiring Terminal :
