Пневматическая гидравлическая тормозная машина для заклепок башмаков авторемонтных

Max riveting force : 60KN (6T)

Rated working pressure : 0.5-0.8MPA

Diameter of allowable rivet : 10mm

Effective travel distance of the traveler : 40mm

Height adjusting distance of the shoe iron bracket : 20mm.

Net weight: 85kg

Gross Weight: 100kg

Overall dimension (L*W*H) : 580*540*1440mm

1.Function Introduction

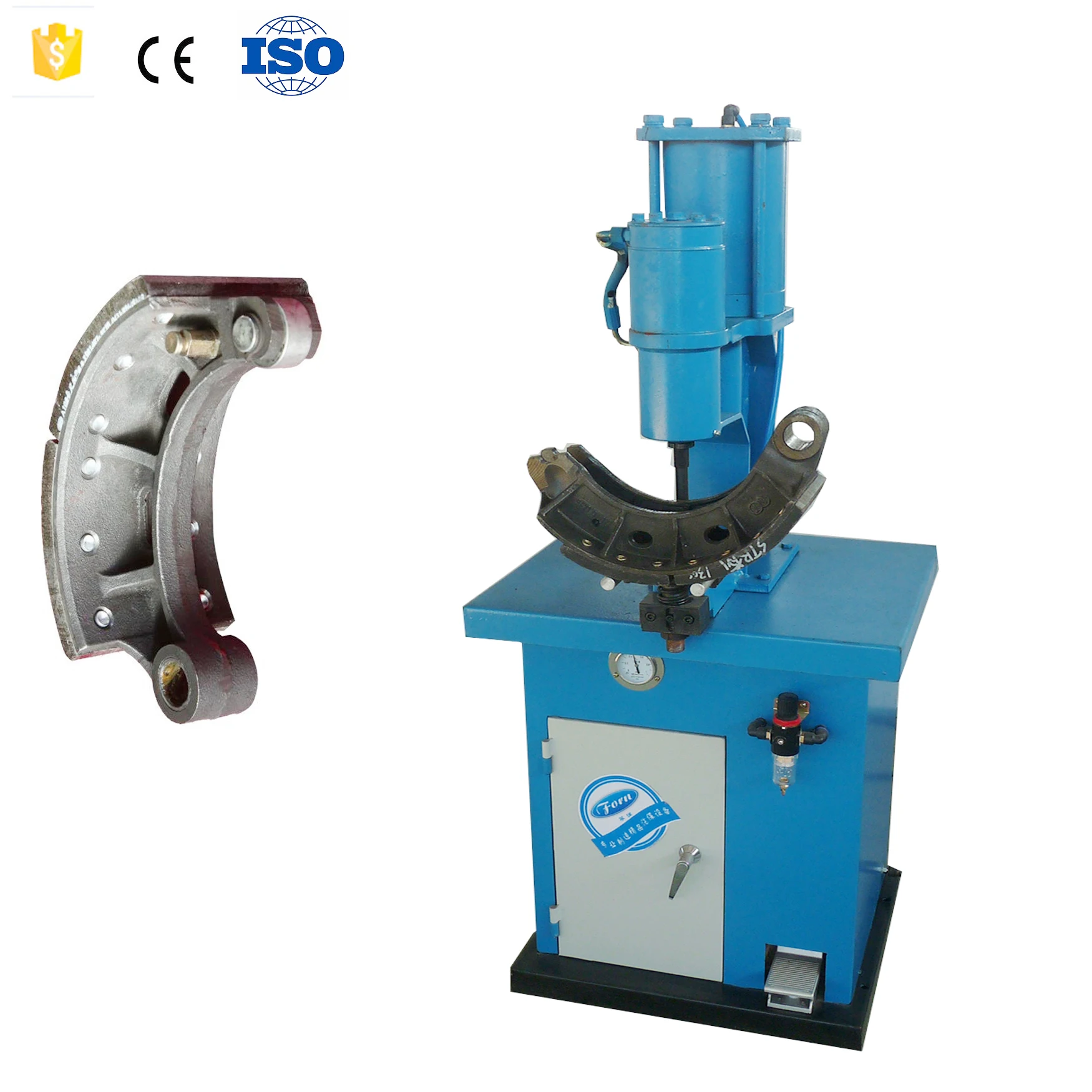

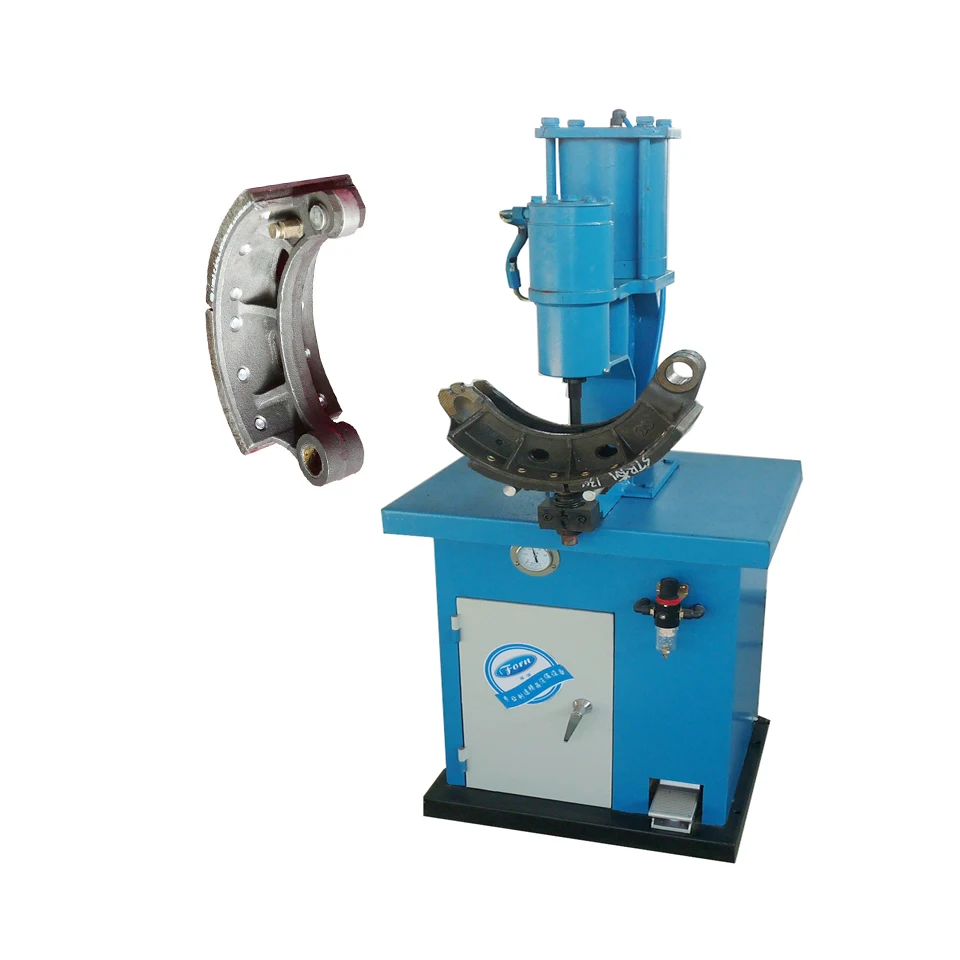

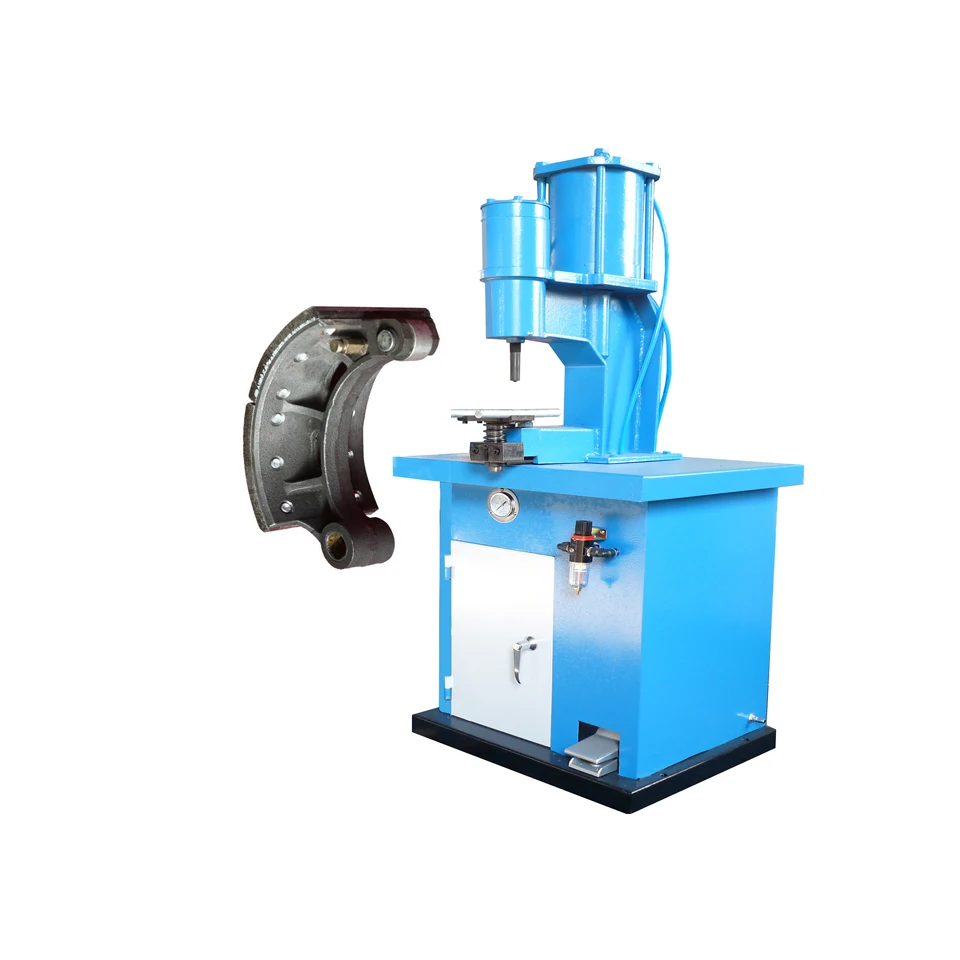

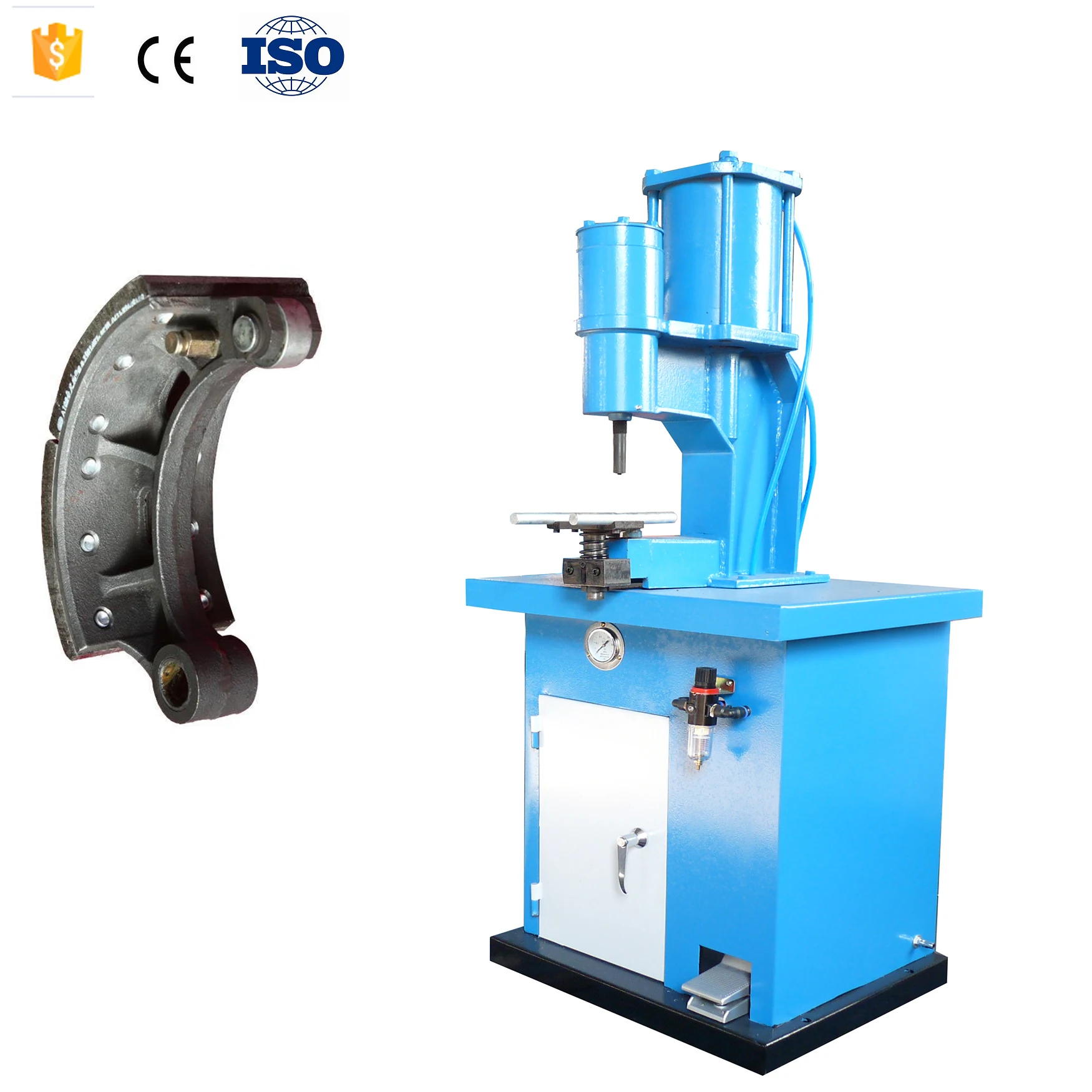

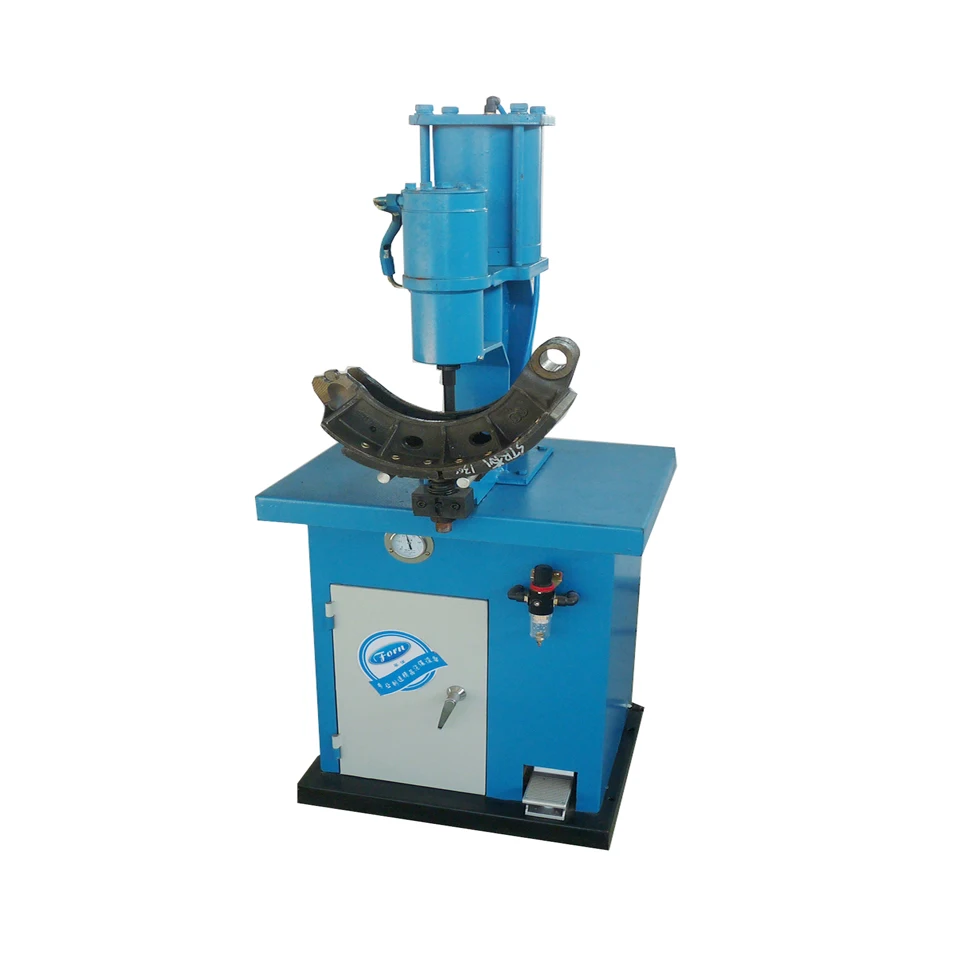

    Pneumatic - Hydraulic Vertical Brake Shoe Plate riveting machine (QYM-6 Model) is the latest special maintenance equipment developed by our company. It uses compressed air as its power source and makes the riveting by hydraulic pressure. It features novel structure, easy operation, stable center alignment and adjustable riveting force etc. Therefore it is suitable for riveting and punching of all kinds of truck braking shoe plate rivet, being copper or aluminum and also can used for riveting of other auto parts like clutch friction plate.

2. Technical Parameter

• Max riveting force : 60KN
• Rated working pressure  :0.5 -0.8MPA
• Diameter of allowable rivet :10mm
• Effective travel distance of the traveler :40mm
• 20mm Height adjusting distance of the shoe iron bracket : 20mm.
• Overall dimension (L*W*H): 580×540×1440mm

Table 1 Conversion between pressure gauge value and riveting force

Note1000kg.f=9.8KN
