Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Телескопическая стрела JMC для грузовика с высокой
- Категория: High-altitude Operation Trucks >>>
- Поставщик: Hubei,Jiangnan,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 41650.82 $* | 43733.97 $* |
| Aug-16-2025 | 41300.12 $* | 43365.70 $* |
| Jul-16-2025 | 34650.19 $* | 36383.76 $* |
| Jun-16-2025 | 40600.3 $* | 42630.25 $* |
| May-16-2025 | 35350.73 $* | 37118.22 $* |
| Apr-16-2025 | 39900.88 $* | 41895.0 $* |
| Mar-16-2025 | 39550.35 $* | 41528.0 $* |
| Feb-16-2025 | 39200.50 $* | 41160.49 $* |
| Jan-16-2025 | 38850.97 $* | 40793.84 $* |
Характеристики

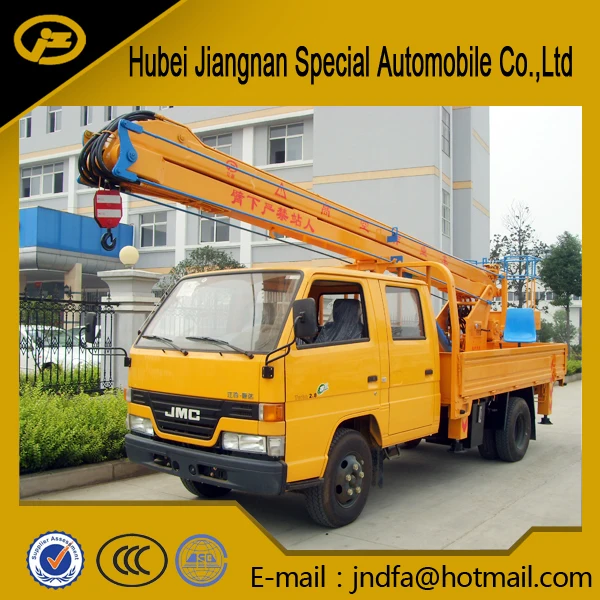

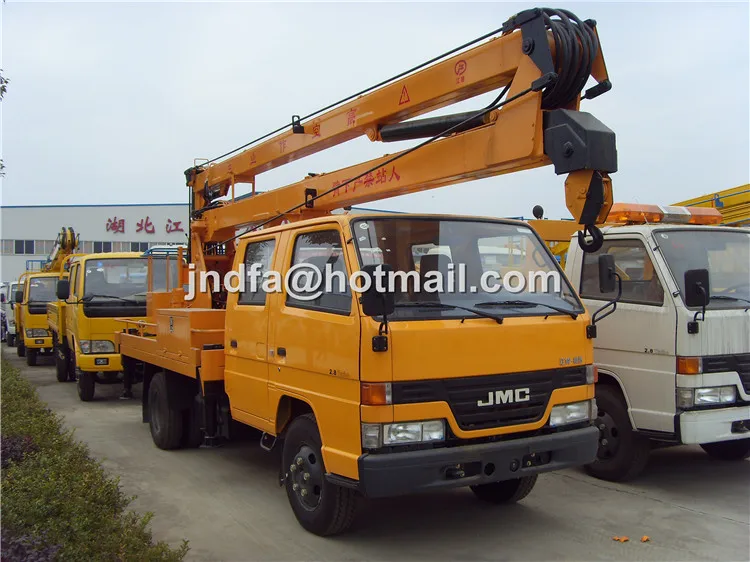

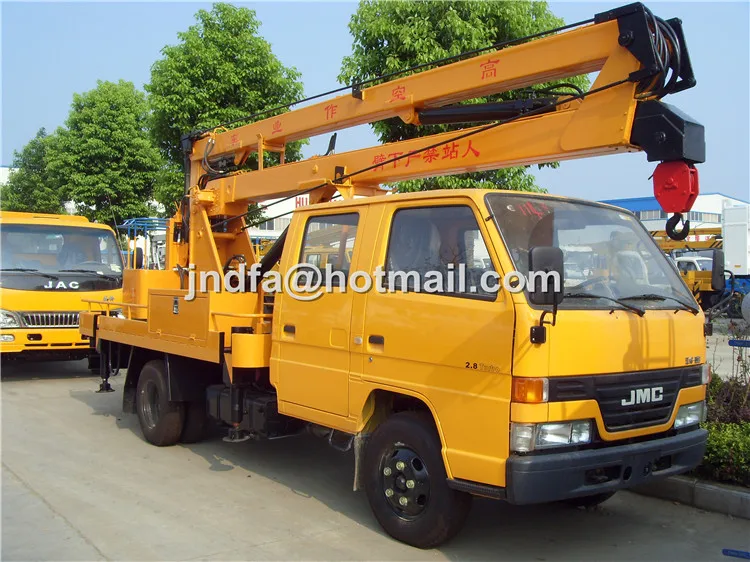

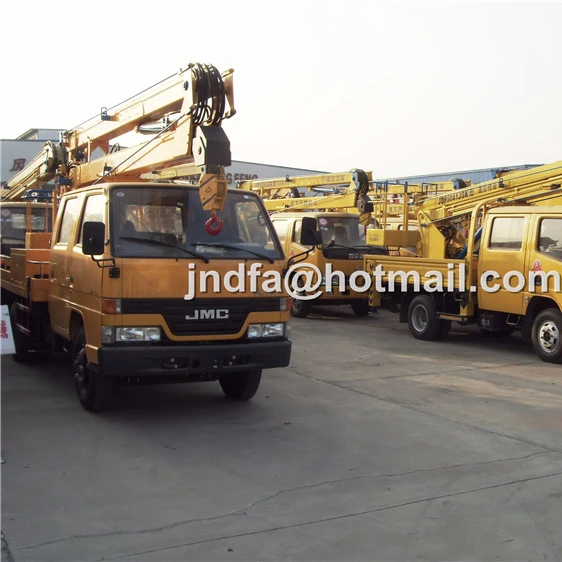

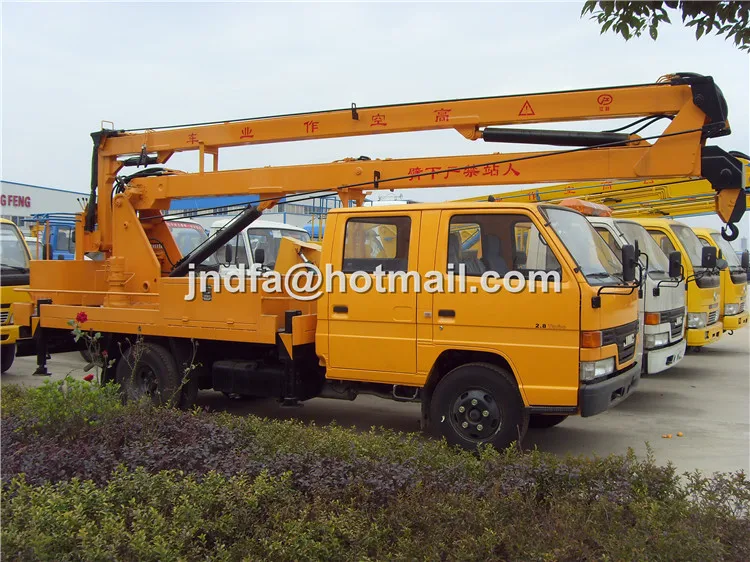

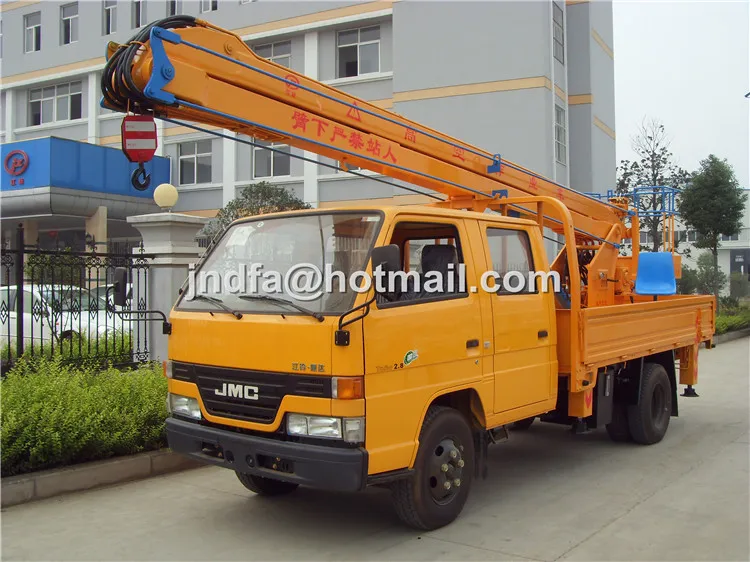

JMC telescopic boom hight platform truck with Folding arm
| Vehicle Name: | Aerial | Vehicle Category: | Special Purpose Vehicle |
| Chinese Brand: | Jiang special brand | English brand : | jndfa |
| Notice batch : | 230 | Exemption: | No |
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| JX493ZLQ4 | Jiangling Motors Corporation, Ltd. | 2771 | 80 |
| Engine brand : | Fuel type: | Diesel (mm) | |
| Dimensions: | 6750 × 1990 × 2960 (mm) | Compartment Size : | × × (mm) |
| The total mass : | 5450 (Kg) | Payload: | 0 |
| Curb weight: | 5125 (Kg) | Rated Quality: | (Kg) |
| Quality Trailer : | (kg) | Semitrailer saddle : | |
| Rated capacity : | ( People ) | Cab seats : | ( People ) |
| Approach / departure angle : | 27/14 () | Front / rear overhang : | 1015/1875 (mm) |
| Axle load: | 1800/ 3650 | Wheelbase: | 3360 (mm) |
| Number of axes: | 2 | Maximum speed: | 95 (km / h) |
| Fuel consumption: | Spring: | 7 / 5 +5 | |
| Number of tires : | 6 | Tire Size: | 7.00R16LT |
| Front track: | 1385 | Rear track: | 1425 |
| Brake Front: | After braking : | ||
| Built before the parade : | After operating system : | ||
| Steering Type : | Steering wheel | Starting method: | |
| Chassis Emission standard: | GB17691-2005 National , GB3847-2005 | ||
| Transmission Type: | According to the standard : | ||
| Vin Vehicle Identification Number: | LEFYFCG3 × × × × × × × × × | ||
| Logo Enterprises : | Changzhou Hua R Sheng Reflective Material Co. , 3M China Ltd. | Release date: | 20111020 |
| Vehicle Notes : | Reach : 500mm; hook for the option ; side protection and rear underrun protection device material Material : Q235, Connection: welded or bolted ; rear underrun protection device section size ( W × H ): 30 × 190 (mm) , rear underrun protection device ground clearance : 470mm. | ||
| JX1060TSG24 chassis parameters |
| JMC truck chassis | Jiangling brand JX1060TSG24 truck chassisSpecification | |||
| Company Name : | jndfa Jiangling Motors Corporation, Ltd. | ||
| Chassis Type: | JX1060TSG24 | Chassis Category: | II |
| Product Name: | Truck chassis | Product Brand: | JMC brand |
| Zip Code: | 330001 | Catalog number : | 61 |
| Specifications: | Length: 5850 Width: 1880 Height: 2020 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005 National , GB3847-2005 |
| Steering Type : | Steering wheel | ||
| Number of axes: | 2 | Wheelbase: | 3360 |
| Spring: | 7 / 5 +5 | Number of tires : | 6 |
| Tire Size: | 7.00R16LT | Tread : | Front track 1385 Rear track 1425 |
| The total mass : | 5835 | ||
| Curb weight: | 1900 | Quality Trailer : | |
| Semitrailer saddle : | Front passenger : | 2 +3,3 +3 | |
| Close to the departure angle: | 27/18.5 | Rear suspension : | 1015/ 1475 |
| Maximum speed: | 100 | ||
| Picture: | |||
| JMC truck chassis | Jiangling brand JX1060TSG24 truck chassisEngine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| JX493ZLQ4 | jndfa Jiangling Motors Corporation, Ltd. | 2771 | 80 |
| Identification code : | LEFYFCG3 × × × × × × × × × | ||
| Other: | |||
| JMC truck chassis | Jiangling brand JX1060TSG24 truck chassisOther Information | |
| JMC brand JX1060TSG24 truck chassis all models | JMC chassis using all models |
Certifications
factory show jndfa
customers visit
factory show
Trade Shows
Packaging & Shipping
Waxed before shipping , shipped by RORO or bulk ship
Our Services
Our factory product line:
Fire fighting truck , Aerial working platform truck , Road wrecker / tow truck / recovery truck , Truck mounted crane , road sweeper , Hooklift garbage truck , Skip loader waster truck , Refuse collection truck , Trash compactor truck , Refrigerator truck , Oil/fuel tank truck , water/sprinkler truck , Dump truck , Concrete mixer truck , Cement tank transport truck , Semi-trailer .
Director: Janet Zhang
Tel:0086-155 8888 8989 WhatsApp: 0086-155 8888 8989
We Chat:155 8888 8989 SKYPE:qosuozhang
Email: jndfa@hotmail. com
