Strengthen 4T Vacuum Sludge Sucking Truck, septic tank truck

we commit to kinds of sewage truck with different chassis, any inquiry please contact us.thank you.

Main specification
Product model and name	SZD5060GXWDA4 sewage sucking truck
Gross weight(Kg)	6495		Drive type			4X2
Curb weight(Kg)	3750		Overall dimension(mm)			6600X2200X2700
Approach/departure angle(°)	24/12		Cab seats			3
Axle No.	2		Front/rear hang(mm)			1210/1590
Axle load(Kg)	3390/5105		Wheelbase(mm)			3800
Max speed(Km/h)	99
Chassis specification
Chassis model	EQ1060		Manufacturer			Dongfeng Motor Co., Ltd
Brand name	Dongfeng		Dimension(mm)			6815×2080×2440
Tyre specification	7.50-16		Tire No.			6+1(one spare)
Steel spring number	8/10+7,11/9+7		Front track base(mm)			1770,1831,1740
Fuel type	Diesel		Rear track base(mm)			1586,1640,1610,1680
Emission standard	Euro 3		Transmission			5 forward gear
Cab	Singel row,3 person allowed with A/C and power-assisted steering
Engine model	Engine manufacturer				Displacement(ml)		Power(Kw)
CY4102-C3F	DongFeng ChaoYang Engine Co.,Ltd				3856		70 (95HP)
Tank body
Tank capacity(m³)		3.5		Tank material			QB235 Carbon steel
Main characteristic
The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time:≤ 5min; suction width:≥ 8m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.





 Product Description

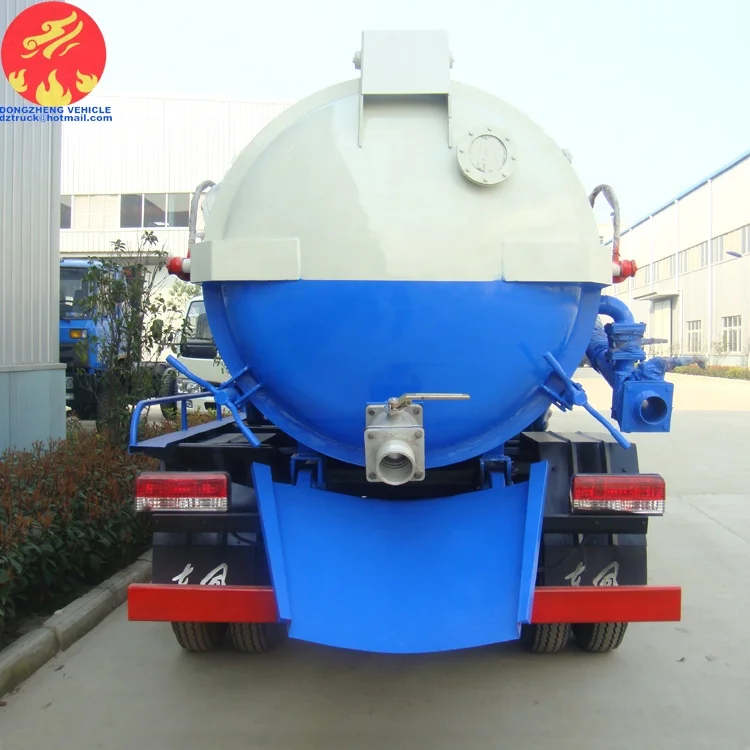

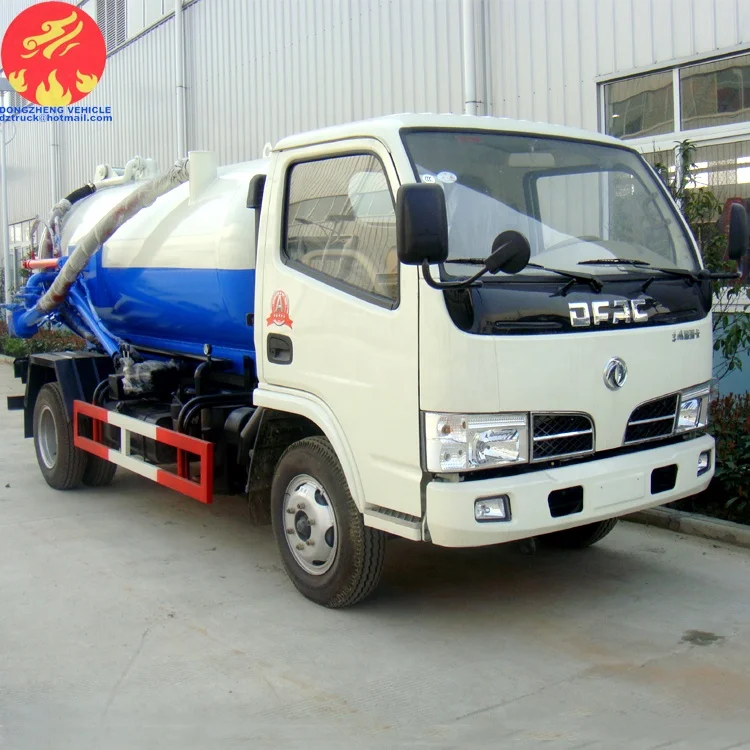

Pictures of our dongfeng DLK 6000liters sewage tanker truck





Other products of our company (Click the pircture as you interested in )
Dust suppression truck	Wrecker truck	Swing arm garbage truck
Compactor garbage truck	Water truck	Fecal sucktion truck



Our company specializes in producing Dongfeng series sewage truck, JMC series sewage truck, JAC series sewage truck,Qingling series sewage truck, FAW series sewage truck,Foton series sewage truck etc. Welcome customers all over the world to visit our factory!

Pictures of our fecal truck & sewage tanker truck as following:



We can modify the truck on the chassis that customers brought. The fecal and sewage truck we produce has the advantages of simple structure, convenient operation, high efficiency, high degree of mechanization and manpower saving.

Kinds of shipping way to provide you best protection of trucks and shipping cost

Q&A

1)Delivery time
Depend on the type of truck and the QTY and the shipping date,usually the truck can be ok on 10-20 working days.
2) Terms of payment
30% T/T deposit of contract amount before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
3) After-sales warranty

We provide one year or 25000KM warranty period under your correct  driving and using after customers' purchasing and  we can supply spare parts of the trucks for the whole life.



If you have any interest and need more information,pls feel free to let me know or give me an inquiry. We will give you better service as soon as possible.
