 Steel I-Beam Price List ,please  Contact us as below

COMMODITY: PRIME HOT ROLLED STEEL I BEAMS

SPECIFICATION:STEEL I BEAM

THICKNESS TOLERANCE:5-10%

BASED ON ACTUAL  EIGHT OR THEORETICAL WIGHT

We have  Steel I Beam 5 years exporting experience

We have more competitive price,and full size stock.

DETAILS AS FELOWING:(Steel I Beam)

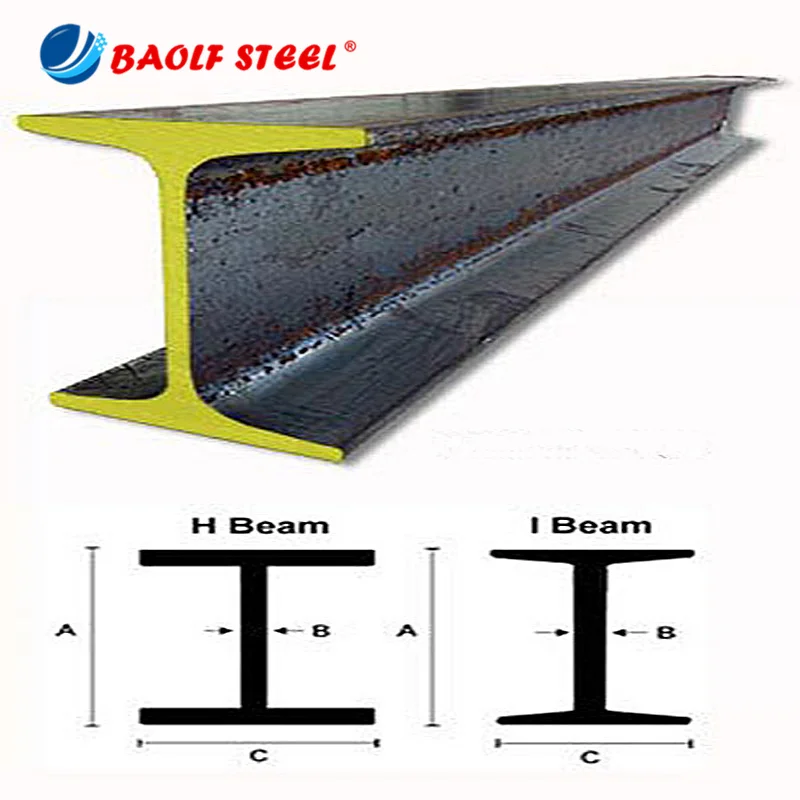

STEEL I-BEAM

Size	H(mm)	Tolerance (mm)	B(mm)	Tolerance  (mm)	Thickness (mm)	Tolerance (mm)	Weight (kg/m)
8#	80	±2.0	50	±2.0	4.5	±0.5	7.520
10#	100	±2.0	68	±2.0	4.5	±0.5	11.261
12#	120	±2.0	74	±2.0	5.0	±0.5	13.987
14#	140	±2.0	80	±2.0	5.5	±0.5	16.890
16#	160	±2.0	88	±2.5	6.0	±0.5	20.513
18#	180	±2.0	94	±2.5	6.5	±0.5	24.143
20A	200	±3.0	100	±3.0	7.0	±0.7	27.929
20B	200	±3.0	102	±3.0	9.0	±0.7	31.069
22A	220	±3.0	110	±3.0	7.5	±0.7	33.070
22B	220	±3.0	112	±3.0	9.5	±0.7	36.524
25A	250	±3.0	116	±3.0	8.0	±0.7	38.050
25B	250	±3.0	118	±3.0	10.0	±0.7	42.030
28A	280	±3.0	122	±3.0	8.5	±0.7	43.492
28B	280	±3.0	124	±3.0	10.5	±0.7	47.888
30A	300	±3.0	126	±3.0	9.0	±0.7	48.084
30B	300	±3.0	128	±3.0	11	±0.7	52.794



IPE BEAMS

Size	Depth xFlange width (mm)	Web Thickenss (mm)	Flange Thickness (mm)	Weight  (kg/m)
IPE100	100x55	4.1	5.7	8.1
IPE120	120x64	4.4	6.3	10.4
IPE140	140x73	4.7	6.9	12.9
IPE160	160x82	5.0	7.4	15.8
IPE180	180x91	5.5	8.0	18.8
IPE200	200x100	5.6	8.5	22.4
IPE220	220x110	5.9	9.2	36.2
IPE240	240x120	6.2	9.8	30.7
IPE270	270x135	6.6	10.2	36.1



IPE AA BEAMS

Size	Depth xFlange width (mm)	Web Thickenss (mm)	Flange Thickness (mm)	Weight  (kg/m)
IPEAA80	80x46	3.2	4.2	4.95
IPEAA100	100x55	3.6	4.5	6.72
IPEAA120	120x64	3.6	4.8	8.36
IPEAA140	140x73	3.8	5.2	10.05
IPEAA160	160x82	4.0	5.6	12.31





Chemical Composition & Mechanical  Propertie





RAW Material -Steel Billet Made from Hebei Iron & Steel Group
