Характеристики

Drawing machine

Steel Wire Inverted Vertical Drawing Machine

The inverter vertical type wire drawing machine is specialized for drawing big diameter of high/medium/low carbon steel wire and stainless steel wire rod.

Line characters:

1, Combining wire drawing and take-up functions in one machine.
2, Wire drawing and take-up mechanisms are driven by independent motor.
3, Designed for drawing big diameter of carbon steel wire and stainless steel wire

Product specifications:

Block diameter	600mm	750mm	850mm	1000mm	1200mm
Inlet wire size	3.0-7.0mm	6.5-9.0mm	8.0-12.0mm	12.0-18.0mm	18.0-25.0mm
Drawing speed	60-120m/min	60-120m/min	40-80m/min	40-75m/min	25-50m/min
Motor power	The motor power depends on wire materials and sizes

Block Diameter	800mm
Raw material	High/medium/low carbon steel; Stainless steel
Inlet wire size	5.5-12.0mm
Outlet wire size	5.0-11.0mm
Compression ratio	Max. 30%
Drawing speed	125m/min (Working speed)
Control method	SIEMENS PLC control

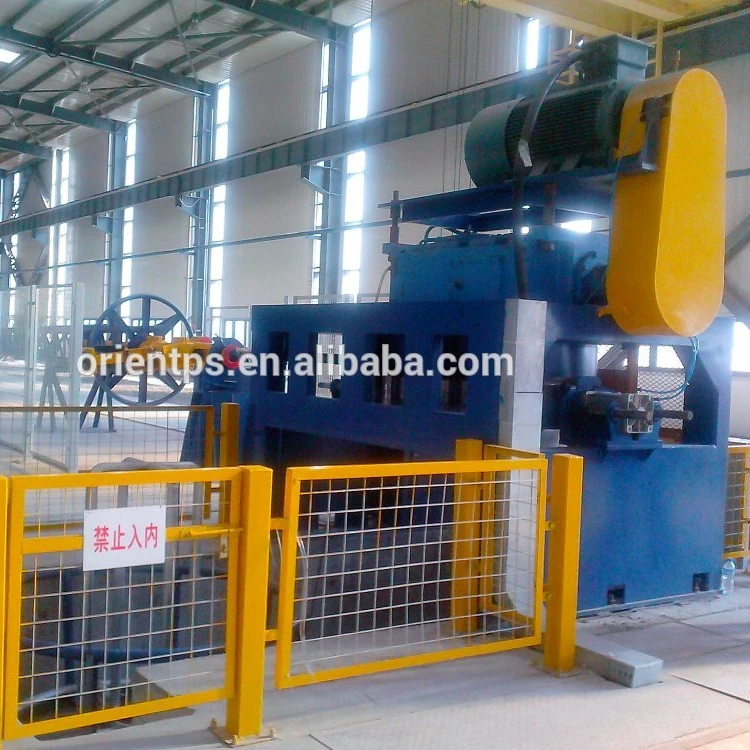

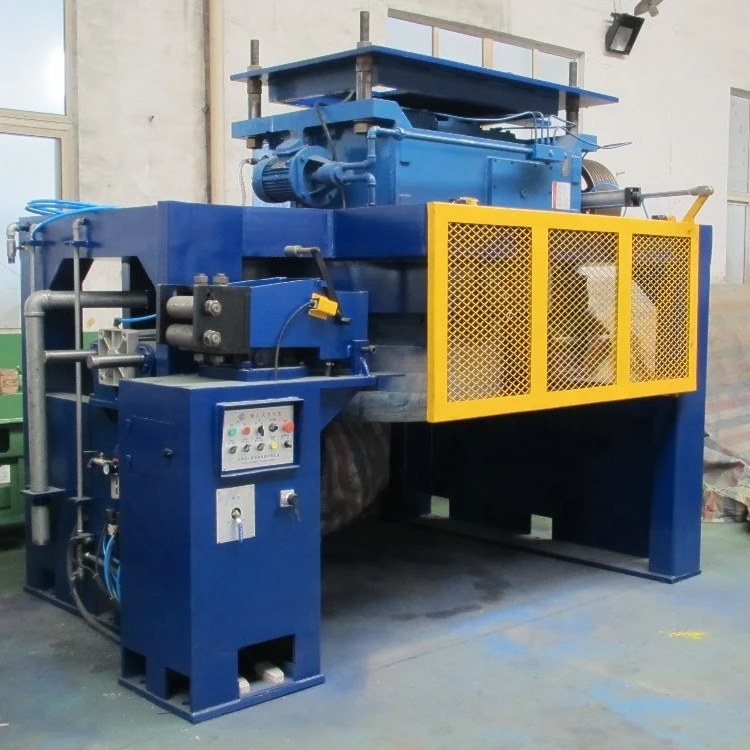

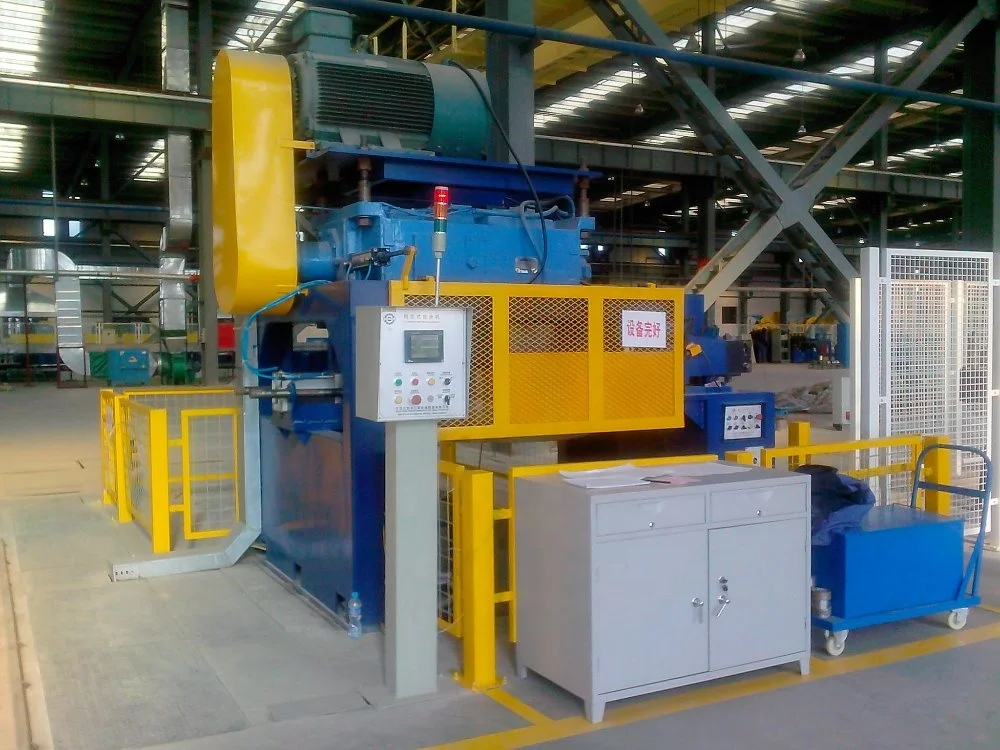

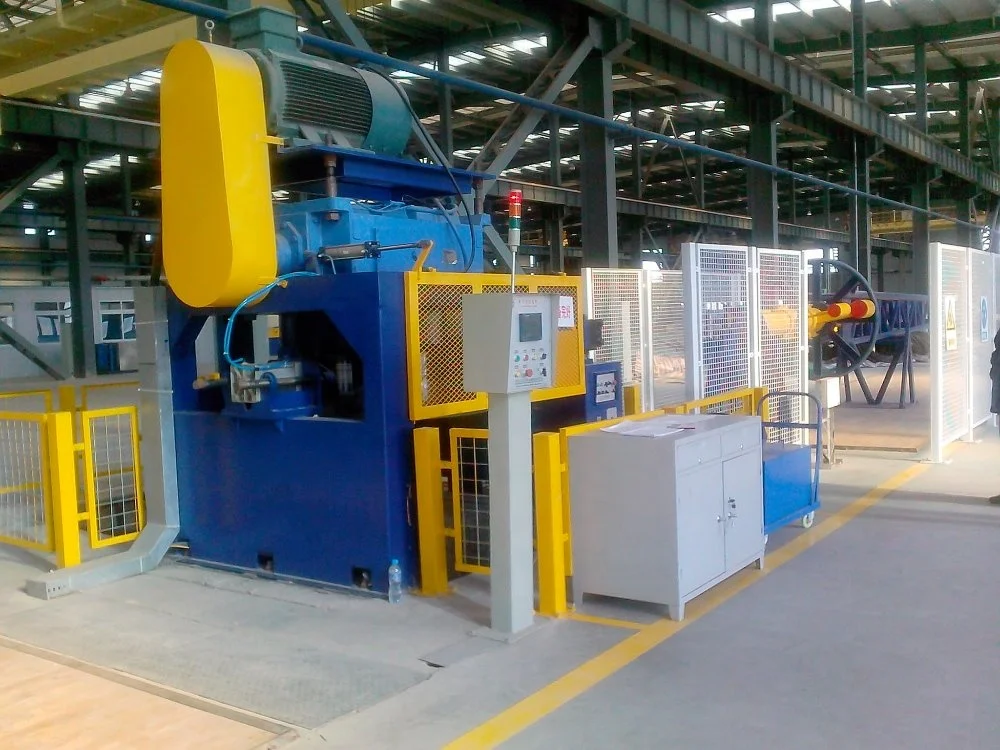

Main machine photos:

Main drawing machine part:

---Casted steel material for the blcok

---Tungsten carbide coated on block surface

---Adjustable die box

---High efficiency of water cooling for blocks and dies.

---NSK bearing for the block and reducer

---Whole line controlled by PLC program

Vertical pay-off

---1.5 tons of loading capacity

---Equipped with hydraulic station

---Equipped with Siemens motor

Coiler take-up

---500mm block size

---Equipped with straighteners

---Continuously for wire coiling

Electrical cabinet

DL 800 inverted vertical drawing machine

Loading to the containers

Our Service

Pre-sales Service

---Offer technical & commercial quotation

---Factory visiting

---Quick response for any questions

After-sales Service

---Provide technicians available to service overseas

---24hours service for customers

---Further technical communication

Packing & Delivery

Packaging
Size	3.23m(L)2.26m(W)3.15m(H)
Weight	6380KGS
Packaging Details	The normal package is wooden pallet (Size: LWH). the wooden pallet will be fumigated. The machine will be also pacakged with films to prevent dust and moist-proof.

Packaging
Size	2.55m(L) * 1.32m (W) * 2.40m (D)
Weight	2350KGS
Packaging Details	The normal package is wooden pallet (Size: LWH). the wooden pallet will be fumigated. The electrical cabinet will be packaged with fumigated wooden box. We can also make the packages according to customers requirements.
