Алюминиевый верхний стальной корпус вращающийся на 90/180 градусов автоматический Барьерный

Алюминиевый верхний стальной корпус вращающийся на 90/180 градусов автоматический Барьерный

Категория: Turnstile >>>
Поставщик: Bisen,Smart,Access,Co.,Ltd.,(Jiangxi)

Цена:345,00 $ - 450,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-18-2025	438.17 $*	447.29 $*
Jul-18-2025	355.60 $*	362.20 $*
Jun-18-2025	431.96 $*	440.30 $*
May-18-2025	428.66 $*	437.84 $*
Apr-18-2025	342.77 $*	349.0 $*
Mar-18-2025	421.52 $*	429.1 $*
Feb-18-2025	417.80 $*	425.95 $*
Jan-18-2025	414.56 $*	422.45 $*

Характеристики

Products Description

Model: (AC) Motor

Power supply: 220VAC 50HZ / 110VAC 60HZ
Motor's power: 90W 220VAC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20^oC-50^oC

Protection class: IP55

Model:(DC) Motor

Power supply: 220VAC 50HZ / 110VAC 60HZ
Motor's power: 80W 24VDC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20^oC-50^oC

Protection class: IP55

Control Board for AC Motor

Input terminals:

Photocell, Air wave switch, Loop detector, Toll gate system.

Output terminals:

Motor, Lamp

Control Board for DC Motor

Input terminals:

Photocell, Air wave switch, Loop detector, Back-up battery, Toll gate system.

Output terminals:

Motor, Lamp

Functions:

Reverse when meet obstacle.

Force of opening and Closing in adjustable.

Features：

1.-The traffic barrier is widely used for the facilities of parking, traffic or toll system.

2.-Arms can be chosen from 3 meters to 6 meters.

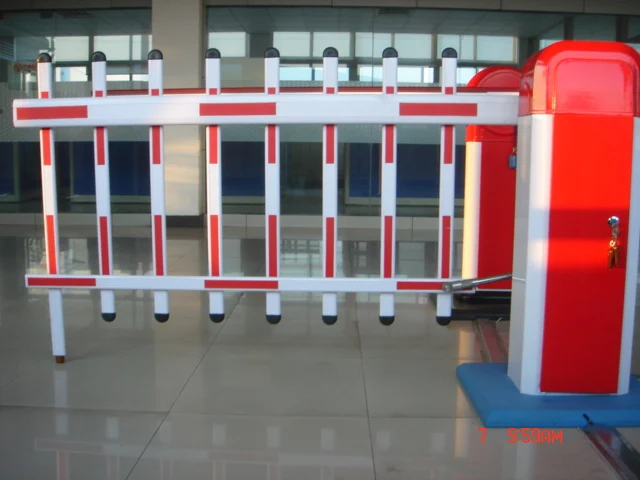

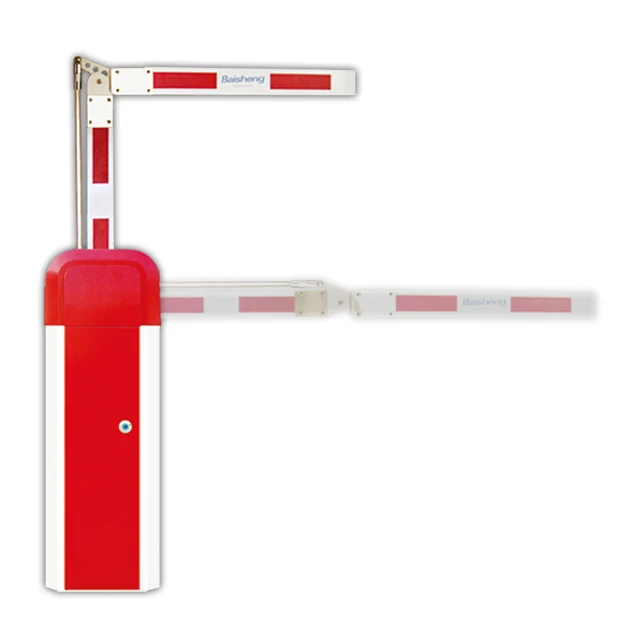

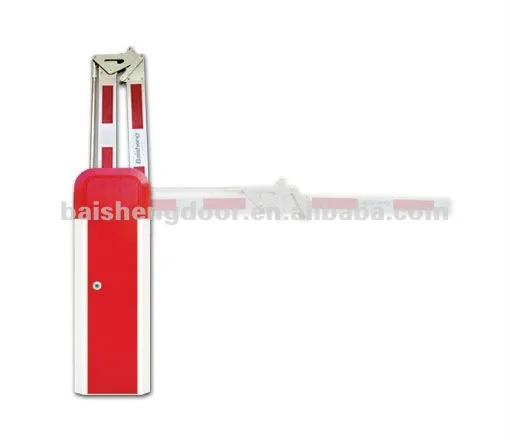

3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..

4.-Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.

5.-All the process is soft without any noise and shaking.

6.-This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.

7.-Housing color: yellow,red ,blue,orange,white (optional)

8.-Boom arm direction can be chosen leftward to rightward.

9.-Auto warming up,suitable for cold environment.

10-Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.

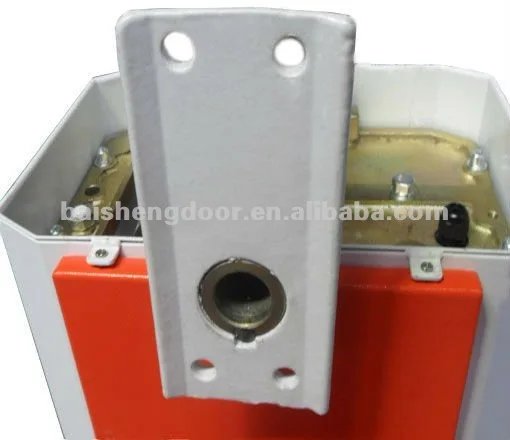

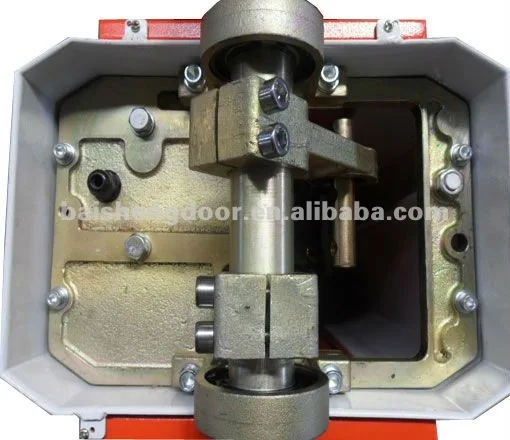

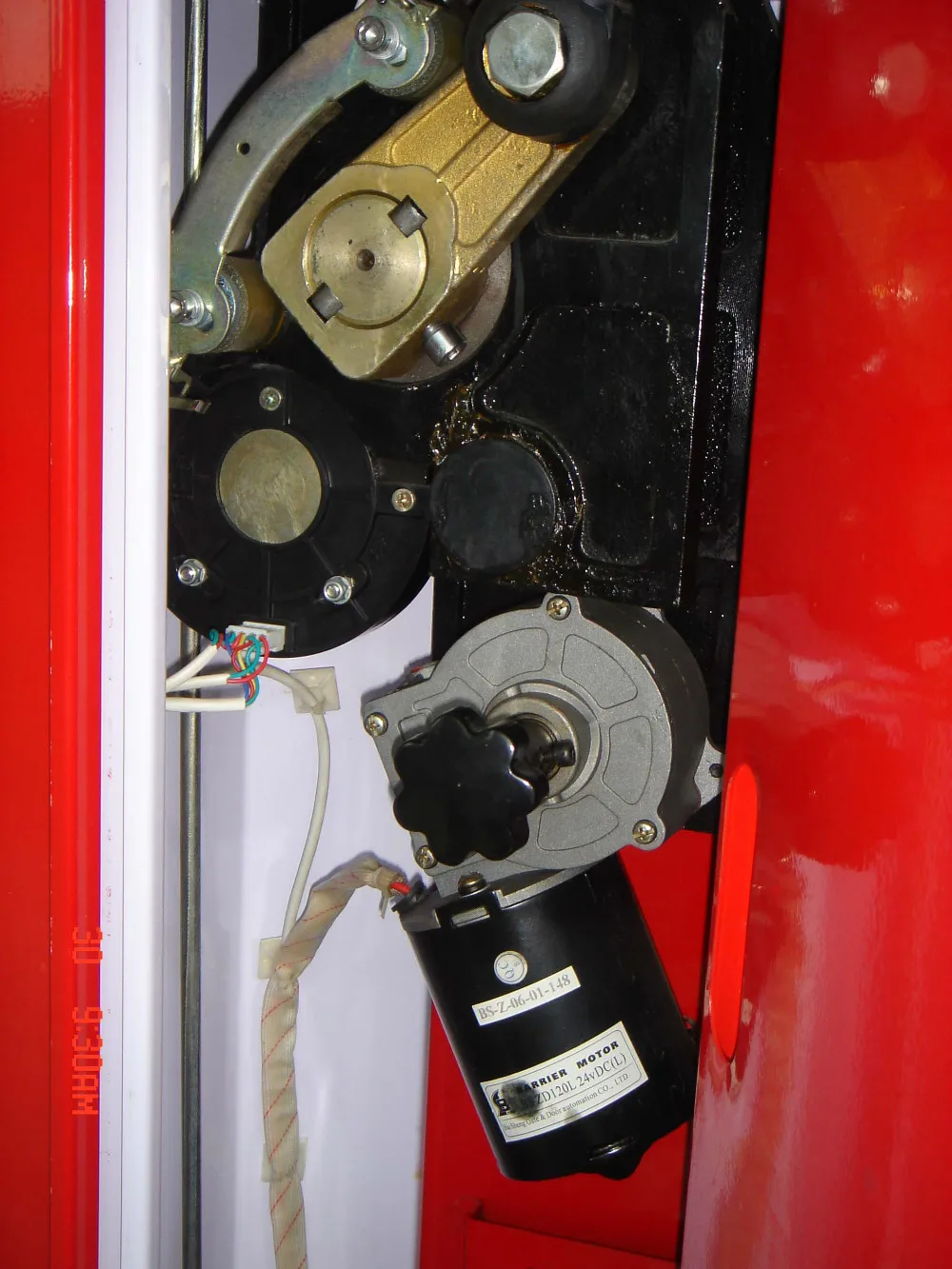

mechanism:

2 series mechanism

BS-106, BS-206, BS-306,

BS-406, BS-606, BS-806,

BS-3306, BS- 6306, BS-6706

3 series mechanism

BS-3306, BS-306, BS-606

7 series mechanism

BS-6306, BS-7206, BS-7306,

BS-7406, BS-7506。

Barrier Pole More……

Baisheng remote control parking barrier trouble shooting

Number	Trouble	Cause	Shooting
1	Motor of Barrier does not work	1,No power supply	1,Check power supply
				2,Break fuse	2,Change fuse
				3,Motor is damaged	3,Change the motor
2	Barrier can open but can not close	1,Photocell is not connected properly	1,Connect the photocell
				2,Photocell beam is block off	2,Clear out obstacle
				3,Photocell is broken	3,Change a new device
3	Barrier can open (close) but can not close (open)	1,Position of limit switch is not correct	1,Adjust position
3	Barrier can open (close) but can not close (open)			2,Limit switch is damaged	2,Change limit switch
4	Barrier can not locate accurately	1,Distance of limit switch is too large	1,Adjust position of limit switch
				2,Limit switch is wrong	2,Change limit switch
				3,Magnetic-stell’s position is wrong	3,Re-adjust the position
5	Release device of Barrier is doesn’t work	1,Operating handle is broken	1,Change the handle
5	Release device of Barrier is doesn’t work			2,Worm gears are jammed	2,Rotate the pinion
6	Push the “OPEN” button but the Barrier gate close	Whether “+MOTOR-” wires are connected wrong	Connect correctly according to wiring diagram
7	Motor of Barrier can work but boom can not work	Compression spring of clutch is dead	Change the spring

Product packaging

Accessories

Loop Detector

LD100 220VAC(±15) 50Hz

LD102 12/24VDC(±15)

Photocell(IR33)

Power supply:12-24V

Range:≤ 10m

Infrared Frequency: 1.92KHz

Input: RX15mA TX30mA

3 buttons wall switch

Fixed code

More……

Company Profile

BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.

We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.

Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
