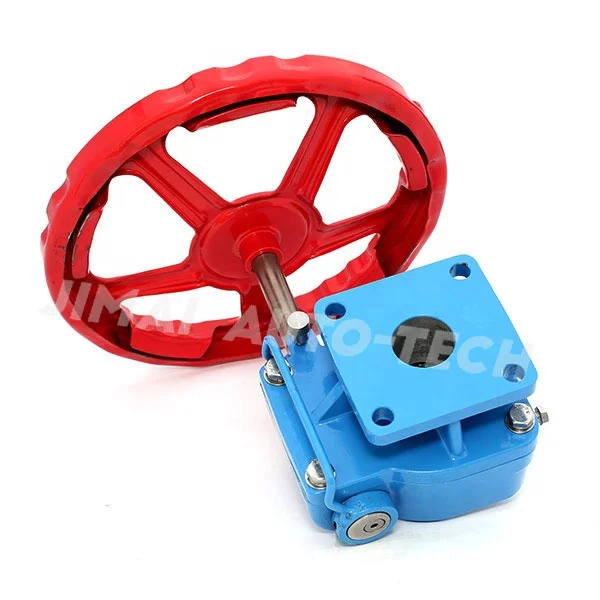

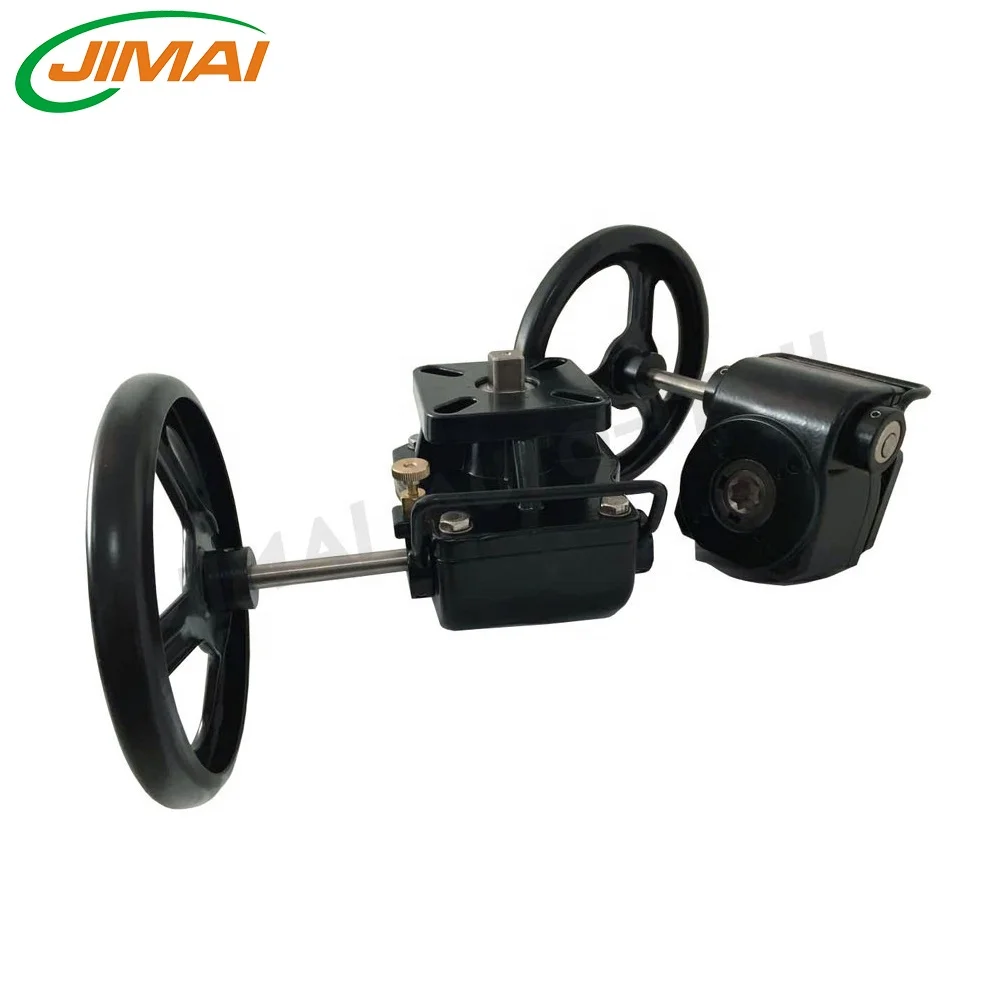

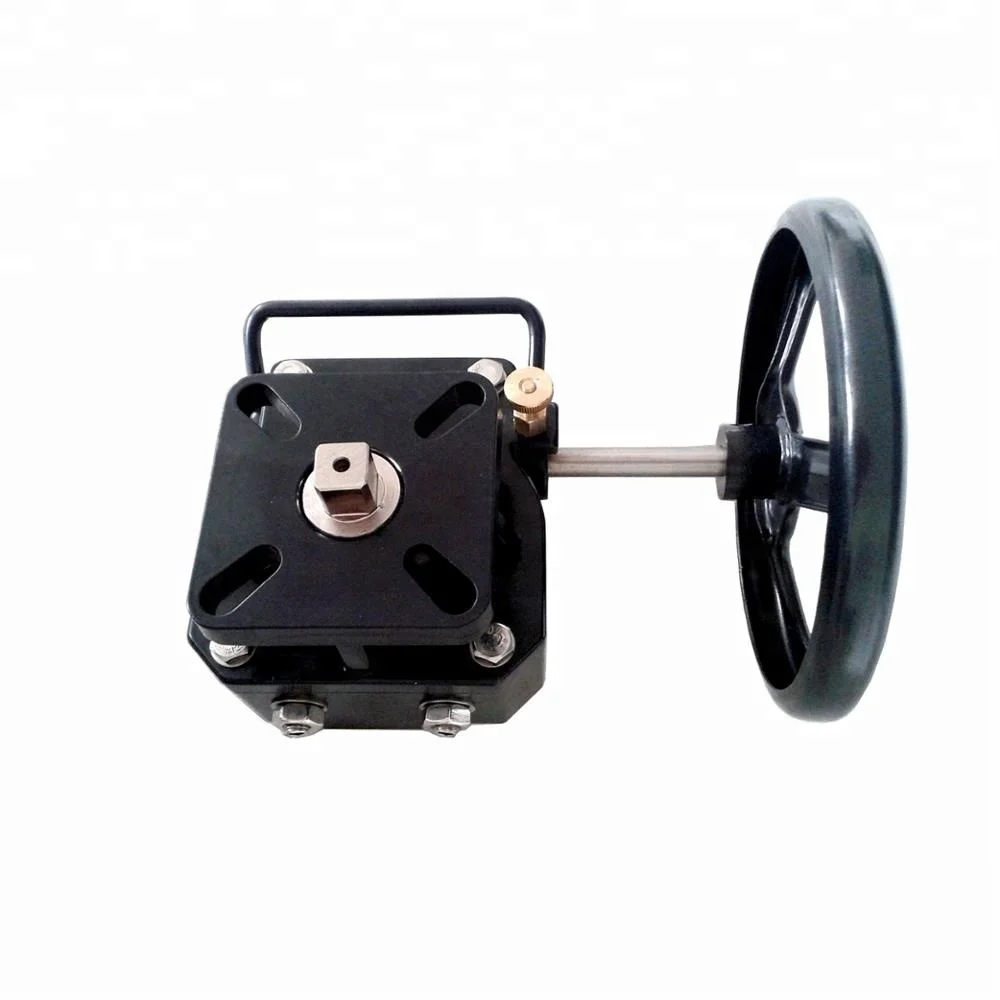

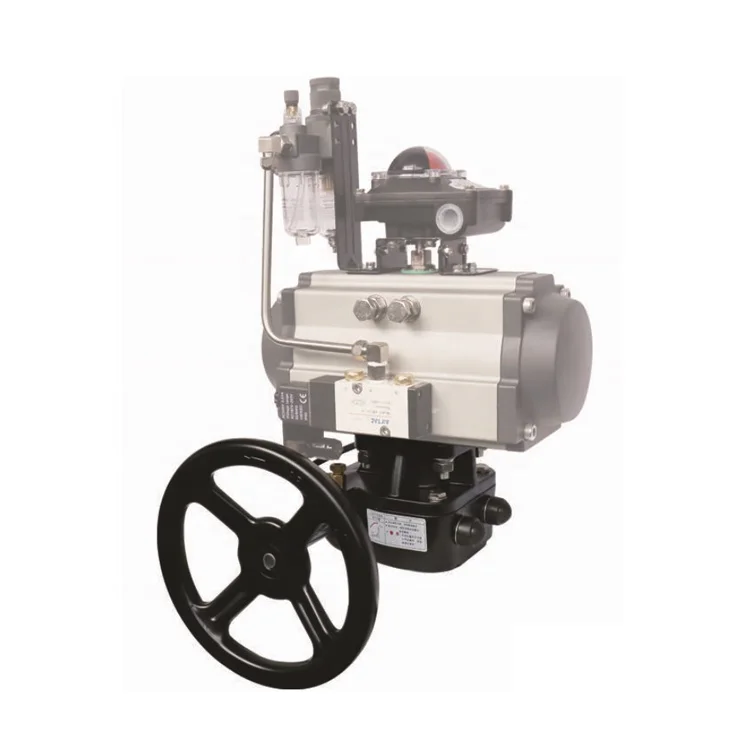

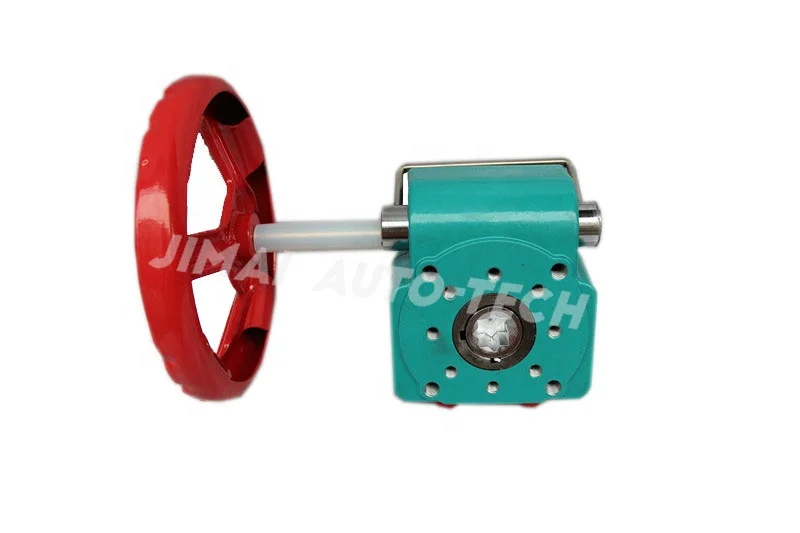

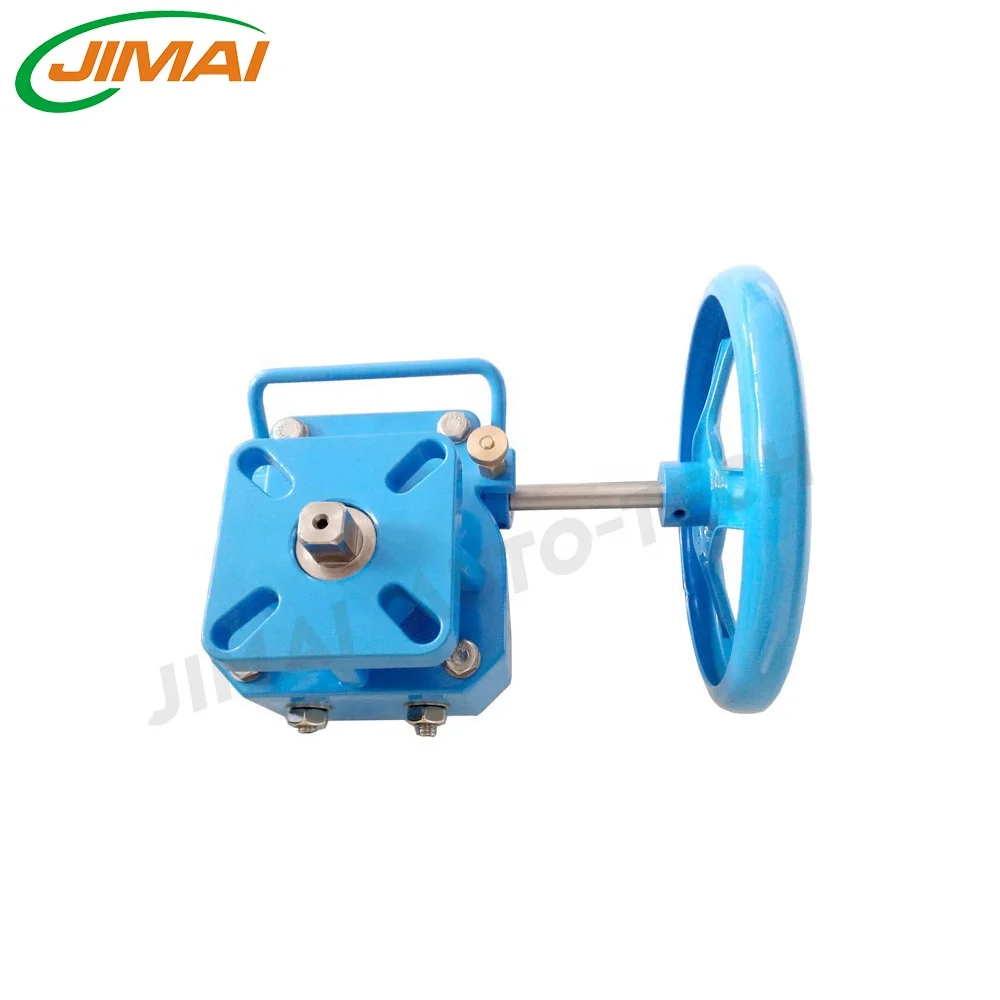

JIMAI JSD Valve Pneumatic Actuator Declutchable Worm Gear Operators Manual Override





Our products can be manufactured in accordance with clients' requirement.


It applied in waste water treatment plants, power plants, refineries, mining and nuclear processes, and pipelines.






Material Using





























































































No



Parts Name



Material



1



Cover



Aluminum Alloy



2



Body



Aluminum Alloy



3



Drive Gear



Ductile Iron



4



Gear Cover



Aluminum Alloy



5



Upper Male Square Stem



Carbon Steel



6



Handwheel Shaft



Carbon Steel with Chrome Plated



7



Handwheel



Plated Carbon Steel



8



Position Lever Assy



Plated Carbon Steel



9



Position Lock Assy



Plated Carbon Steel



10



Cover Bolts



Carbon Steel with Zinc Plated



11



Limit Stops



Stainless Steel



12



Gear Cover Bolts



Carbon Steel with Zinc Plated



13



Shaft Bushings



Carbon Steel



14



Grease Fitting



Brass



15



Nameplate



Aluminum



16



O Rings



NBR(Buna-N)






Outline Dimension


























































































































MODELHOH1BKQALNLODD1D2dGHPIJQE
JSD-1101161414199018516053506870505770M6X12M6X12M8X12155
JSD-21101717172512422520074708101027070102M8X13M8X13M10X16200
JSD-312423222225140308320126102101212510289125M10X16M12X20M12X20400
JSD-4185252727291854004501861251214140102108140M10X16M12X20M16X25500

































Model



Gear Ratio



Output Torque (Nm)



JSD-1



51:1



300



JSD-2



42:1



620



JSD-3



50:1



3200



JSD-4



79:1



4500




Specializing:


We are specializing in manufacturing pneumatic actuator, electric actuator, pneumatic actuated butterfly and ball valve, electric actuated butterfly and ball valve, Limited Switch box and other Accessories.........





Advantage:


1.Price:  As we are the professional manufacture in valve actuators and accessories, we ensure that the price offered must be very competitive compare with others.


2. Raw material inspection: All material test high quality, and keep in warehouse.


3. Workers: All workers training 3 monthes, skilled workers on production line.





Sample Order:


We will charge express fee only for old customers in generally, and for new customers we will charge 50% of the units cost and express fee mostly. (It can be discussed, we keep options always.)





Delivery Time:


We usually take 20days for official orders after received the prepayment, And Sample orders will be ready within 7days.





Quality Control:


 We got very strict and complete quality system to ensure that each product will meet quality requirements as per clients, incoming quality control, final quality control, out-going quality control. Meanwhile, all of the products will be strictly inspected before delivery.”’ Quality First, Service First’’ that we are pursuing All the time.





Warranty Period:


18 months from the date we signed the contract or PI. Technical support for the whole life.


(In case of goods discrepancy to the order and drawings, the customers issues Reclamation Report concerning defective goods and attaches photo documents. customers shall consider either to make an additional delivery for replacement of defective goods, all expenses are covered by our company. Or the customers shall decide that we should compensate expenses for defective goods. Such compensation will cover all transport costs, custom duty costs, amount of paid goods.)





Payment Terms And Conditions:


1. TT Terms: The payment will be 30% of prepayment by direct bank remittance (T/T),remaining 70% before Shipment or the copy of BL send by us Via Fax or Email.


2. L/C Terms: Payment by L/C at sight and Unrestricted. (L/C must allow 30days minimum from the shipment date of presentation of documents for negotiation, all the clauses within L/C must be clear, concise and acceptable. Do not allow special clauses, terms and conditions.)





Competitive Price:


We provide competitive price, good quality and best service to reach the win-win goal.





Customization:


custom-made is acceptable.
