Черный проводящий ПТФЭ шланг Smoothbore с плетеной крышкой из нержавеющей

Черный проводящий ПТФЭ шланг Smoothbore с плетеной крышкой из нержавеющей

Категория: Резиновые шланги >>>
Поставщик: Cangzhou,QC,Hydraulics,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.59 $*	0.60 $*
Aug-18-2025	0.48 $*	0.88 $*
Jul-18-2025	0.3 $*	0.29 $*
Jun-18-2025	0.26 $*	0.5 $*
May-18-2025	0.22 $*	0.72 $*
Apr-18-2025	0.80 $*	0.62 $*
Mar-18-2025	0.30 $*	0.71 $*
Feb-18-2025	0.41 $*	0.12 $*
Jan-18-2025	0.47 $*	0.57 $*

Характеристики

Company Information

Cangzhou Qiancheng Stainless Steel Products Co., Ltd smoothbore PTFE hose is specified in

many of the most challenging industrial applications such as those found in steel mills, foundries,

transit trucks and buses and air compressors.

It is widely used for oil extraction, all kind of chemcial liquid,cars brake system, Steel making

industry, Paint spray tool, Carrying fuel and lubricant, Hydraulic pressure machine,

Plastic making industry, Watercraft, vehicle, ocean industry machinemarine/military, aerospace,

biomedical industrial adhesive,paper mill.

The extruded PTFE tube has excellent flex life, high temperature tolerance and superior chemical

resistance. QCSS PTFE hose working temperature range is -70 to 260 degree. A reinforcement

304/316 stainless steel wire cover adds strength and durability to withstand high working pressures

and harsh environments. Burst pressure reaches to 12,000 psi.

Production under ISO 9001:2008 and CE control.High quality product and customer's satisfaction

is our pursuit. Good faith cooperation. Bright future.

Why choose us

We control the material of PTFE(PTFE) and stainless steel wires per customer's request.

Some are from Japan and Taiwan, some are from China local. Only choose high quality material.

We test leakage of each roll before braiding, then we cut 300mm and crimp it to test

burst pressure after brading.

We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection

tools are all imported from Japan.

We use Techmaflex Crimping Machine which is imported from France. This machine has

accurate and stable performance for crimping because it is produced for PTFE hose crimping only.

PTFE flexible hose specification:

Item	Size	Inner Dia.	PTFE hose thickness (mm)	Working Pressure (bar)	Working Pressure (psi)	Burst Pressure (bar)	Burst Pressure (psi)	Bending Radius (mm)
1	3/16"	5	1	206	3000	827	12000	36
2	1/4"	6	1	175	2537	700	10150	45
3	5/16"	8	1	150	2175	600	8700	50
4	3/8"	10	1	135	1957	540	7830	55
5	1/2"	13	1	120	1740	480	6960	70
6	5/8"	16	1.5	100	1450	400	5800	130
7	3/4"	19	1.5	90	1305	360	5220	190
8	1"	25	1.5	65	942	260	3770	270

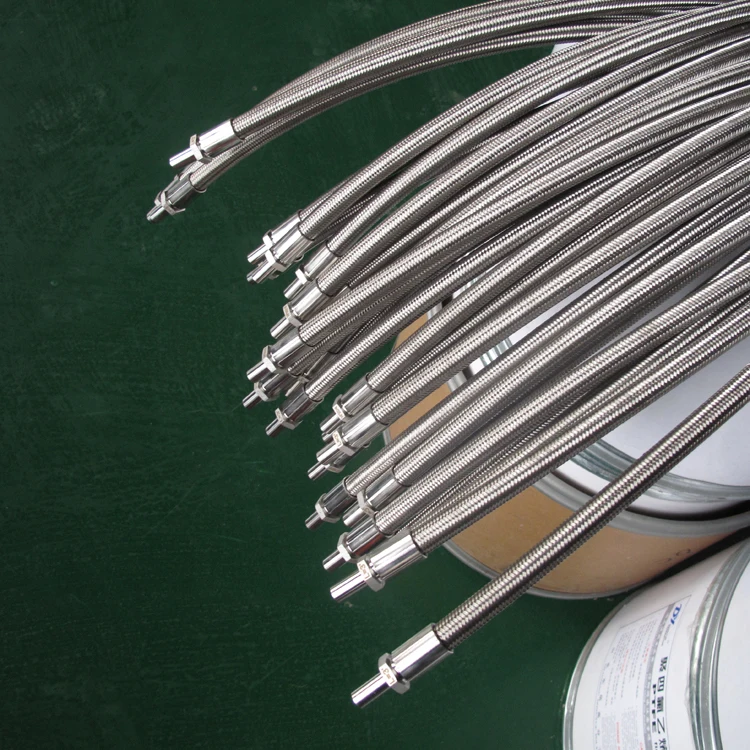

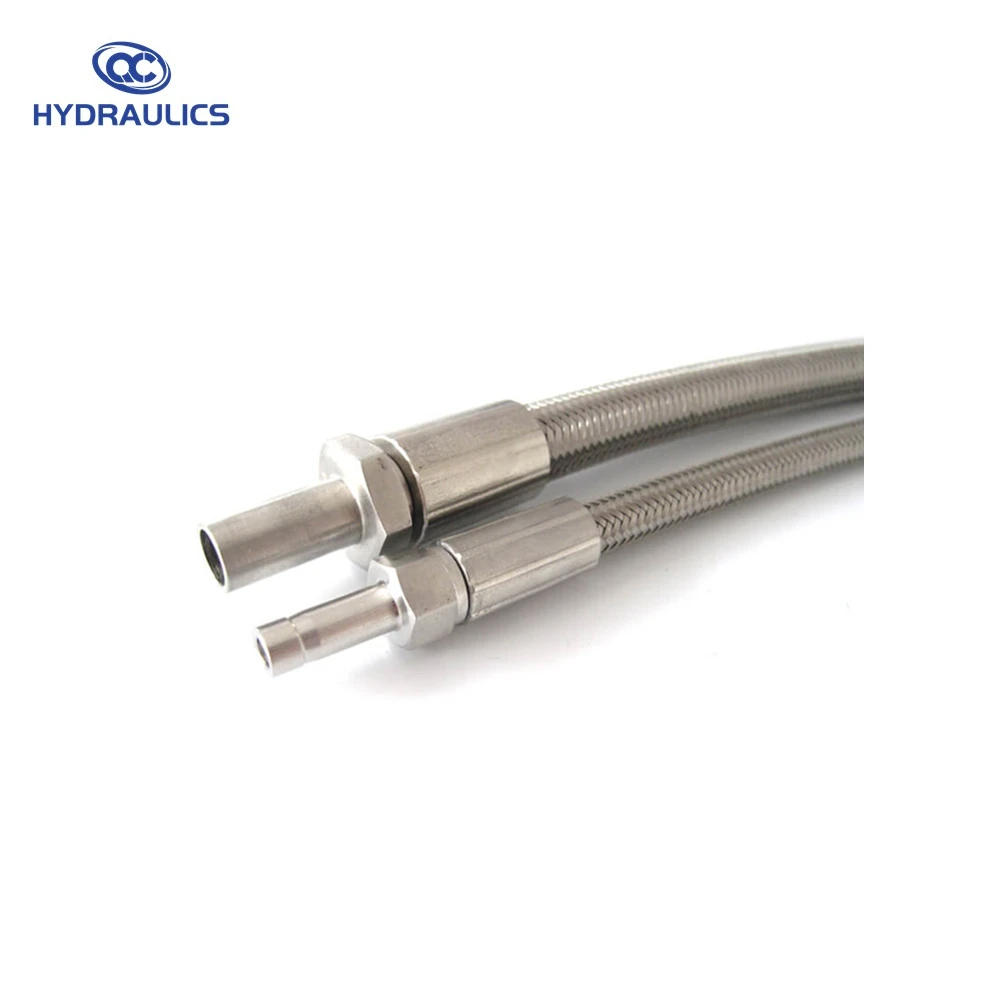

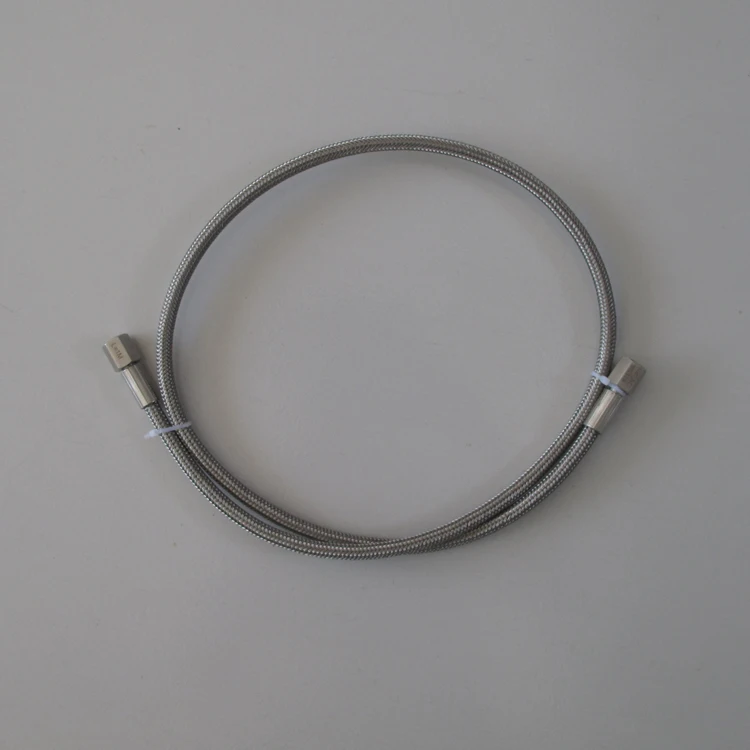

Product:	smoothbore black conductive PTFE lined hose with braided stainless steel cover
Size:	1/8" --- 1".
Fitting Material:	304, 316, 316L.Carbon steel zinc plated.
Hose Material:	PTFE/PTFE, FEP, PFA.
Thickness:	0.76mm --- 1.5mm.
Working pressure:	Max. 6,000 psi.
Burst pressure:	Max. 12,000 psi.
Temperature:	-70 to 260 °C

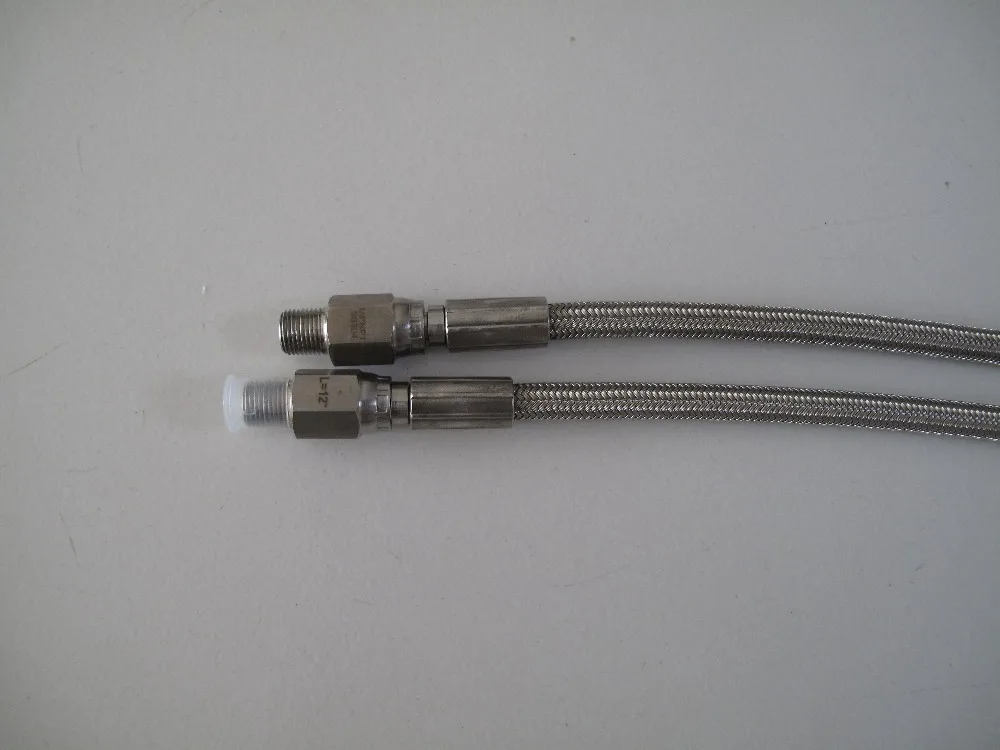

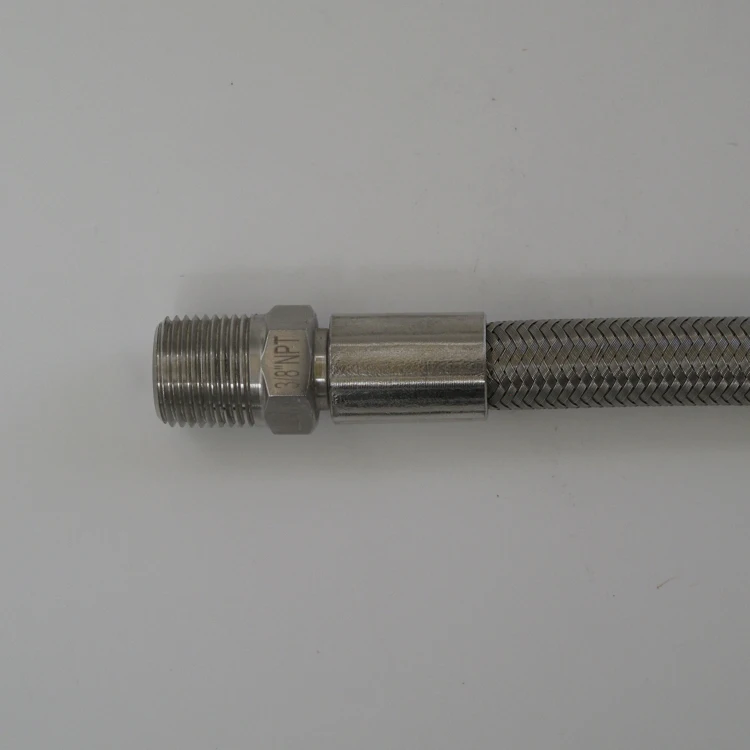

end fittings:	BSP 60 cone female, JIC 37 flare female, SAE 45 flare female, NPT male/female,NPSM ...etc.
Connection:	Male / Female.
Length:	12", 24", 36", 48", 60", 72" or as per customer’s request.
Certificate:	ISO 9001:2008, CE.
Capacity:	50,000 Meters/Month.
Package:	Label with necessary information on products, Packaged in plastic bags, Plastic bags in carton boxes, Carbon boxes in wooden pallets or as per customers' request.
Note:	Standard or Non-standard as per sample or drawing are all available.
