optic PON power meter power meter pon 1310 1490 1550 nm





           Product Parameters

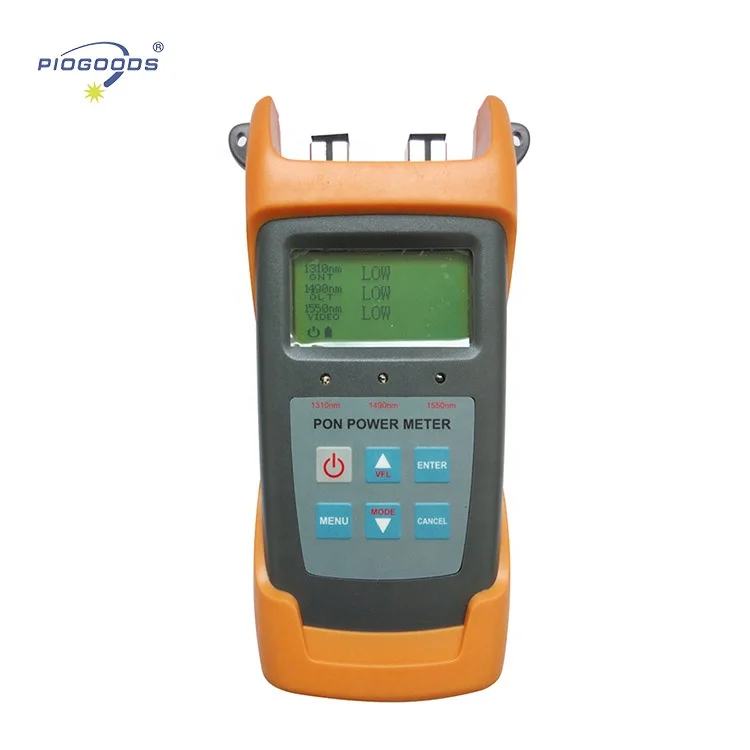

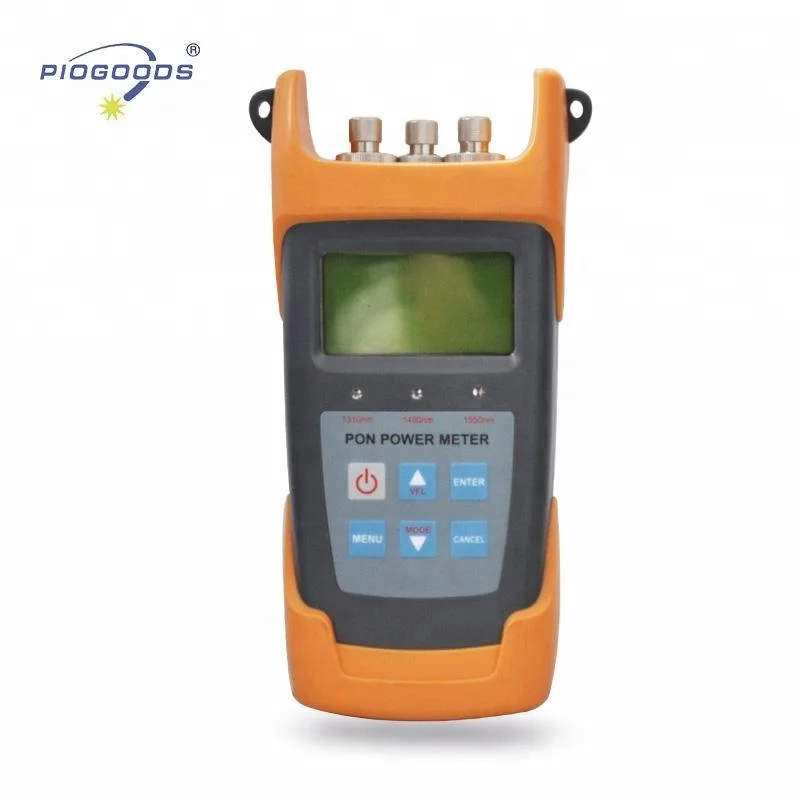

PG-PON82 Handheld PON Optical Power Meter Cable Tester
PON module	1310 upstream  measurement	1490 downstream  measurement	1550 downstream  measurement
Pass Zone(nm)	1260nm~1360nm	1470nm~1505nm	1535nm~1570nm
MeasurementRange(dBm)	-40dBm~+8dBm	-40dBm~+12dBm	-40dBm~+20dBm
Output power(max)	15dBm	15dBm	25dBm
Isolation	>40dB	>40dB	>40dB
Burst mode measurement error	<±0.5dB
Measurement Accuracy
Connatural uncertainty(dB)	±0.5dB
Linearity(dB)	±0.1dB
Passing through insertion Loss(dB)	<1.5dB
General Information
Detector Type	InGaAs

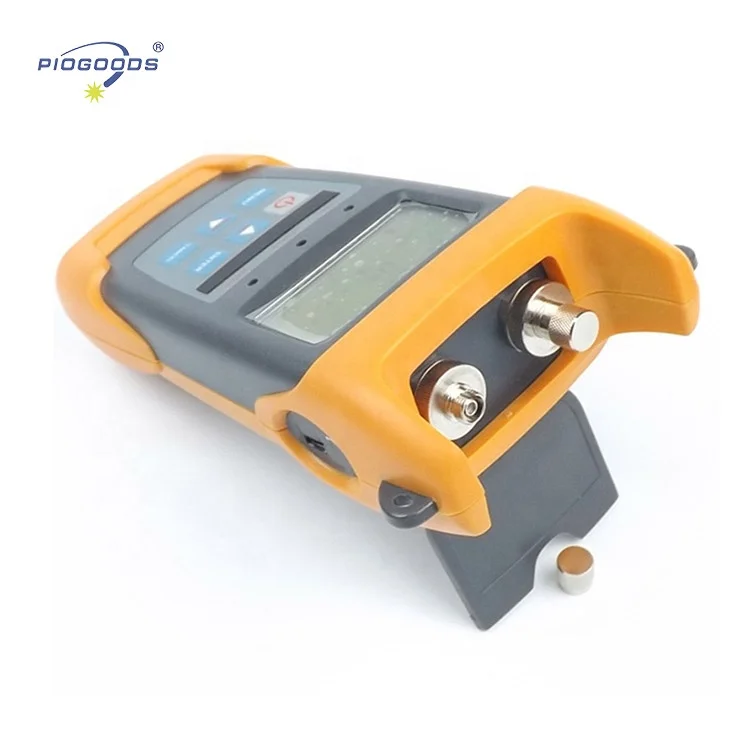

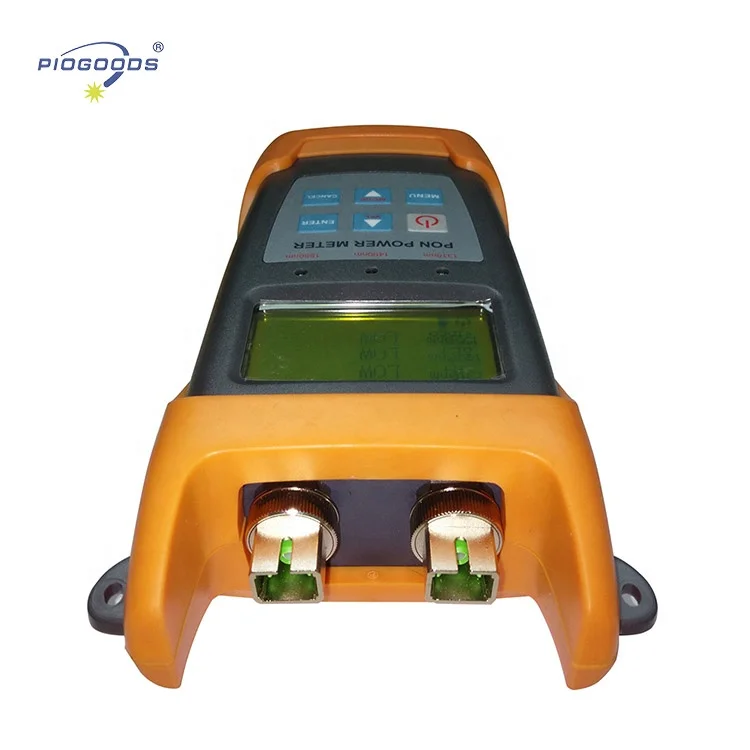

Optical Connector	FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type	SM 9/125um
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01dB
Operation Voltage(V)	DC 3.3V~5.5V

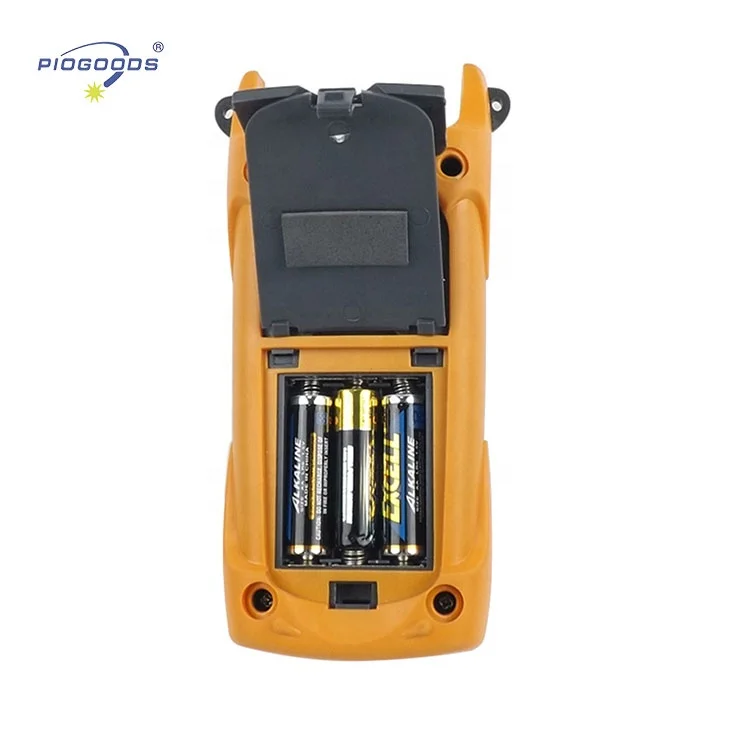

Power Supply	3pc1.5V battery
Continuously Operation time (h)	PON:90h
Operation Temperature(℃)	-10℃~60℃
Storage temperature(℃)	-25℃~70℃
Weight(kg)	423g







         Product Selling Points

  Comfortable Dust-Proof Button

                                    Lightness,  Comfort, Dustproof, Durable...



PG-PON82 PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.





 Features:
1. It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.

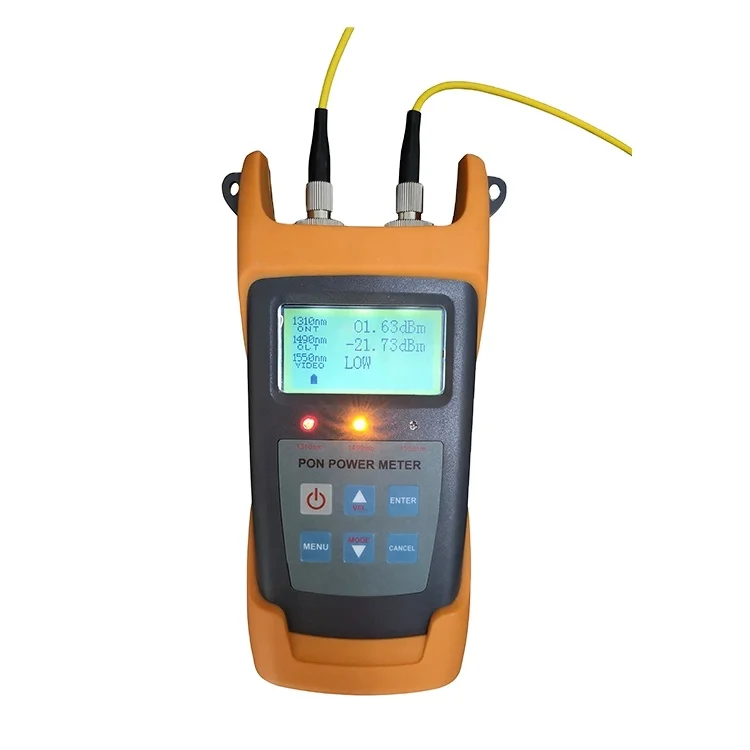

2. Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm ).
3. Used in Burst mode measurement of 1310nm upstream.
4. Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
5. USB communication port enables data transfer to a PC.1000 measurement item.
can be saved in PG-PON82 PON power meter or computer for data review.
6. With optical power meter modual, With visual fault locator modual.
7. Optional Chinese/English display.
8. Offers up to 10 different threshold sets in total. Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
9. 10 minutes Auto-off function can be activated or deactivated .
10. Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
11. Different models corresponding to different function, according to own use to choose.
