Product name: 7C (7CX) series of trailer



Uses:
This series trailer is mainly used for transportation of farming materials and crops in the field. it is mainly divided into two type:self-discharging and non-self discharging,and self-discharging type may also consists of two kinds of vehicle types:rear-unloading and the side-unloading.
The Single axle hydraulic Tipping trailer is suitable for a variety of domestic and foreign 18hp-40hp micro farming machine, small four wheel tractor, used to mountain area, farmland operation, suitable for small-scale farmers' household purchasing.



Specifications:

Model: 7C-1.5,    7C-2,   7C-2.5,   7C-3,   7C-4,   7C-5

           7CX-1.5, 7CX-2, 7CX-2.5, 7CX-3, 7CX-4, 7CX-5

Loading capacity: 1.5ton-5ton

Dead weight: 335kg-1700kg

Unload form: manual or tipping

Brake: mechanical, impact or air brake

Damping: leaf spring

Traction: tripod traction

The process of welding: carbon dioxide jig welding

Surface spray coating: antirusting paint, finishing paint , stoving varnish

Surface treatment: derusting with large shot blast machine, to change welding stress

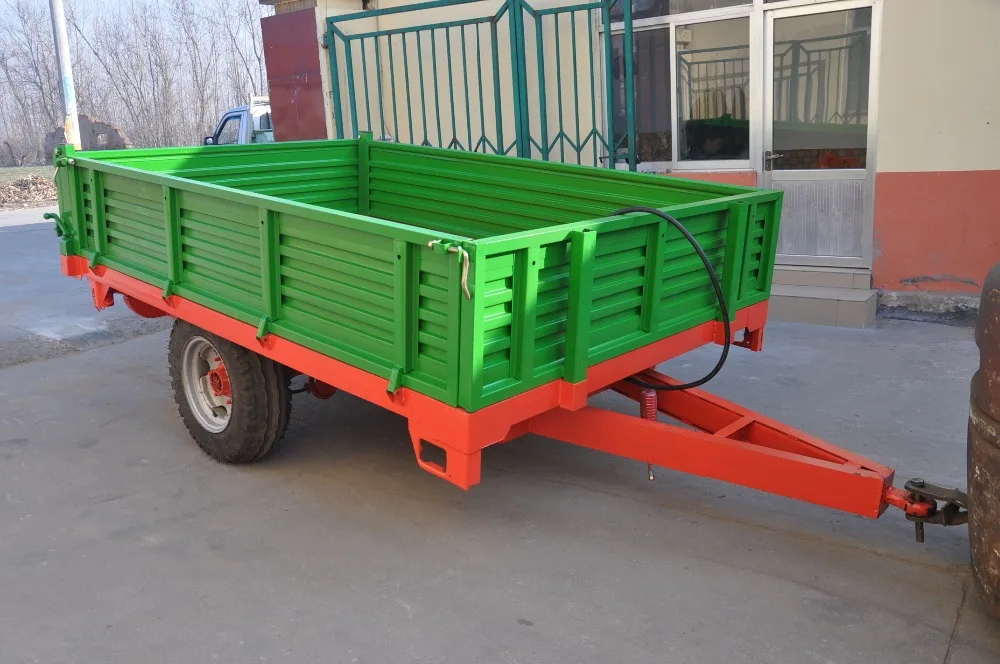

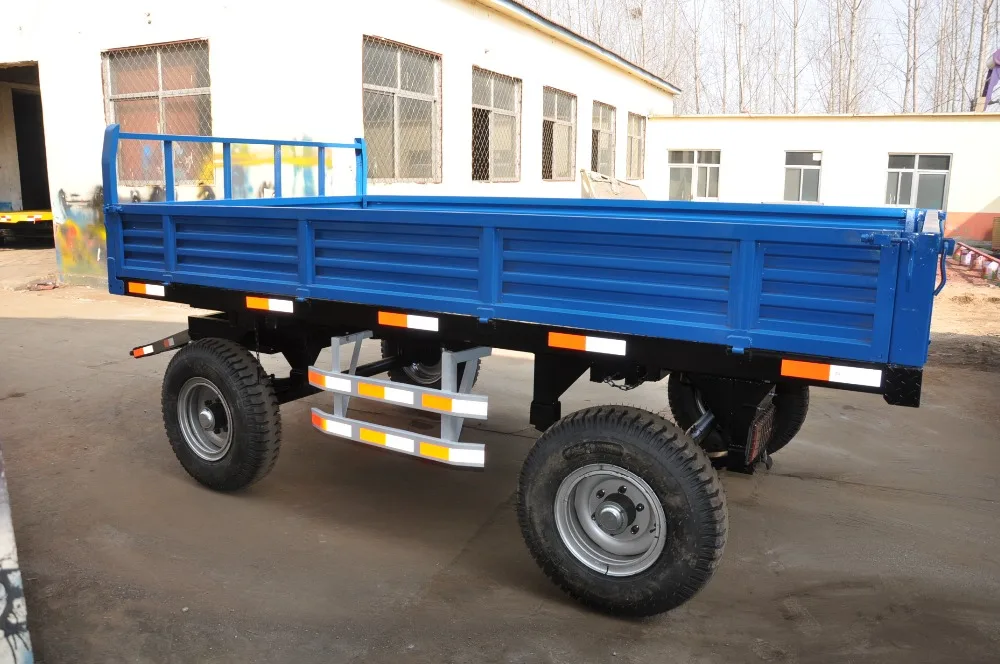

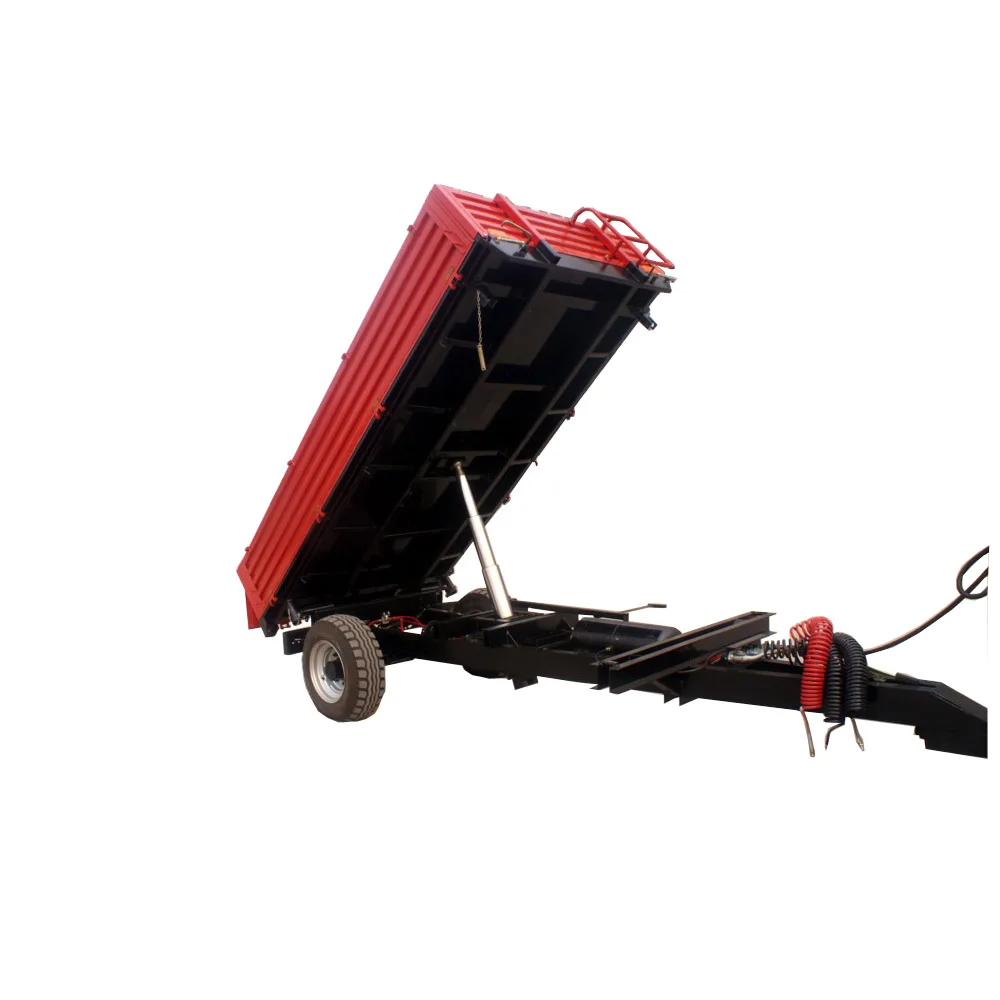

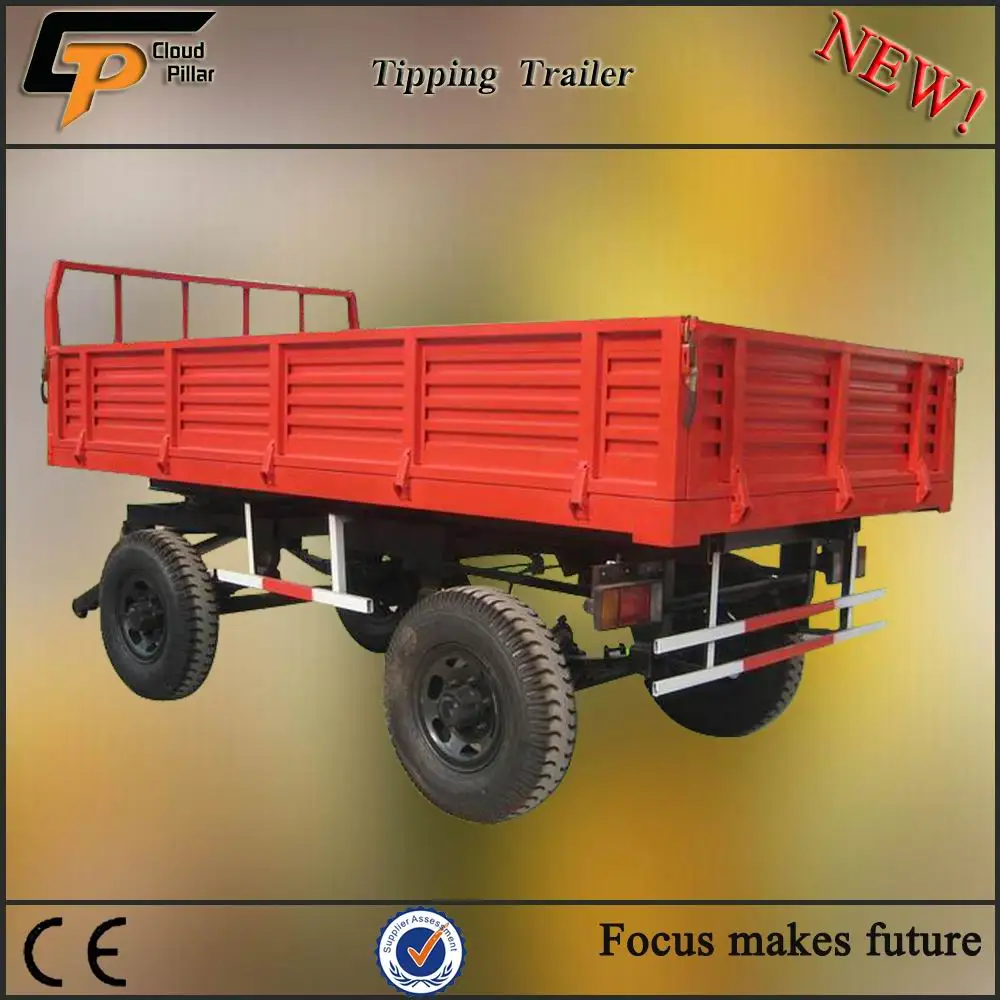

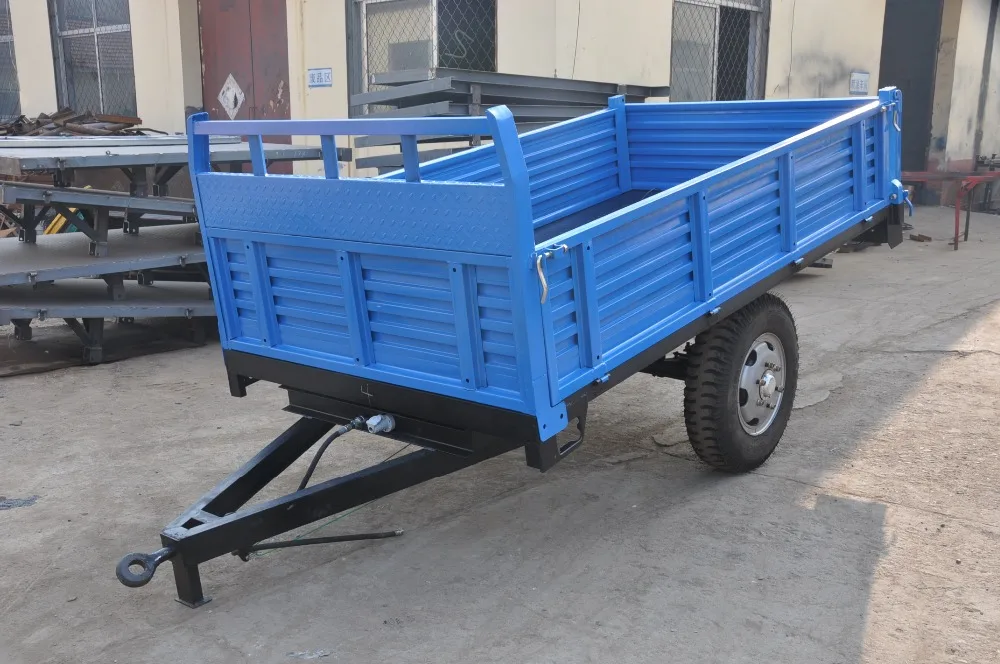

Pictures:













Technique parameter:

Model	7C-1.5	7C-2	7C-2.5	7C-3	7C-4		7C-5
	7CX-1.5	7CX-2	7CX-2.5	7CX-3	7CX-4		7CX-5
Unloade form		manual
		tipping
Capacity(kg)	1500	2000	2500	3000	4000	5000
Box size(m)	2x1x0.46	2.4x1.2x0.46	2.5x1.5x0.46	3.0x1.6x0.46	3.2x1.8x0.46	3.9x2.1x0.55
Tyre	650-16	650-16	750-16	750-16	750-16	825-16
Matched power(hp)	15	20	25	25-30	30-40	40-50
Brake		machinery brake, option air brake
Linkage		trailed



Package:









Loading:

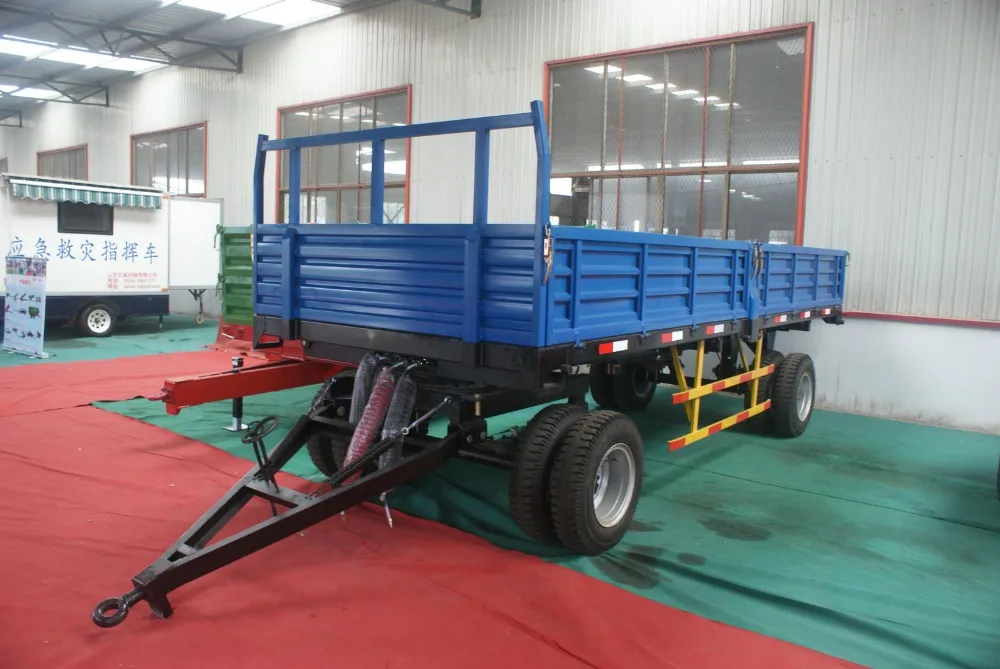

Tractors in our showroom:





We produce more other farm equipments, please do not hesitate to contact us for more information.
