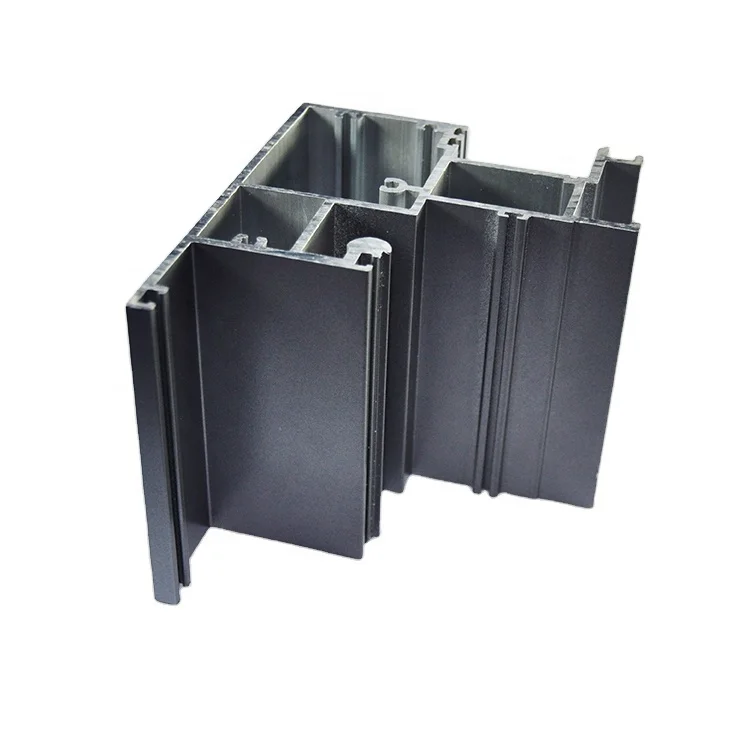

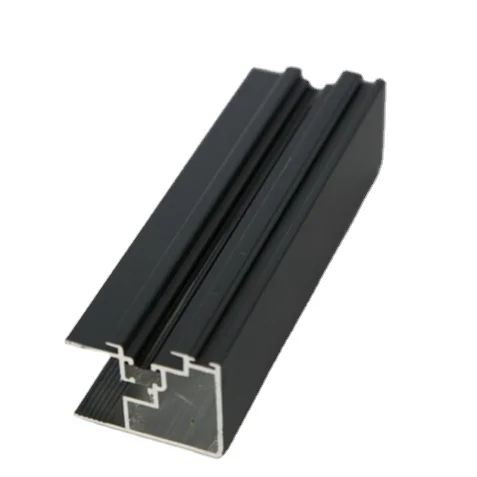

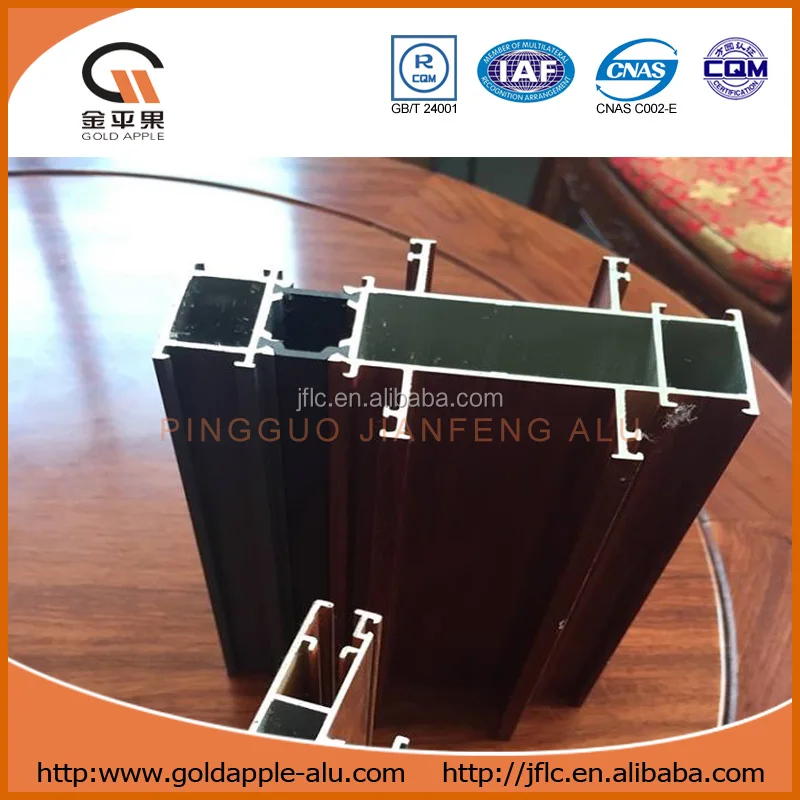

High quality and Long warranty High wood aluminium price aluminum window from aluminium factory



  1 Strip and glue injection,are available.
  2 Material:domestic Polyamide66 or imported technoform can be chose as per customer's demands.If requested,AZON are available for glue injection.
  3 In combination of the advantage between plastic and aluminium,it serves the demands of appearance,strength of windows& doors,and aging-resistence.
  4 Perfect heat insulation performance.

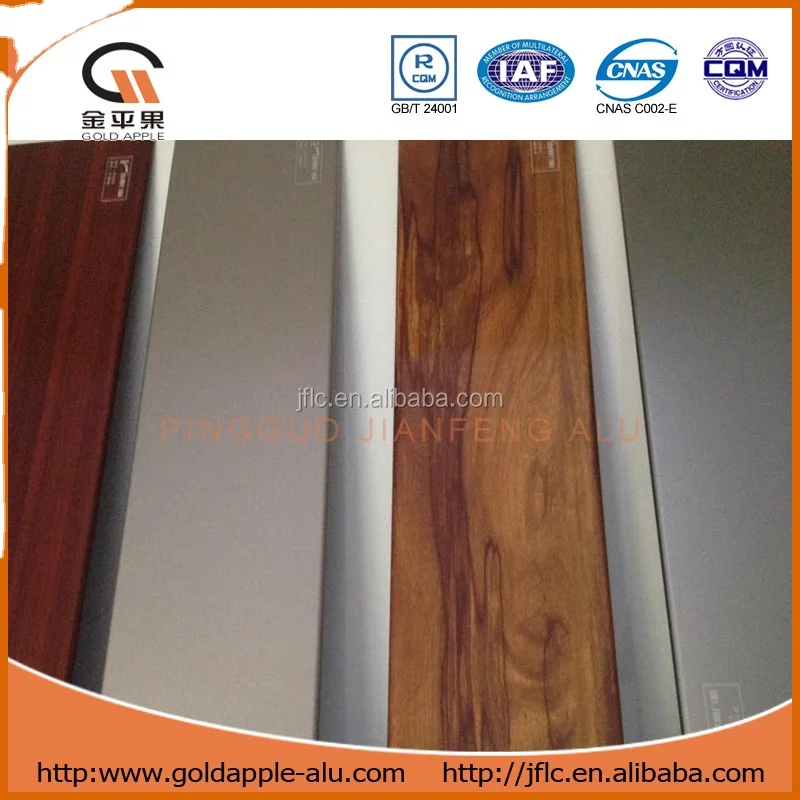

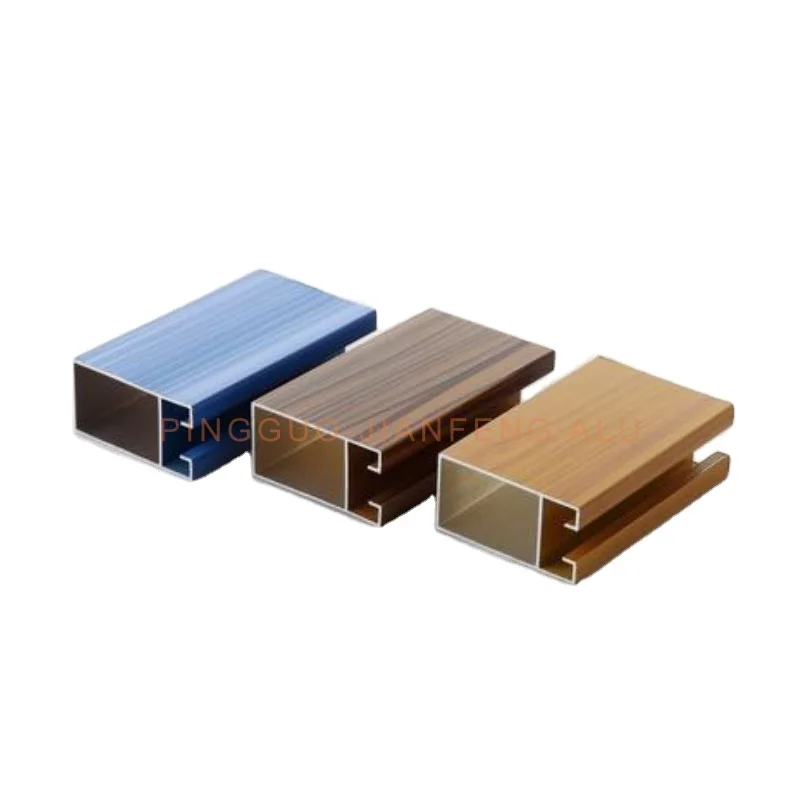

    Customized surface finishes are welcome

  1)  High corrosion resistance, high weather resistance and good wear resistance.

  2)  Excellent material for smooth and subtle edges, elegant appearance.

  3)  Thickness: above 0.8mm

  4)  Usage: millions of different use.

  5)  Alloy and temper: 6061,6063, 6060,6005 or other alloys, temper can be T4/T5/T6 etc



Chemical Composition Of Aluminium Profile

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Impurity		Ai
									Unit	Total
6063	0.2-0.6	0.45-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.8-1.2	<0.7	<0.15-0.4	<0.15	<0.25	0.04- 0.35	<0.15	<0.05	<0.15	Surplus
6060	0-0.6	0.35-0.6	0.1-0.3	≤0.1	≤0.1	≤0.15	≤0.05	<0.1	<0.05	<0.15	Surplus
6005	0.6-0.9	0.4-0.6	0.35	0.1	0.1	0.1	0.1	0.1	0.05	<0.15	Surplus



Surface Treatment

Class	Min-average film thickness	Min-Part film thickness
AA10	10	8
AA15	15	12
AA20	20	16
AA25	25	20

(The anodized of goods is generally supplied in grade AA10 or is controlled according to client's request.)



Electrophoresis surface treatment

Class	Anodizing		Paint film	Composite film
	Min-average film thickness(um)	Min-Part film thickness(um)	Min-Part film thickness(um)	Min-Part film thickness(um)
A	≥10	≥8	≥12	≥21
B	≥10	≥8	≥7	≥6

(Electrophoretic coating profiles is generally supplied by Class B,but also supply other levels according to customer requirements profiles.)
