Supply Air Through Shaft Brake for Printing Machine

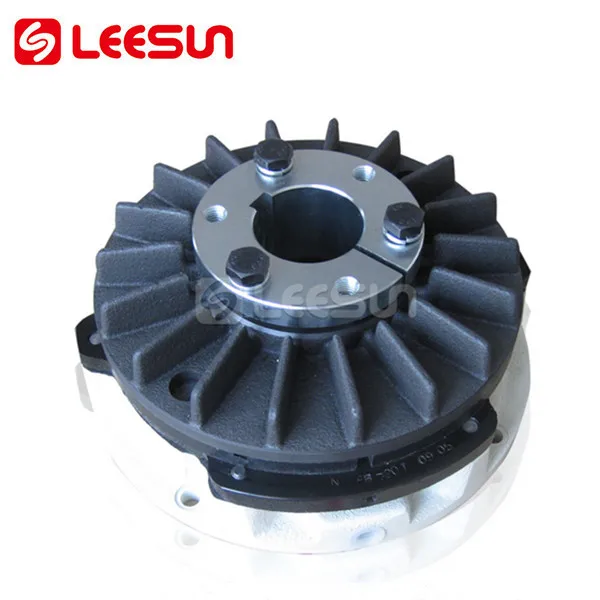

LEESUN DAB20 air through shaft brake Product Overview:

WORKING THEORY:NAB model brake relies on air pressure to brake, return spring to release. Disc with friction plates moves towards shaft according to air pressure and touches driving disc.

The key of maintaining torque is to insert torque peg into slot of brake adapter, and thereby fix it.

LEESUN DAB20 air through shaft brake Product Features:

*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation

LEESUN DAB20 air through shaft brake Data:

Pneumatic disc brake Performance parameter:

Model	Static Torque [kgf-m] (N-m) at 0.6 Mpa	Air chamber capacity (cm³)		Plate allowed clearance Vf  (cm³)	Max rotation speed Nc(r/min)	Moment of inertia (cm²)	Key(mm)	Weight(kg)
		Min Vn	Max Vo
NAB5	5.3(53)	10.31	23.31	14.74	3600	9.69x10-4	6x6x25	3.5
NAB10	10 (100)	16.78	34.55	25.12	2800	4.59X10-3	10X8X30	6.6
NAB20	21.6(216)	17.03	54.20	58.05	2200	1.694X10-2	12X8X45	12
NAB40	41(410)	28.5	141.9	146.6	1800	4.74X10-2	12X11X65	25
NAB65	63.6(636)	34.54	193.9	299.8	1600	10.76X10-1	12X11X65	36
