Бкамкнк 4 оси CNC фрезерный станок с автоматической заменой инструмента для
- Категория: Wood Router >>>
- Поставщик: Jinan,Bcamcnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 22859.84 $* | 23316.28 $* |
| Jul-16-2025 | 18539.37 $* | 18910.4 $* |
| Jun-16-2025 | 22499.11 $* | 22949.84 $* |
| May-16-2025 | 22319.23 $* | 22765.55 $* |
| Apr-16-2025 | 17819.49 $* | 18175.57 $* |
| Mar-16-2025 | 21959.14 $* | 22398.69 $* |
| Feb-16-2025 | 21779.63 $* | 22215.35 $* |
| Jan-16-2025 | 21599.82 $* | 22031.56 $* |
Характеристики

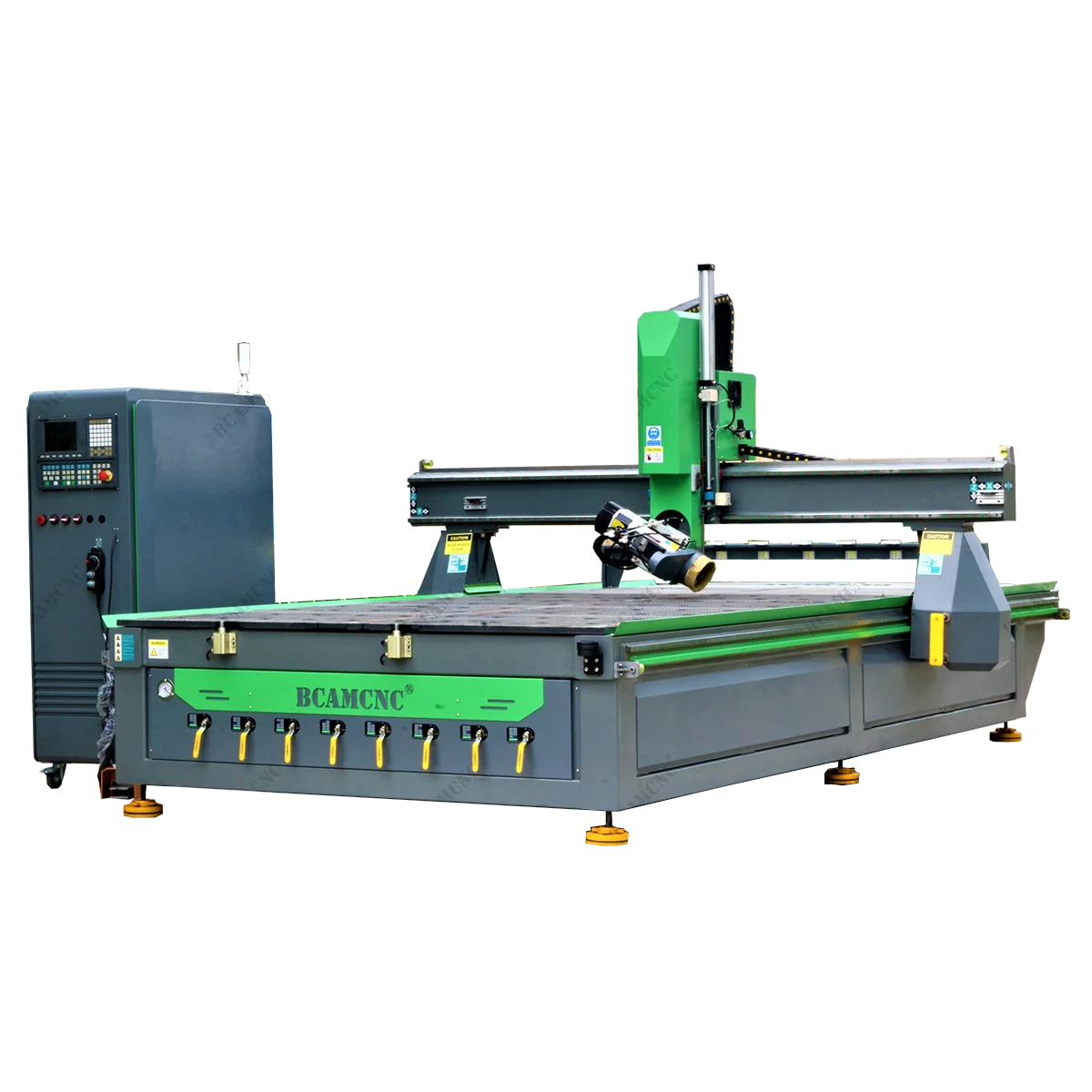

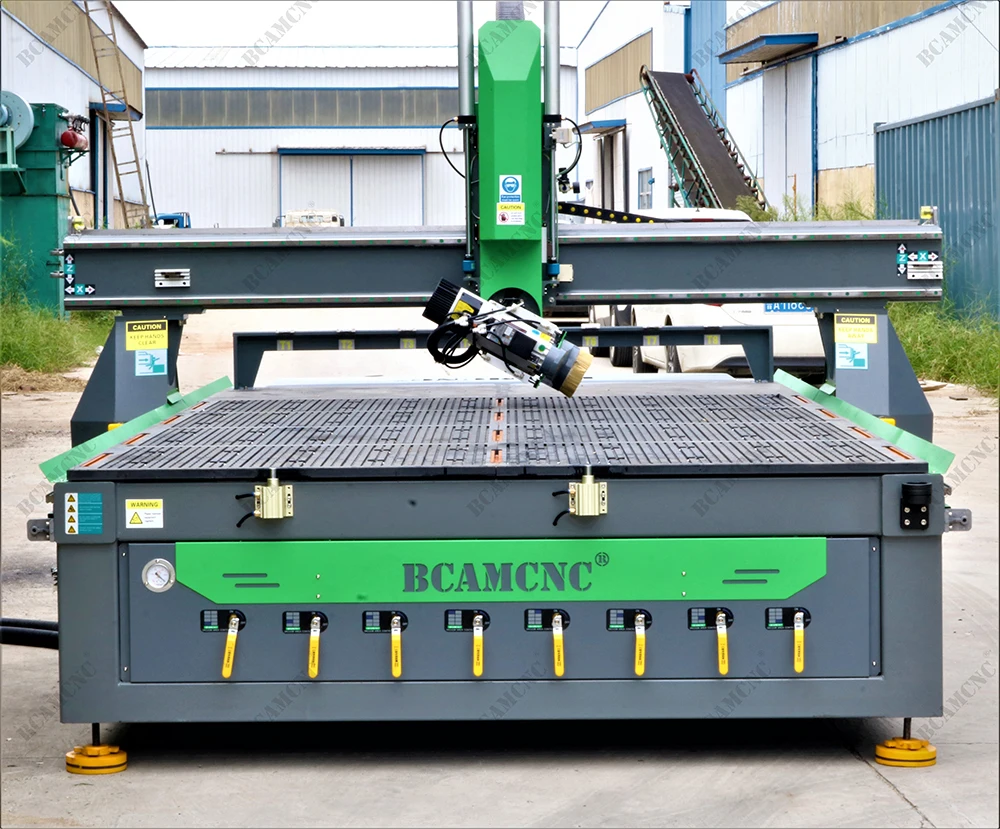

BCAMCNC 4 Axis CNC router machine Automatic Tool Changer for woodworking
Product Overview
1.The BCM-4AXIS milling machine has all the same axes of the 3-axis milling machine and the additional A-axis, which rotates the main shaft about the X-axis by up to 180 degrees during the cutting process.
The rotating shaft can cut on multiple sides of the workpiece without resetting, while the three-axis milling machine can only cut one side of the same workpiece at a time. The 4-axis CNC milling machine is the preferred method for advanced, complex cutting and engraving, such as those often seen in furniture, musical instruments, cabinets, etc.
2.BCAM 4 axis CNC Router is designed to ensure high performance and productivity with low maintenance requirement.
3.This CNC router has a steel framework with gantry support and ISO30 9kw frequency spindle.
4.The structure of the 4 axis CNC router machine is rigid to provide enough strength for high-speed machining at a pace of +- 135° on C axis suiting different production requirement
5.The cnc router machine is the best option for different woodworking project like European style furniture, such as soffit, crown molding, wall frame, stair jamb, column, balustrade, automotive interior&exterior, mold, arts&crafts, chair, 3D work etc. It can work on various materials like plastics, metal, wood, resins and create beautiful designs.
The rotating shaft can cut on multiple sides of the workpiece without resetting, while the three-axis milling machine can only cut one side of the same workpiece at a time. The 4-axis CNC milling machine is the preferred method for advanced, complex cutting and engraving, such as those often seen in furniture, musical instruments, cabinets, etc.
2.BCAM 4 axis CNC Router is designed to ensure high performance and productivity with low maintenance requirement.
3.This CNC router has a steel framework with gantry support and ISO30 9kw frequency spindle.
4.The structure of the 4 axis CNC router machine is rigid to provide enough strength for high-speed machining at a pace of +- 135° on C axis suiting different production requirement
5.The cnc router machine is the best option for different woodworking project like European style furniture, such as soffit, crown molding, wall frame, stair jamb, column, balustrade, automotive interior&exterior, mold, arts&crafts, chair, 3D work etc. It can work on various materials like plastics, metal, wood, resins and create beautiful designs.
Product Parameter
Parameters | Standard Specifications BCM1325C 4 AXIS |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
1500*3000*200mm|5*10ft | |
2000*3000*200mm|6*10ft | |
2000*4000*200mm|6*13ft | |
2000*6000*200mm|6*20ft | |
Spindle Power | 9kw Italy HSD air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | 0.01/2000mm |
Table Surface | Vacuum table+T-slot table |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate | 70m/min |
Max. Working Speed | 50m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Japanese Yaskawa Servo motor and drivers |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G Code |
Operating System | Taiwan Syntec 60W-E 4 AXIS control system |
Interface | USB |
Software Compatibility | Option:Type3/Ucancam/Alphacam/Solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Advantage
The quality of every BCAM woodworking cnc router is excellent. Every BCAM C series CNC router carries a full year warranty andour great technical team support! You will find out many advantages after you have used our CNC router.
Our goal is offer you more and cost you less! High-performance all-round machinery with extraordinary value, but at a very economical price. With disc tool changer, constructed with world-class components, consistent high performance.
When the C series router cnc is working, the tool change system will move along with it, which saves the tool change time and is suitable for more processing.The ATC allows the BCAMCNC Router to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop
Details Images
Auto Tool Changer
BCM1325c series is a cnc router designed by BCAM for automatic disc changer. Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length.
8-10 pieces tool holders
ISO30 ,HSK optional
Control system
The control system of BCM1325C a axis woodworking cnc router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.

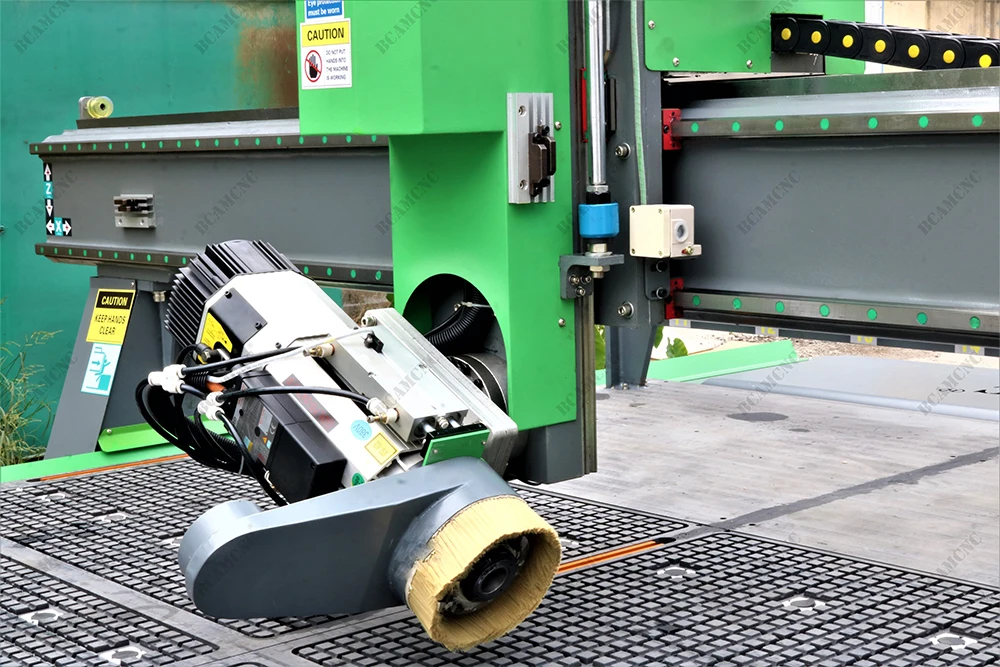

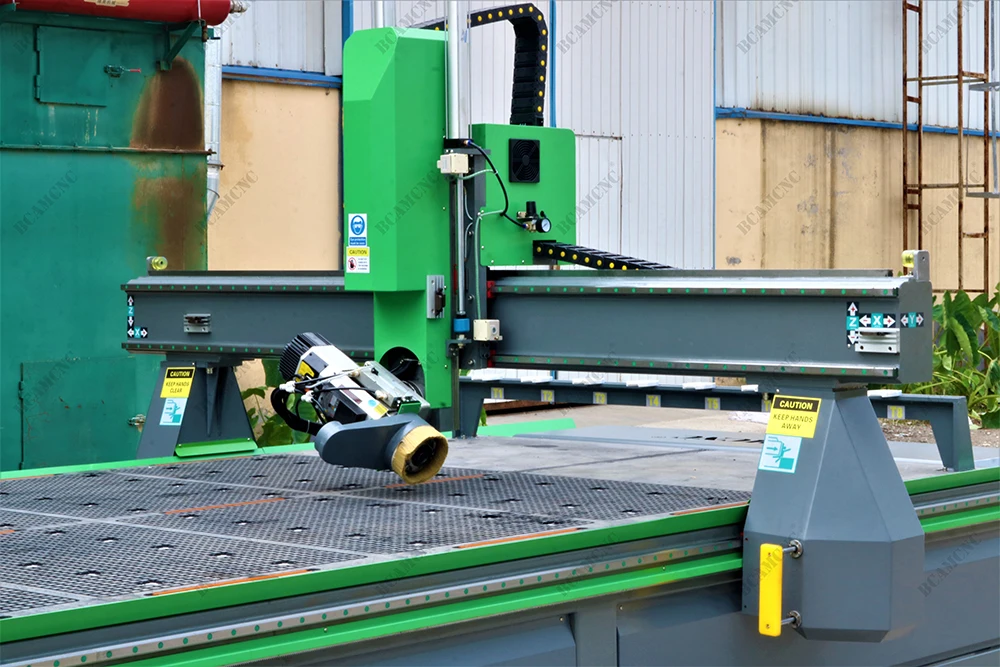

CNC 4 Axis Head .
BCM-4AXIS has a spindle rotation angle of up to 270, making the BCM 4 axis more suitable for complex processes such as side punching.
Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise
Safety System
BCAM series router cnc has the unique safety protection system of BCAM products, and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.
Dust collector system.
The country's first dust-free vacuum system is inspired by the “Typhoon” cyclone.
The beautiful design and excellent performance have won praise from many customers. More and more customers have seen the revolutionary vacuum design in the industry, and some of them traveled from far to purchase BCAM engraving machines.
The beautiful design and excellent performance have won praise from many customers. More and more customers have seen the revolutionary vacuum design in the industry, and some of them traveled from far to purchase BCAM engraving machines.
Sample display
CNC Routers such as the BCM1325C 4 axis ATC CNC can be used in many different applications such as:
* Furniture making * Shopfitting
* Staircase manufacturing * Ply-lining kits
* Campervan conversions * Engineering
* Kitchen cabinet making * Plastic fabrication
* Signmaking * Personalised products
* Prototyping * Cladding production
* Custom product design and manufacture * Boatbuilding components
* General Woodworking * Exhibition Stand Manufacturers
* General Woodworking * Exhibition Stand Manufacturers
* Shadow Board and Tool Box Manufacturers * Charities and Non-profit Organisations
* 3D engraving * Instruments
Some of the benefits of using a CNC router include:
* Reducing waste
* Reduction in production times
* Repeat, high-quality output
* Versatile. A CNC uses different types of tooling, giving the user the ability to cut many different materials and allow for
multiple cut formats.
* Reducing waste
* Reduction in production times
* Repeat, high-quality output
* Versatile. A CNC uses different types of tooling, giving the user the ability to cut many different materials and allow for
multiple cut formats.
Product packaging
Package .
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
Manufacturing Technique
Certifications
Company Profile
BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.,High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality
Service .
1. 24 months guarantee of the whole wood cnc router machine, we will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your factory if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
2. Our engineer could support you technology to your factory if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Buying a CNC Router is a big step for any business and you wAant to know you’re purchasing the right machine that matches your business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call or send inquiry
