Гибкая солнечная панель SunPower 100 Вт на заказ от производителя гибкие монокристаллические солнечные панели оптовая

Specifications – Flexible series

   Item No.

GSS-100W

GSS-150W

GSS-200W

Max power

100W

150W

200W

Power tolerance

±3%

±3%

±3%

Cells brand

SunPower

SunPower

SunPower

Cells efficiency(%)

22.50%

22.50%

22.50%

Max voltage

18V

18V

18V

   Max current

5.56A

8.34A

11.2A

   Open circuit voltage(Voc)

21.6V

21.6V

21.6V

   Short-circuit current(Isc)

6.45A

9.66A

12.89A

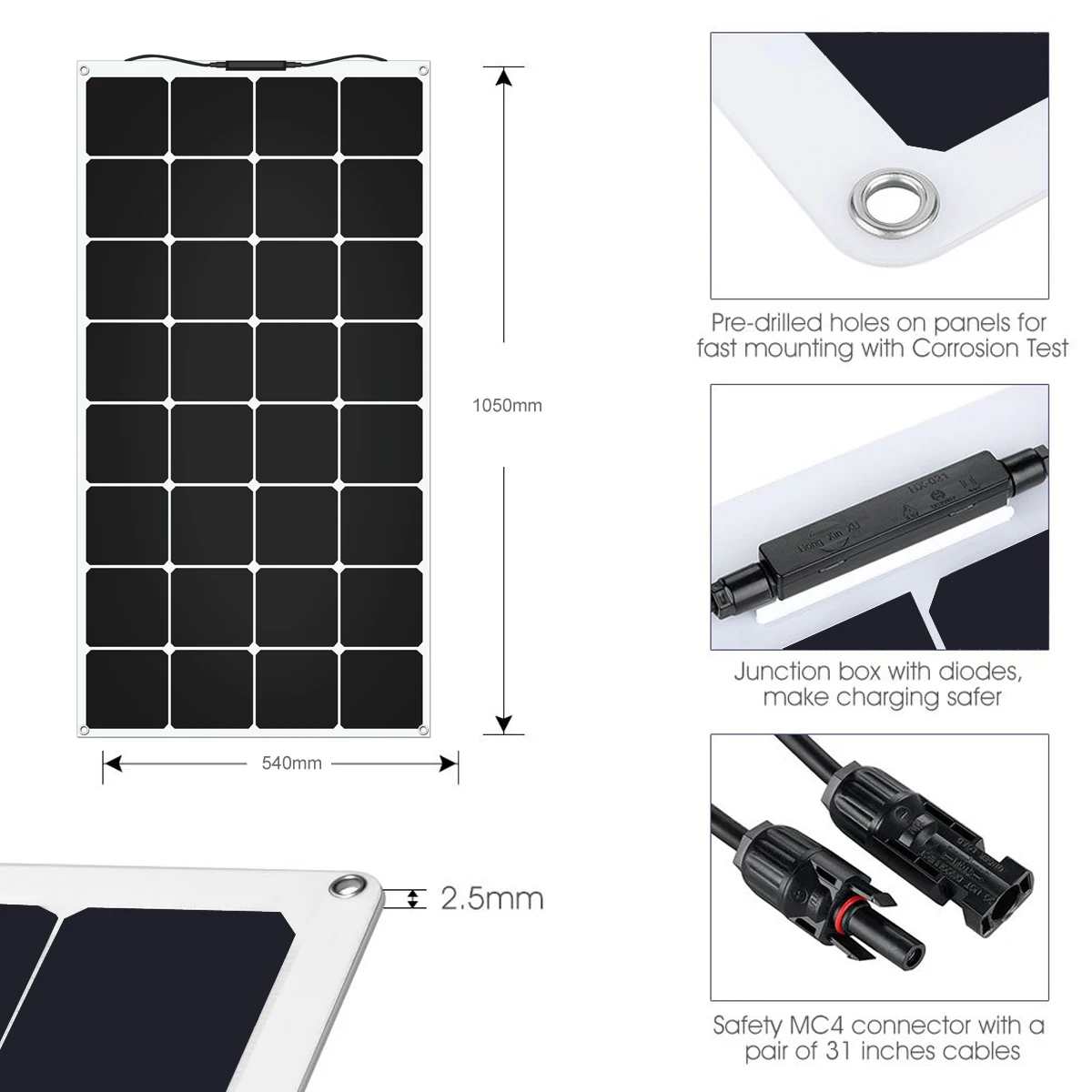

   Dimension

1050*540*2.0mm

1080x780x2.0mm

1515*675*2mm

 Weight

1.95KGS

2.95KGS

3.95KGS

  Operating Temperature(℃):

-40℃~+85℃

Power temperature coefficient

-0.39 to -0.29 %/℃

Voltage temperature coefficient

-0.29%/℃

 Current temperature coefficient

+0.05%/℃

Nominal Operating Cell        Temperature

45 ± 2℃

  Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃
