Волоконно-оптическая полировальная машина/машина для полировки патч-Корда/волоконно-оптический

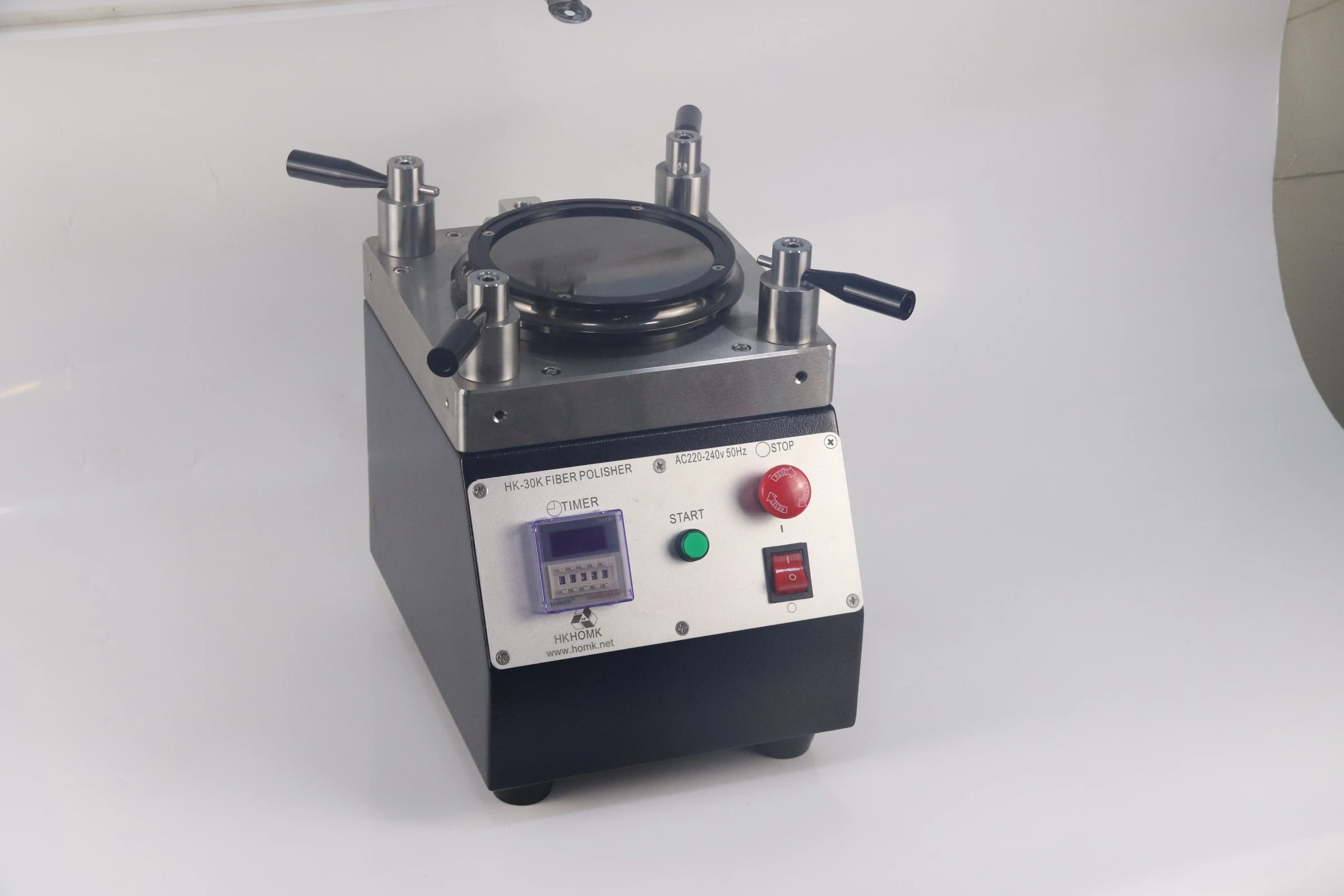

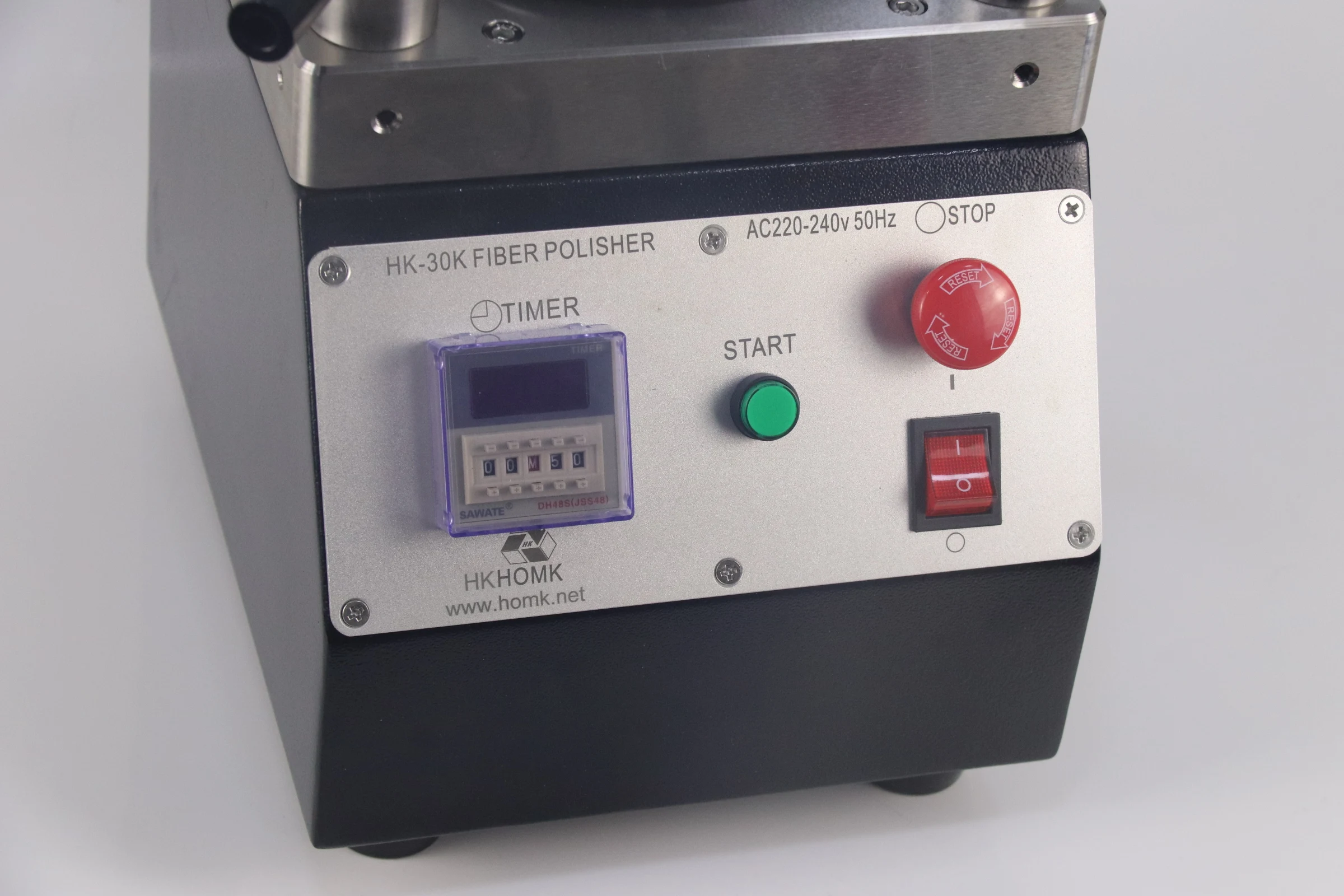

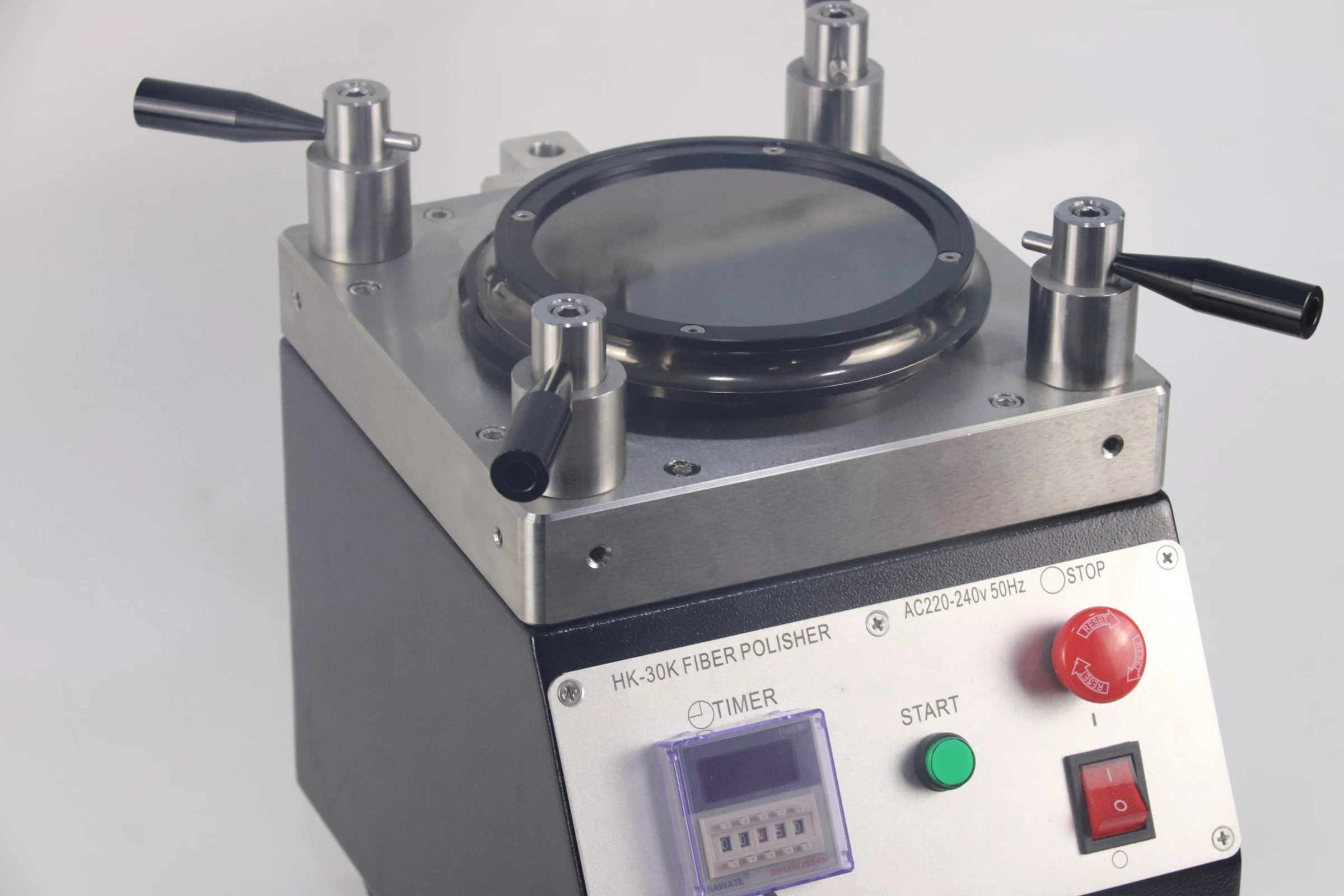

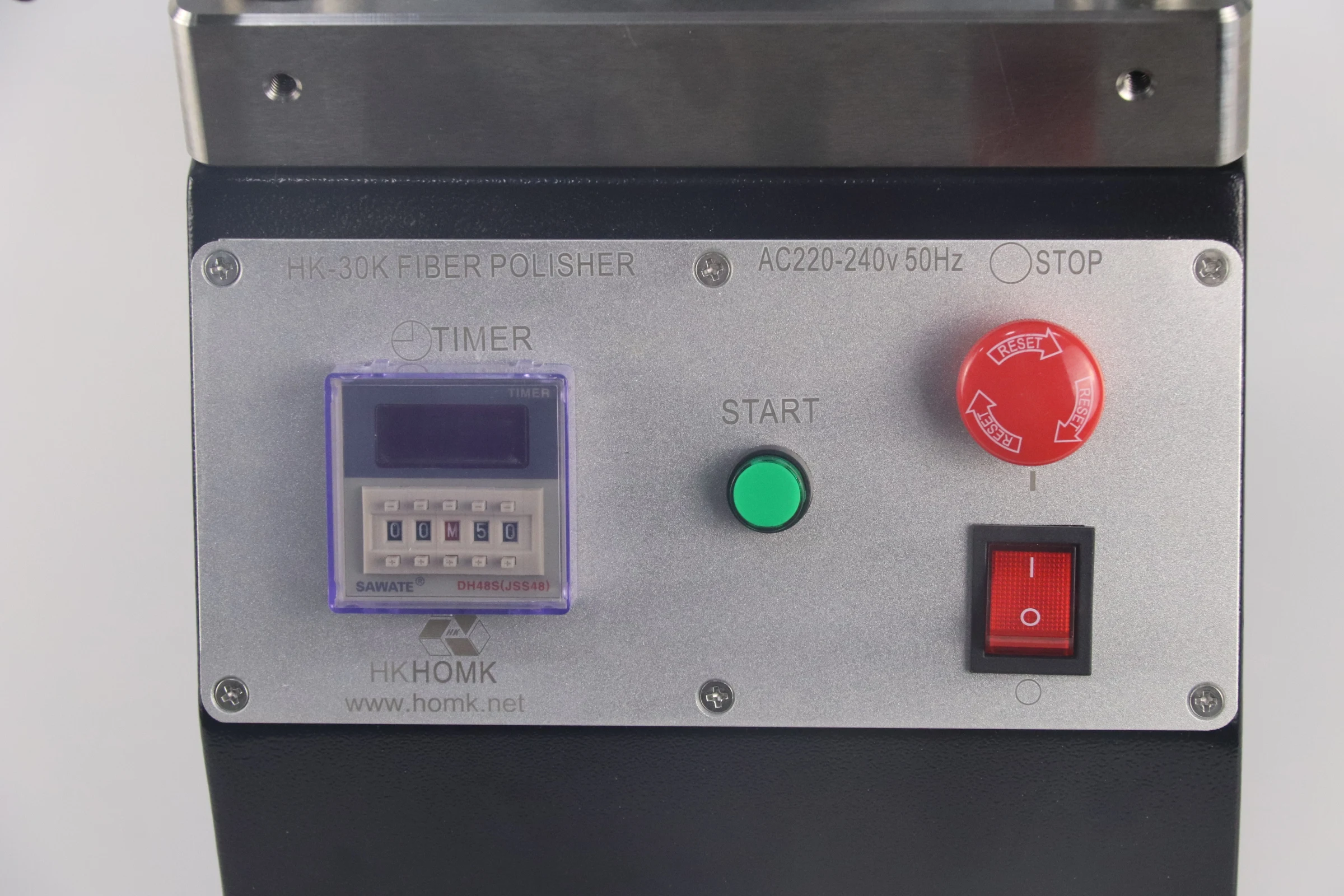

HK-30K fiber polishing machine is Homk 2012 new machine,

A HK-30K fiber polishing machine's pressure is fixed, do not make any adjustments.

B HK-30K fiber polishing machine inside all components adopt USA QPQ metal hardening technology, Surface hardness up to 80 degrees, it is highly wearable, two motors all be imported from Japan,

C HK-30K fiber polishing machine uses bearing drive(Inside wheel bead in turn), will not wear out other metal parts.

D In every time before shipment, Homk famous technical worker LEO adjust and test HK-30K, let HK-30K fiber polishing machine polishing result be pretty precise, if producure high quality connectors, this type is your best choose. Striking strengths such as high reliability, efficiency, versatility and easy operation. Because of the above advantages, the fiber polishing machine no need maintenance, don't like other machine, need very month replace oil.

E This fiber polishing machine can polishing 1~48 connectors one time, the fiber polishing machine is suitable extremely for the volume production, it is square pressurized by the spring, the operation is simple, the fiber polishing machine processing precision is high and the uniformity is extremely good. And this type fiber polishing machine is fast processes each kind of connectors with high effect.

1) Exceeds requirements for GR-326 End Face Geometry, Built high quality, heat-treated, stainless steel for amazing precision and durability.

2) Rotation & revolution method. Efficient and fast processes for all connector types: FC, SC, LC, ST, MTRJ, MPO, MTP, E2000 and so on. Like plastic fiber, energy fiber, glass fiber all can use this machine.

3) New I. P. C. Holder technology yields the best results in the industry. No variability in result when polishing 1 to 48 connectors one time, it is suitable extremely for the volume production, operation flexibility is high fast processes (just 30S)each kind of connectors with high effect, low insert loss and low return loss, low repair coefficient. The good interchangeability and repeatability.

4)Optimized polishing path with improved film effective usage, Has a unique compensation of polishing film function, can control polishing film's cost strictly while keep highest consistency of quality. Save material and low cost for polishing.

Excellent performance, high efficiency and durable Fiber Polishing Machine(HK-30K)
