Полностью автоматическая машина для переработки использованных шин/установка отработанных шин в
- Категория: Rubber Recycling Machinery >>>
- Поставщик: Qingdao,Chaoguangyue,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.71 $* | 0.84 $* |
| Aug-18-2025 | 0.69 $* | 0.7 $* |
| Jul-18-2025 | 0.72 $* | 0.87 $* |
| Jun-18-2025 | 0.80 $* | 0.82 $* |
| May-18-2025 | 0.15 $* | 0.39 $* |
| Apr-18-2025 | 0.12 $* | 0.27 $* |
| Mar-18-2025 | 0.35 $* | 0.98 $* |
| Feb-18-2025 | 0.42 $* | 0.15 $* |
| Jan-18-2025 | 0.25 $* | 0.52 $* |
Характеристики
full automatic used tyre recycling machine/ waste tyre recycling plant to rubber granule
Flow Chart:
Waste tire---whole tire de-beader---whole tire cutting---whole tire shredding---Rubber crushing--- magnetic separating(Nylon fiber separator if recycle nylon tires) ---Rubber powder

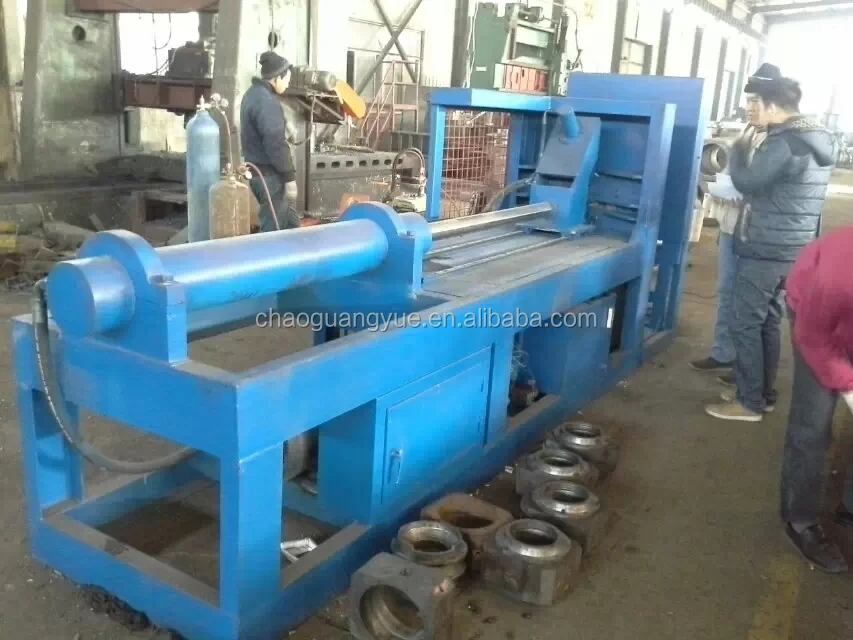

1, Whole tire de-beader
whole tire wire drawing machine( Draw out the steel wires from the tire bead. )
Model No. | TD-1200 |
Feed size of tire(mm) | ≤φ1200 |
Capacity(tires/h) | 80-100 |
Power(KW) | 7.5 |
Overall dimensions(m) | 4.7*0.9*1.7 |
Equipment weight (T) | 2.8 |

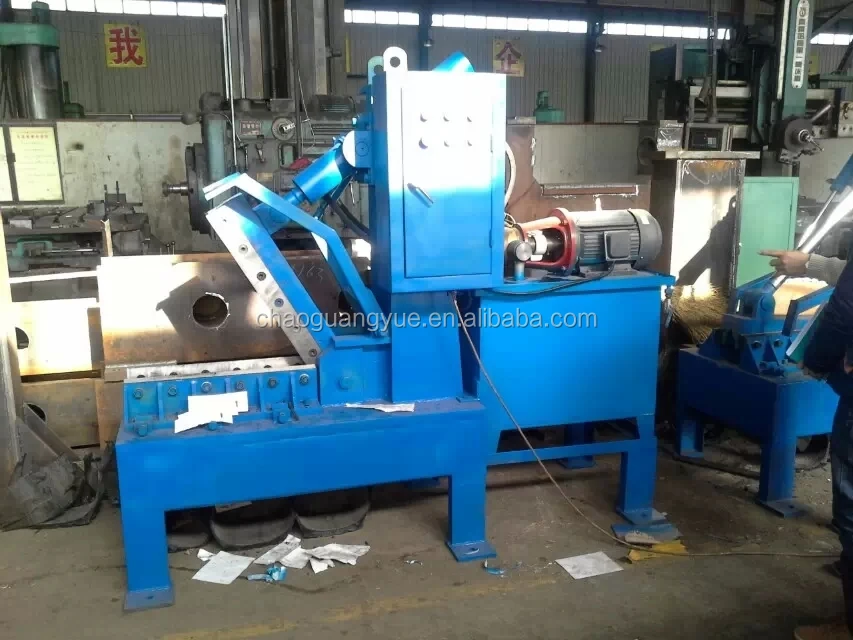

2, Whole tire cutter
Functions:
Whole tire cutter , it is used to cut big tires into small pieces.
Model No. | TC-1200 | TC-1400 |
Feed size of tire(mm) | ≤φ1200 | ≤φ1400 |
Capacity(tires/h) | 30-40 | 30-40 |
Power(KW) | 4 | 7.5 |
Overall dimensions(m) | 2.2*0.8*1.5 | 2.4*1.0*2.0 |
Equipment weight (T) | 1.2 | 2.5 |
3,Whole tire shredder
This whole tire shredder can cut whole tire into 50x50mm , and 60x60mm rubber block as you need.
Model | TS-900 | TS-1200 |
Production capacity | 0.8-2ton/h | 1.5-3ton/h |
Size of feeding | ≤900mm whole tyre | ≤1200mm whole tyre |
Specification of the slice | ≤50*50mm | ≤60*60mm |
Motor power | 45kw | 55kw |
Cutter rotate speed | 16r/min | 31r/min |
Screener rotate speed | 6r/min | 8r/min |
Dimension | 2.8*2.1*2.4m | 5.2*2.8*3.5m |
Weight | 6.2T | 14.8T |

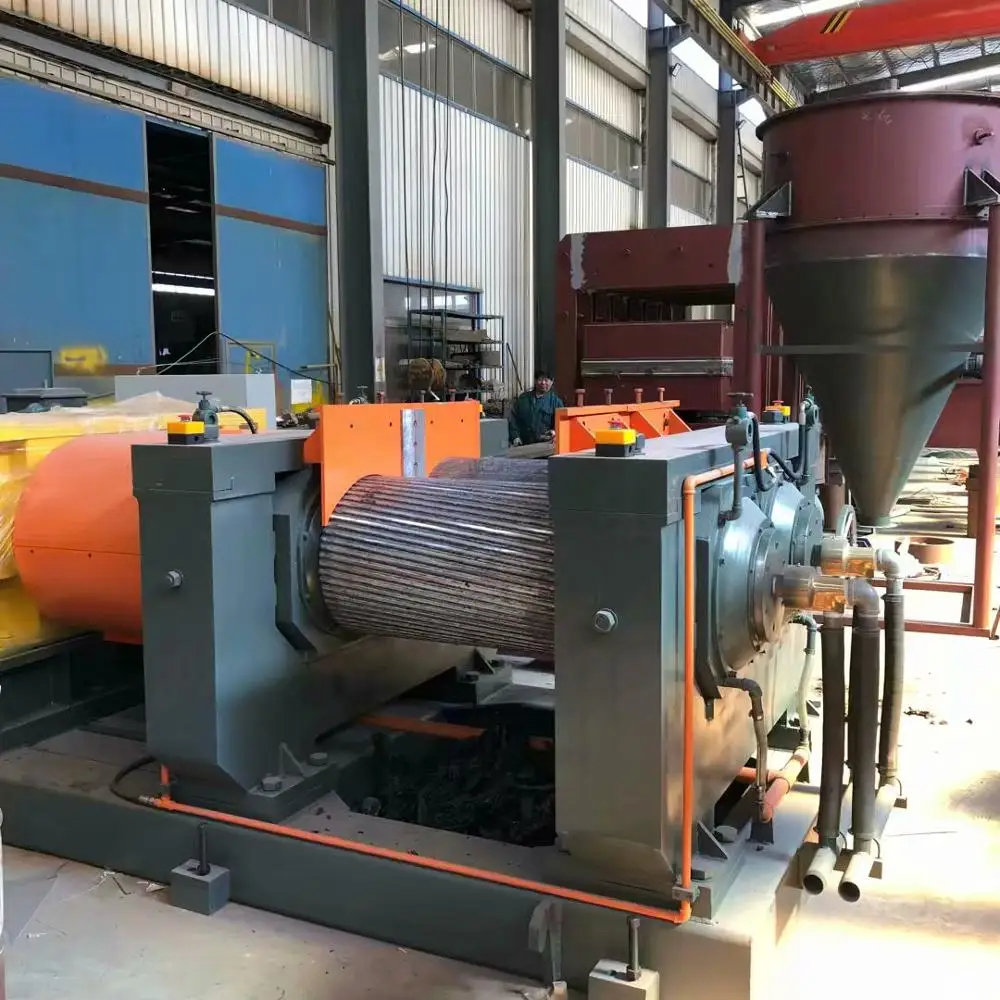

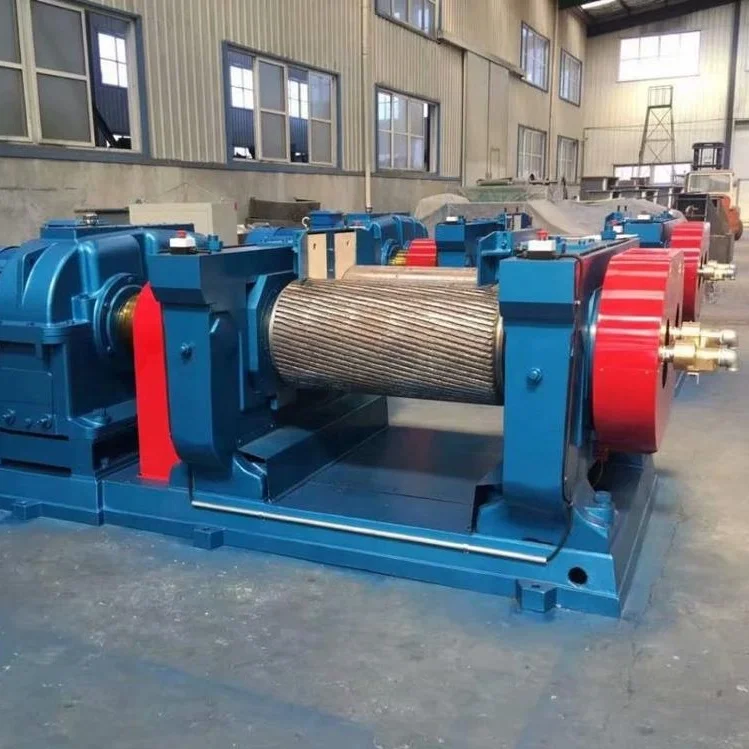

4.Rubber crusher
Type&Specification | XKP-400 | XKP-450 | XKP-560 |
Feeding size | 3.5CM | 3.5CM | 3.5CM |
Discharging size | 10—30 mesh powder | 10--30 mesh powder | 10--30 mesh powder |
Rubber crusher throughput(kg/h) | 100--150kg | 250—300kg | 350—420kg |
Motor power(kw) | 45 | 60 | 75 |
Outside measurement(m) | 4.1×1.8×1.9 | 4.4×1.9×1.9 | 5.5×2.2×2.1 |
Weight(t) | 7.5 | 11 | 19 |
5, Auxiliary Equipment

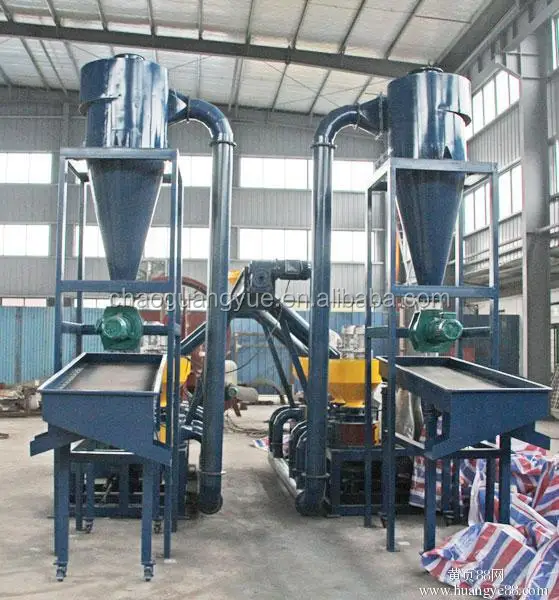

5, fiber separater
Technical Parameter
| Parameter | 1100×8 |
| Impeller number | 8 |
| Impeller diameter | 1100mm |
| Speed of main shaft | 377 or 464/min |
| Power | 5.5kw |
| Speed of feeder | 29 r/min |
| Feeder power | 0.4kw |
| Overall dimension | 1600xH3400(mm) |
Our Services
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
2 years quality guarantee, Life-long Maintenance
FAQ
1. Purity of the final rubber powder:
We can get the rubber powder in 99.9% purity, cause we separate the wire steels
twice by the magnetic separator.
2. About the installation and training:
Our engineer are available to help our customers with the installation and training
with the machines overseas; If you want, we will of course welcome you to come here for learning how to operate the machines.
3. QC
Third party inspection: acceptable
2 years guarantee
4.Payment :
TT, 30% deposit ,70% before shippment.
5.Available shipment Port:
FOB Qingdao
