Типа Swagelok 6000PSI нержавеющая сталь 3-ходовой клапан

Описание и отзывы

Трекер стоимости

Характеристики

3-way valve manifolds

Specifications

1.Standards:NPT,BSP,ISO,DIN
2.Material:stainless steel 316, 304 ,monel, inconel, duplex etc.
3.Certificates:ISO9001:2008,

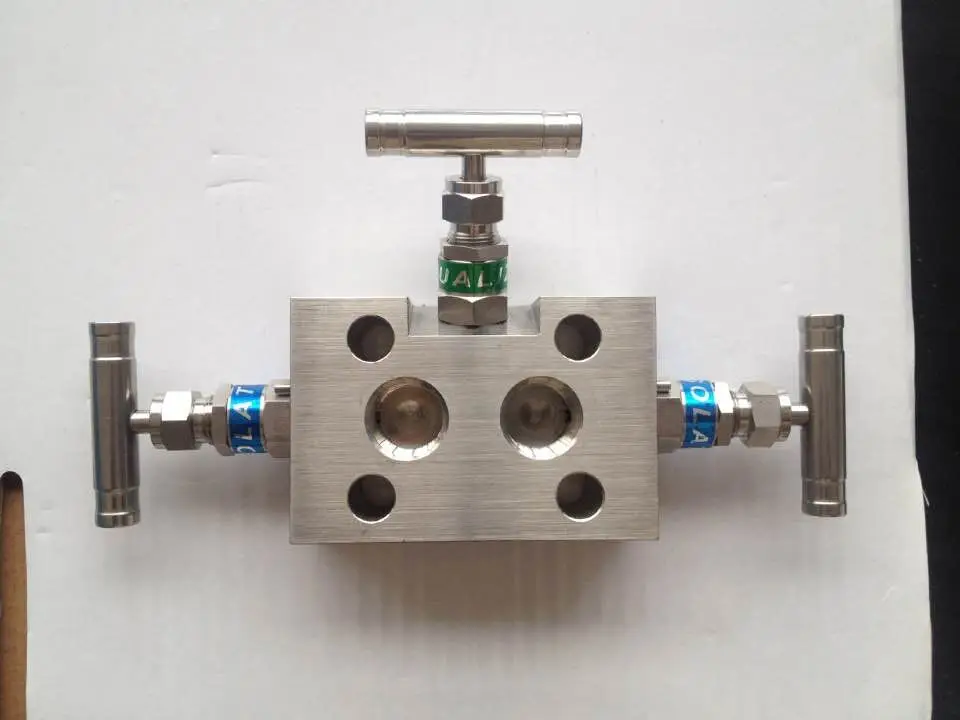

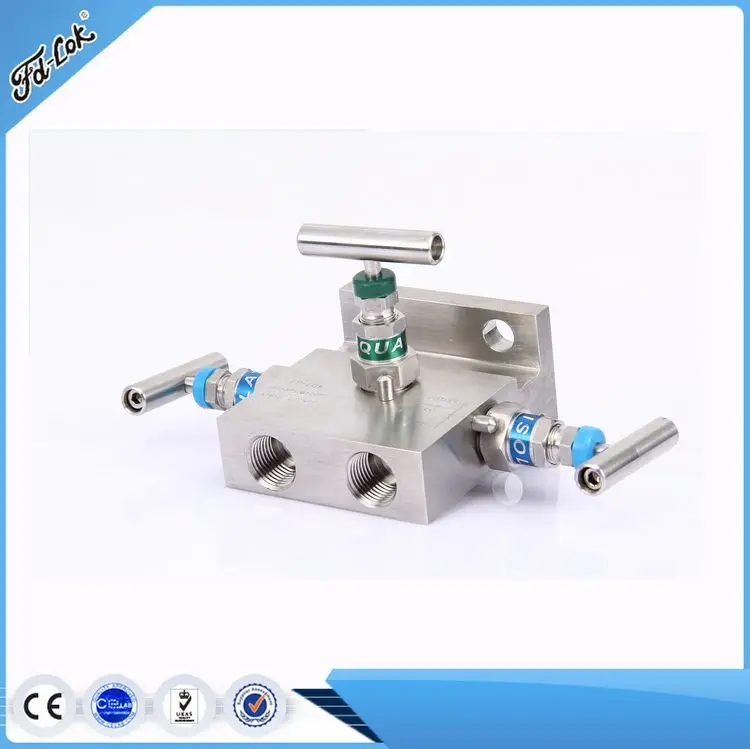

Swagelok Type 6000PSI Stainless Steel 3-way valve manifolds







Technical Data:







1.Name	Swagelok type 6000PSI stainless steel  3-Way Valve Manifolds
2.Material	Stainless steel316,316L,304,304L, duplex, monel, inconel etc
3.Pressure	6000psi
4.End Connection type	Npt thread
5.End Connection Size	1/2″*flange
6.Power	Manual
7.Seated	Metal
8.Media	Gas,water,etc
9.Working pressure	-54°C~+648°C
10.MOQ	10pcs
11.OEM Accepted	Yes





3-way valve manifolds same as SWAGELOK. Quality must be promised by 100% testing through many testing machines.



Our product is high quality,ensure safe,trouble-free performance.









Advantage:

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you



Our Capacity:

1)Date of foundation:2002

2)Annual Revenue:Above $9 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Europe,North America,Southeast Asia and Brazil

5)Main Products:  Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,

2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,

Syphons, Globe Valves, Plug Valves, Tube



We Provide You With Sincerely Service, if you interest, please contact us NOW!!!

Tel: 86-577-86927952

Fax: 86-577-85989788

Website: http://www.fd-lok.com/

Website on Alibaba: http://fangdun.en.alibaba.com/



Specifications

Valve Manifolds
1.Standards:NPT,BSP,ISO,DIN
2.Material:stainless steel 316, 304, monel, inconel, duplex
3.Certificates:ISO9001:2008,
4.ISO9001,CE

Swagelok type 6000psi stainless steel 3 Way Valve Manifold





Feature:

1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
4.Certificates:ISO9001:2008, CE

5.Brand Name: FD-LOK

6.Place of Origin: Zhejiang, China (Mainland)



Details:

1.Press up to 6000psig (414bar) for standard stainless steel body
2.Temperature for PTFE packing from -65°F to 450°F (-54°C to 232°C)
   Temperature for Grafoil packing from -65°F to 1200°F (-54°C to 649°C)
3.Packing below stem thread isolates the thread lubricant from the media
4.Back seating design protects the packing in fully open position
5.Non-rotating stem tip
6.100% factory tested
7.Orifice:0.157" (4.0mm),CV:0.35


Our product is high quality,ensure safe,trouble-free performance.









Advantage:

Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable

Quality Control: We have been engaged in valve design for many year and can guarantee best quality

Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you



Our Capacity:

1)Date of foundation:2002

2)Annual Revenue:Above $9 million

3)About QC: Excellence, quality first is our philosophy

4)Sales Market: Europe,North America,Southeast Asia and Brazil

5)Main Products:  Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,

2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,

Syphons, Globe Valves, Plug Valves, Tube



We Provide You With Sincerely Service, if you interest, please contact us NOW!!!

Tel: 86-577-86927952

Fax: 86-577-85989788

Website: http://www.fd-lok.com/

Website on Alibaba: http://fangdun.en.alibaba.com/
