Капиллярный термометр с
- Категория: Test Instruments >>>
- Поставщик: Beijing,Shengruike,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.98 $* | 0.43 $* |
| Aug-19-2025 | 0.66 $* | 0.48 $* |
| Jul-19-2025 | 0.82 $* | 0.6 $* |
| Jun-19-2025 | 0.50 $* | 0.91 $* |
| May-19-2025 | 0.65 $* | 0.97 $* |
| Apr-19-2025 | 0.59 $* | 0.8 $* |
| Mar-19-2025 | 0.1 $* | 0.23 $* |
| Feb-19-2025 | 0.55 $* | 0.85 $* |
| Jan-19-2025 | 0.72 $* | 0.8 $* |
Характеристики
Name:Capillary thermometer with Gas Filled Thermometers
Beijing ShengRuiKe offer a complete range of made to order, high quality mechanical dial capillary thermometers available with a wide range of options to meet the requirements of most industrial applications
I. Gas Filled Thermometers Main technician parameter
| Dial Size: | 3", 4" 5", 6" |
| Stem diameter: | Φ6.3, Φ8, Φ10 |
| Temperature probe : | Φ14 x 60,100,150, 200, 250, 300mm |
| Connection: | Bottom, and back connection |
| Capillary length : | ≤ 20 m |
| Connection thread: | 1/4", 3/8", 1/2" BSP, BSPT, NPT |
| Case ring: | 304 stainless steel |
| Window (lens): | Polycarbonate lens, tempered glass available |
| Accuracy: | 1.6% full scale |
| Option Info: | Other materials, ranges, connections are available upon request |
II. Gas Filled Thermometers More Specification for Choice
1. Dial Size?
2. Temperature Range?
3. Back or Bottom or Adjustable Type?
4. What is the thread size?
5. Display C&F or only C?
6.Capillary Length?
III. Gas Filled Thermometers Show

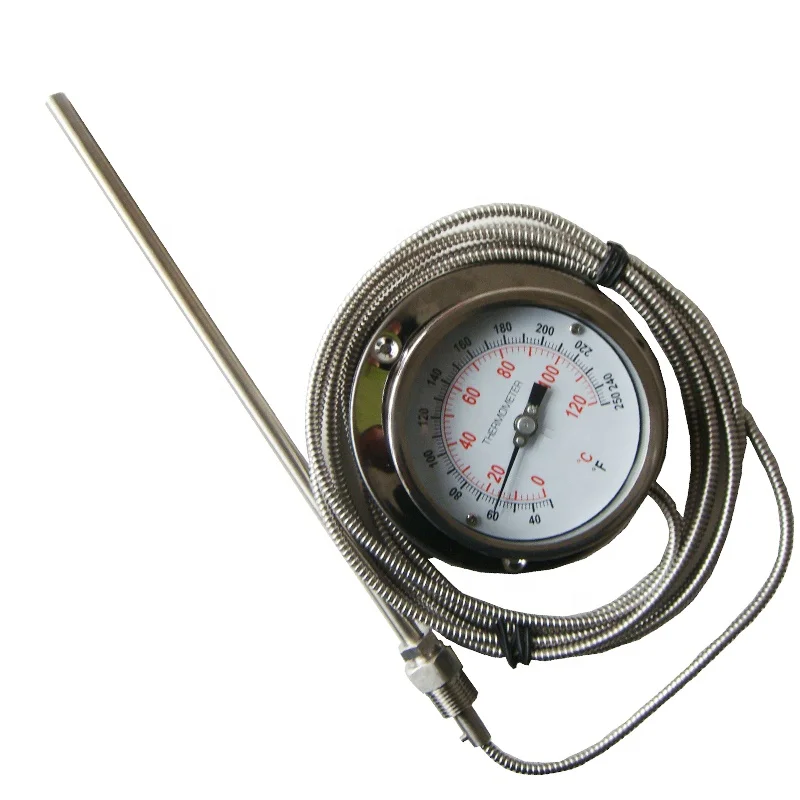

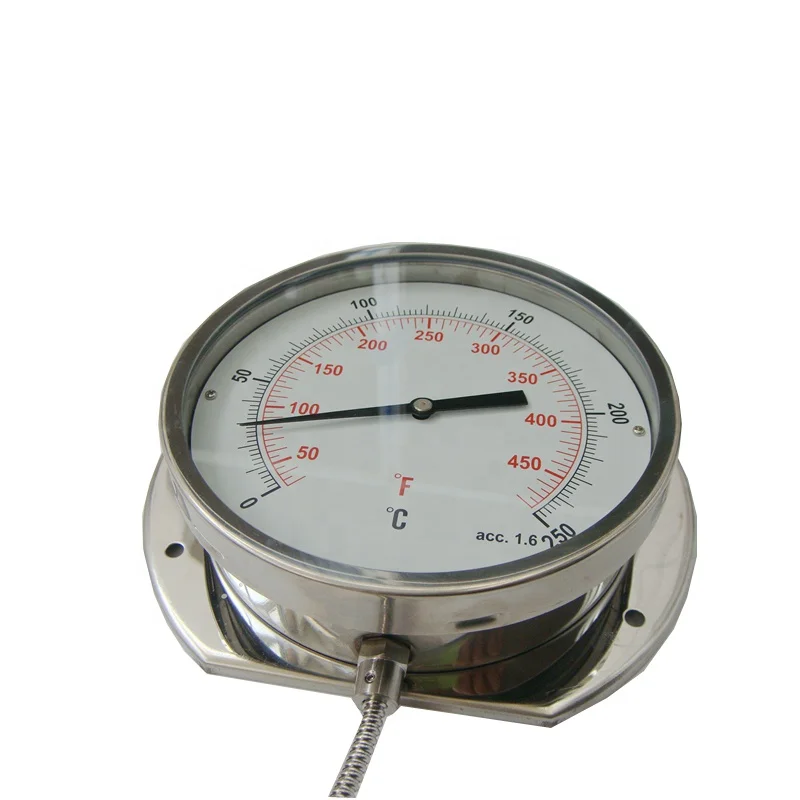

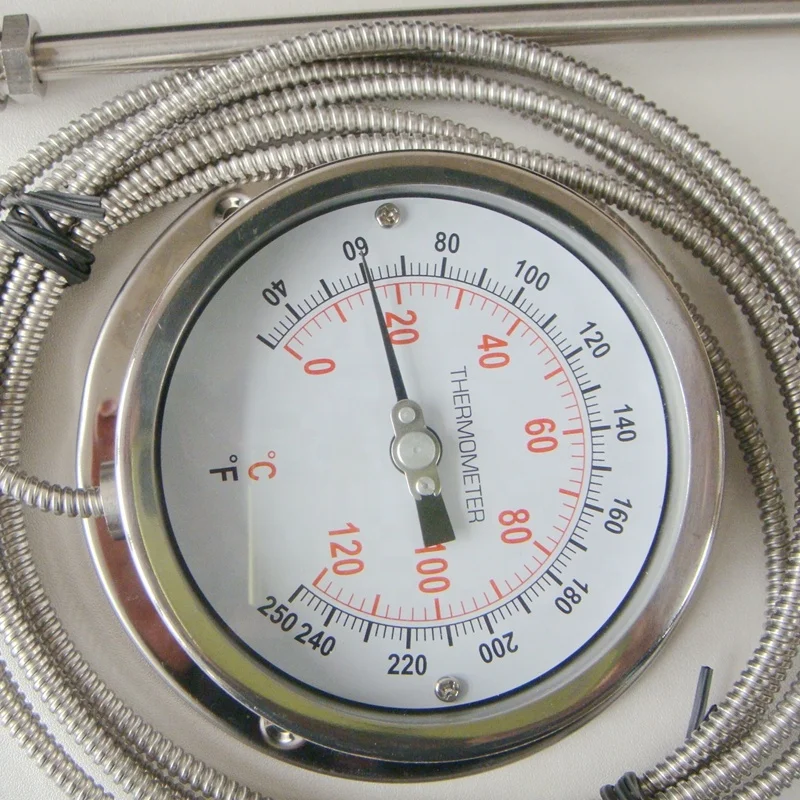

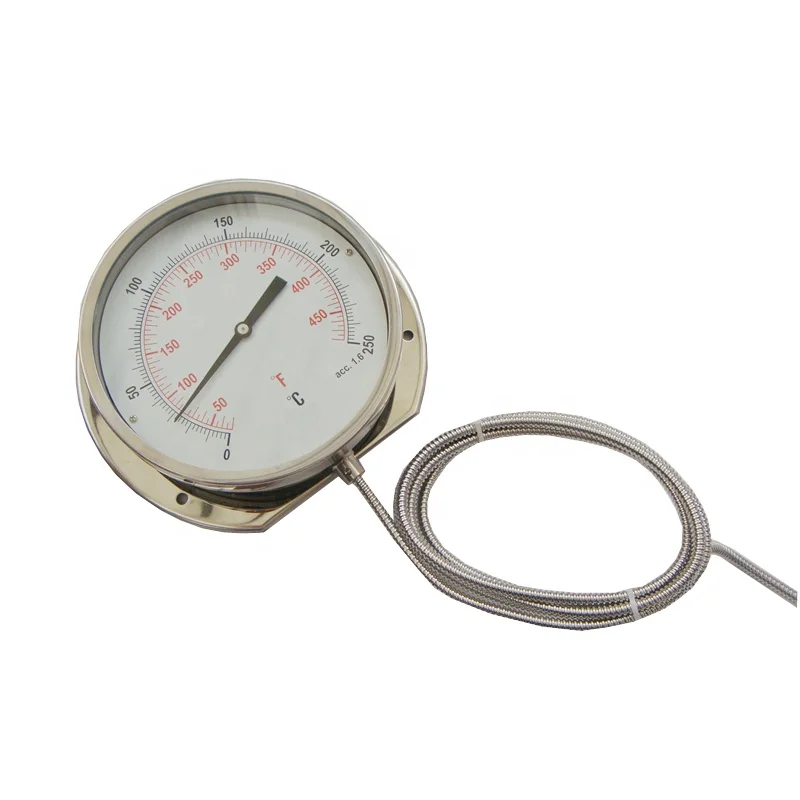

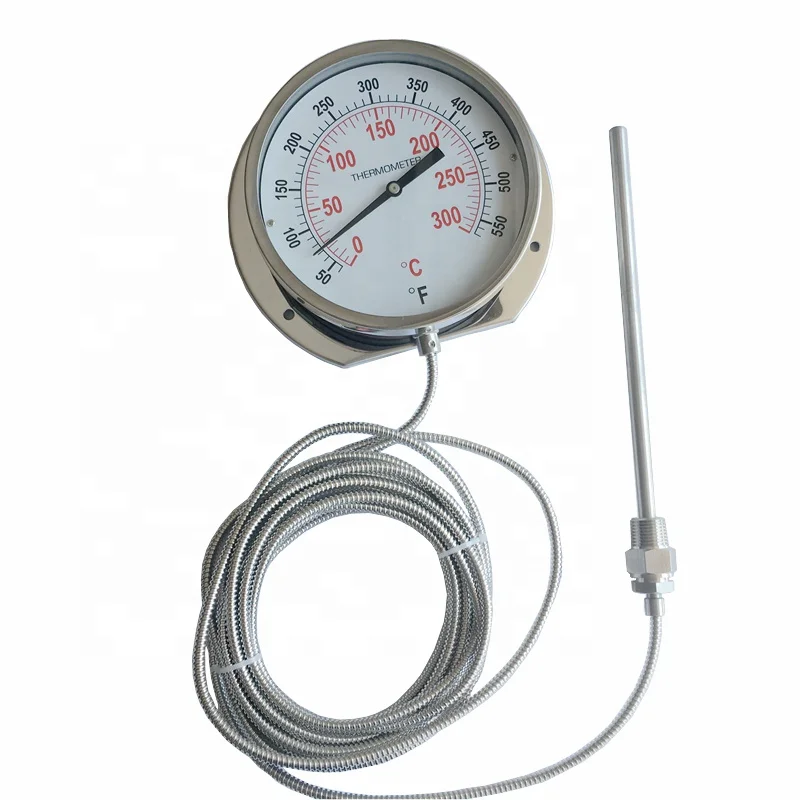

Remote Reading Thermometer
