Мини 3d фрезерный станок с ЧПУ 4 оси 3040Z-VFD 800 Вт изготовление

Цена:1 100,00 $ - 1 235,00 $*

Количество:

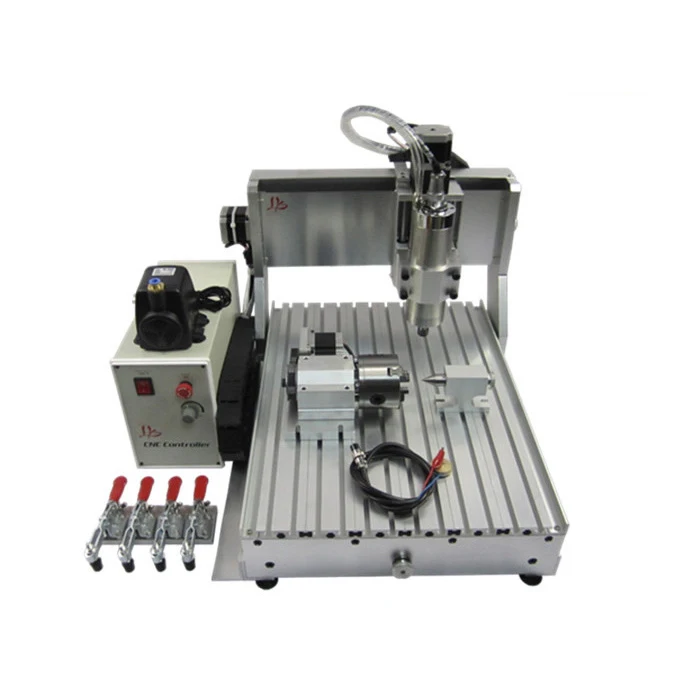

LY CNC factory, CNC engraving machine 3040Z-VFD800W, water cooled engraver

LYCNC3040Z-VFD800W 3axis engraving machine parameters:

Machine Dimensions	600X510X480mm
Rack material	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area	400X300mm
Z-Axis Stroke	80mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness	≤80mm
Rail type	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw	Ball screw 1605, Pitch 4mm

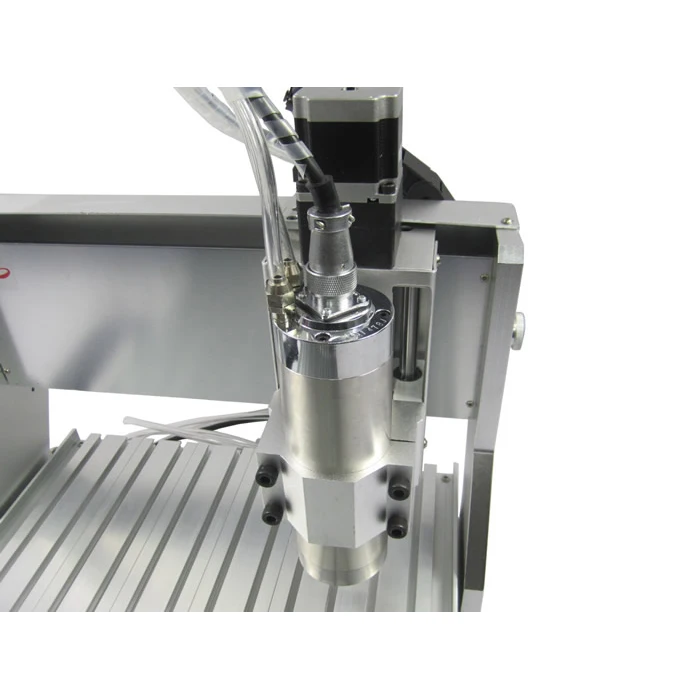

Spindle motor	800W VFD water cooling spindle , 0-24000r/min
Collet type	ER11,1/8"(3.175mm) Collet
Stepper motor and drive	two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.
Maximum operating speed	4000mm/min (Engraving speed :300-3000mm/min)
Repeat positioning Accuracy	0.03mm

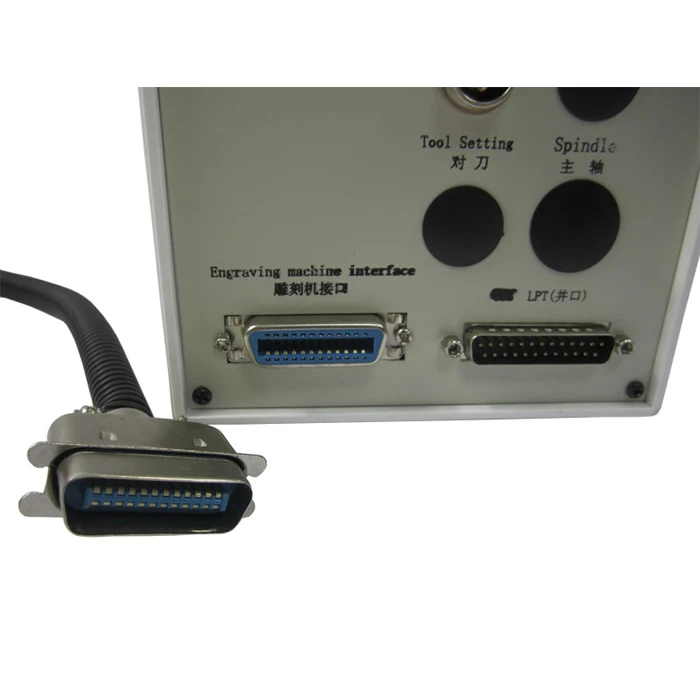

Communication interface	Parallel port
Software Compatability	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code	G code/.nc/.ncc/.tab/.txt
Machine weight	50kg

The machine already assembled & tested well,

can directly use after take them out from package

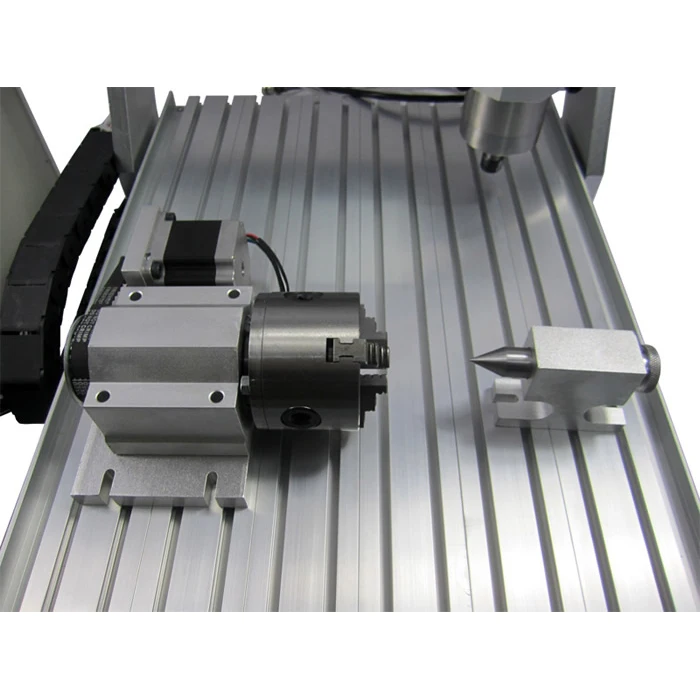

dd the 4^th axis	Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type / 2A two phase 4 line Positioning accuracy: 0.075 °

dd the 4^th axis

Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type / 2A two phase 4 line

Positioning accuracy: 0.075 °

Packing list:
1× Engraving machine 1× Control box 1× Power cable 1× control line 1× Parallel port cable 25pin 1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs) 1× tool auto-checking instrument 1x water pump 1× CD of manual and software MACH3 (if not get, may be lost in customs, please c

Packing list:

1× Engraving machine

1× Control box

1× Power cable

1× control line

1× Parallel port cable 25pin

1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)

1× tool auto-checking instrument

1x water pump

1× CD of manual and software MACH3 (if not get, may be lost in customs, please c
