Hotel Drywall System Metal Stud and Track



New Tour Galvanized Steel Keel use high quality galvanized steel roll forming as raw materials, with superior rust resistance, smooth surface, good straight line. It is widely used for paper faced gypsum board, decorative gypsum board to finish the non-bearing walls and ceiling of the building decoration. It is applicable to a variety of building ceiling decoration, building both inside and outside the wall.

Galvanized steel keel can be separated to ceiling keel system and partition keel system according to their usage.





1)  Specifications:



1. V-shaped Keel:

Height: 26mm/30mm/38mm

Width: 18-20mm

Thickness: 0.5mm-1.2mm

Standard length: 3000mm

2. Main Keel(ceiling C groove):

Height: 10mm/12mm/14mm

Width: 30mm/35mm/38mm

Thickness: 0.5mm-1.2mm

Standard length: 3000mm

3. Cross Keel(ceiling M groove):

Height: 15mm/17mm/19mm

Width: 50mm

Thickness: 0.5mm

Standard length: 3000mm

4. Furring Channel(Omega):

Height: 22mm

Whole width: 65mm

Top width:35mm

Thickness: 0.35-0.7mm

Standard length: 3000mm

5. Wall Angle:

Height: 20mm/22mm/25mm

Width: 20mm/22mm/25mm

Thickness: 0.4mm-0.6mm

Standard length: 3000mm

6. Track(C channel):

Height: 22mm/30mm/35mm/40mm

Width: 50mm/75mm/100mm/150mm

Thickness: 0.45mm-1.0mm

Standard length: 3000mm

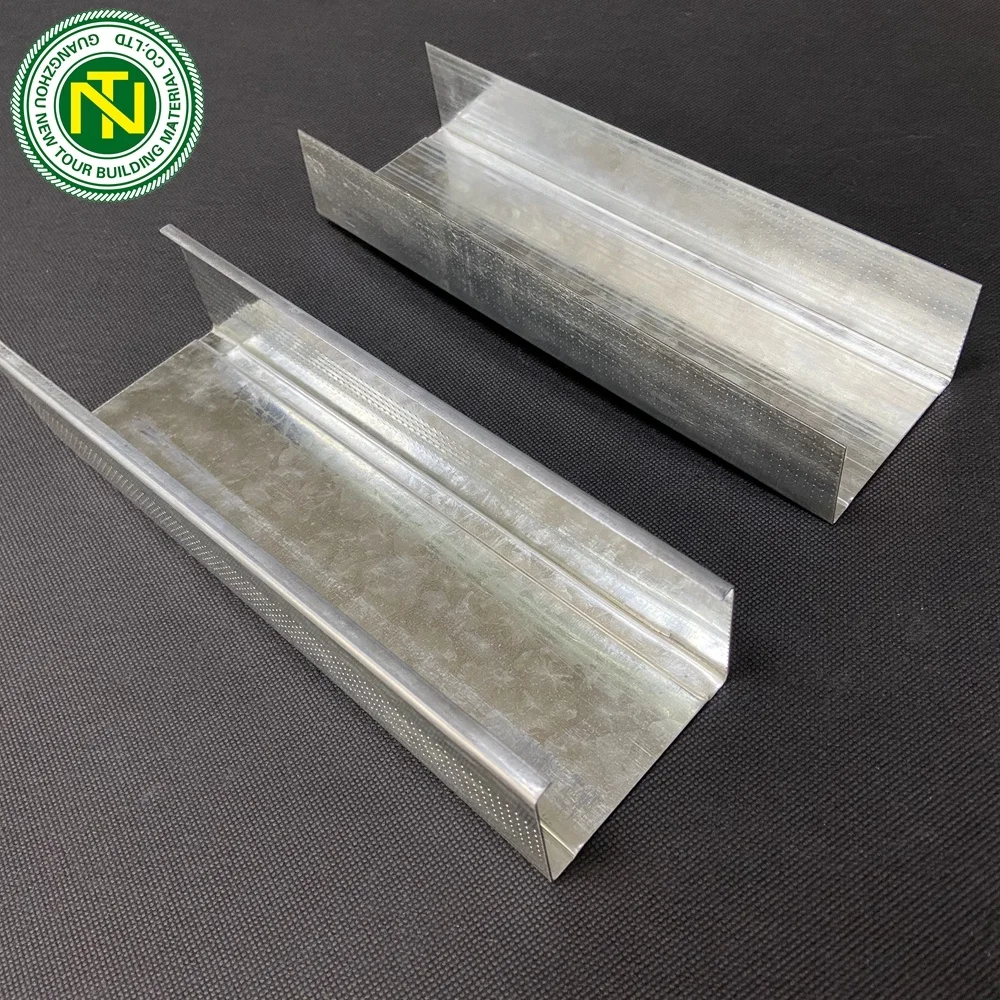

7. Stud(U channel):

Height: 30mm/32mm/35mm/40mm/50mm

Width: 50mm/75mm/100mm/150mm

Thickness: 0.45mm-1.0mm

Standard length: 3000mm

8. Thread Rod:

Diameter: 6mm/8mm

Standard length: 3000mm





2)  Products Feature:



1.    It is a metabolic and effective to avoid cranny caused by installing the ceiling and partition.

2.    It is very good during installation, unique pocked technique.

3.    It is good for avoiding self-screw side slipping.

4.    It does not only improve the speed of construction, but also assures the locked-in connection among material.

5.    Light weight and high strength.

6.    Matching magnesium fire-proof board, gypsum board and many other wall and ceiling board.

7.    Moisture-proof, shock-resistant, high-efficient and environmentally-friendly.



3)  Installation:

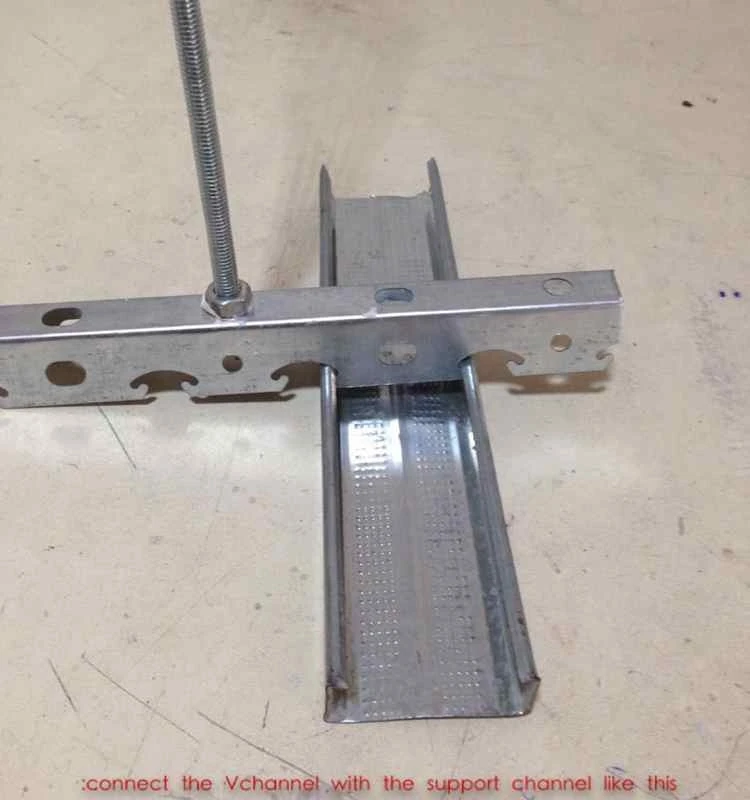

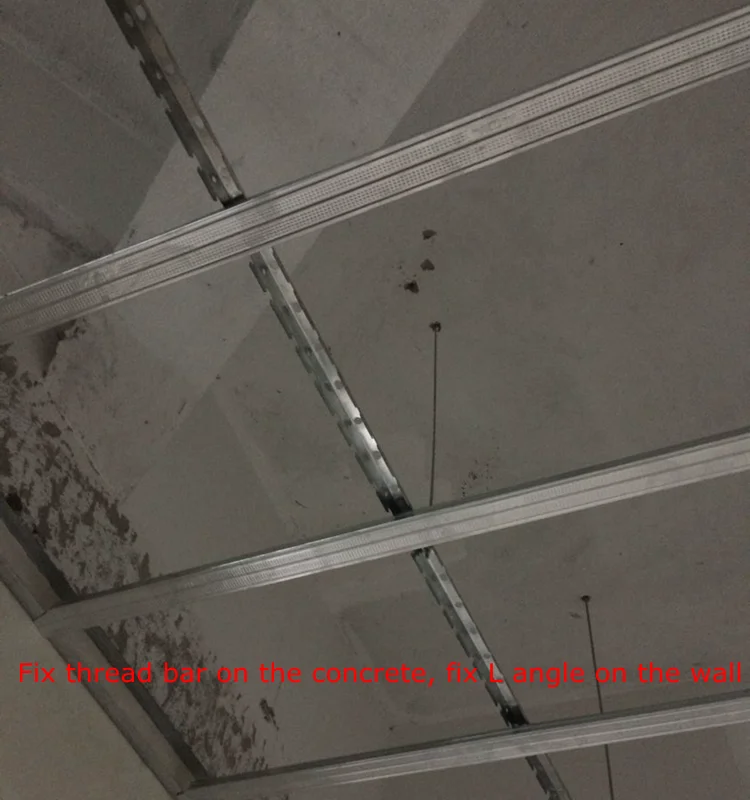

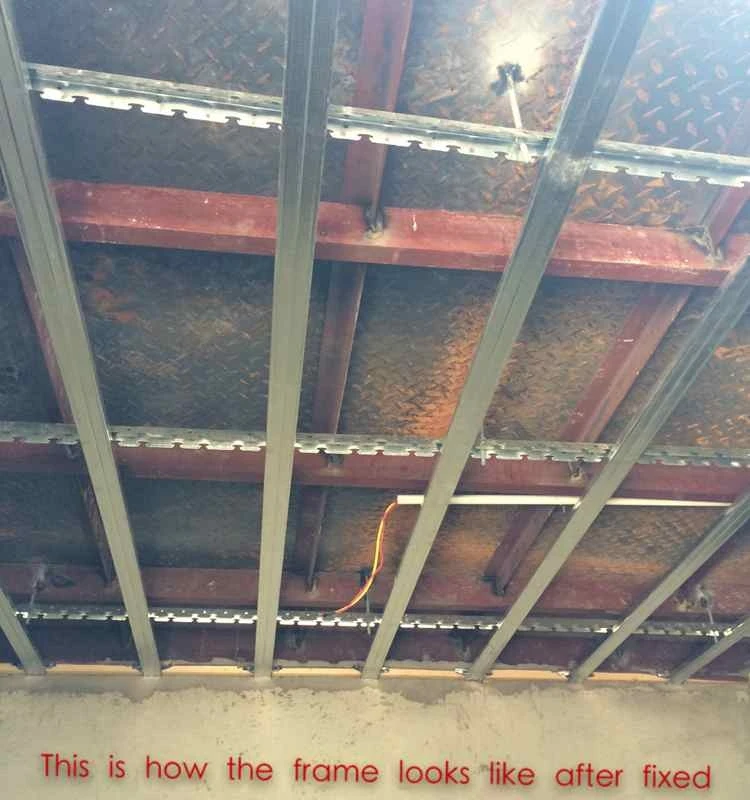

For ceiling system:





For partition system:







4)  Matched Accessories:







Package: Bulk or Carton Box

Shipment: 12 days after payment





1. Prompt Reply:all your inquiry will be replied in time within 24 hours!



2. Professional Reply:all our sales team member are well trained of product knowledge, and all your questions will be answered professionally in details.



3. Customized or not: yes, we accept OEM & ODM, we are professional in customizing designs according to your requirements!



4. Free Sample: the samples could be offered for free!



5. Local Service: when you arrive in Guangzhou, we will offer complete support for you no matter in life or in business!





Guangzhou New Tour Building Material Co., Ltd, which is a professional ceiling manufacturing enterprise, focusing on building construction and home decoration for many years. Our main products are: High quality gypsum plaster cornice & its molds, GRG gypsum ceiling tiles with aluminum accessories, Gypsum board with galvanized steel channel, Drywall partition with Track & Stud, Aluminum ceiling tiles, etc.



Our products are characterized not only by fire-proof, water-proof, mould-proof, high strength, light weight, noise-proof, aging-resistant and weather-resistant, also with an esthetic ornamental result of elegance and perfection, we are always focusing on innovating and improving, now have gradually developed into a diversified enterprise with a marketing as the leading, taking independent research, design, manufacture, sales and installation as a whole.

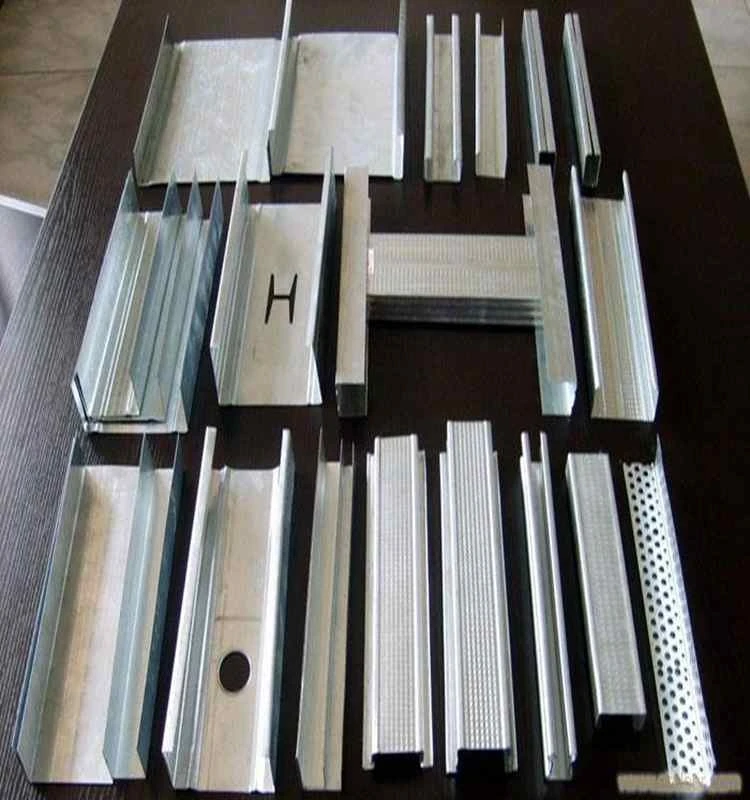

Main Product List:

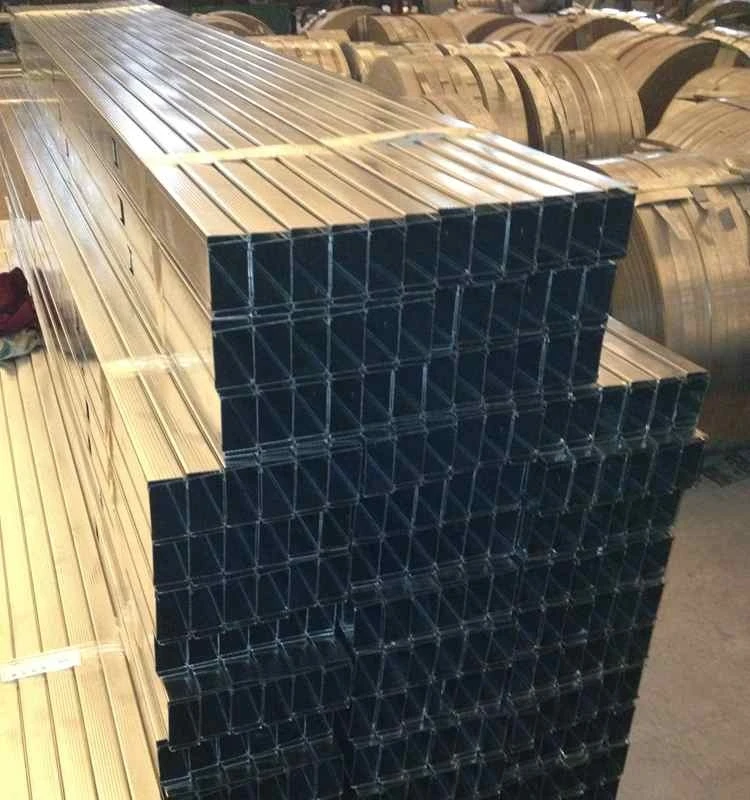

Factory View:
