20x4 символьный ЖК-дисплей 2004
- Категория: Displays, Signage and Optoelectronics >>>
- Поставщик: HUA,XIAN,JING,DISPLAY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.8 $* | 0.67 $* |
| Aug-20-2025 | 0.6 $* | 0.19 $* |
| Jul-20-2025 | 0.59 $* | 0.50 $* |
| Jun-20-2025 | 0.83 $* | 0.76 $* |
| May-20-2025 | 0.30 $* | 0.57 $* |
| Apr-20-2025 | 0.2 $* | 0.19 $* |
| Mar-20-2025 | 0.46 $* | 0.88 $* |
| Feb-20-2025 | 0.25 $* | 0.11 $* |
| Jan-20-2025 | 0.15 $* | 0.64 $* |
Характеристики
24 characters 2 lines LCD Module
Product information:

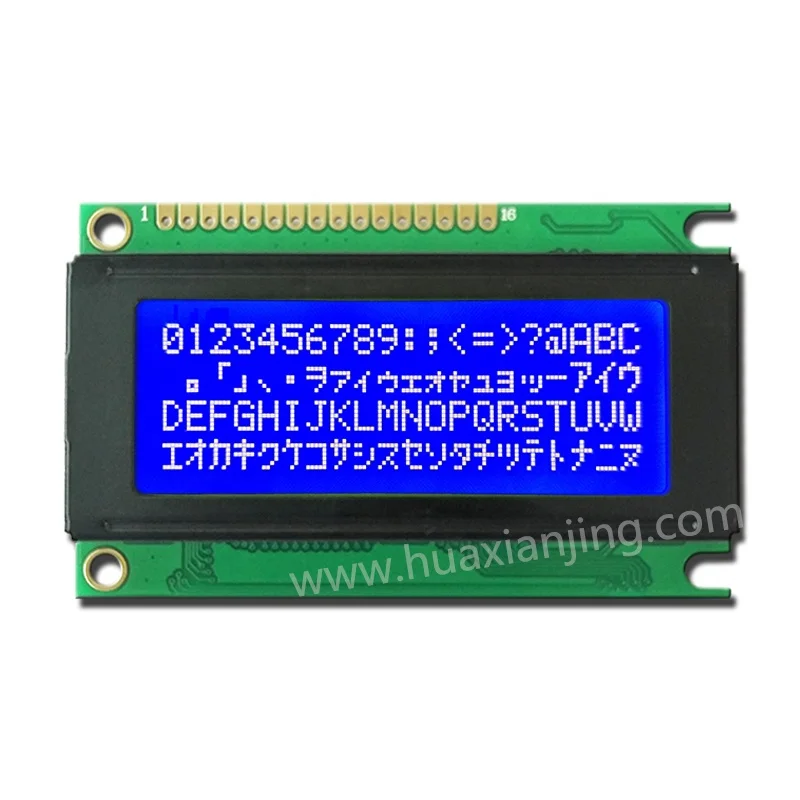

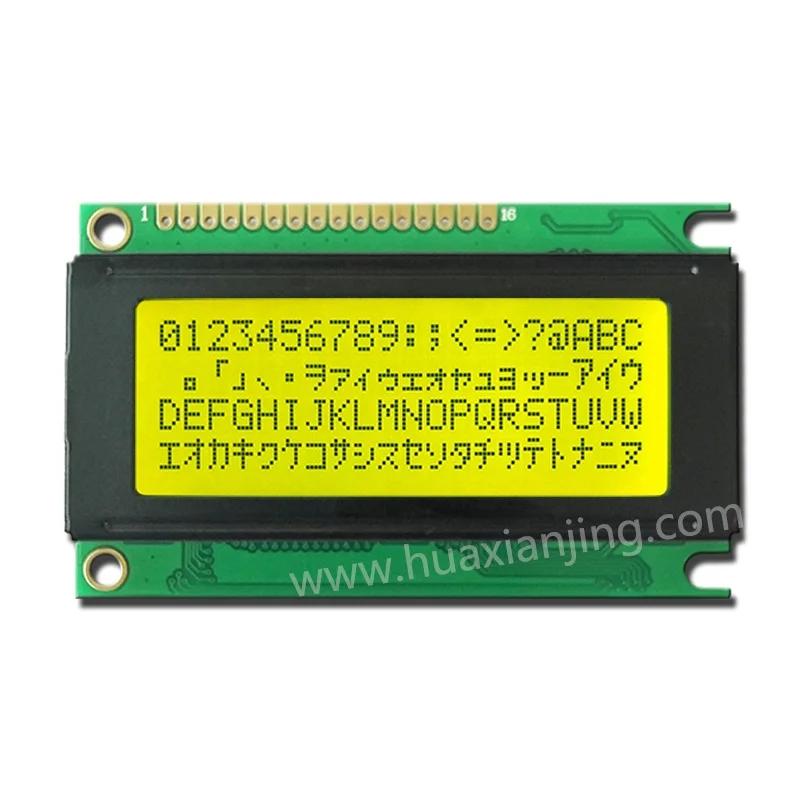

Module No.: | HSM2004F |
Display Type: | 20 Characters x 4 Lines |
Outline Size: | 77 x 46.7 x11.5 mm |
Viewing Area: | 60 x 22 mm |
Encapsulation: | COB |
Screen Color: | Yellow-Green/Blue/Gray |
Backlight Color: | Yellow-Green/Green/White/Blue/Orange/Red |
Backlight: | Side LED |
Driver IC: | AIP31066 |
Connector: | Conductive Silicon Rubber |
Pin Number: | 16 |
Interface: | 8-bit MPU interface |
Driver Condition: | 1/16 Duty,1/5 Bias |
Viewing Direction: | 6 O’Clock |
Operating Voltage: | 5V/3.3V |
Operating Temperature: | -20~+70℃ |
Storage Temperature: | -30~+80℃ |
Product description:
Character LCD 20x4 (5 x 8 dots)
STN-YG / STN-Blue / STN-Gray /FSTN-Gray
+3.3V / +5.0V power supply
Viewing Direction: 6H / 12H
Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
Fonts: English-Japanese / English-European / English-Cyrillic (Russian)
Mechanical Diagram:
Interface Pin Description:
No. | Symbol | Function |
1 | VSS | Ground (0V) |
2 | VDD | Supply Voltage for Logic (+5.0V ) |
3 | VO | Contrast Adjustment |
4 | RS | Data/Instruction Select |
5 | R/W | Read/Write Select |
6 | E | Enable Signal |
7--14 | DB0—DB7 | Data Bus |
15 | LED_A | LED Power Supply + (5.0V) |
16 | LED_K | LED Power Supply - (0V) |
