Большой Рабочий стол и пылесборник для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.1 $* 0.78 $*
Aug-16-2025 0.83 $* 0.19 $*
Jul-16-2025 0.22 $* 0.0 $*
Jun-16-2025 0.31 $* 0.73 $*
May-16-2025 0.14 $* 0.61 $*
Apr-16-2025 0.60 $* 0.56 $*
Mar-16-2025 0.45 $* 0.66 $*
Feb-16-2025 0.52 $* 0.90 $*
Jan-16-2025 0.30 $* 0.78 $*

Характеристики



Product Description

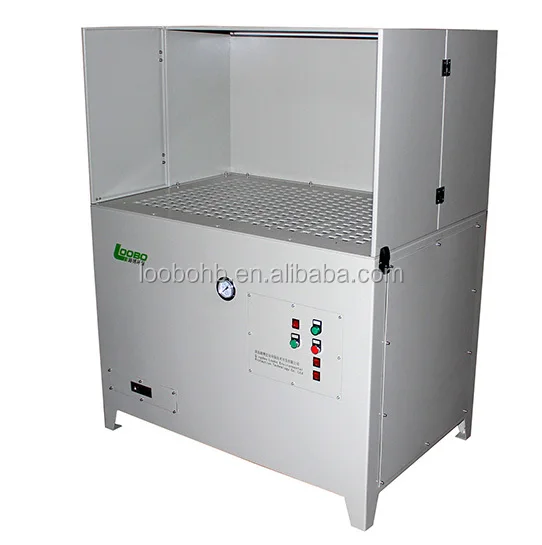

self cleaning,big airflow Downdraft table and dust collector for grinding/welding /polishing





*Application Place:





Variety of welding, polishing, deburring, polishing and plasma cutting, and etc.





   1407917102833_hz-fileserver-upload-03_1927355








We can provide a variety of models according to different working conditions and dust controlling.








**Products Advantage:





1)Unique desktop design is very perfect, baffles are removable, built-in dust removal system, no need pipe connection, reduced energy costs





2) Compact structure, it occupies a limited area.





3) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.





3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.





4)workbench and dust removal function integration design, directly to remove the dust from the source





6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working condition.





7) Draw-out type dust box, convenient cleaning








***Operating Principle:





Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Larger particles of dust under the action of gravity sinking into the collection of ash hopper, while small particles of dust under the action of suction generated by the eddy current is suspended in internal to purify by cartridge filter.
Small particles of dust on the surface of the filter cartridge, after the effect of gathered adsorption and combined, sinking into the ash hopper. After purification, the air flow out, offer a healthy working environment for workers.





 Similar products:


***Operating Principle:


Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Larger particles of dust under the action of gravity sinking into the collection of ash hopper, while small particles of dust under the action of suction generated by the eddy current is suspended in internal to purify by cartridge filter.
Small particles of dust on the surface of the filter cartridge, after the effect of gathered adsorption and


Combined, sinking into the ash hopper. After purification, the air flow out, offer a healthy working environment for worker.


-**Products Advantage:


1) The exhaust inlets set the guide plate, to prevent the dust hit the filter directly, so as to prolong the service life of filter core.


2) There are exhaust inset around the worktable, can effectively control the dust flying.


3)adopts high efficient centrifugal fan, with high efficiency, stable operation function. At the same time, use the noise reduction processing for the fun to reduce noise.


4)workbench and dust removal function integration design, directly to remove the dust from the source


5) Compact structure, it occupies a limited area.


6) Pulsing back-flushing automatic dust-removal system, can guarantee the equipment in good working

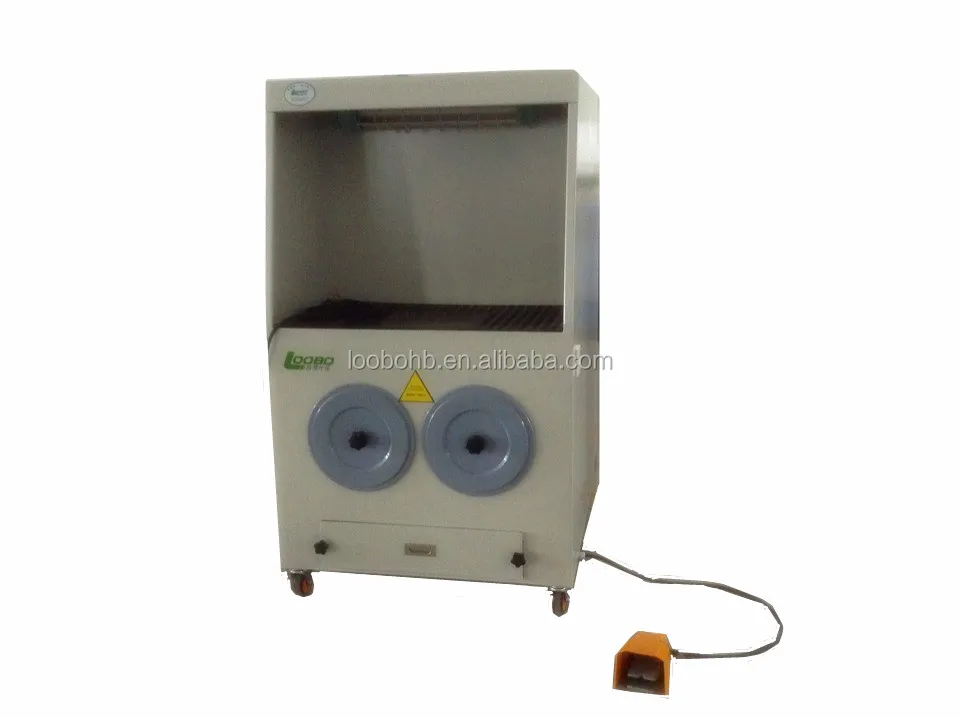

LB-DJ Grinding Dust Removal Worktable











**Technical Parameter:












































Number



1



2



Model



LB-DJ3000



LB-DJ3600



Airflow(m³/h)



2400



3600



Power(KW)



2.2



3.0



Specification of filter cartridge(mm)



Ø325*500



Ø325*380



Q’ty of filter cartridge(pcs)



2



2



Dimension(mm)



1000*1200*1600



1000*1200*1600





 HTB1XAmcGpXXXXaYaXXXq6xXFXXXQ

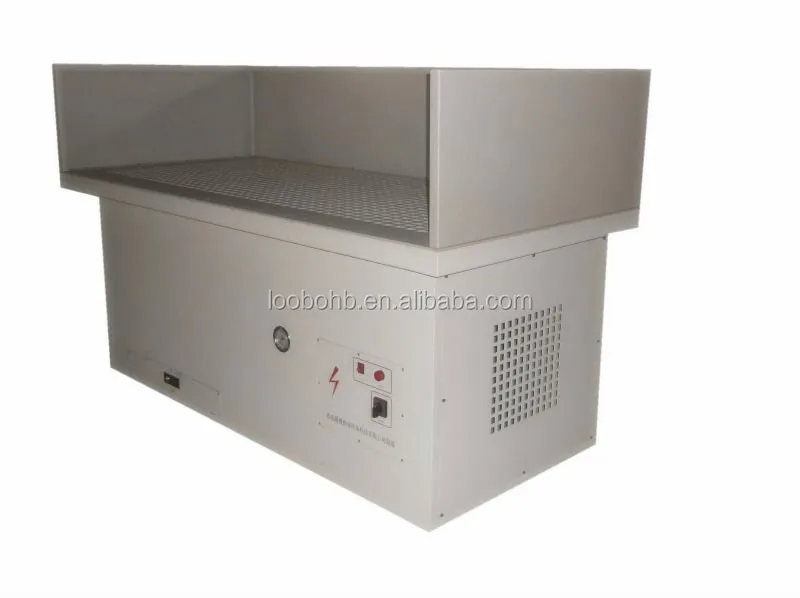

LB-DC Grinding Dust Removal Worktable





*Application Place:





Variety of welding, polishing, deburring, polishing and plasma cutting, etc. and etc.


 **Technical Parameter:

















































Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DC2400



2400



2.2



Φ325*1023



2



2000*900*1200



2



2400



2.2



Φ325*1223



2



2200*1100*1200



3



LB-DC3000



3000



3.0



Φ325*1023



2



2000*900*1200



4



3000



3.0



Φ325*1223



2



2200*1100*1200



LB-DM

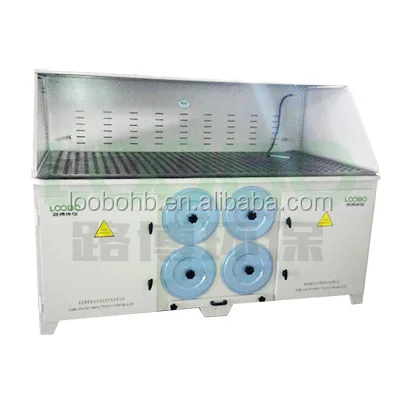

LB-DM Grinding Dust Removal Worktable



*Application Place:


Variety of welding, polishing, deburring, polishing and plasma cutting, etc. and etc.


 **Technical Parameter:

















































Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DM2400



2400



2.2



Φ325*1023



2



2000*1000*800



2



2400



2.2



Φ325*1223



2



2200*1200*800



3



LB-DM3000



3000



3.0



Φ325*1023



2



2000*1000*800



4



3000



3.0



Φ325*1223



2



2200*1200*800






LB-DC SMALL

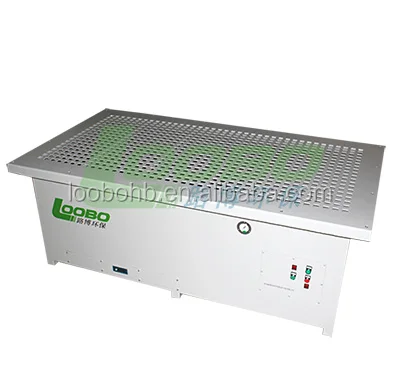

LB-DMS Grinding Dust Removal Worktable


*Application Place:


Variety of welding, polishing, debarring, polishing and plasma cutting and etc.


 **Technical Parameter:
























Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DMS1500



1500



0.75



Φ325*1023



1



800*550*1000






lb-dm-ok

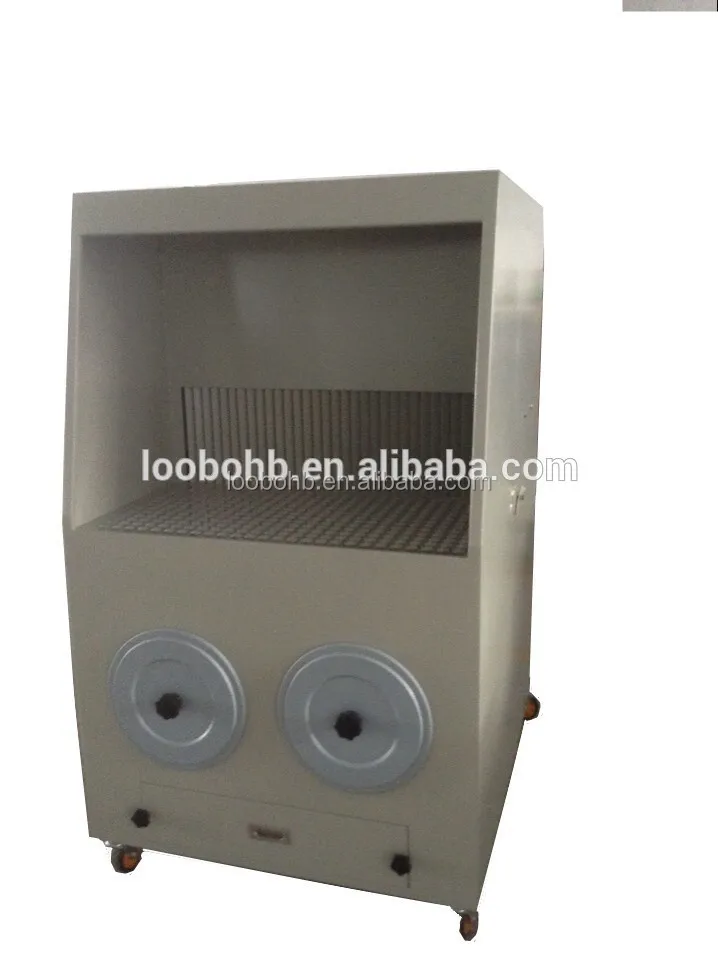

LB-DG Grinding Dust Removal Worktable





*Application Place:


Variety of welding, polishing, debarring, polishing and plasma cutting and etc.


 **Technical Parameter:
























Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DG3000



3000



3.0



Φ325*465



2



1200*800*1470






LB-DG


LB-DH Grinding Dust Removal Worktable





*Application Place:


Variety of welding, polishing, debarring, polishing and plasma cutting and etc.


 **Technical Parameter:
























Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DH3000



5000



5.5



Φ325*1263



2



2200*900*1550



 LB-DH





LB-DF Grinding Dust Removal Worktable


*Application Place:


Variety of welding, polishing, debarring, polishing and plasma cutting and etc.


 **Technical Parameter:
























Number



Model



Airflow(m3/h)



Power (kw)



Filter Cartridge(mm)



Q’ty of Filter cartridge(pcs)



Dimension(mm)



1



LB-DF2400



2400



2.2



Φ325*651



2



1000*1050*1600



 LB-DF











e1e9_ba2o1c



Packaging & Shipping


Price Term:C&F




Load Time: one week


MOQ:1 UNIT





Payment Term:30% down payment once the contratc confirmed and 60% balance payment before dispatch.


Plywood package


 111333






Company Information





Qingdao Loobo Environmental Protection Technology Co.,Ltd is one of the biggest enviromental protection products manufacturer, located in Qingdao city of china,specialized in alll kinds of portable fume extractor, downdraft benches(grinding dust removal worktable), central fume purification system, flexible suction arm,etc.





We have more than ten years export experience ,all of our products with the ISO9001 and CE certification, the quality can be guaranteed.





We have our own R&D department , have a variety of style range to meet any of your requirments and had established the economies of scale, so can dilivery fast and provide can beat your competitor's price.
