Песчаный гравий барабанное сито/барабанная просеивающая машина/горное вращающееся

Introduction

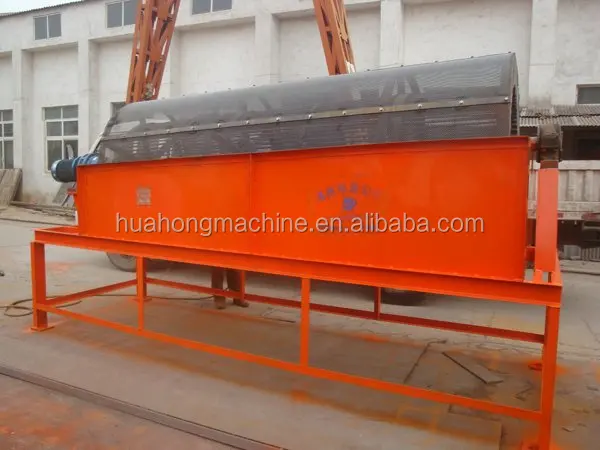

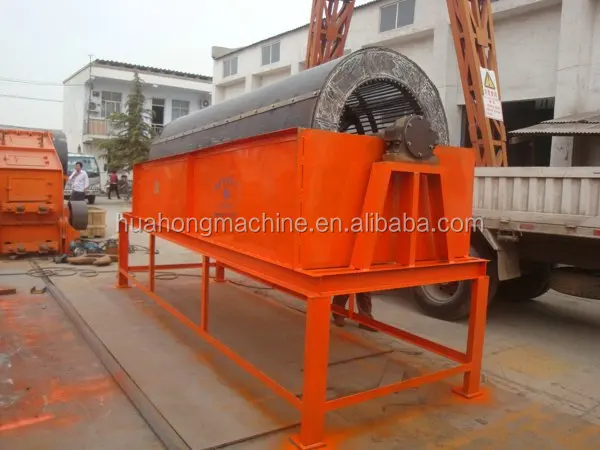

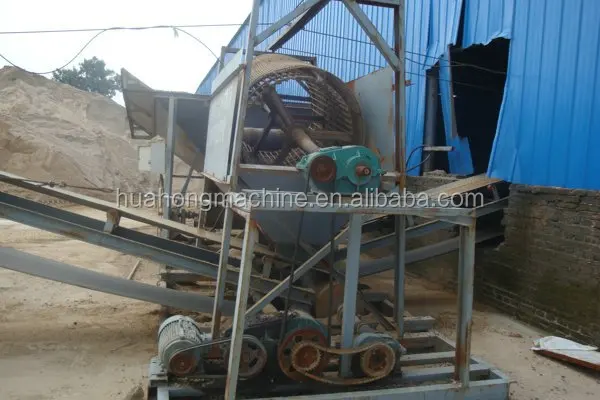

Drum Sieve used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.Drum Sieve is widely used for grading and screening materials in the fields such as coal-selecting, mining-selecting, building materials, electrical power and chemical industry, etc. And we supplies suitable type according to customers’ demands.

Operation and Maintanance

1, First open the cage while driving screen, opens after feeding equipment; stopping the opposite;

2, Run three days before, to cage drum sieve every day check fasteners, if loose fastening in a timely manner. Periodically thereafter (or a week and a half month) cage screen fastener for checking and processing;

3, Housings, transmission should be checked periodically lubricating and fuel and oil in a timely manner. Axis bearings, 2nd lithium base grease, under normal circumstances, every two months filling grease, amount raised should not be excessive, otherwise easily cause bearing overheating. Bearings should be cleaned check once a year.

4, The long haul deactivate (more than 30 days) to restart the motor insulation should be shaking when measuring to avoid motor burn.

Main features

1. Low cost, for alluvial gold plant.

2. Includes the washing function and separating function, very high efficiency,pay back very soon.

3. Small Volume,Easy Movable,Support Wheels.

4. Diesel enigne/electric motor available.

5. Easy and convinient operation.

6. Strong body, our engineer has redesigned the frame, use thicker and stronger material for all the part.

7. The size and capacity can be customized.

Main technical parameters
