MYPIN 4 знака после запятой релейный выход переменного тока/постоянного тока Амперметр тока/измеритель
- Категория: Экранные измерительные приборы >>>
- Поставщик: Zhongshan,Mypin,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.54 $* | 0.91 $* |
| Aug-17-2025 | 0.76 $* | 0.92 $* |
| Jul-17-2025 | 0.47 $* | 0.45 $* |
| Jun-17-2025 | 0.70 $* | 0.75 $* |
| May-17-2025 | 0.20 $* | 0.12 $* |
| Apr-17-2025 | 0.34 $* | 0.5 $* |
| Mar-17-2025 | 0.23 $* | 0.32 $* |
| Feb-17-2025 | 0.3 $* | 0.46 $* |
| Jan-17-2025 | 0.68 $* | 0.92 $* |
Характеристики

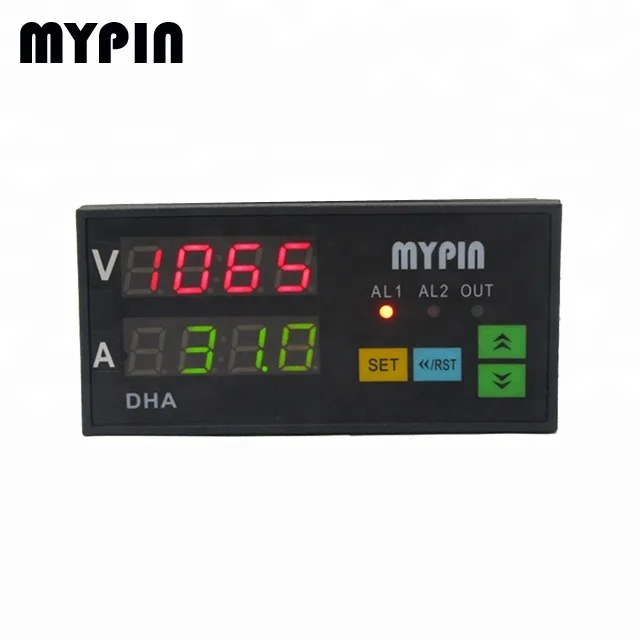

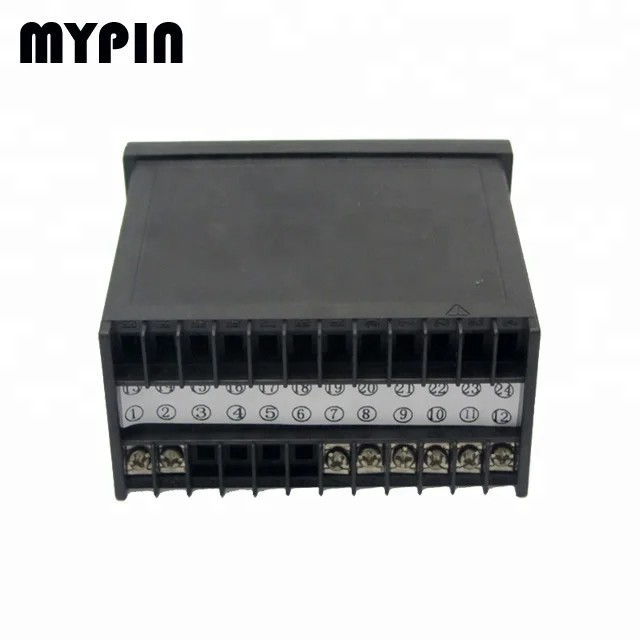

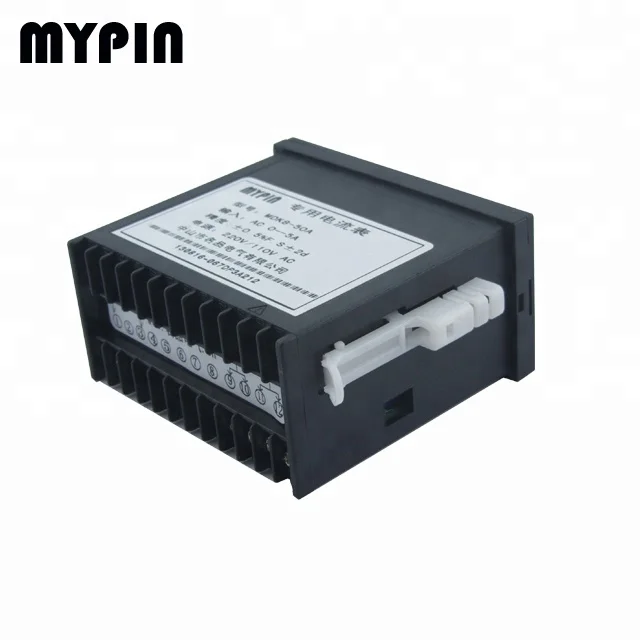

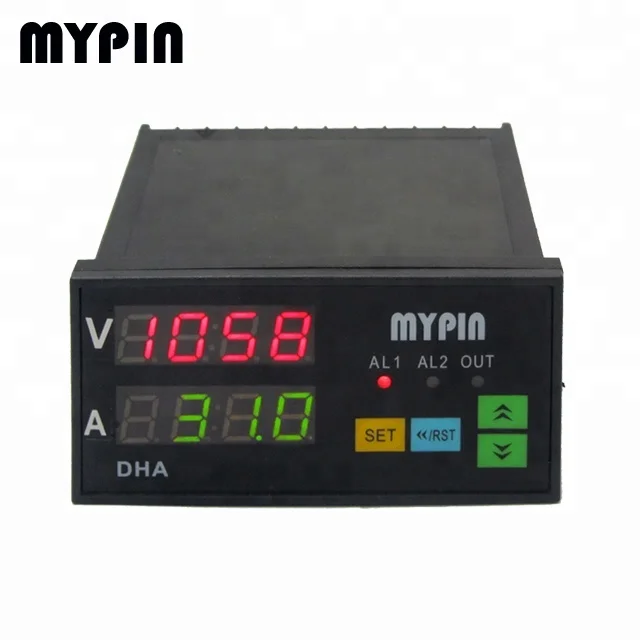

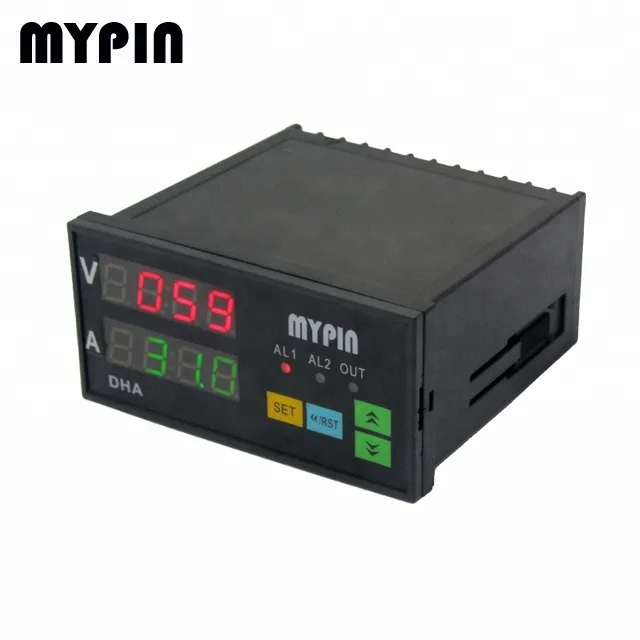

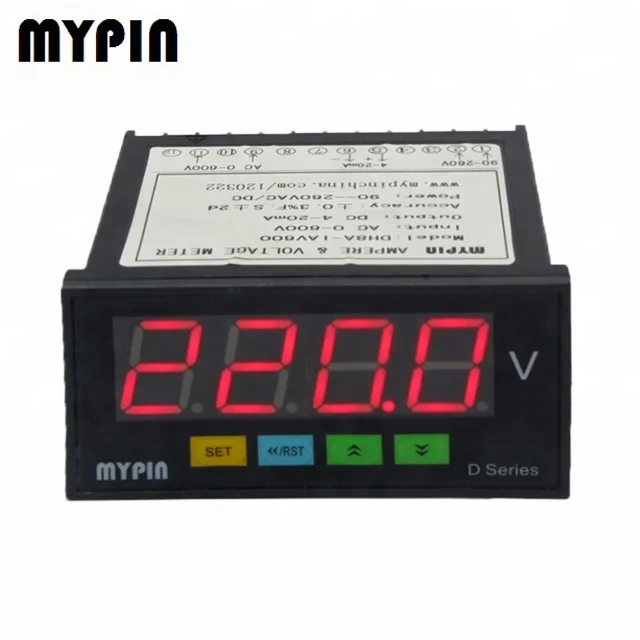

MYPIN 4 digits relay output AC/DC ampere meter/ voltage meter
Product Description
Features:
1, Full 4 digit display,-1999--9999.It replaces all 3 1/2 ampere/ voltage meter. More than 2000A is
readable by CT ratio setting, which avoid incorrect and complicate potentionmeter for 3 1/2
ampere/voltage meter.
2, Elegant in appearance, big inch LED visiable in remote distance. Demical point floating settable
3, Sampling speed: ≥4 times/sec. Accuracy: 0.3%.
4, Input: AC: 0-5A 0-10A 0-600V 0-100V; DC: 4-20mA 0-5V 0-10V 0-100mV etc.
Range and CT PT set freely.
5, Analog output: 4-20mA or 0-10V.
Digit output: 2 alarms with high/ low/ interval alarm modes for option.
6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol, realize remote control by direct
connection with PC/ PLC/ other equipment.
7, Power supply: regular: 220V/110V, Others: 12-30V AC/DC(DC 24V).
8, Dimensions: 96*48*80mm
Packaging & Shipping
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
Our Services
- We provide 18 months warranty for all Mypin products.
- OEM / ODM service available to meet up to client's requirements.
- Any questions, please mail or call us any time.
Company Information
Main product:Panel Meter
Counter
Weighing indicator
Temperature/Humidity Controller
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
Timer,Timer Relay
Sensor Controller
Signal adjustor
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc.
Additonally,OEM service,Design service offer, Buyer laber offer.
