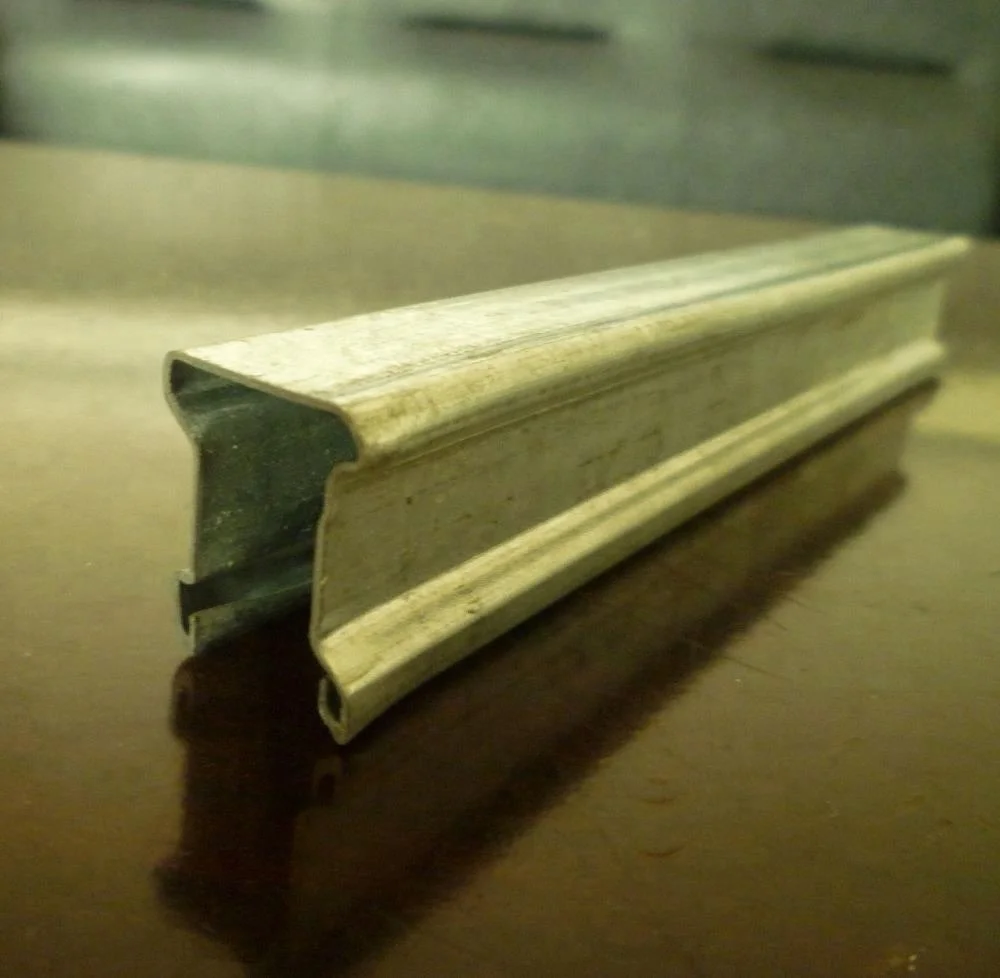

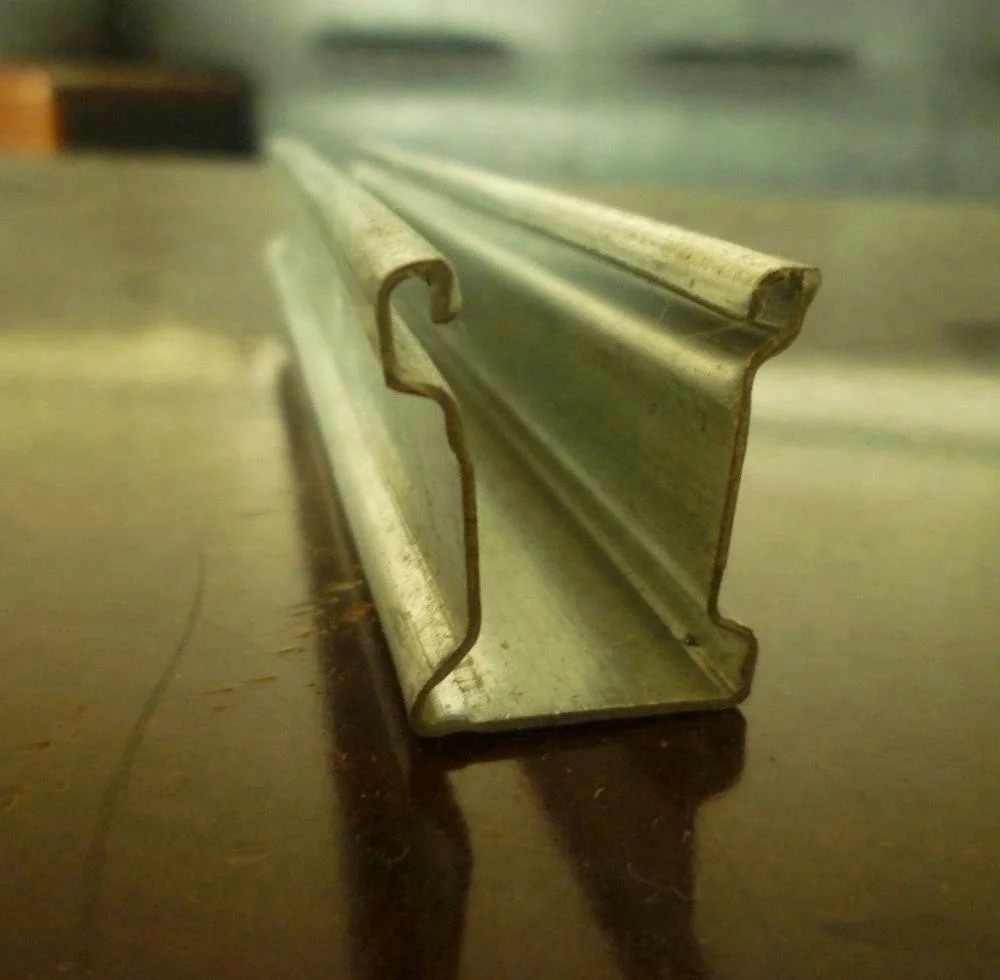

            Galvanized steel channel for false ceiling system



DETAIL DESCRIPTION

item name	main channel(ceiling keel)
application	suspended ceiling system
raw materials	hot-dip galvanized steel strip
size	38*10mm
thickness	0.45, 0.50, 0.55, 0.60, 0.80, 1.0mm
length	3000mm or customized
zinc coating	60-140g/sq.m
packing	20pcs/bundle
transport	IN 20'GP (SUGGEST)
weight	25 Ton ( 20'GP)



APPLICATION

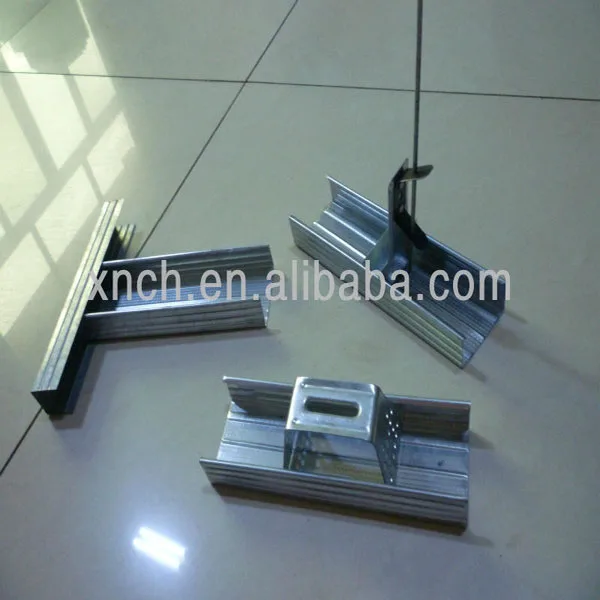

Match with furring channel, edge channel, hanger, boom and etc, forming suspended ceiling steel frame. Used for gypsum board suspended ceiling.

Applied in such places as hotels, terminal buildings, bus stations, railway stations, theaters, shopping malls, factories, office buildings reconstruction of old buildings, indoor decoration and ceilings.

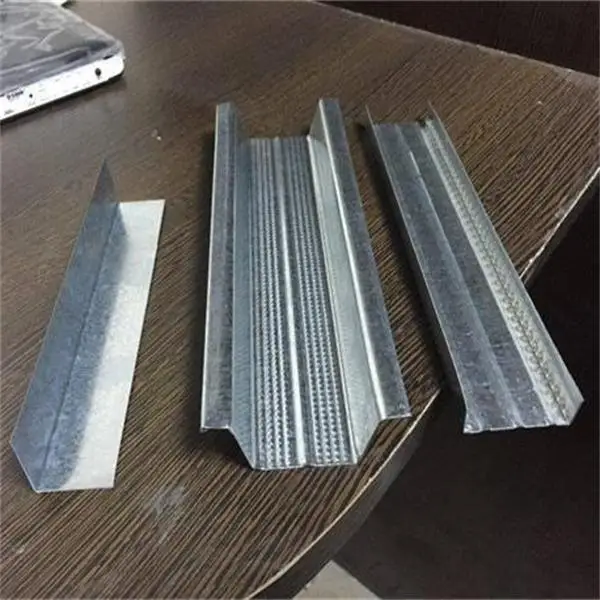

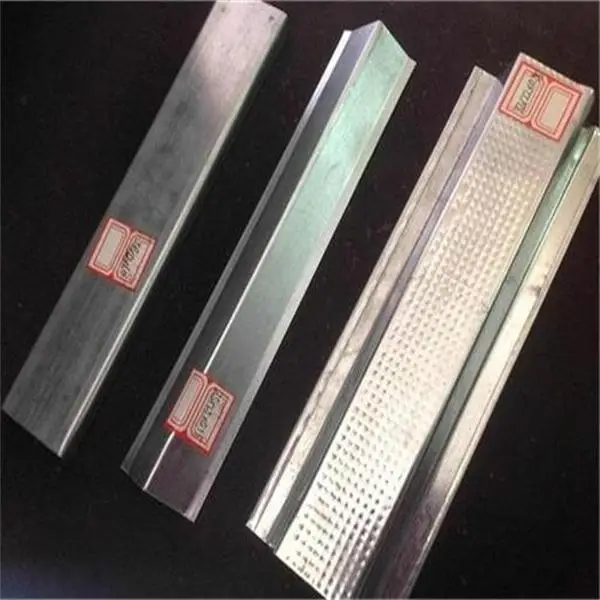

SPECIFICATION

Commodity	Specification (mm)	Package	Weight
		pcs/bundle	g/pc
MAIN CHANNEL	38 X 10 X 0.45	20	590
	38 X 10 X 0.50	20	656
	38 X 10 X 0.60	20	787
	38 X 10 X 0.70	20	918
	38 X 10 X 0.80	20	1050
	38 X 10 X 1.0	20	1312
FURRING CHANNEL	35 X 22 X 68 X 0.40	25	977
	35 X 22 X 68 X 0.45	25	1098
	35 X 22 X 68 X 0.50	25	1224
	35 X 22 X 68 X 0.55	25	1346
	35 X 22 X 68 X 0.60	25	1470
STUD	40 X 34.5 X 0.40	10	1078
	40 X 34.5 X 0.45	10	1213
	40 X 34.5 X 0.50	10	1347
TRACK	42 X 25 X 0.40	10	843
	42 X 25 X 0.45	10	949
	42 X 25 X 0.50	10	1054
STUD	50 X 34.5X0.40	10	1162
	50 X 34.5X0.45	10	1308
	50 X 34.5X0.50	10	1453
TRACK	52 X 25 X 0.40	10	937
	52 X 25 X 0.45	10	1054
	52 X 25 X 0.50	10	1171
STUD	70 X 34.5 X 0.45	10	1540
	70 X 34.5 X 0.50	10	1711
	70 X 34.5 X 0.60	10	2055
TRACK	72 X 25 X 0.45	10	1265
	72 X 25 X 0.50	10	1406
	72X25X0.60	10	1688
STUD	75X34.5X0.45	10	1586
	75X34.5X0.50	10	1766
	75X34.5X0.60	10	2120
	75X34.5X0.70	10	2475
TRACK	75X25X0.45	10	1306
	75X25X0.50	10	1458.00
	75X25X0.60	10	1749.000
	75X25X0.70	10	2042
G.I.ANGLE	25X25X0.40	10	451
	25X25X0.45	10	506
	25X25X0.50	10	562
STUD	100*35*32*0.50	10	2081
TRACK	100*25*0.50	10	1751
CD	60X27X0.35	12	978
	60X27X0.40	12	1119
	60X27X0.45	12	1260
UD	28*27*0.35	20	598
	28*27*0.40	20	684
	28X27X0.45	20	770
50	50X19X0.35	20	793
	50X19X0.40	20	905
	50X19X0.45	20	1023
	50X19X0.50	20	1136
32	32*10*0.30	100	424
30	30*10*0.35	100	475
STUD	48*22*0.33	20	555
STUD	41*22*0.3	20	470
PERFORATED ANGLE	25*25*0.35	25	365





PRODUCTION AND PACKAGE





COMPANY INFOMATION

Wen'an Xinchang Building Material Co.Ltd is one of biggest professional manufacture galvanized metal profile in North China.

Our product used for building ceiling system and drywall partion. There have 33 production-lines , more than 100 worker running on two shifts, 3200 tons per month. Export to America, Canada, Europer, Australia, Russia, Africa, Middle East and Southeast Asia...

Kindly welcome to email us free as for your require.
