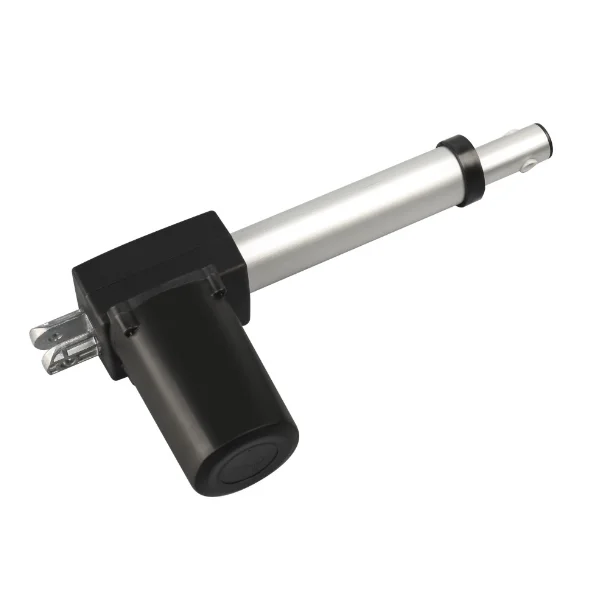

Electric actuator for sofa recliner mechanism with dc motor



Standard configurations>>>

 Performance data

Load capacity: max. 6000 N push

                        max. 4000 N pull

Adjustment speed: 4-48 mm/s

Stroke length: customized

Fitting dimension: 150mm+stroke

Duty cycle: 2/18 min. or 10 %.

Motor voltage: maintenance-free 12/24V DC motors

Components

Limit switch: with micro switch

Stroke pipe: aluminium

Guidance profile: aluminium light anodised

Housing colour: black

Motor connecting line: black, PVC

Further data

Protection type: IP66

Relative humidity: 20% - 80%

Ambient temperature: -25°C - +40°C

1) Mode of operation: intermittent duty 2 min./18 min. This means that after the unit is operated with its rated load for up to two minutes it must then be paused for 18 minutes. The system can malfunction if this pause is not observed!

2) Adjustment speed: the speed varies depending on the load.





Technical Data
Model	YLSDTZ08
Motor Voltage	12VDC/24VDC
Stroke	Customer-defined
Mounting Dimension(min./max.)	150+stroke/150+stroke+stroke
Drive Type	Single motor drive
Type of Load	Push/Pull
Protection Category	IP66
Limit Switch	Built-in
Ambient Temperature	-25℃-40℃
Air Relative Humidity	20%-80%
Attitude Height	Within 1000M
Duty Cycle	10% or 2 min.on/18 min.off





Model	Max.Push force (N)	Max.Pull force (N)	Speed (mm/s)		Standard Stroke (mm)
			No load	On load
Z08-01	6000	4000	6	4	150/200/300
Z08-02	4000	3000	12	8.5	150/200/300
Z08-03	2000	2000	18	13	150/200/300
Z08-04	1000	1000	36	27	150/200/300
Z08-05	750	750	48	36	150/200/300



































Product Application>>>



Our products can be used in furniture like: massage chair, functional sofa and bed, tv lift, window opener, coffee machine, dust bin opener, cabinet, wardrobe;

In medical care like hospital bed, hoist equipment.

In office like table, chair, and also can be used in car seat. It covers a wide range of area.
