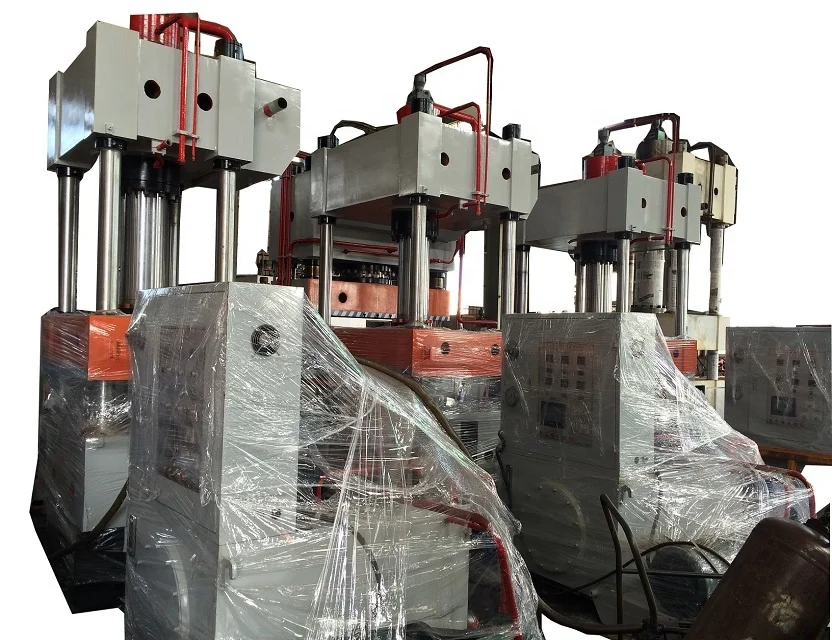

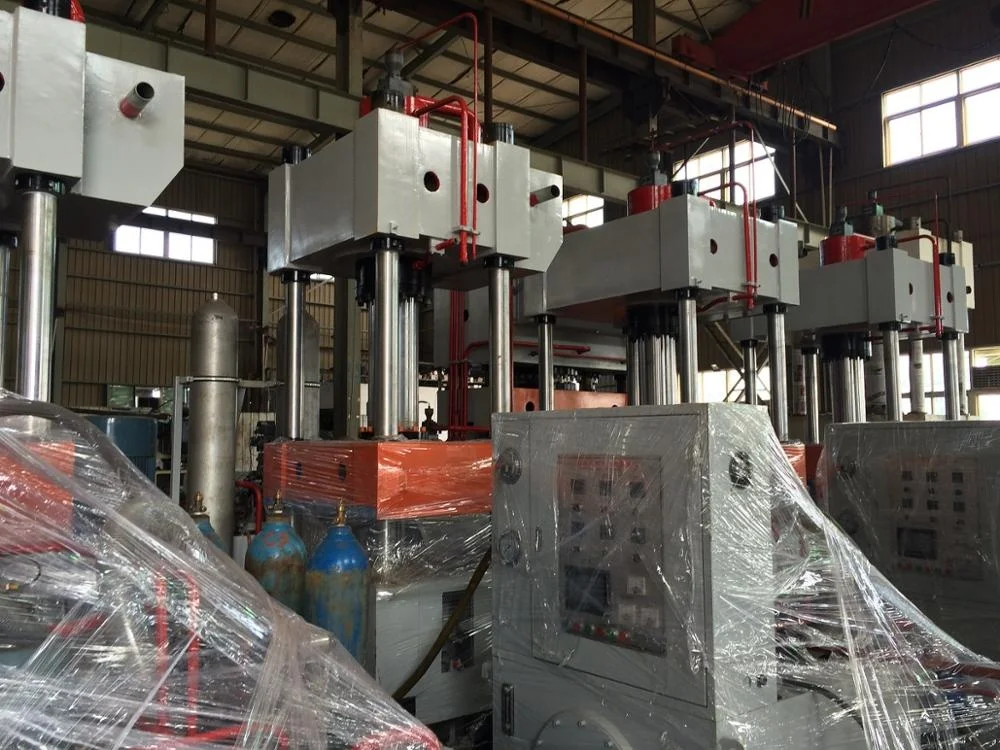

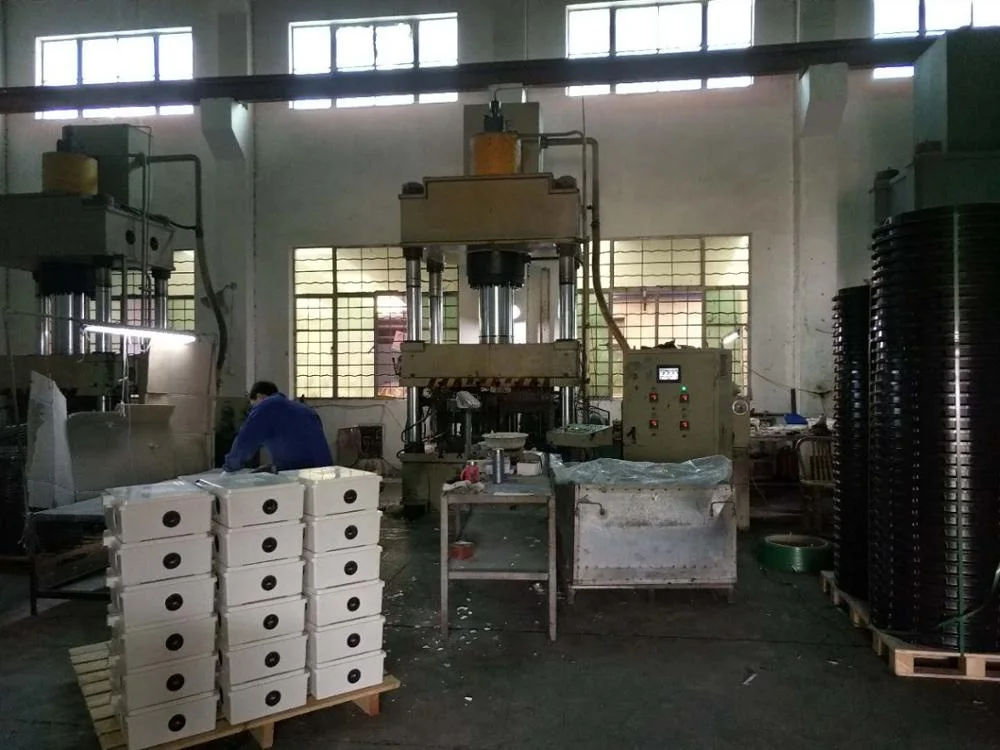

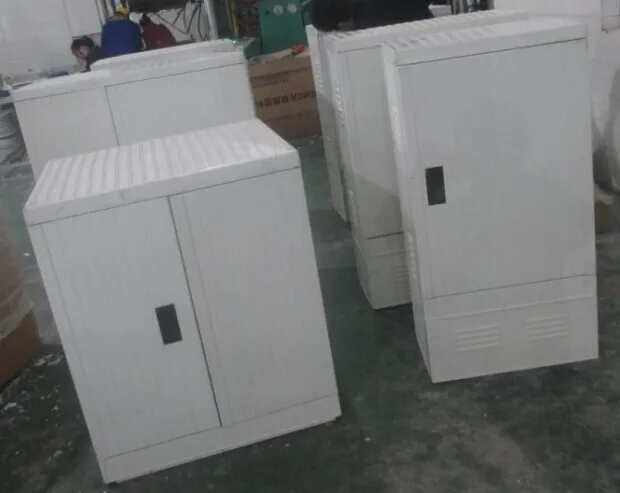

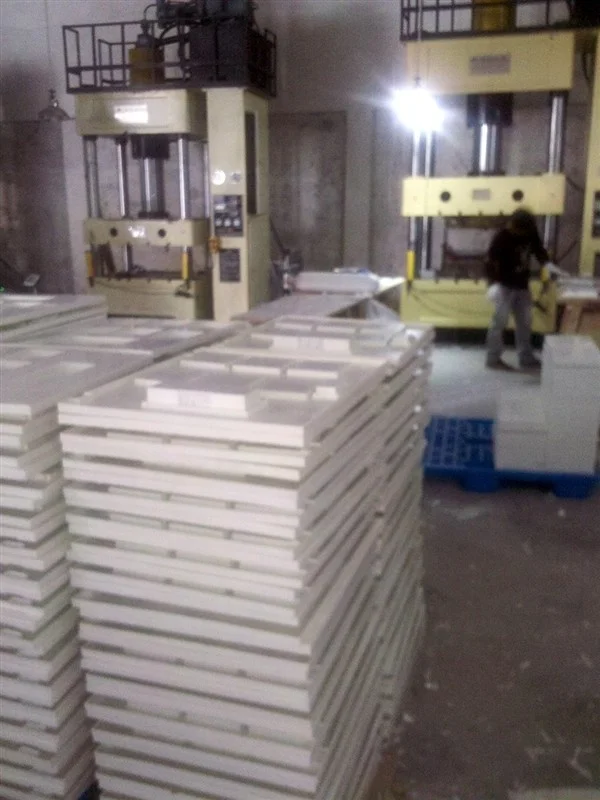

SMC machine for making electrical enclosures



Main application and characteristics:

This machine is mainly used for the pressure molding of glass fiber reinforced plastic products, such as car door plank, auto wing son board,body panels for mini-car, meter box, car front bumper,train window frame,bathtub, toilet seat cover,shower facilities,SMC methane,etc

The machine working pressure, stroke, pressing speed, slowly back to speed all can according to the provisions of the process need to adjust parameter range.

This machine has the independence actuating unit and the electrical system, and USES the button common control, can realize manual, semiautomatic two mode of operation.



This machine sensitive operation simple, the noise small, the pressure stable, and can meet different production process need etc.



Optional accessories:

moving working table
Hydraulic system cooling, temperature control device
Stroke, pressure digital display numerical control device
 knockout device
PLC programmable controller
 touch industrial screen



model	Nominal force(KN)	Slide stroke (mm)	Daylight(mm)	Slide speed(mm/s)				Working table size(mm)	Temperature control unit	Motor power (KW)
				Fast dowb	Slow press	Mold open	Fast return
Y71-100T	1000	650	900	60	8~12	6~10	70	700*700	2 sets	7.5
Y71-150T	1500	650	900	60	8~12	6~10	70	800*800	2 sets	11
Y71-200T	2000	700	950	60	8~12	6~10	70	900*900	4 sets	15
Y71-250T	2500	800	1150	60	8~12	6~10	70	1000*1000	4 sets	15
Y71-315T	3150	850	1250	60	8~12	6~10	70	1250*1200	4 sets	18.5
Y71-400T	4000	850	1250	60	8~12	6~10	70	1250*1200	4 sets	22
Y71-500T	5000	900	1500	60	8~12	6~10	70	1400*1200	8 sets	30
Y71-630T	6300	1000	1600	60	8~12	6~10	70	1600*1200	8sets	37
