Оцинкованные сварные габионные ящики Mil5 проволочная сетка

Описание и отзывы

Трекер стоимости

Характеристики

Mil5 Galvanized Welded Gabion Box Wire Mesh Stone Gabion Baskets









1. Wire Diameter of Mil5 Sand Wall Barrier Hesco Defensive Walls : 4.0mm , 5.0mm

2. Hole Size of Mil5 Sand Wall Barrier Hesco Defensive Walls : 3 Inch x 3 Inch ( 76.2mm x 76.2mm )

3. Geotextile : 300g/sqm

4.Geotextile Color : Green , Grey , Sand , etc.



Flat-packed individual unit dimensions&weights of Mil5 Sand Wall Barrier Hesco Defensive Walls

Height	Width	Length	Cell	Weight
5"	2'7"	2'	5	48LB
0.13m	0.79m	0.61m		22KG



Pallet information of MIL 5 Hot Dipped Galvanized Hesco Bastion

Units per pallet	Height	Width	Length	Weight
50	2'10‘’ 0.87m	6'4" 1.93m	7'4'' 2.24m	2601LB 1180KG



Transport information of Mil5 Sand Wall Barrier Hesco Defensive Walls

Transport types	Pallets	Units	Deployed length
20' container	6	300	915m
40' container	12	600	1830m



Specification List of Sand Wall Barrier Hesco Defensive Walls

Sand Wall Barrier Hesco Defensive Walls
Model	Height	Width	Length
SL-01	4'6"(1.37m)	3'6"(1.06m)	32'9"(10m)
SL-02	2'(0.61m)	2'(0.61m)	4'(1.22m)
SL-03	3'3"(1.00m)	3'3"(1.00m)	32'9''(10.00m)
SL-04	3'3"(1.00m)	5'(1.52m)	32'9''(10.00m)
SL-05	2'(0.61m)	2'(0.61m)	10'(3.05m)
SL-06	5'6"(1.68m)	2'(0.61m)	10'(3.05m)
SL-07	7'3"(2.21m)	7'(2.13m)	91'(27.74m)
SL-08	4'6"(1.37m)	4'(1.22m)	32'9''(10.00m)
SL-09	3'3"(1.00m)	2'6"(0.76m)	30'(9.14m)
SL-10	7'3''(2.21m)	5'(1.52m)	100'(30.5m)
SL-11	4'(1.22m)	12'(0.30m)	4'(1.22m)
SL-12	7'(2.13m)	3'6"(1.06m)	108'(33m)

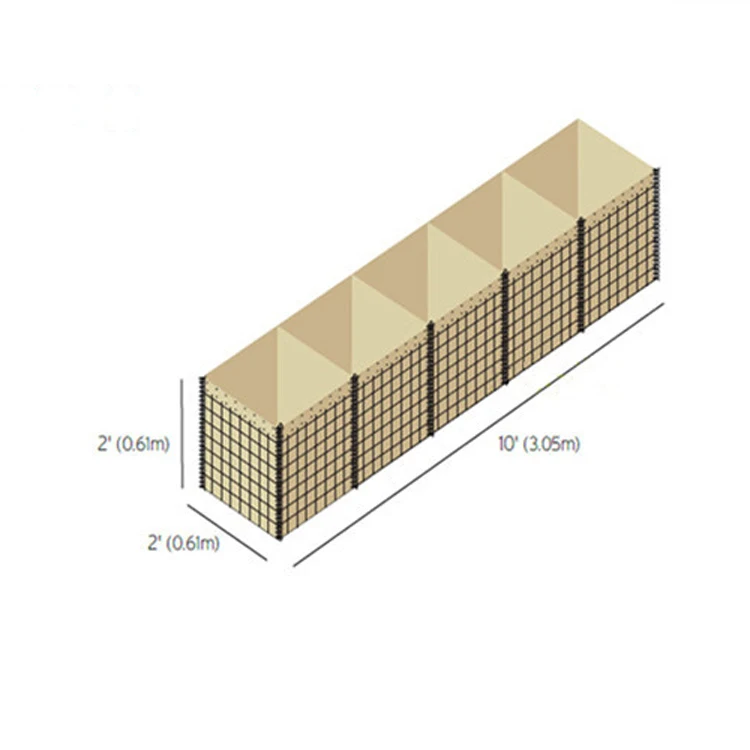

The drawing of Sand Wall Barrier Hesco Defensive Walls





The Height of Sand Wall Barrier Hesco Defensive Walls



Application of Mil5 Sand Wall Barrier Hesco Defensive Walls : for Flood
