Характеристики

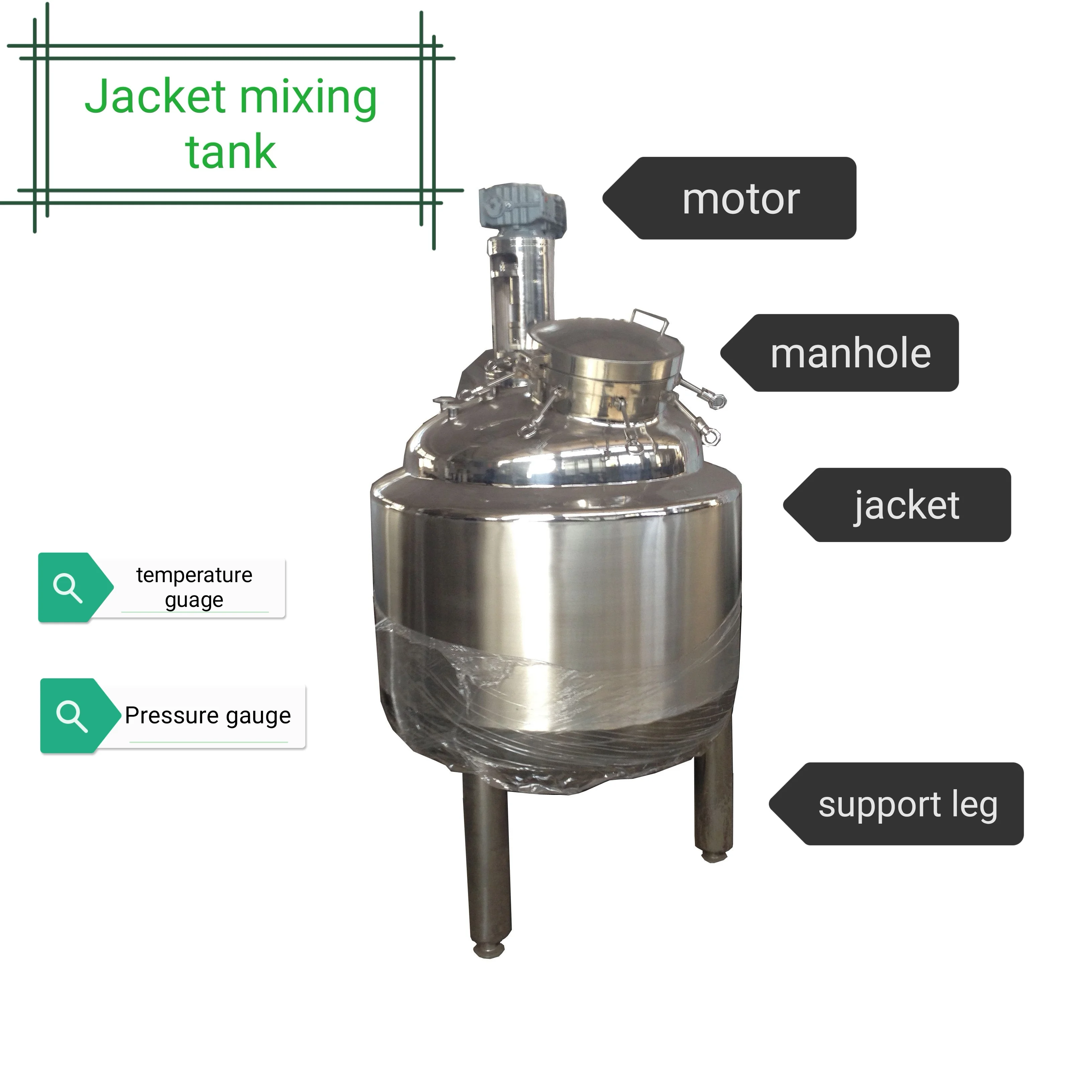

New design sanitary double jacketed stainless steel mixing tank with low price
Product Description
New design sanitary double jacketed stainless steel mixing tank with low price
Summary:
This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable
storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.
The inner surface of the tank can be mirror polished and the roughness can meet as high as RA <=0.8um. The outer surface is polished as follows: the cover and the bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
Features:
Material: SUS304 or S.S.316L
Agitator type: Anchor, frame, or paddle type. ( can be customerized).
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing device: mechnical sealing or dual-face water cooled sealing
Heating way: steaming heating, heat conduct oil heating
Volume: can be made as per customer requirements, volume can be made from 50L to max.500000L.
Measure: can be made as per customer requirements.
This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable
storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.
The inner surface of the tank can be mirror polished and the roughness can meet as high as RA <=0.8um. The outer surface is polished as follows: the cover and the bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
Features:
Material: SUS304 or S.S.316L
Agitator type: Anchor, frame, or paddle type. ( can be customerized).
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing device: mechnical sealing or dual-face water cooled sealing
Heating way: steaming heating, heat conduct oil heating
Volume: can be made as per customer requirements, volume can be made from 50L to max.500000L.
Measure: can be made as per customer requirements.
Specification
FYG-100 | FYG-200 | FYG-500 | FYG-1000 | FYG-1500 | |||||
Volume (L) | 100 | 200 | 500 | 1000 | 1500 | ||||
Diameter (mm) | 500 | 600 | 800 | 1000 | 1200 | ||||
Tank Pressure(Mpa) | 0.25-0.5 (or customerized) | ||||||||
Jacket Pressure(Mpa) | 0.30 ( or customerized) | ||||||||
Motor Power (kw) | 1.1 | 1.2 | 1.5 | 4.0 | 4.0 | ||||
Agitating Speed(r.p.m) | 85 rpm or customerized, agitating speed can also be adjustable | ||||||||
Tank Type | First Grade Pressure Tank | ||||||||
FYG-2000 | FYG-2500 | FYG-3000 | FYG-5000 | FYG-6000 | |||||
Volume (L) | 2000 | 2500 | 3000 | 5000 | 6000 | ||||
Diameter (mm) | 1200 | 1400 | 1400 | 1500 | 1600 | ||||
Tank Pressure(Mpa) | 0.25-0.5 (or customerized) | ||||||||
Jacket Pressure(Mpa) | 0.30 ( or customerized) | ||||||||
Motor Power (kw) | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 | ||||
Agitating Speed(r.p.m) | 85 rpm or customerized, agitating speed can also be adjustable | ||||||||
Tank Type | First Grade Pressure Tank | ||||||||

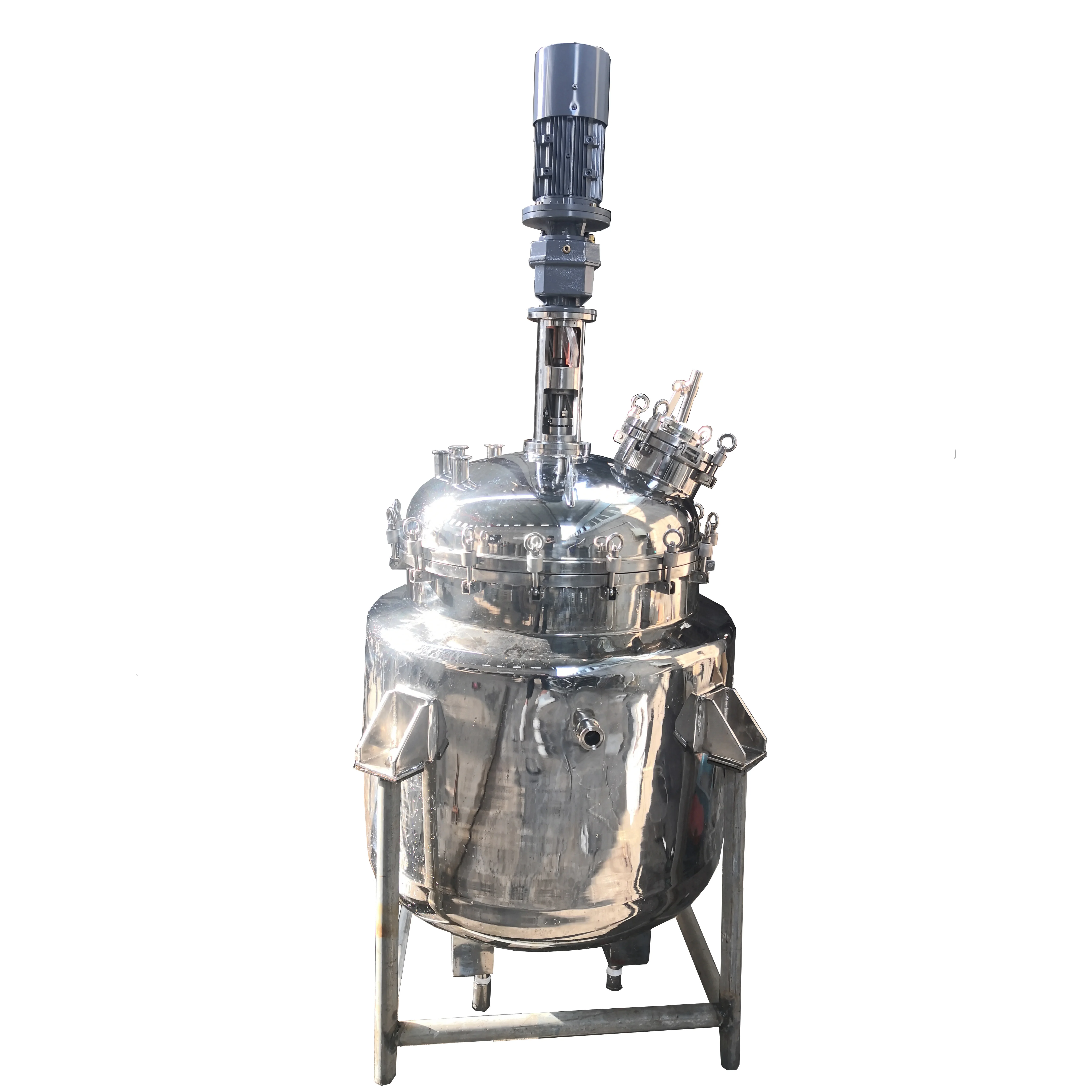

Machine Photos

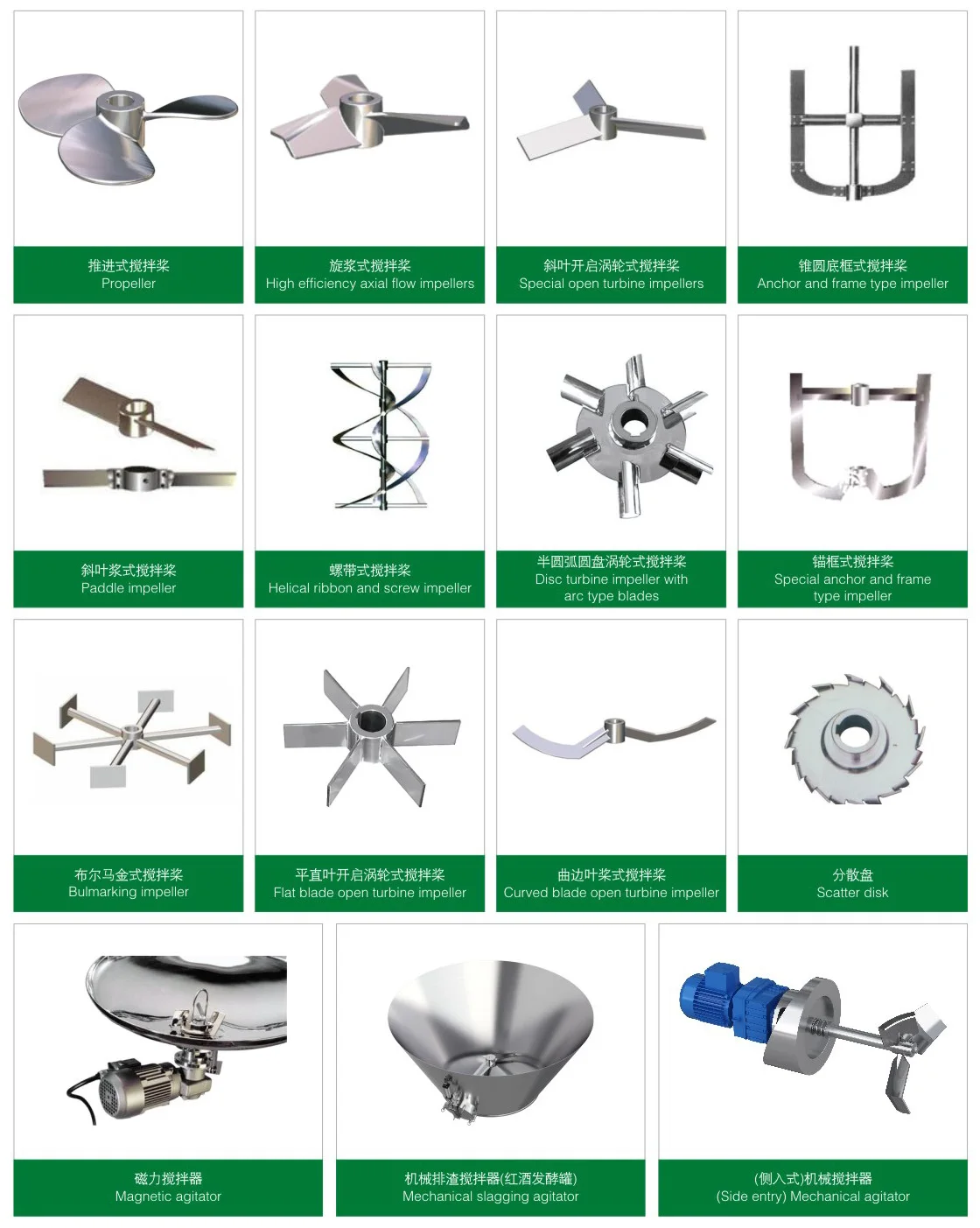

Agittor of the Tank Can be Customerised. You Can Choose at belowing types.
Volume of the tanks can be very flexiable. We can make it from 50L to 500000L The Tank can also be customerized, you can have it single layer or jacket, with electric heater or with out, with support feet or without. Anti-explosion type or not. You can let me know your needs, i will let our technician make drawing accordingly.
With Supporting Frame
Lug Support
Hydraulic top Open
Explosion-Proof Control Box
With Electric Heater
Single Layer Tank
Project Samples
Packing & Delivery
Small Volume Tanks can be woodcase packed
Container Shipment Can be cloth wrapped and steel wire fastened.
