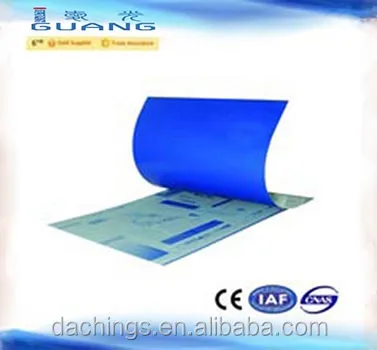

CTP пластина для офсетной печатной промышленности Термические
- Категория: Printing Plate >>>
- Поставщик: Shanghai,Dachings,Packaging,&,Printing,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.10 $* | 0.90 $* |
| Aug-19-2025 | 0.84 $* | 0.32 $* |
| Jul-19-2025 | 0.19 $* | 0.4 $* |
| Jun-19-2025 | 0.35 $* | 0.82 $* |
| May-19-2025 | 0.67 $* | 0.11 $* |
| Apr-19-2025 | 0.17 $* | 0.4 $* |
| Mar-19-2025 | 0.72 $* | 0.22 $* |
| Feb-19-2025 | 0.62 $* | 0.5 $* |
| Jan-19-2025 | 0.60 $* | 0.75 $* |
Характеристики
Unique formulation design
Technical specifications
Plate Type: Positive working, no preheat thermal digital plate, with
optional postbake for longer runs
Application: Medium for sheetfed, web offset press
Aluminum: Electrochemically grained and anodized aluminum substrate
Gauge: 0.15/0.20/0.25/0.30/0.40mm
Maximum short grain width:1320mm
Spectral Sensitivity: 800-850nm
Platesetter compatibility:All the main brands in market, like Kodak Trendsetter/
Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/Suprasetter etc.
Laser energy required: 130-160 mJ/cm2 (varies based on platesetter manufacturer and developing condition)
Resolution: 1% to 99% @200lpi. Dependent upon capability of imaging device.
FM capability: 20 micron stochastic
Developer: HUAGUANG TPD-80,Kodak Goldstar Premium,
IMAF Therm 830/One Plus, etc.
Processing: HUAGUANG TPD-80, 23°C/25 seconds, Kodak Goldstar
Premium/IMAF Therm 830 23°C/30 seconds
Run length: 100,000 impressions unbaked, over 500,000 impressions baked.
Actual run length may vary according to press/paper/ink conditions
Safelight: Daylight handling
Shelf life: 18 months, under recommended storage conditions
Transport and storage: Store plates flat in their packaging, away from excessive
cold, heat or high humidity.
Recommended condition is: temperature 10-26°C & RH between 40 - 70%.
High-quality substrate
Huaguang thermal CTP plate takes use of the fine aluminum plate with
complex grain construction and dense oxidized layer as its substrate which
was processed with a special method. It not only ensures the adhesion
of the thermal coating to the aluminum plate, but also makes the plate
possessing excellent run length and exact dot reproduction to guarantee
high quality printing.
