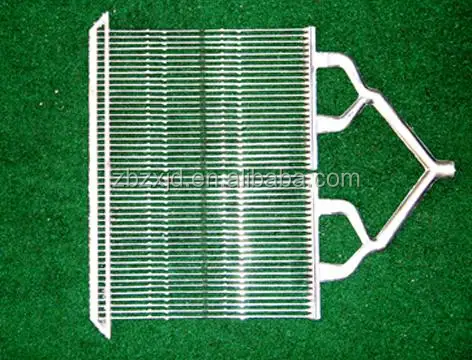

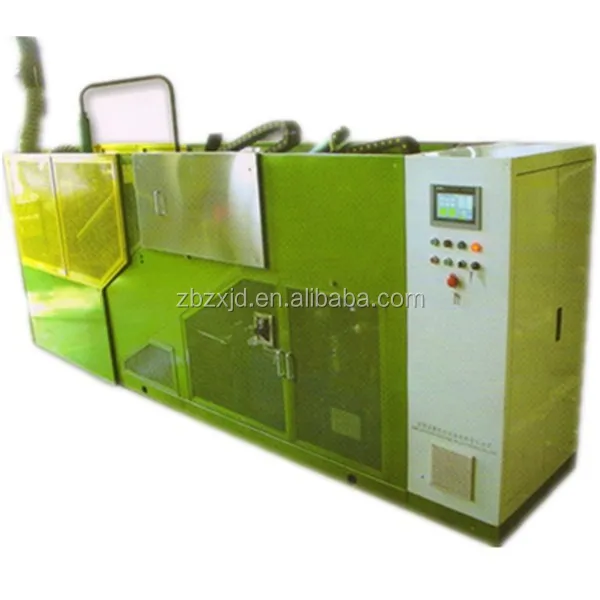

This machine is mainly used for making tubular positive grid of lead acid battery.



main technical data

1)Material of casting grid: lead - antimony alloy , lead-calcium alloy

2)Efficiency of casting grid: 2-3 shots/min(4-6pcs/min for twin cavity)

3)Alloy lead fluid temperature: ≤520℃(electric self-control)

4)Mold temperature: (60-150)℃(electric self-control)

5)Operating pressure: ≤10-12Mpa.,Rated Pressure:13Mpa.(300 type)

Operating pressure: ≤10-13Mpa.,Rated Pressure:15Mpa.(500/700 type)

6)Operating flow of system: 21-48L/min

7)Electric motor: Y2-Y160L-4-B5  11KW.

8)Control voltage of solenoid valve and electro-element: DC24V.

9)power :48-54KW

10)Nitrogen charge pressure of energy accumulator: 8Mpa

11)Oil temperature range of normal operation about system: 15°C-60°C.

12) Cleanliness requirement about system: grade NAS9 (KUNLUNL-HM-32//L-HM-46/L-HM-68)

13)mould locking pressure:20-30Mpa

14)Machine max size:4300L×800W×2300H(mm)

Specifications







	Spine length        (mm)	Spine Diameter     (mm)	Capacity of Lead      Melting pot(T)	Total power(Kg)	Production Capacity(pcs)
300KI	≤300	≥1.8	1.5	50	4~6
300KII	≤300	≥1.8	1.5	50	4~6

  K -double spines , I-mechanical clamping , II-hydraulic clamping
