Реактор из нержавеющей стали с непрерывной мешалкой объемом 10000 литра для химической/фармацевтической
- Категория: Реакторы >>>
- Поставщик: Ruian,Xuanli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 23800.63 $* | 24990.48 $* |
| Aug-17-2025 | 23600.75 $* | 24780.71 $* |
| Jul-17-2025 | 19800.53 $* | 20790.78 $* |
| Jun-17-2025 | 23200.47 $* | 24360.53 $* |
| May-17-2025 | 20200.65 $* | 21210.75 $* |
| Apr-17-2025 | 22800.39 $* | 23940.15 $* |
| Mar-17-2025 | 22600.85 $* | 23730.35 $* |
| Feb-17-2025 | 22400.65 $* | 23520.30 $* |
| Jan-17-2025 | 22200.63 $* | 23310.8 $* |
Характеристики
Product Description
10000 litre continous stirred stainless steel reactor for chemical/pharmaceutical industrial
Summary:This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable
storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.
storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.
The inner surface of the tank can be mirror polished and the roughness can meet as high as RA <=0.8um. The outer surface is polished as follows: the cover and the bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
Features:
Material: SUS304 or S.S.316L
Agitator type: Anchor, frame, or paddle type. ( can be customerized).
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing device: mechnical sealing or dual-face water cooled sealing
Heating way: steaming heating, heat conduct oil heating
Volume: can be made as per customer requirements, volume can be made from 50L to max.500000L.
Measure: can be made as per customer requirements.
Specification
FYG-100 | FYG-200 | FYG-500 | FYG-1000 | FYG-1500 | |||||
Volume (L) | 100 | 200 | 500 | 1000 | 1500 | ||||
Diameter (mm) | 500 | 600 | 800 | 1000 | 1200 | ||||
Tank Pressure(Mpa) | 0.25-0.5 (or customerized) | ||||||||
Jacket Pressure(Mpa) | 0.30 ( or customerized) | ||||||||
Motor Power (kw) | 1.1 | 1.5 | 2.2 | 4.0 | 4.0 | ||||
Agitating Speed(r.p.m) | 85 rpm or customerized, agitating speed can also be adjustable | ||||||||
Tank Type | First Grade Pressure Tank | ||||||||
FYG-2000 | FYG-2500 | FYG-3000 | FYG-4000 | FYG-5000 | |||||
Volume (L) | 2000 | 2500 | 3000 | 4000 | 5000 | ||||
Diameter (mm) | 1200 | 1400 | 1400 | 1500 | 1600 | ||||
Tank Pressure(Mpa) | 0.25-0.5 (or customerized) | ||||||||
Jacket Pressure(Mpa) | 0.30 ( or customerized) | ||||||||
Motor Power (kw) | 4.0 | 5.5 | 5.5 | 5.5 | 7.5 | ||||
Agitating Speed(r.p.m) | 85 rpm or customerized, agitating speed can also be adjustable | ||||||||
Tank Type | First Grade Pressure Tank | ||||||||

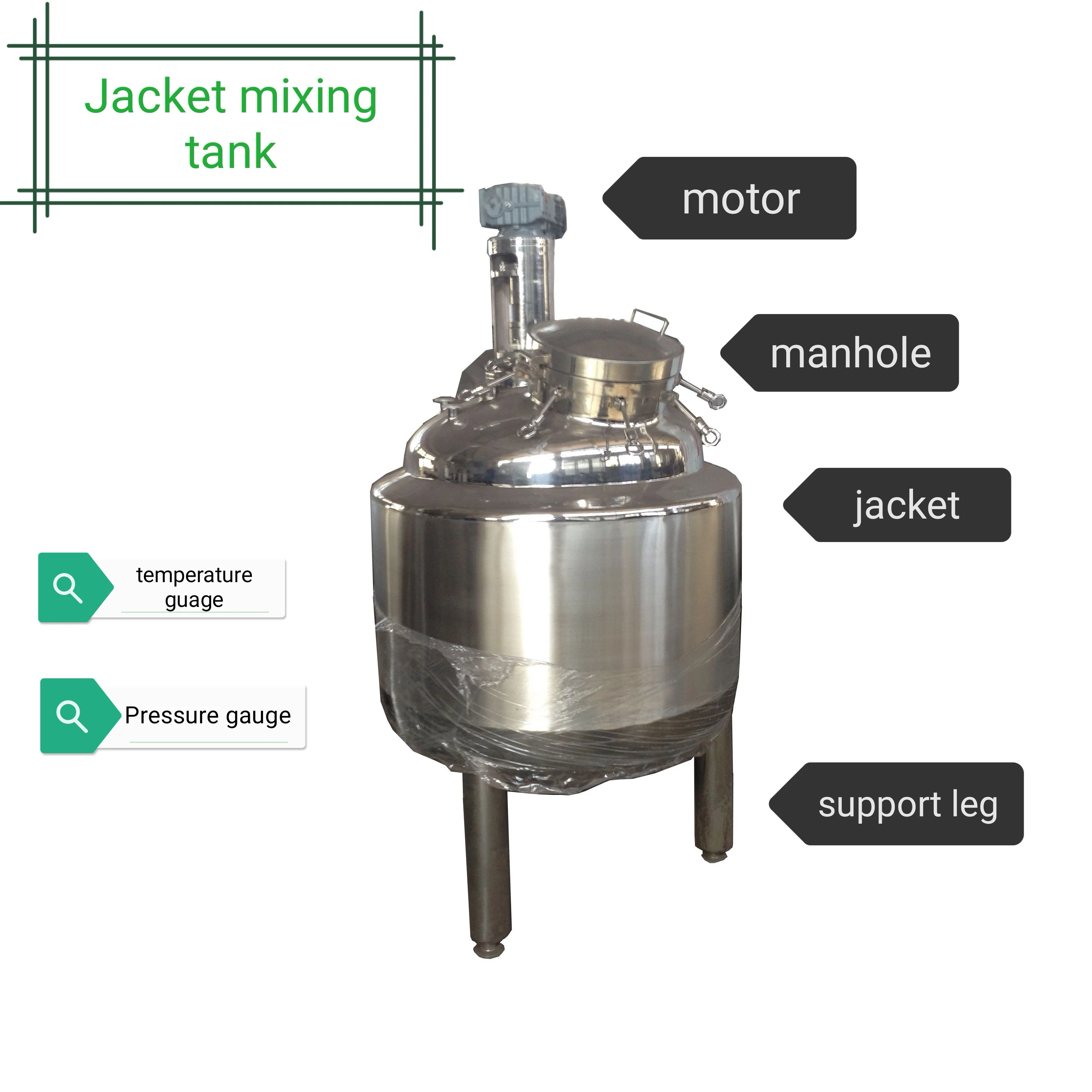

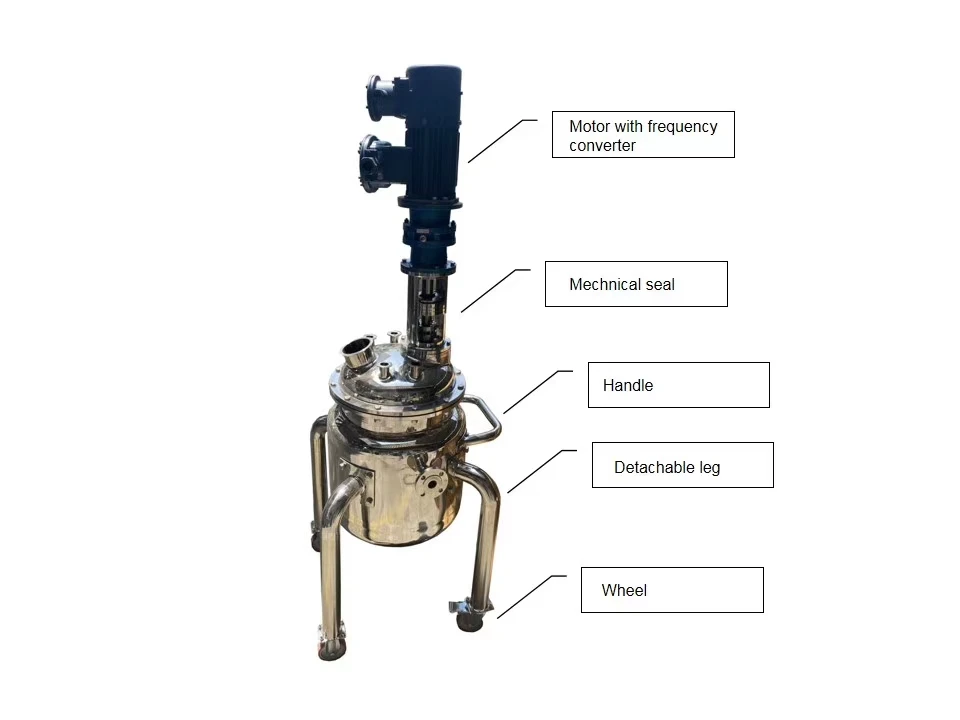

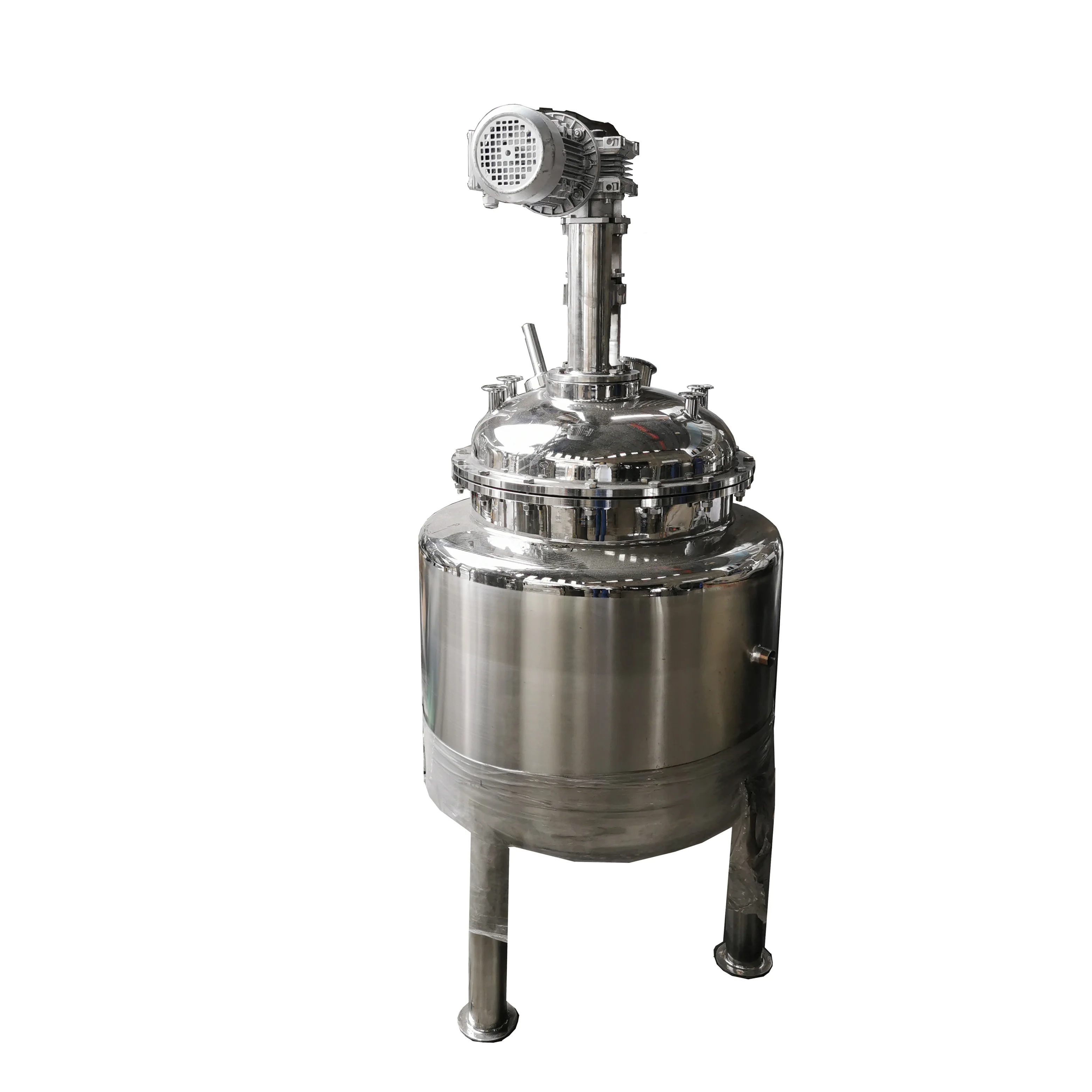

Machine Photos

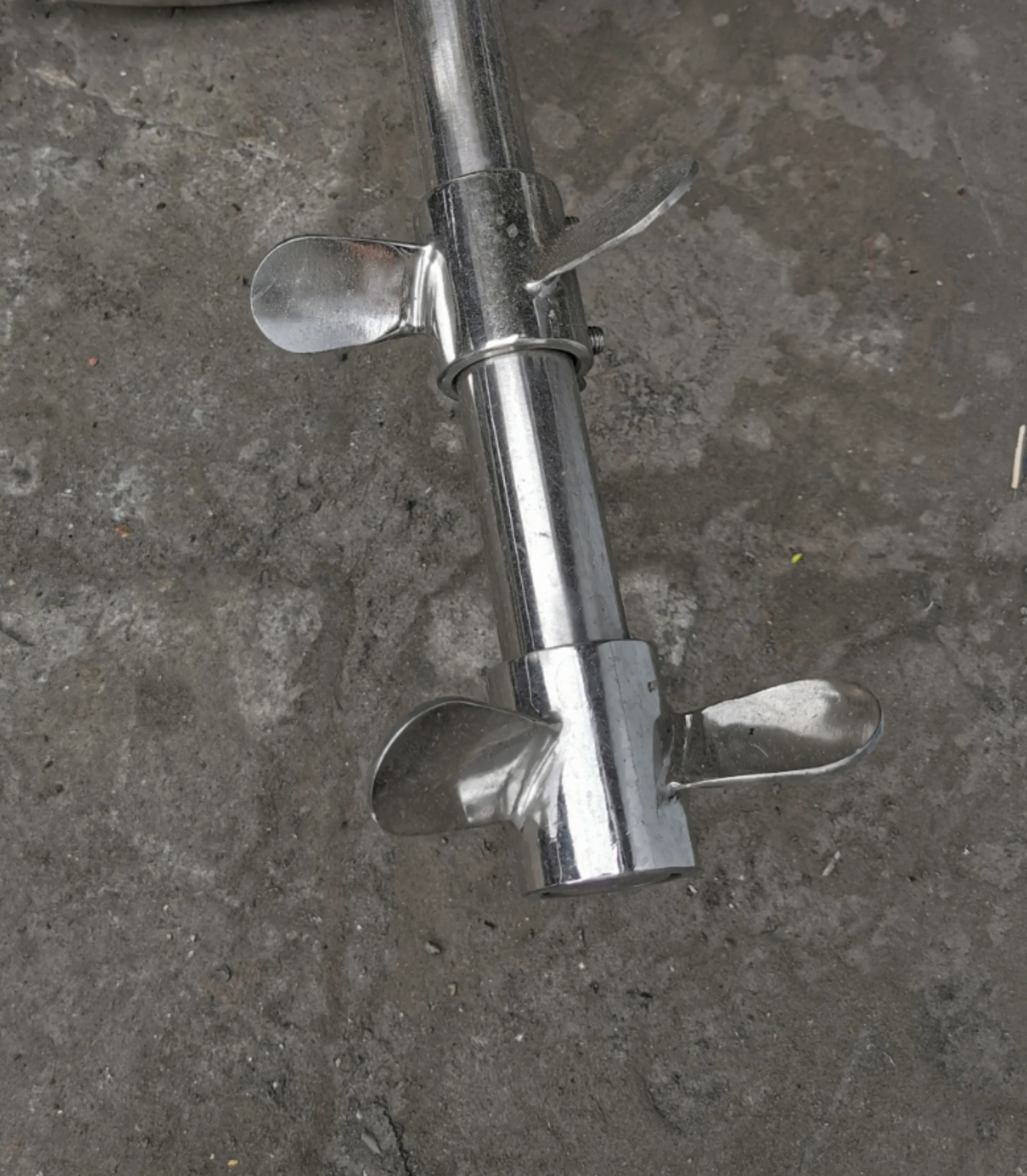

Aviable Agitators
Volume of the tanks can be very flexiable. We can make it from 50L to 500000L The Tank can also be customerized, you can have it single layer or jacket, with electric heater or with out, with support feet or without. Anti-explosion type or not.
You can let me know your needs, i will let our technician make drawing accordingly.
Project Samples
Packing & Delivery
Small Volume Tanks can be woodcase packed
Container Shipment Can be cloth wrapped and steel wire fastened.
