             Metal stud and track for gypsum board drywall partition



PRODUCT DESCRIPTION

1.Item name: metal stud and track

2.Raw materials:galvanized steel strip, Q195

3.Bottom width:40, 42, 50, 52, 70, 72, 75, 100mm

4.Flank hight:21, 25, 34.5, 40, 50mm

4.Surface:zinc coat, 60-140g/sq.m

5.Package:10 pcs/bundle

6.Used for gypsum drywall partition



FEATURE

a. high zinc coating, humidity resistance, cauterization-resistance.

b. strong bearing capacity, high precision.

c. symmetry, terrific linearity, unique joint design.

d. faced with plaster board for decoration.



DIFFERENT SPEC DIFFERENT MARKET



AREA	Product	Size (mm)
East Europe	CD	60*27*0.35/0.40/0.45
	UD	28*27*0.35/0.40/0.45
	T-keel	24*10*0.3/0.35/0.40
		20*6*0.3/0.35/0.40
	CW	75*50*0.4/0.45/0.50
	UW	75*40*0.4/0.45/0.50
Middle East	Main channel	38*12*0.45/0.50/0.55
	Furring channel	68*35*22*0.45/0.50
	Angle	25*25*0.35/0.40/0.45
	Stud	75*35*0.45
		50*35*0.45
	Track	76*25*0.45
		51*25*0.45
		48*30*0.45
South America	Stud	82*45*0.6/0.7/0.8
	Track	84*35*0.6/0.7/0.8
		52*41*0.5/0.6
	Furring channel	69*42*20*0.5/0.6/0.7
		72*42*17*0.5/0.6/0.7

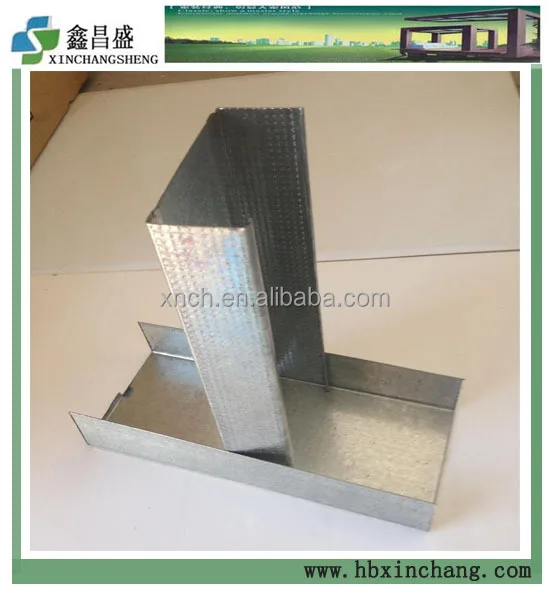

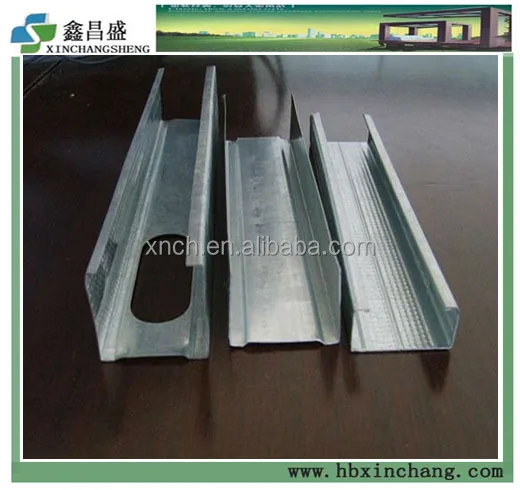

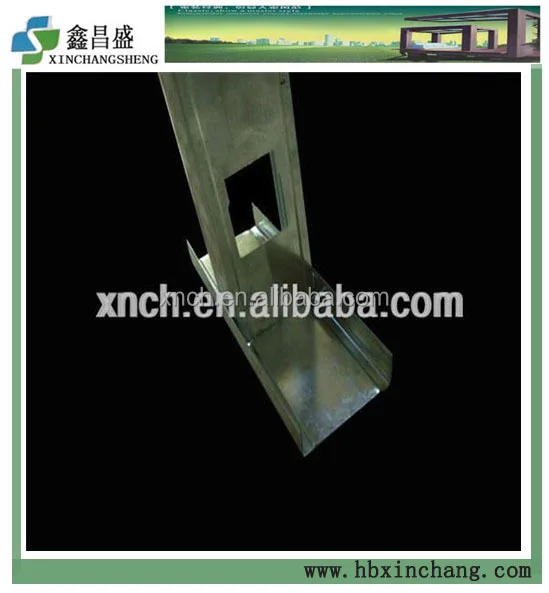

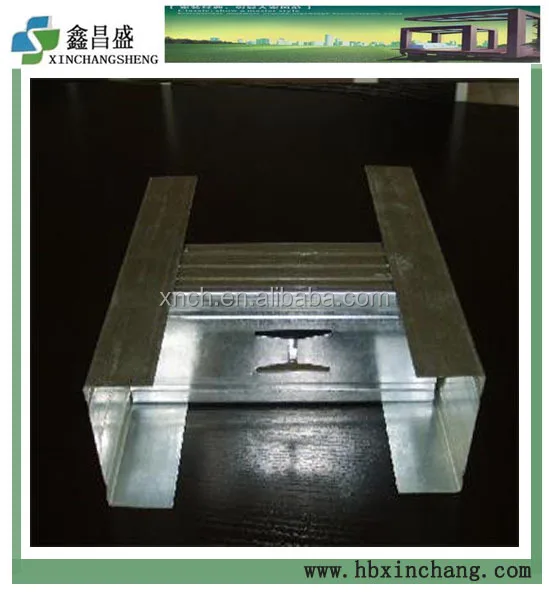

Product picture







Package and contact infos
