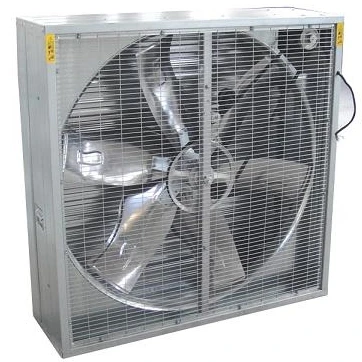

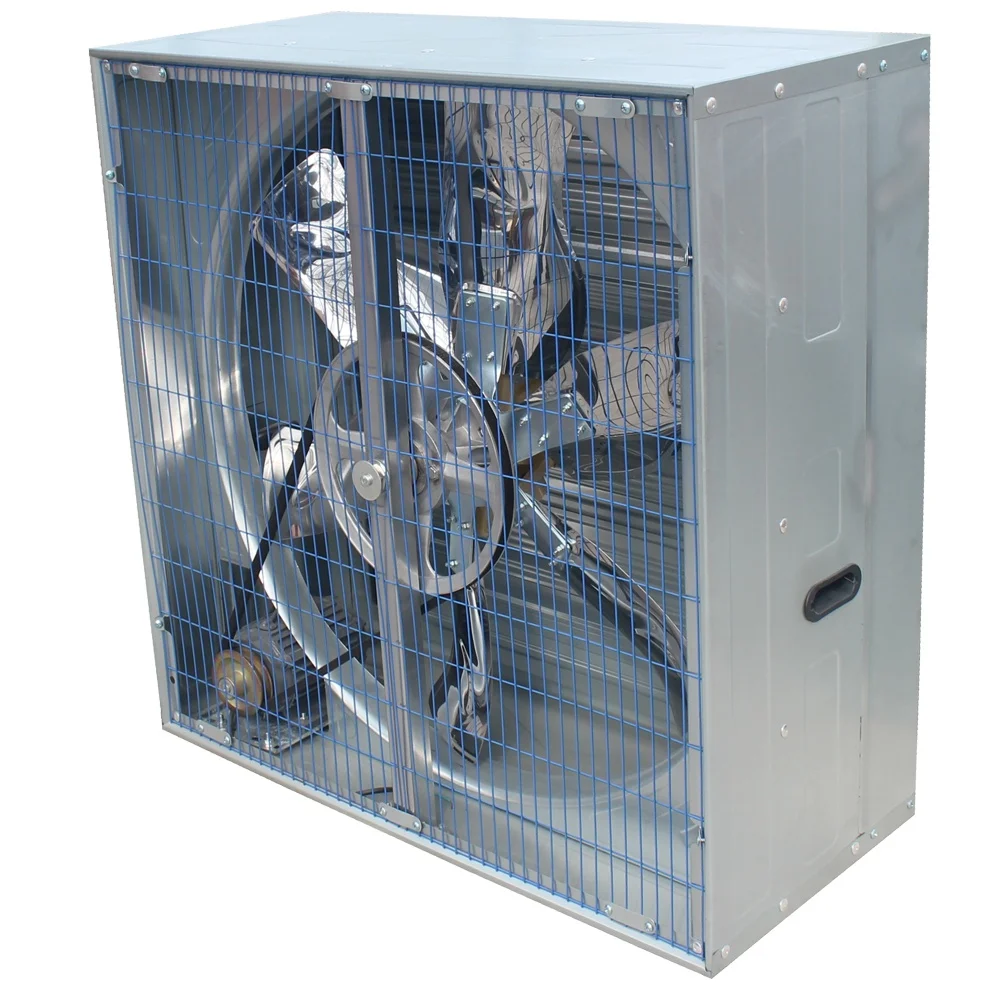

Industrial Axial Ventilation Air Exhaust Fans with Motor for Farm Poultry

Details:

1, Frame:  frames are made of hot dip galvanized sheet, frame thickness 1.0mm,. Galvanizing layer 180g/square meters.

2, Blade:  6 pieces, material 430/304 stainless steel.

3, Impeller: casting aluminum alloy impeller.

4, bearing of impeller: permanently sealed bearing, size 633313.

5, Collector: galvanized sheet, thickness 1.0mm.

6, Blade tip clearance: 25mm, mirror face.

7, Inlet wind protecting net: plastic sprayed steel wire, thickness 2.8mm.

8, Electrical motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,

9, Motor bearing: cast iron.

10, Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

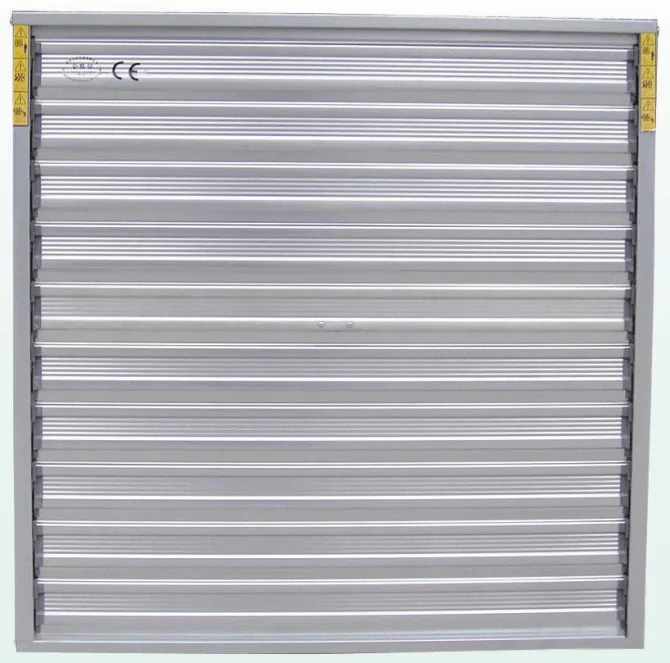

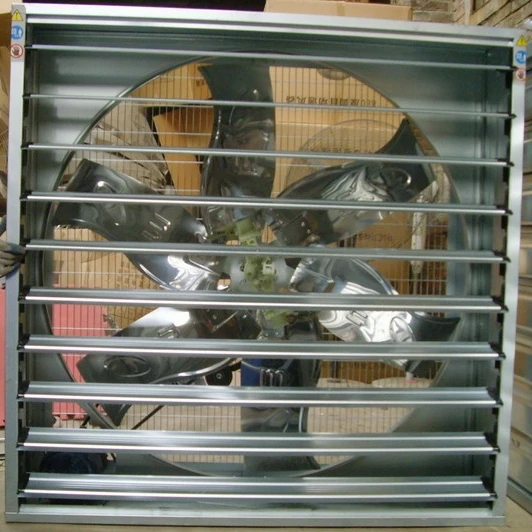

11, Shutters: galvanized board, 0.8 mm thickness while the middle piece thickness 1.5mm. Galvanizing layer, 120g/square meter.

12, Opening system: centrifugal push-push open device.

13, Rivets: aluminum alloy and stainless steel rivets.



Parameters:



Model  specifications	Diameter  blades - mm	Blades rotational  speed- rpm	Motor rotational speed- rpm	Air flow  m3/h	Total pressure -Pa	Noise decibels	Import power -W	Rated  voltage - V	High mm	Width mm	Thick mm
EOF(d)-1000	900	438	1400	35000	57	≤65	750	380	1000	1000	450
EOF(d)-1100	1000	438	1400	38000	57	≤65	750	380	1100	1100	450
EOF(d)-1380	1250	437	1400	40000	57	≤65	1100	380	1380	1380	450
EOF(d)-1530	1400	325	1400	55800	60	≤65	1500	380	1530	1530	450
