Новый Керамический дисковый картридж с низким крутящим моментом 35 мм без

Описание и отзывы

Трекер стоимости

Характеристики

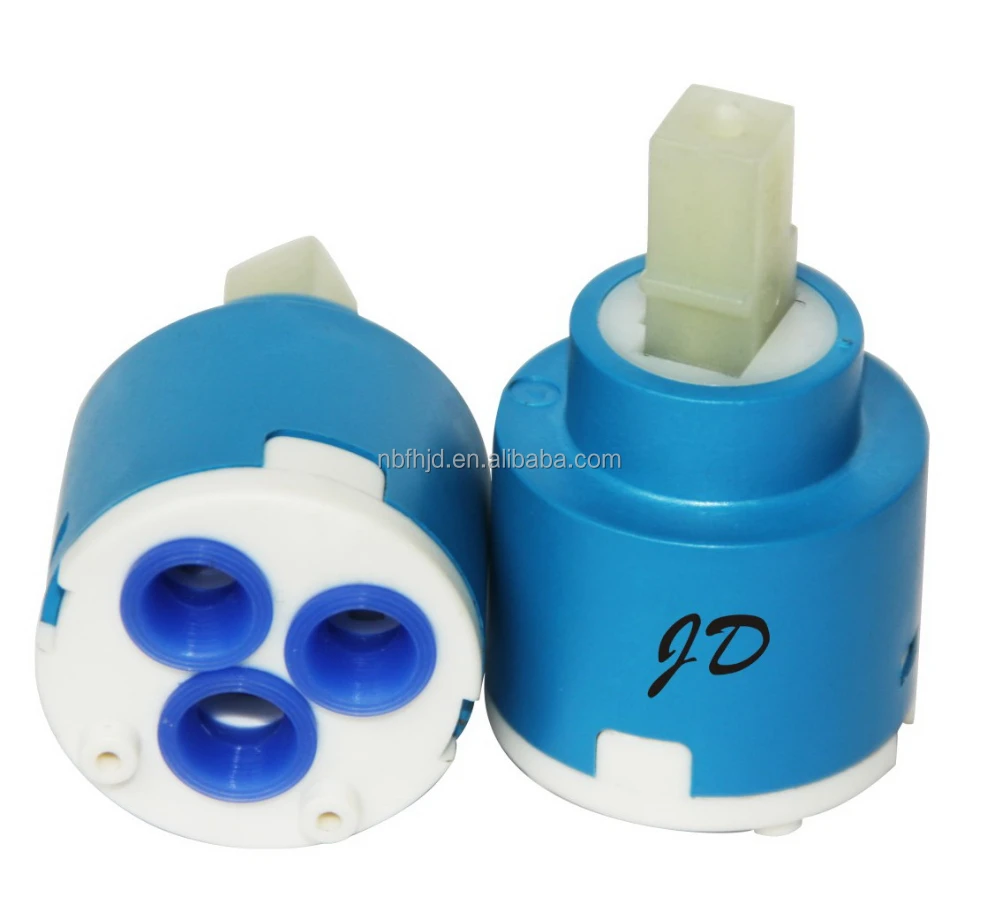

Model no. JD35PA-High flow

Low Torque Ceramic mixing tap cartridge Flat Base 35mm size



Characters:

Technical Characteristics of the Ceramic discs

Material:                    AL2O3 95-96%

Surface roughness:    Ra ≤ 0.25μm

Hardness:                 1100HV5

Flatness:                   ≤ 0.6μm





Technical Characeristics of the Cartridge

Max.opening angle:          23°

Max.rotary angle:             100 °

Recommended nut tightening torque:    8~10 N.m

Water resistance pressure:                   350~500 psi

Max.temperature:            100 °

Endurance test:               500,000 cycles (ASME A112.18.1) 70,000 cycles (EN817)



Flow Rate

Water Pressure               Average Flow Rate ( L/min )

3 bar                                 24.0
