Характеристики

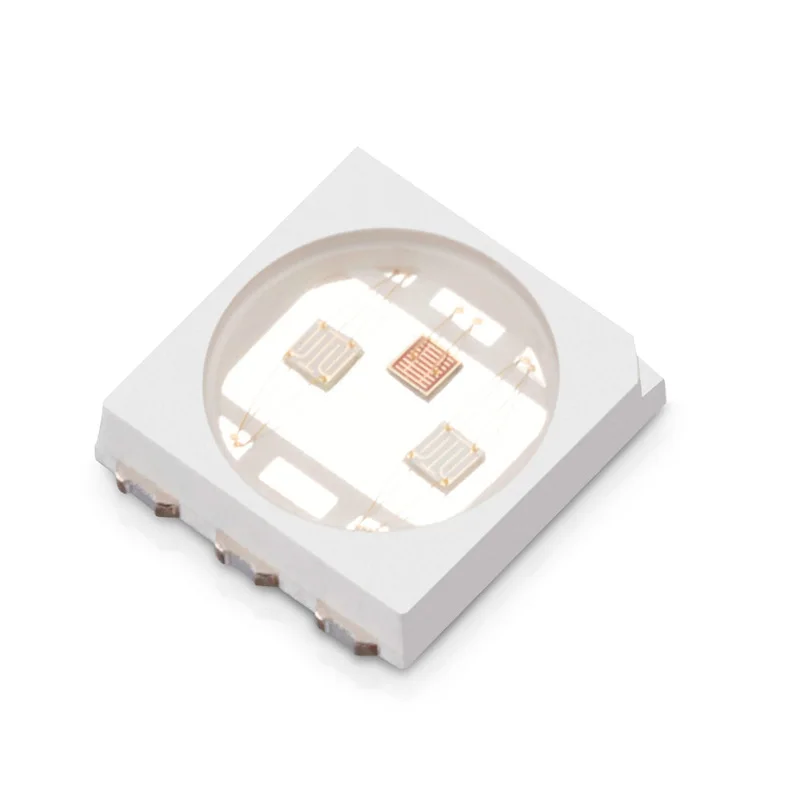

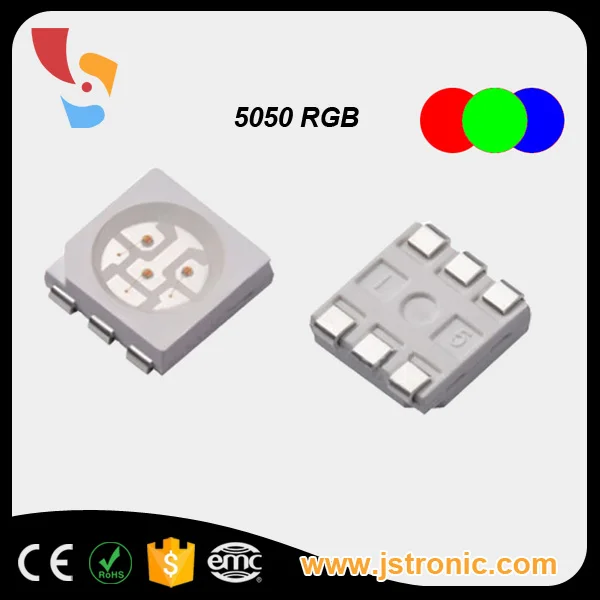

Full color 3chips SMD RGB 5050 led
Product Description
l Emitting Color:RGB
l Lens Type:Water Clear
l Device Outline:5.0×5.0×1.5 (unit:mm)
lRoHS compliant
Full color 3chips SMD RGB 5050 led
Electrical and optical characteristics(Ta = 25℃):
Parameter
| Color
| Symbol
| Test Condition
| Value | Unit | ||
Min. | Typ. | Max. | |||||
Forward Voltage
| Red | VF | IF = 60mA | 1.8 | —— | 2.5 | V |
Green | 2.8 | —— | 3.5 | ||||
Blue | 2.8 | —— | 3.5 | ||||
Reverse Current | —— | IR | VR = 5V | —— | —— | 30 | μA |
Wavelength | Red | Tc | IF = 60mA | 619 | —— | 631 | nm |
Green | 515 | —— | 530 | ||||
Blue | 465 | —— | 475 | ||||
Luminous Intensity | Red | IV | IF = 60mA | 400 | 700 | —— | mcd |
Green | 800 | 1400 | —— | ||||
Blue | 200 | 300 | —— | ||||
Viewing Angle | —— | 2θ1/2 | IF = 60mA | —— | 120 | —— | Deg. |

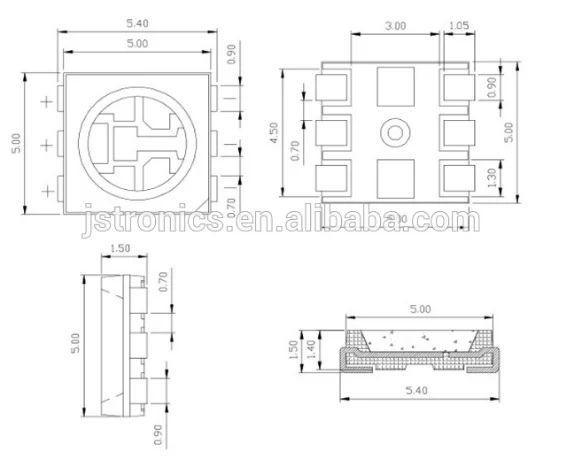

Full color 3chips SMD RGB 5050 led dimension
bsolute maximum ratings(Ta = 25℃):
Parameter
| Color
| Symbol
| Test Condition
| Value | Unit
| |
Min. | Max. | |||||
Power Dissipation
| Red | Pd | —— | —— | 60 | mW |
Green | 85 | |||||
Blue | 85 | |||||
Reverse Voltage | —— | VR | IR = 30μA | 5 | —— | V |
Pulse Current
| —— | IFp | Duty=0.1,1kHz | —— | 100 | mA |
Forward Current | —— | IFm | —— | —— | 25 | mA |
Operating Temperature | —— | Topr | —— | -40 | +85 | ℃ |
Storage Temperature | —— | Tstr | —— | -40 | +100 | ℃ |

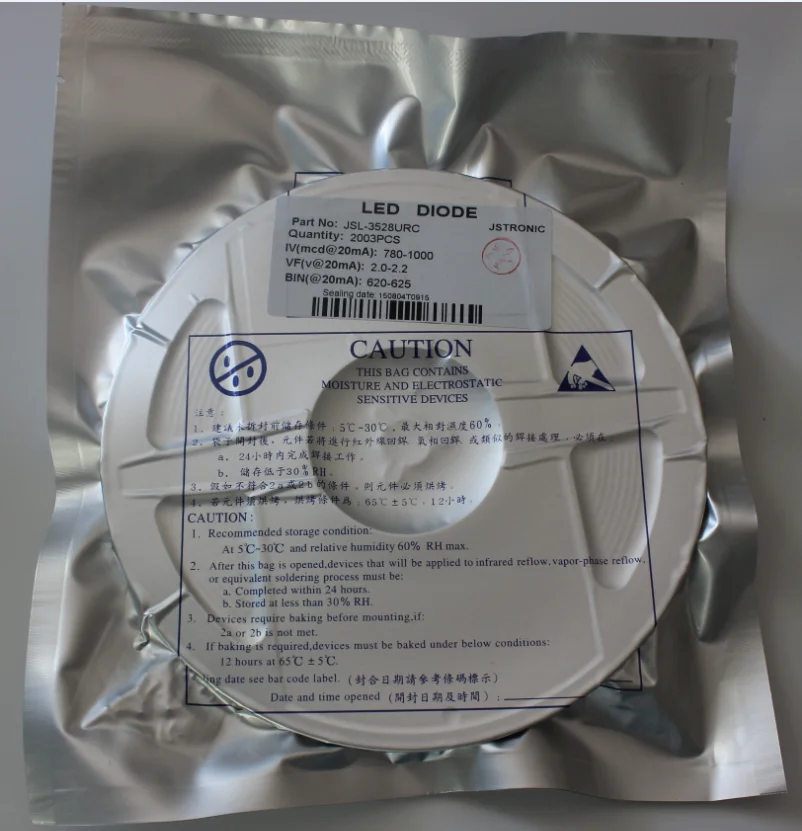

Product Packing
