Характеристики
Product Description
iNTRODUCTIONS:
MINI-UVL Series electric and hydraulic wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable,
this lift helps the disabled and the elder to get on vehicle while seated in this wheelchair.
loading capacity 350KG.
The wheelchair occupant, attendant or driver can operate it by the wired remote control.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline.
With optional standard kit manual emergency devices, if the lift without power, it will be operated manually.
ADVANTAGES:
automatical mechanical front and rear rollstp;
Super thin compact design, thickness is only 90mm;
No-skid aluminum honeycomb platform or stick with anti-skip covering;
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs;
optional handrails available;
Sound and flash light alarm during operation of platform
Manual function for emergency;
this wheelchair lift can be controlled by your cellphone;
Product Paramenters
Model | MINI-UVL-750 | Voltage | DC 12V, EC 24V |
Platform width A | 750 (mm) | Power | 800w |
Platform length B | 1100 mm | Certification | CE |
Max lifting height C | 820 mm | Warranty | 1 year |
overall length D | 1615 mm | Installation | side door, under chassis |
Overall width E | 970 mm | MOQ | 1 Piece |
Thickness | 90 mm | Price term | EX-W, FOB, CNF, CIF, DDU |
Door net width request G | 850 mm | Port | Ningbo/Shanghai |
Down stroke I | 390 mm | Own weight | around 148 kg |
Up stroke J | 430 mm | packing size | 1850*1150*200mm |

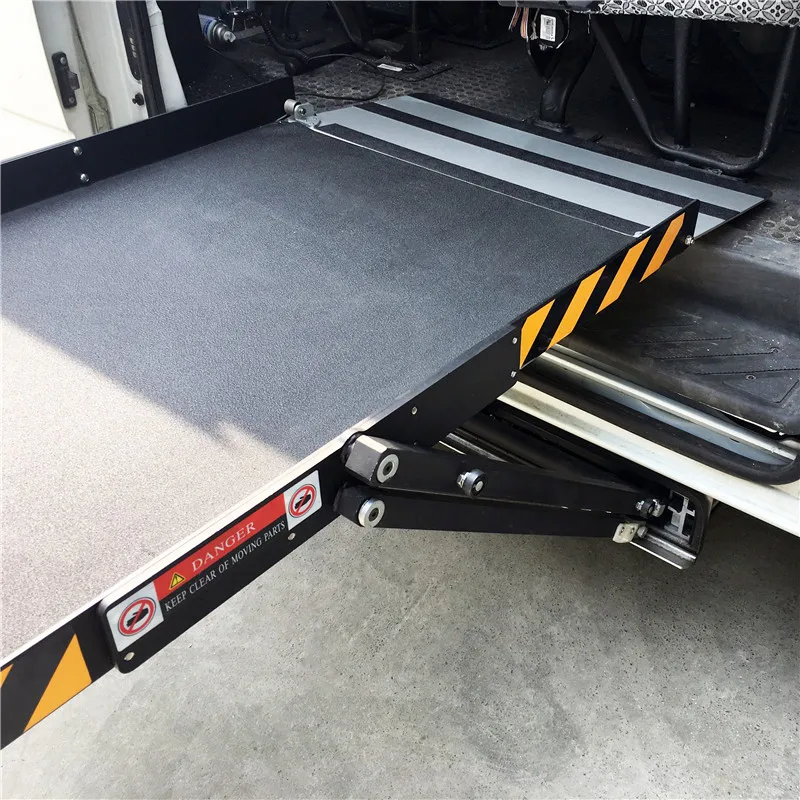

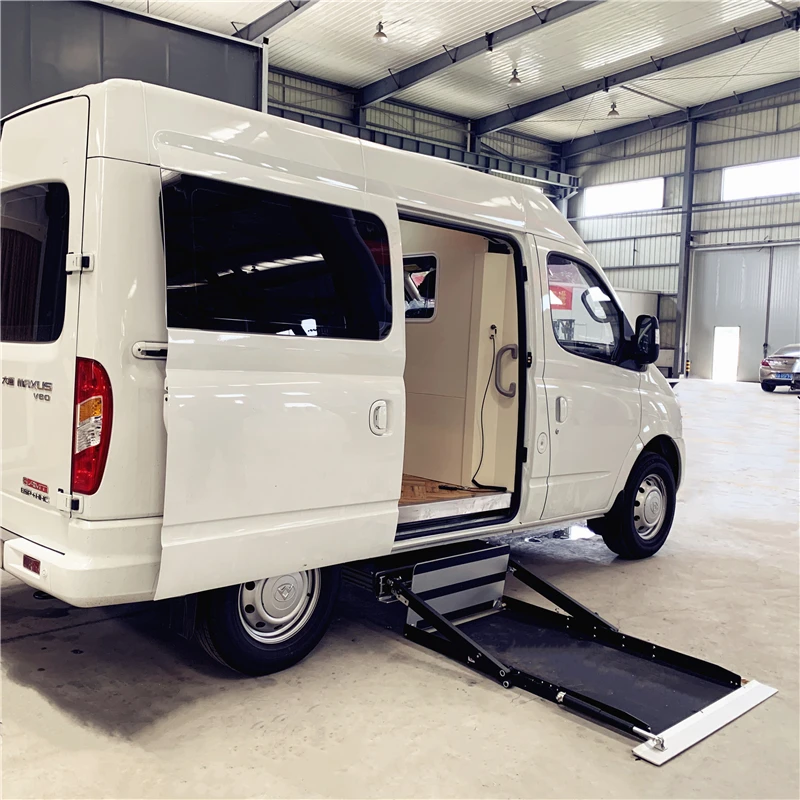

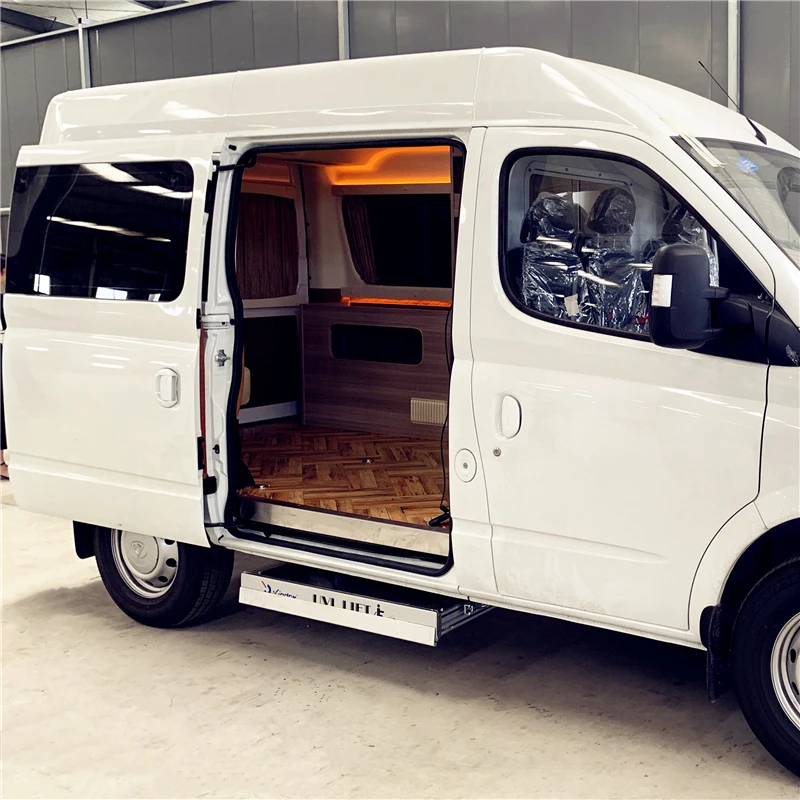

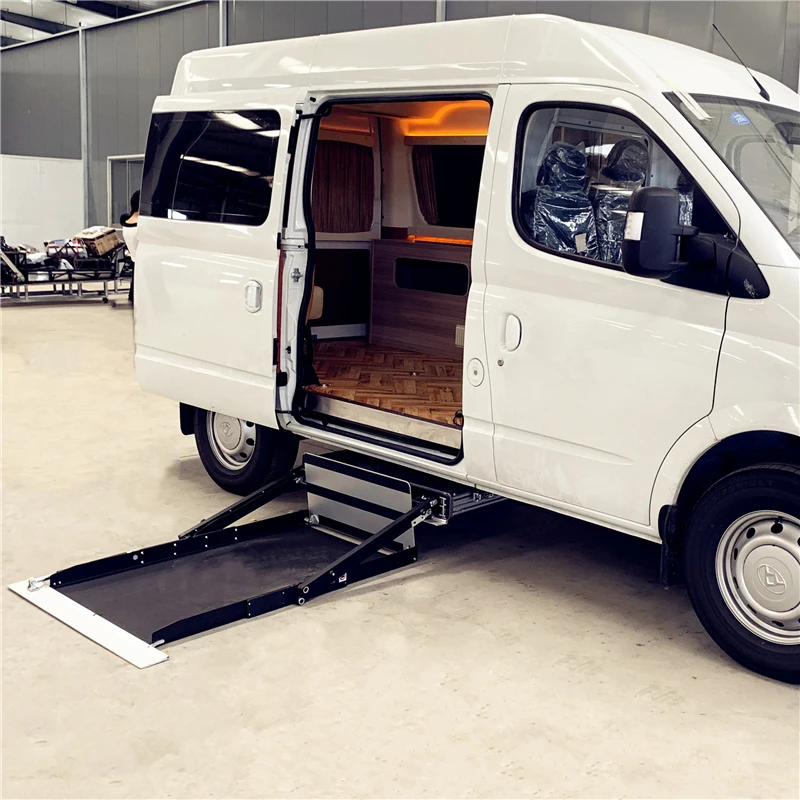

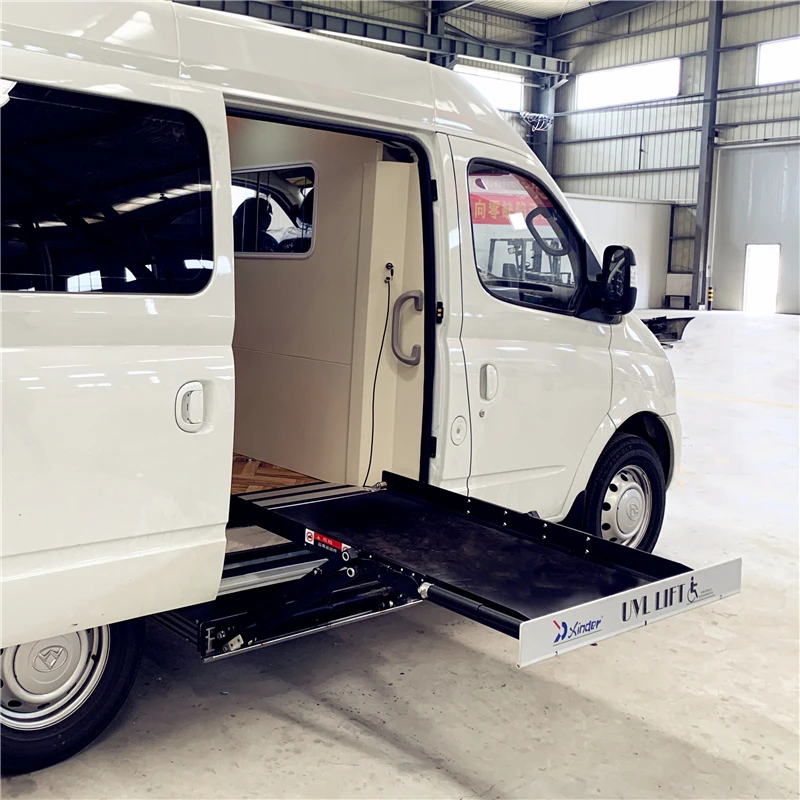

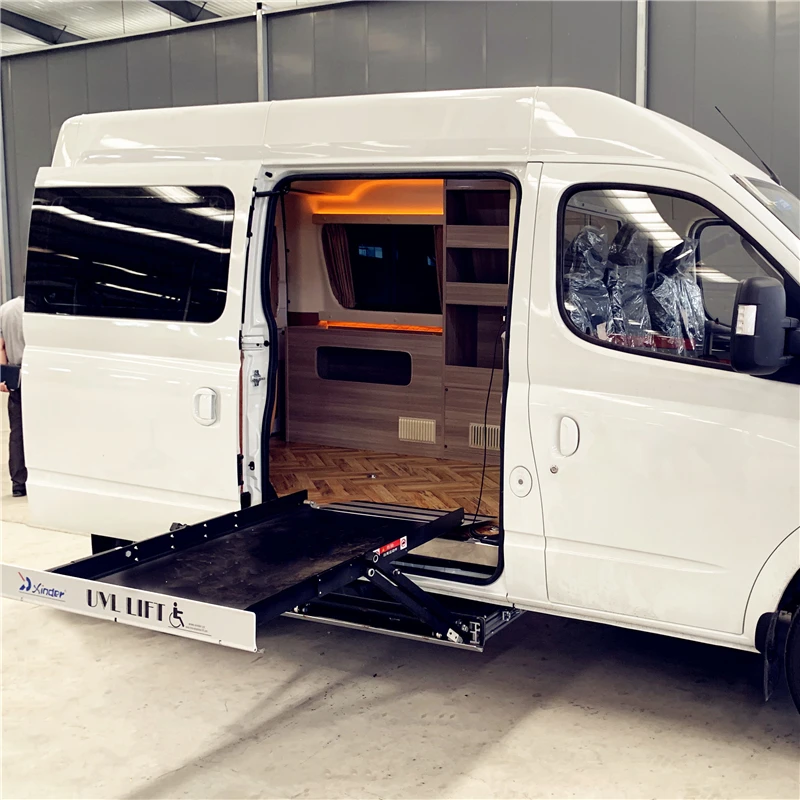

Detailed Images
Packing & Delivery
1-3 units in one plywood case
we pack the hydraulic power unit seperately in carton case
international transport cooperation
qty/package | packing size mm | net weight (kg) | gross weight (kg) |
1 unit | 1800*1100*200 | 148 | 201 |
2 units | 1800*1100*300 | 296 | 226 |
3 units | 1800*1100*400 | 444 | 233 |
power unit | 330*285*535 | 14 | 15 |
