Прецизионная Стопорная гайка KM22 с фиксирующими
- Категория: Nuts >>>
- Поставщик: Jinan,Kaiming,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.98 $* | 0.44 $* |
| Aug-16-2025 | 0.62 $* | 0.77 $* |
| Jul-16-2025 | 0.36 $* | 0.64 $* |
| Jun-16-2025 | 0.45 $* | 0.22 $* |
| May-16-2025 | 0.97 $* | 0.40 $* |
| Apr-16-2025 | 0.78 $* | 0.16 $* |
| Mar-16-2025 | 0.90 $* | 0.4 $* |
| Feb-16-2025 | 0.90 $* | 0.61 $* |
| Jan-16-2025 | 0.44 $* | 0.75 $* |
Характеристики

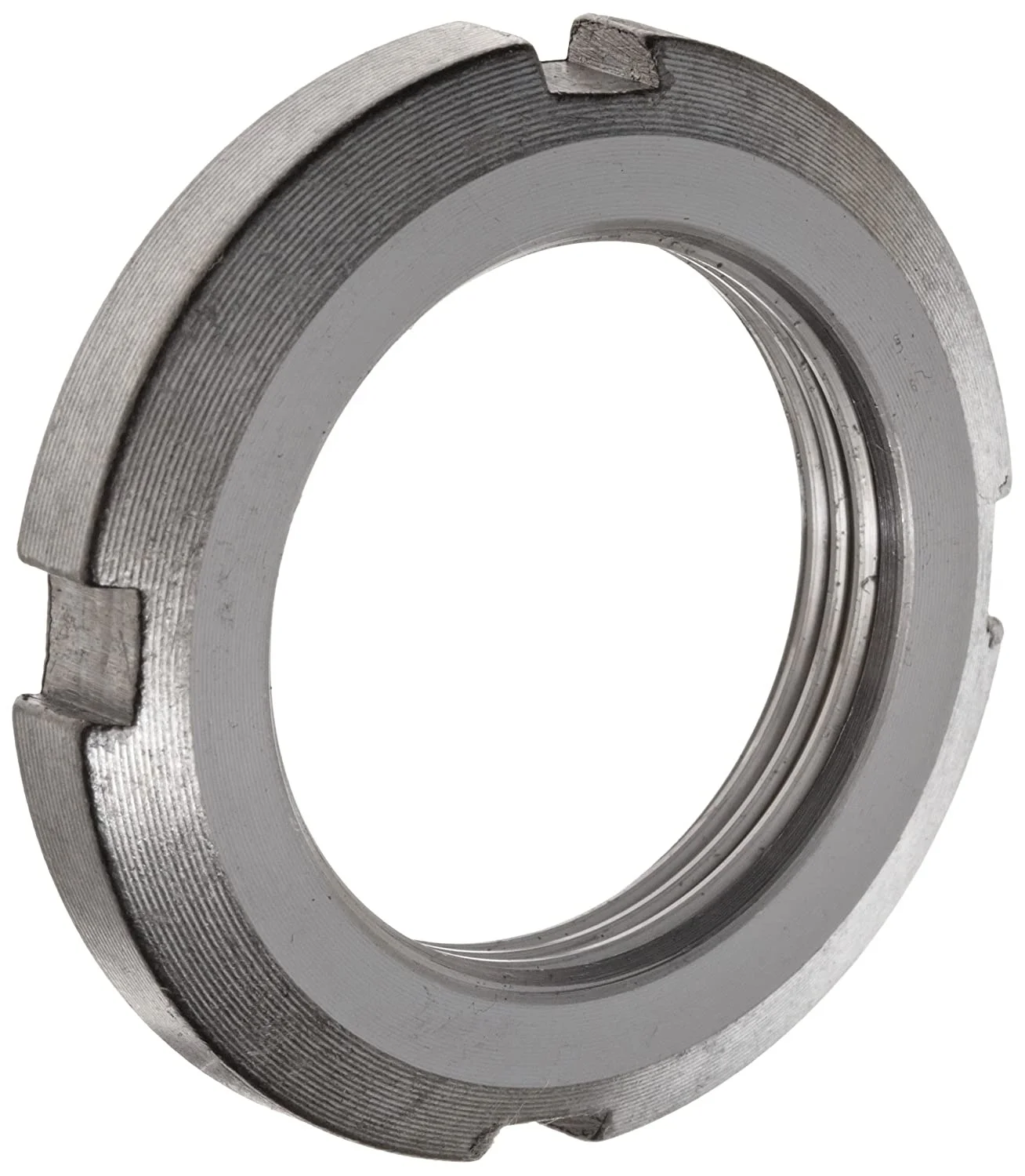

Precision Locknut KM22 with locking washers MB22
Locknuts KM 22 with locking washers MB 22 have four equally spaced slots respectively, around the outside diameter to take a hook or impact spanner.
Principal data of Locknuts KM 22
Thread size=110 mm
Outside diameter (d3)=145 mm
Width (B)=19 mm
G= M 110*2
Weight=0.87 kg
Axial static load carrying capacity= 310 kN
Appropriate locking washer: MB 22
Appropriate spanner: HN 21-22
Principal data of locking washers MB 22
Inside diameter (d)=110 mm
Outside diameter(d2)=154 mm
Width (B)=1.75 mm
G= M 110*2
Weight=0.091 kg
KM 22+MB 22 cross reference
AN22+AW22X
KM22+MB22
If you want to know more about our products,please feel free to contact me.You may also visit our online company introduction which includes our latest product line.We will be happy to give you a quotation upon receipt of your detailed requirements.
I am looking forward to receiving your enquires soon.And I hope to have the opportunity to cooperate with you in the future.
