3.5m3 мобильный бетоносмесительные станции с автоматической загрузкой взвешивания смешивания

Описание и отзывы

Трекер стоимости

Характеристики

Introduction Of 3.5m3 Mobile Concrete Mixing Station with Self-loading Weighing Mixing Discharging

3.5m3 Mobile Concrete Mixing Station with  Self-loading Weighing Mixing  Discharging  from China Coal is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.
Low upfront cost
Reduce transportation cost
Minimize labor cost
Maximize job efficiency
Features&Advantages
Mobile concrete mixing station feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
High Efficiency
Capacity:14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
Labor-saving
4 wheel drive, 4 wheels steering
Accurate Electric Weighing System
The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
Loading, Weighing, Pumping, Mixing, Delivering, Discharging

Parameter Of 3.5m3 Mobile Concrete Mixing Station with Self-loading Weighing Mixing Discharging

Name	Item	Specification
Vehicle	Net	8800kg
	Gross	16000kg
	Transmission	Hydraulic
		4*4
	Brake	Hydraulic Brake
		Front and Rear Independent System
	Chassis	Off Road, China top brand axle
	Distance of Front/Rear Wheelbase	1905mm
	Wheelbase	2155mm
	Loader	Capacity	0.6m³
		Control	Hydraulic
	Tile Angle	30%
	Speed	High	0-20km/h
		Low	0-9km/h
	Min.Turning Radius	6.5m/R
	Tire	16/70-20
	Dimensions(L*W*H)	7011*2441*3310(MM)
Disel Engine	Type	A8QW0
	Rated Power/rpm	85KW/2200rpm
	Max.Torque/rpm	425N.m/1400rpm
	Cylinder	4-cylinder/4.836L
	Bores	108mm
	Cooling Type	Water cooling
	Fuel Consumption	225g/kw.h
	Starter	Electric
	Emission Standard	China II
Mixing Drum	Drum Capacity	3.5m³,14m³/hr.
	Bank Angle	16°
	Rotation Speed	10-16r/min
	Angle of Drum Rotation	no less than  270°
Chute	Swing Angle	no less than 60°
	Angle Control	Hydraulic
	Size	Long:106cm
		Short:40cm

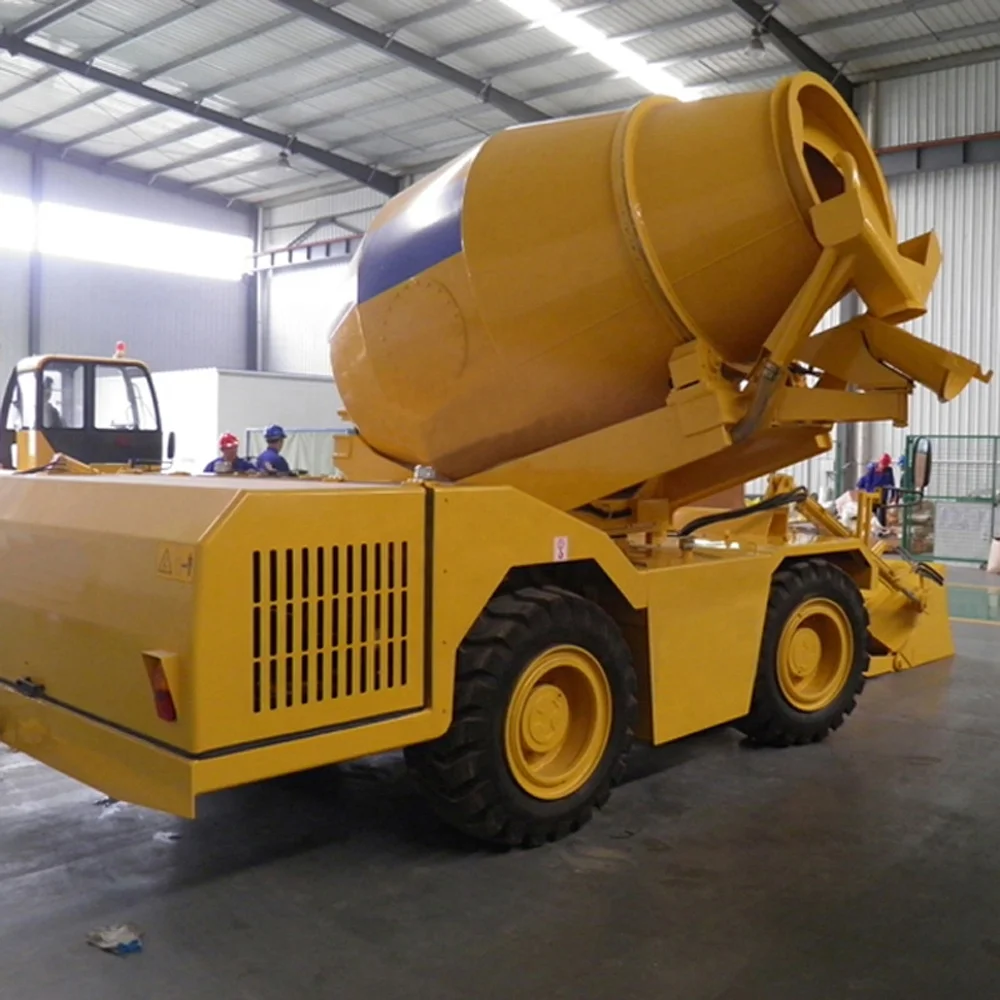

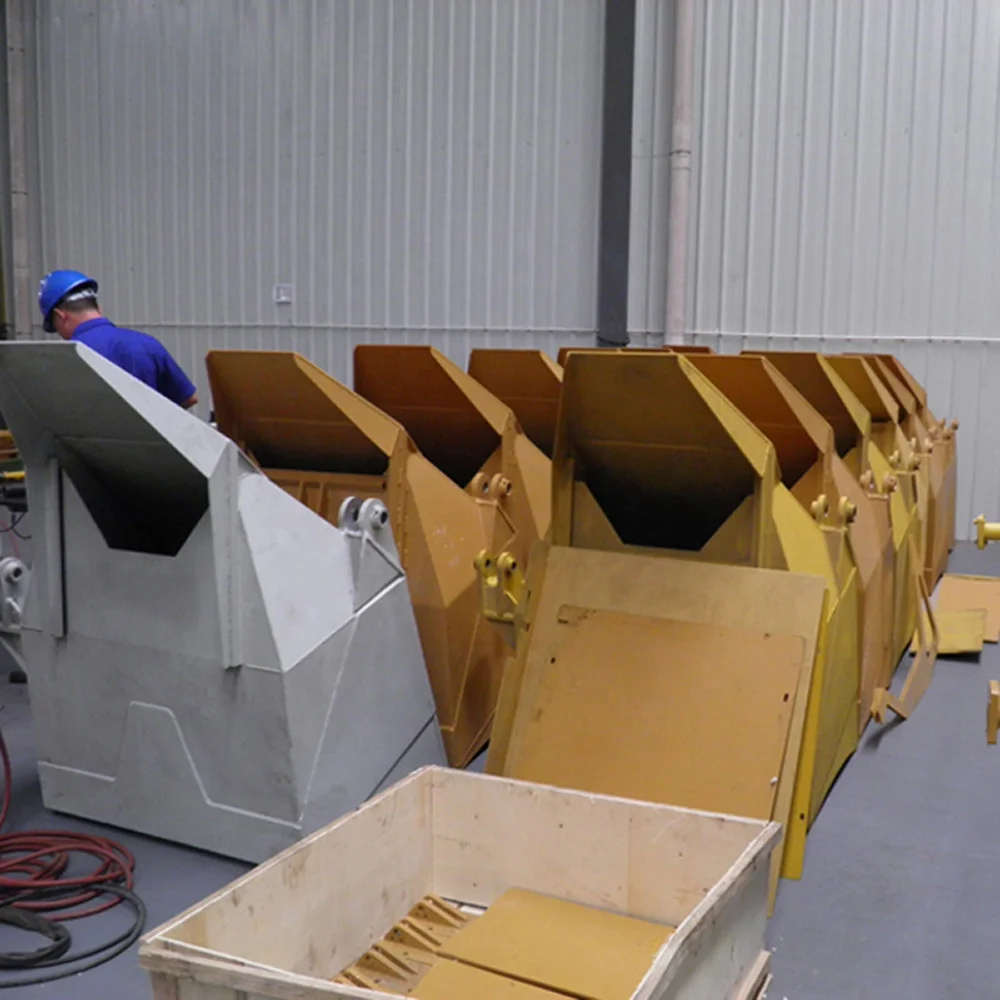

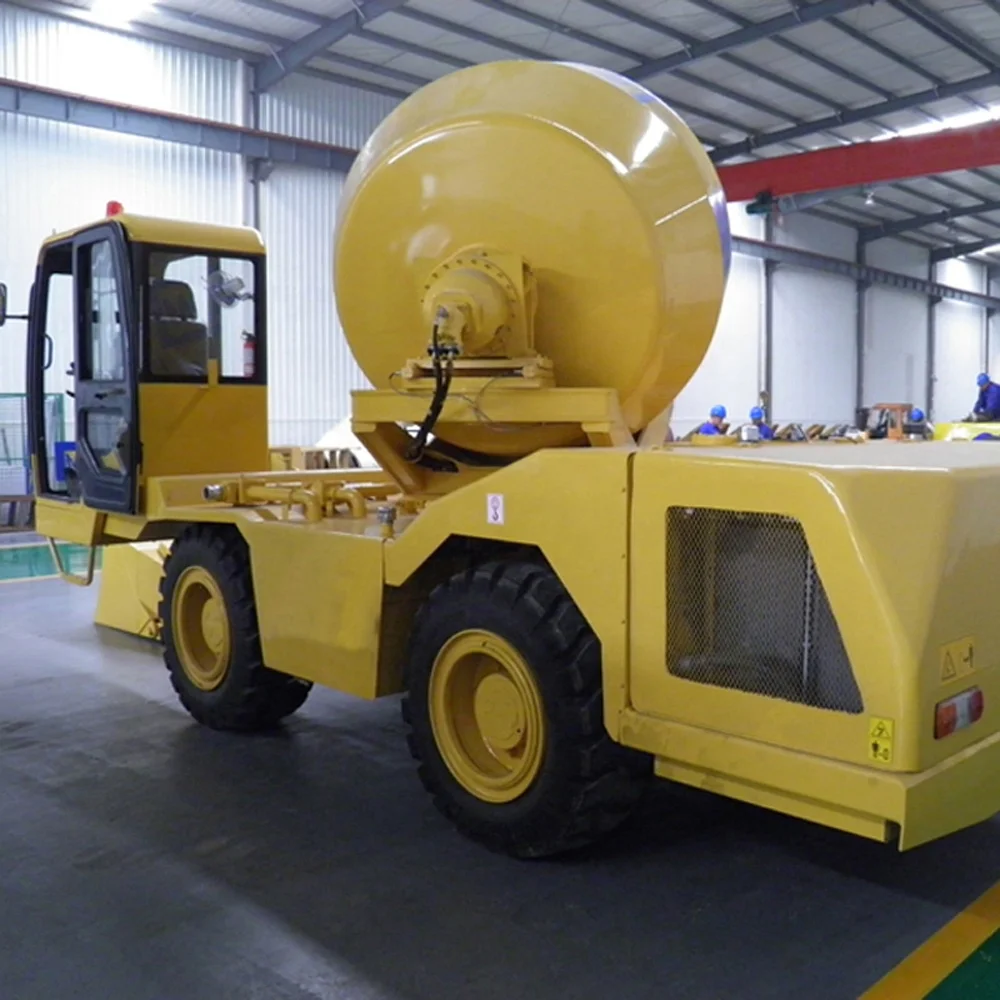

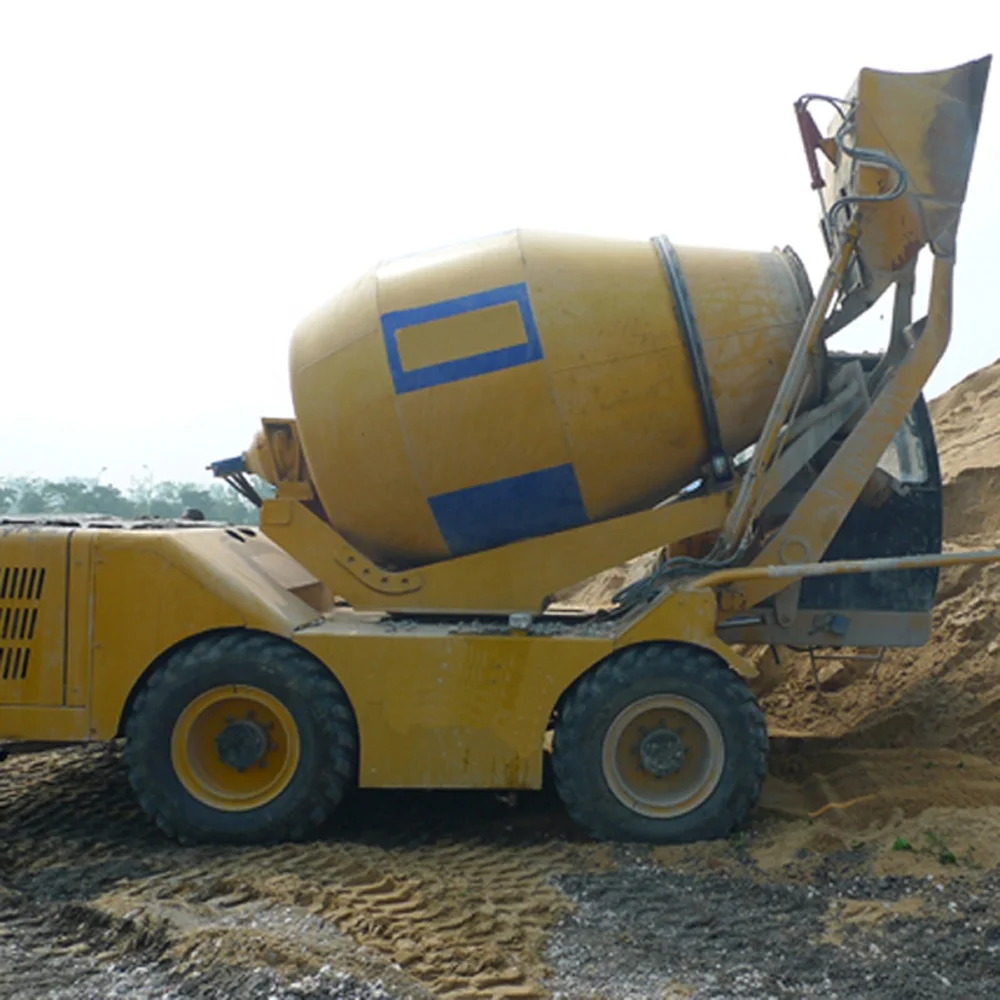

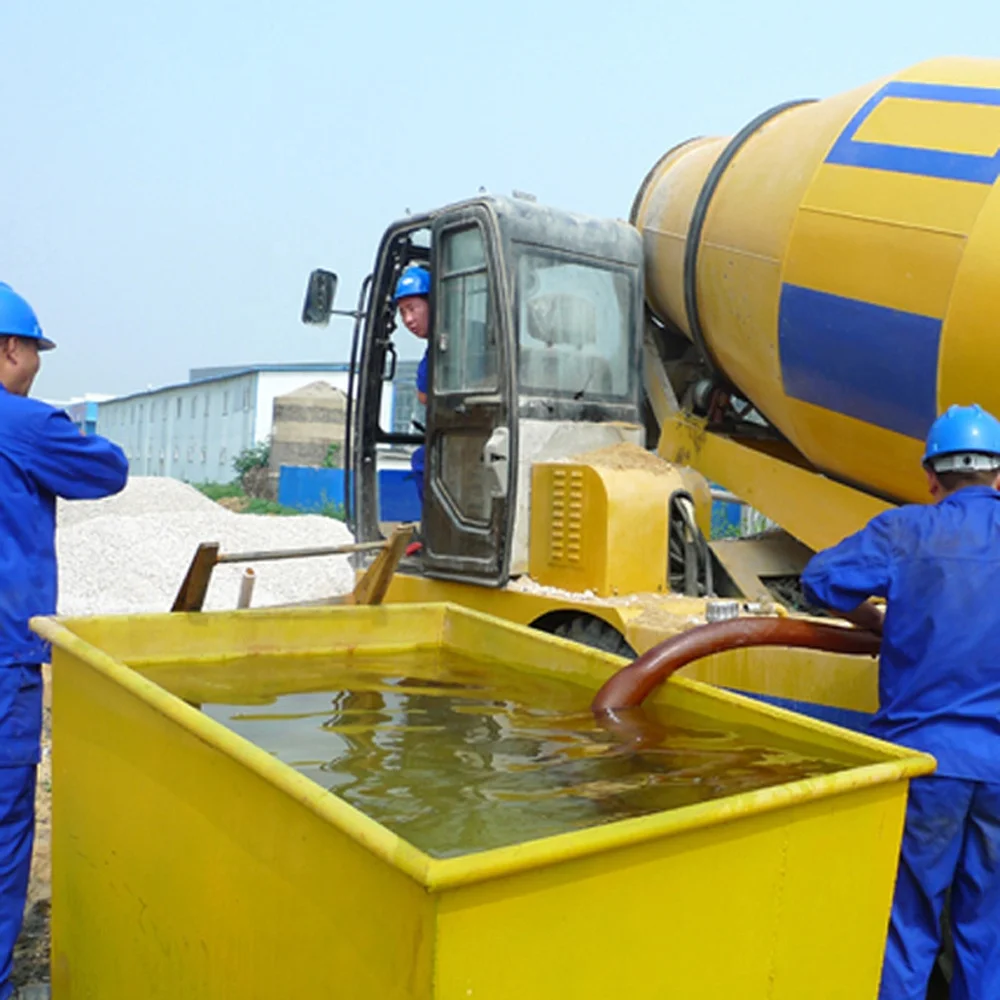

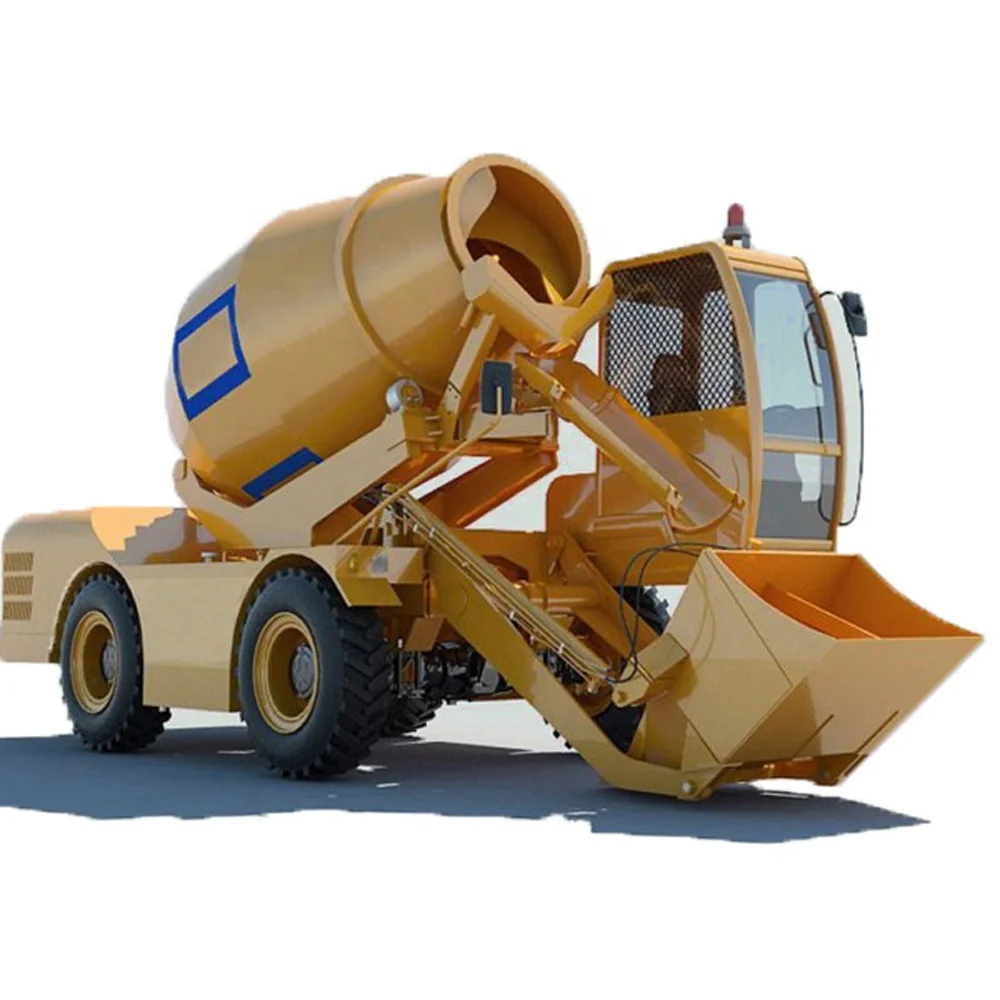

Photos Of 3.5m3 Mobile Concrete Mixing Station with Self-loading Weighing Mixing Discharging
