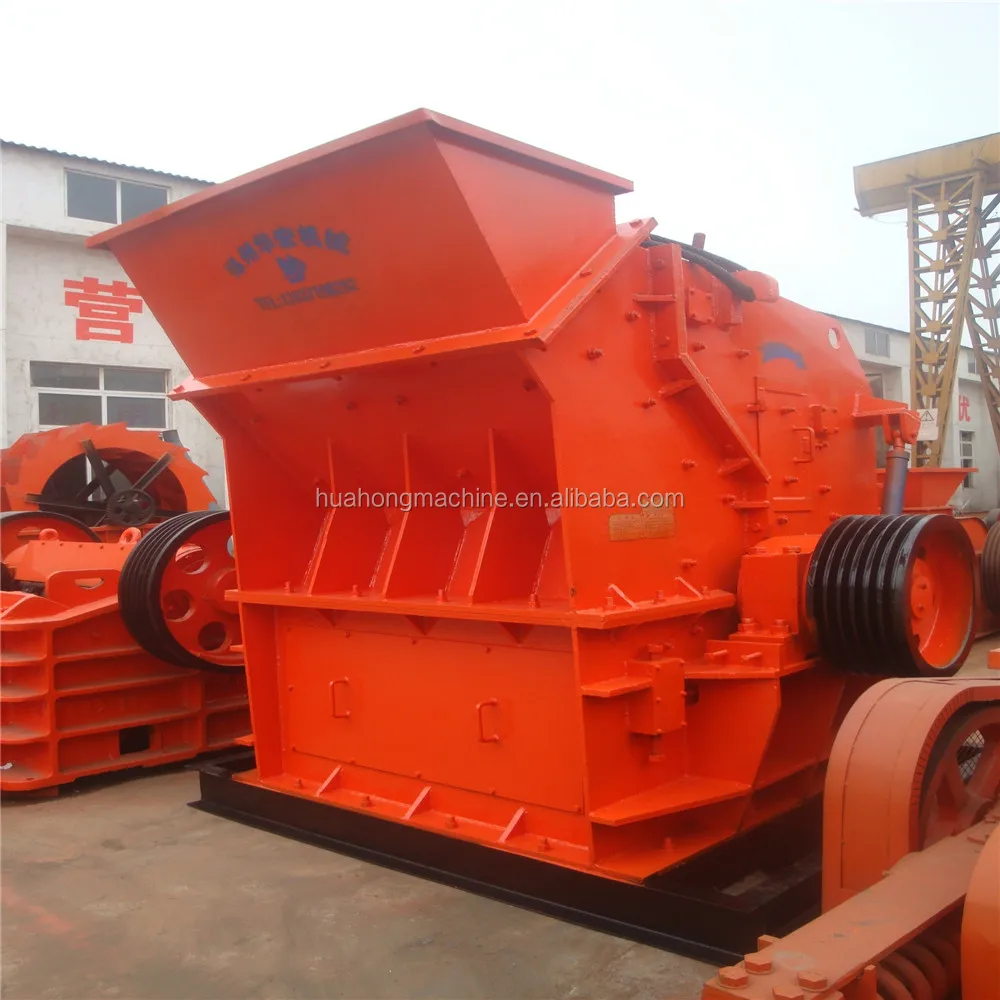

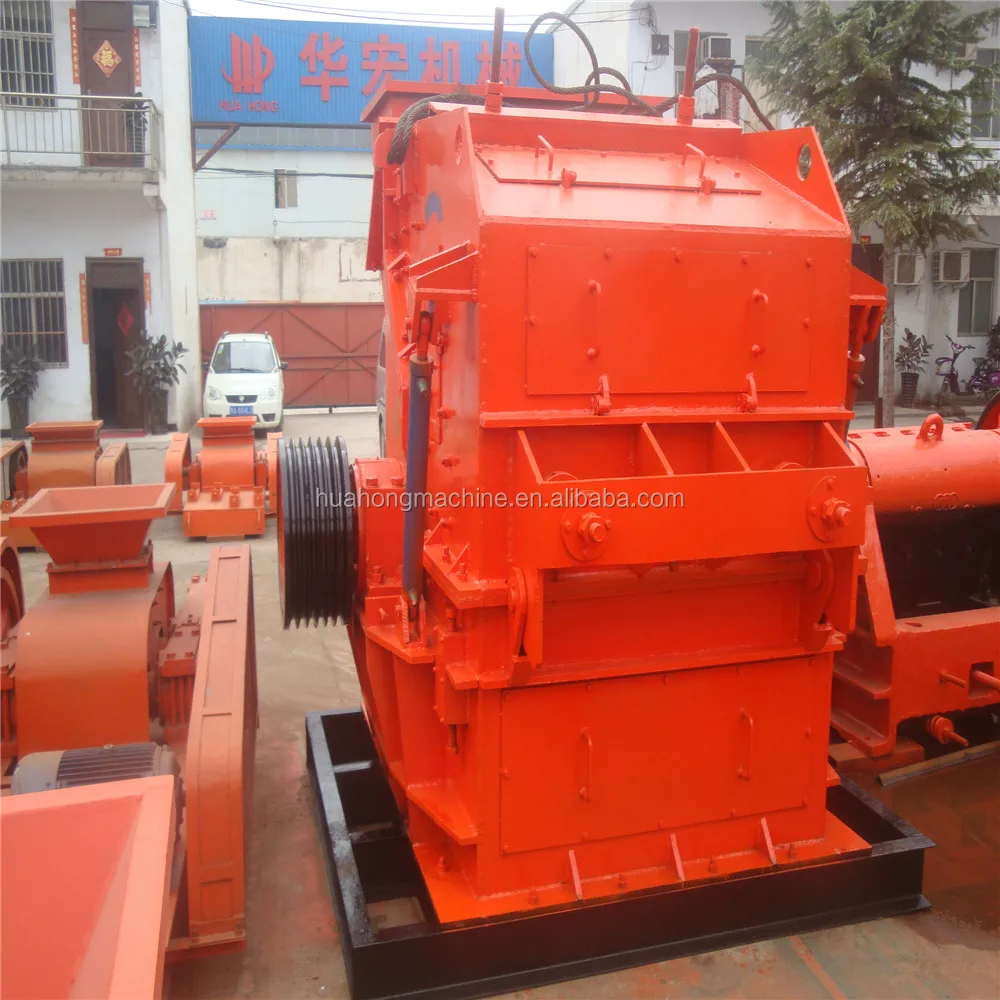

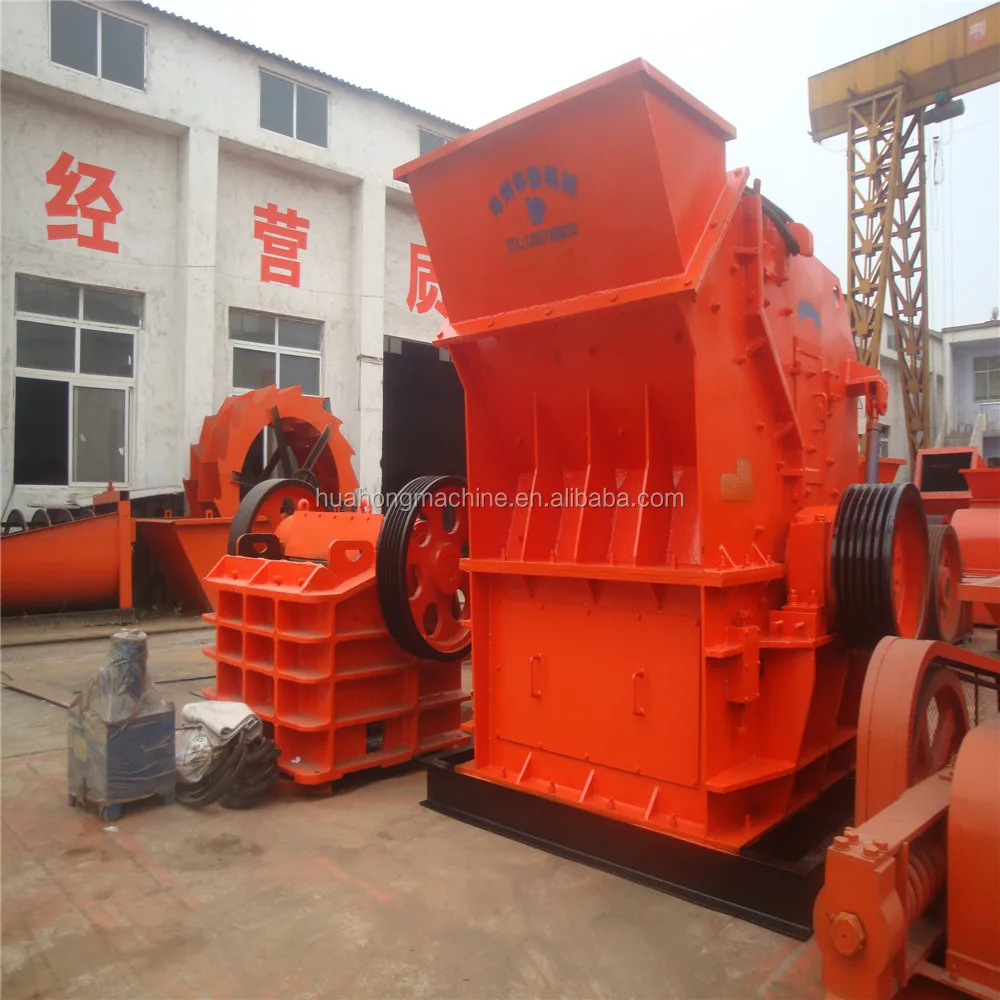

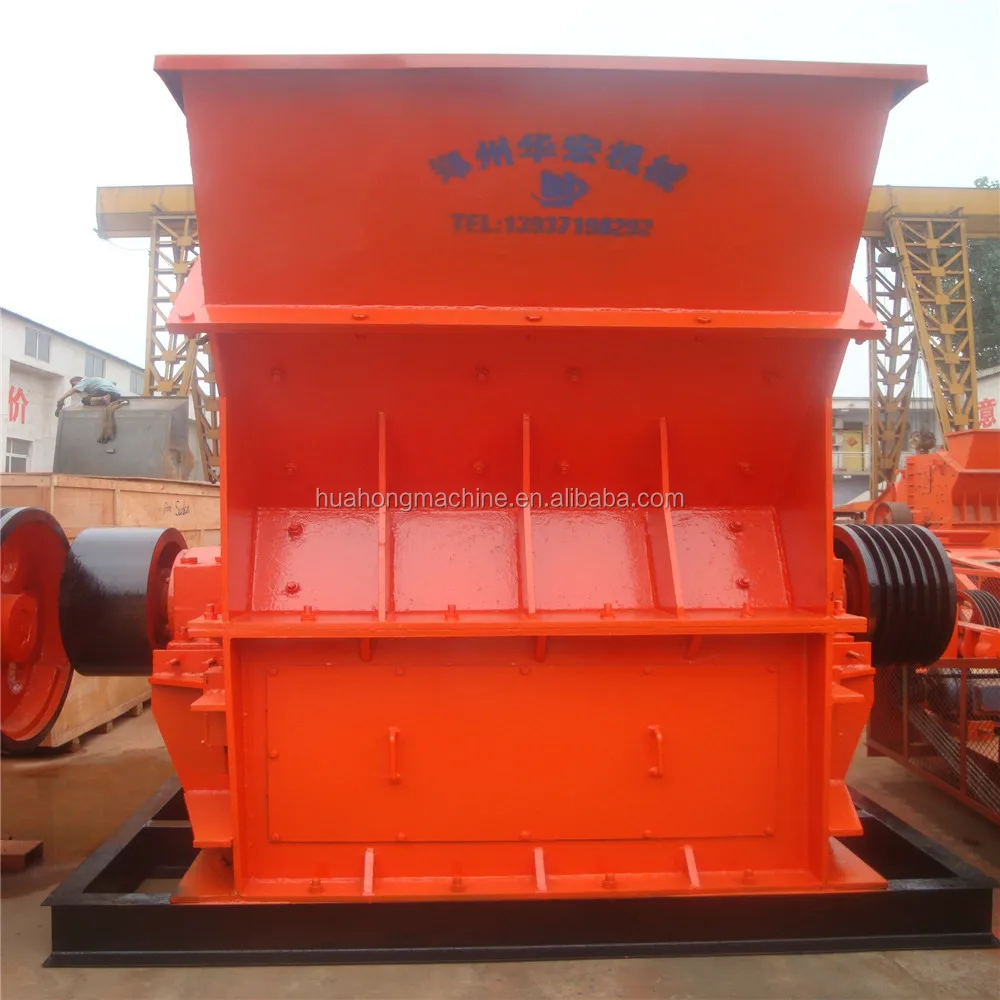

                              The sixth generation of sand making machine

Introduction

Create sand machine 6 and energy-efficient counterattack finely machine, this machine combines the hammer crusher, counterattack crusher, impact crusher equipment advantages, such as research and development of a new generation of sand production equipment. The machine in the mechanism of sand market has gradually replaced the original vertical impact crusher, become the main force of sand equipment markets

Application

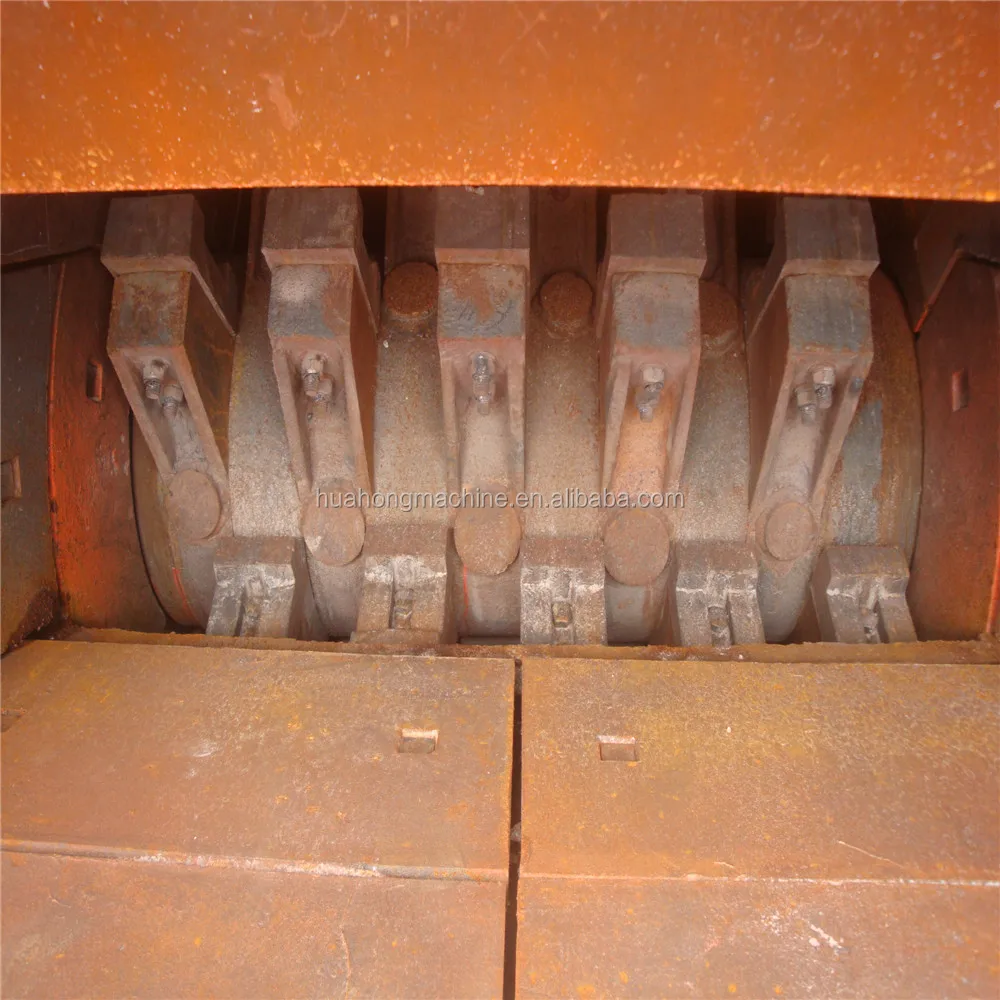

The sixth generation of sand machine running stable and reliable performance, small volume, simple technique, simple structure, large production capacity, the hammer head of long service life, light weight, easy to replace parts, mobile convenience, tertiary crushing for secondary crushing, hammer head long useful life, convenient maintenance, environmental protection and energy saving.

Sixth generation sand machine combines the existing hammer, optimal characteristics of type such as type, impact crusher, hammer, counterattack, stone hit stone for one time, yield under 5 mm accounted for more than 90%, and the discharging granularity is adjustable, improve the service life of more than 10 times, secondary crushing yield increase, reduce the maintenance frequency and time, greatly reduce the energy consumption of per ton of finished product, after the user use the economic benefit is improved obviously. The typical application is to adapt to the current artificial mechanism of sand industry, is rod mill, sand making machine, impact type system sand machine, straight through the sand machine substitute products

Because of its low wear characteristics of fine sand making machine for high abrasion resistance and the second broken disintegration of production. In addition, due to the product of zero pollution, the system function of sand well adapted to the glass, quartz sand and other high purity material production, 10-500 t/h production capacity range, sand making machine can satisfy almost any production requirements.

Working principle

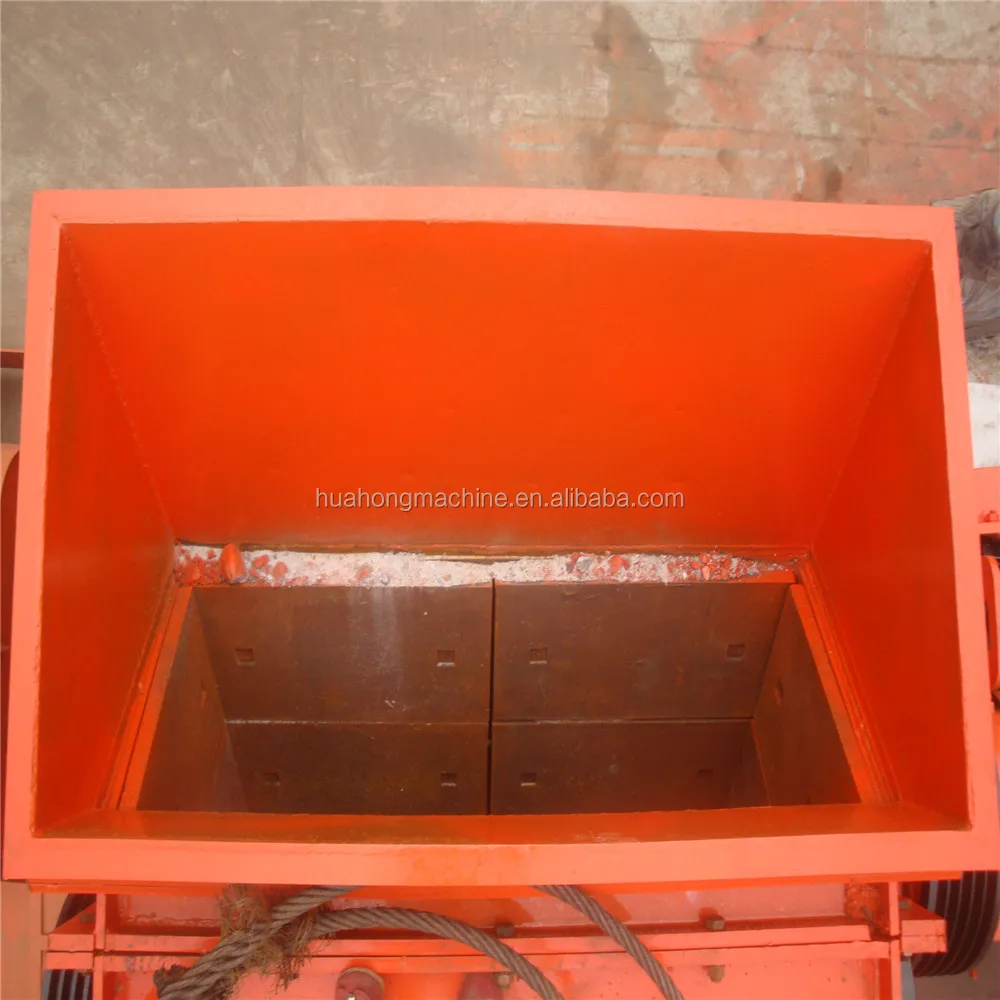

Material from the hopper into the sand making machine, the distributor will material is divided into two parts, part from the distributor in the middle to high speed rotating impeller, the impeller was accelerated rapidly, its acceleration can be up to several hundred times the gravitational acceleration, and then at the speed of 60-70 - m/s from three uniform mass ejection of the flow passage of impeller to go out, first with received by distributor around the drop impact crushing part of the material, and then hit with vortex cavity lining material and be lining material rebound, oblique upward shocks to the top of the vortex chamber, and change the direction of movement, deflecting downward movement, emitted from the impeller passage of material to form a continuous material.

A piece of the material in the vortex broken cavity by twice that many risk impact, friction and grinding crushing effect. Be broken material by bottom discharging mouth eduction. And cycle screening system to form closed circuit, general circulation under the material can be broken into three times 20 mesh.

Under the crushing process, the material to impact between broken, not direct contact with metal components, but the lining with material shattered by shock, friction, Angle of reducing the pollution, prolong mechanical wear. Vortex chamber internal clever airflow from circulation, eliminate the dust pollution.

Features

1.)High efficiency and energy saving

2.)Unique structure

3.)Simple operation process.

4.)Low running cost.

Main Technical Parameters
