Ротационная формовочная машина с открытым огнем для производства резервуара


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.95 $* 0.86 $*
Aug-16-2025 0.78 $* 0.36 $*
Jul-16-2025 0.87 $* 0.50 $*
Jun-16-2025 0.42 $* 0.71 $*
May-16-2025 0.62 $* 0.46 $*
Apr-16-2025 0.23 $* 0.95 $*
Mar-16-2025 0.47 $* 0.35 $*
Feb-16-2025 0.7 $* 0.8 $*
Jan-16-2025 0.86 $* 0.64 $*

Характеристики


Product Description

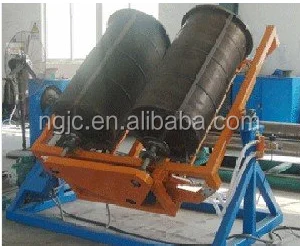

Flame swing machine (open flame,rocking and rolling)

Equipment is simple, economical, suitable for medium or large volume hollow container and steel vessel, reactor, piping, simple shape products. Flame swing machine is simply designed, the main heat source is the gas flame, the flame itself will contact the mold, the molding process is basically same with the other heating methods. When material is completerly melt at the inside of the mold, turen off the flame and initiate the cooling fan to coll down the mold rolling around or let product remain in the mold and cool down in the environment. After cooling sufficiently, then stopped and remove the product from the mold, and then repeat the entire process. In this way, there are difficulties in molding of complex shape products, because the flame rod can not reach deep place or angle, it has been unable to uniformly heat, the production efficiency is low.

\t
Technical parameters
\t
Item No
\t
mold inside size(mm)
\t
Power:Kw
\t
Dimision(L*W*Hmm)
\t
<1T
\t
Φ660*740/Φ1100*1200(1300)
\t
3.3
\t
2000*1700*2500
\t
1-5T
\t
Φ1080*1074/Φ1880*2400(2850)
\t
4.5
\t
3500*2600*2500
\t
6-10T
\t
Φ1900*2030/Φ2520*2470(3080)
\t
9.5
\t
4000*3100*2500
\t
10-30T
\t
Φ2200*2400/Φ2760*4920(5560)
\t
15
\t
7000*3400*3500
\t
30-50T
\t
Φ2760*3650/Φ3200*6050(6650)
\t
22
\t
8300*3900*4000

Main Features

1   Can be installed without the need of a foundations or a pit;

2   Technologically advanced solution for the production of large, and very large articles;

3   Possibility to increase from 1 to 2 carriages which alternate in the moving oven and in the loading/unloading cooling 4   zones;

5   Ideal for kayaks, boats, silos, containers and other large articles .

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
