Регулируемая стальная опора для строительных лесов/опора

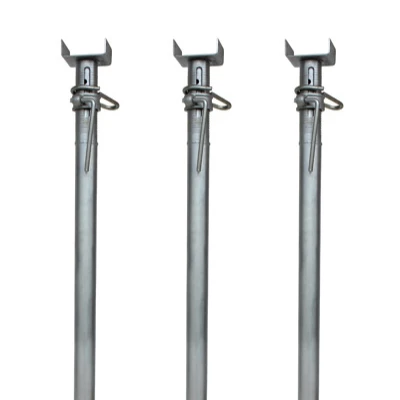

  Adjustable Scaffolding Steel support post / prop formwork for construction

Details of adjustable shoring props

1.Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ; 2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ; 3.0-5.0m ; 3.2-6.0m
2.Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm
3.Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm
4.Type: Heavy duty scaffolding prop/light duty scaffolding prop
5.Surface finish: painted, pre-galvanized, hot dip galvanized
6.We can provide all kinds of scaffolding props with high quality at low price
7.Material: Q235 for welded pipe and 20# for seamless pipe
8.Produced in our own factory,can control the quality much better
9.Samples are available
10.ISO 9001-2000 approved.
11.Performance:good bearing capacity,durable & stable
12.Test: SGS, BV or as per your request
13.OEM service is available.

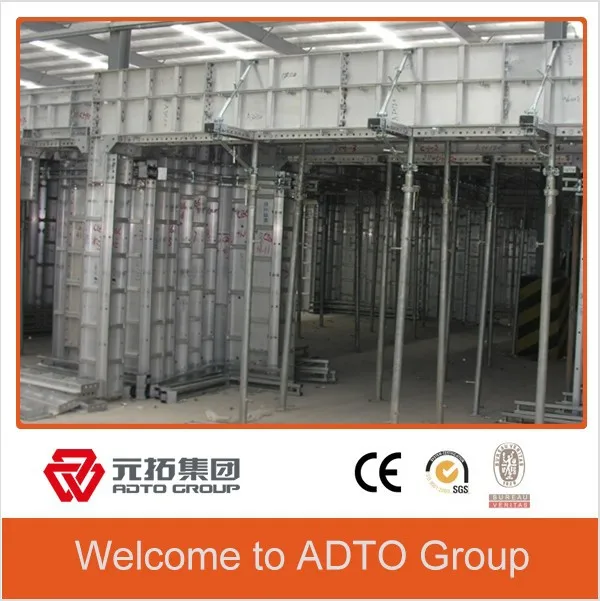

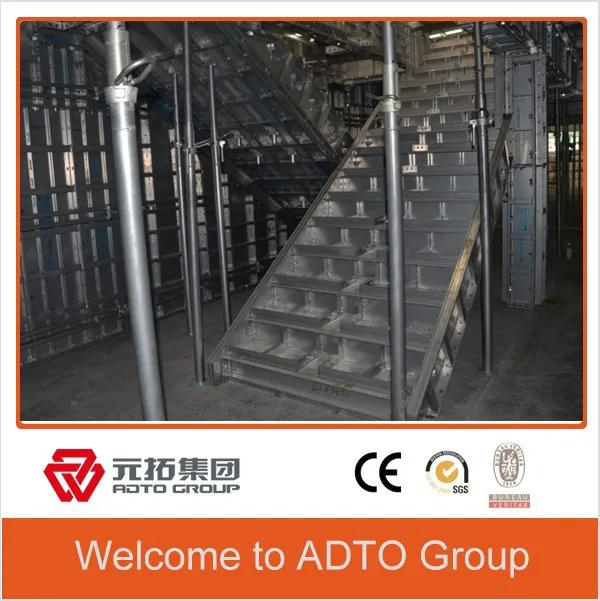

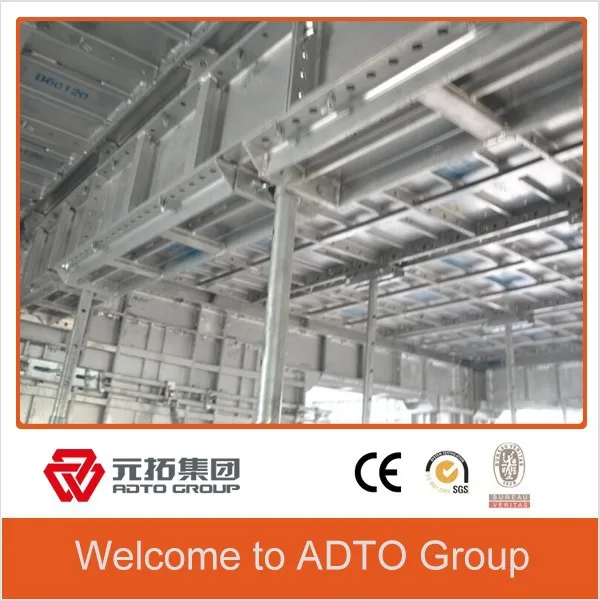

Use For Aluminum Formwork System :

Dear customers, if you have any questions or inquiries about aluminum formwork, please contact us without any hesitation, because ADTO  is the professor of aluminum formwork field.
