Горячая распродажа! VM1160 Китай конкурентоспособная цена большой вертикальный обрабатывающий центр

Горячая распродажа! VM1160 Китай конкурентоспособная цена большой вертикальный обрабатывающий центр

Категория: >>>
Поставщик: Shandong,Pulute,Machine,Tool,Co.,Ltd.

Цена:22 222,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	26444.16 $*	27766.18 $*
Aug-17-2025	26222.51 $*	27533.95 $*
Jul-17-2025	22000.46 $*	23100.45 $*
Jun-17-2025	25778.92 $*	27067.60 $*
May-17-2025	22444.69 $*	23566.36 $*
Apr-17-2025	25333.12 $*	26600.15 $*
Mar-17-2025	25111.39 $*	26367.36 $*
Feb-17-2025	24889.51 $*	26133.11 $*
Jan-17-2025	24666.3 $*	25899.19 $*

Характеристики

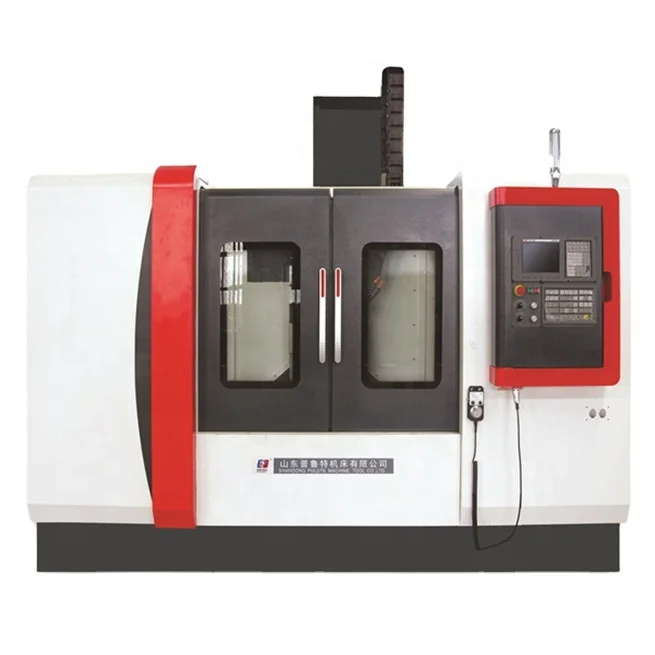

SPECIFICATION AND CONFIGURATION OF VMC1160 VERTICAL MACHINING CENTER

work table	work table size	1200X600
		max. loading of work table	800 kgs
		travel of 3 axes (X/Y/Z)	1100/600/600 mm
		T slot width x length	18X90 mm
		T slot QTY	5 pcs
spindle	spindle taper	BT40
		distance from spindle center to column	650mm
		Distance from spindle head to work table	180-780mm for VMC1160L2 120-720 mm for VMC1160L3
		speed	8000 rpm
		spindle motor power	11/15 kw
axis	Torque of X/Y/Z axis	20/20/20
		Rapid feed of X, Y, Z axis	20/20/15 m/min for VMC1160L2 36/36/30 m/min for VMC1160LS
		Cutting feed of X, Y, Z axis	1-10000 mm/min
accuracy	position accuracy	±0.01 mm
accuracy		repeatability	±0.005 mm
cutting tool	max. diameter of tool	80mm/150mm
	cutting tool	Length of max. Tool	300 mm
		Weight of max. Tool	6 kgs
coolant	Coolant water column	140 L
		Coolant pump power	440 W
		Coolant pump flow	67 L/min
		Coolant pump head flow	16 m
others	Electrical capacity	20 Kva
		The pneumatic power	0.6 Mpa
	others	dimension	3200X2280X2500 mm
		N.W.	5700 kgs

Taiwan brand VYU CHENG spindle

Taiwan brand KENTURN spindle

Chinese famous brand AIMACH ATC hat type or arm type

Taiwan brand OKADA ATC hat type or arm type

Taiwan brand HIWIN linear guide

Chinese or Taiwan ball screw

Automatic concentrated lubrication system

Heat exchanger or air conditioner

Fanuc, Siemens, GSK, Syntec, Mitsubishi etc NC controller

higher rigid and higher precise machine frame

COMPANY INTRODUCTION

Shandong Pulute Machine Tool Co., Ltd. was established in 2008, specializing in the production of CNC lathes, machining centers,gantry and other CNC machine tools. The company has more than 200 employees, covers an area of 120,000 square kilometers, and has 5 workshops. The average monthly output is more than 180 machines, and the annual sales are more than 140 million CNY.

Machining center assembling workshop

cnc lathe assembling workshop

Plastic spraying and splash metal guard workshop

Machining workshop

CNC lathe assembling workshop

one of our warehouses

PACKING AND DELIVERY

There is the professional packing and delivery team in SHANDONG PULUTE MACHINE TOOL CO., LTD.
