Характеристики
Product Description

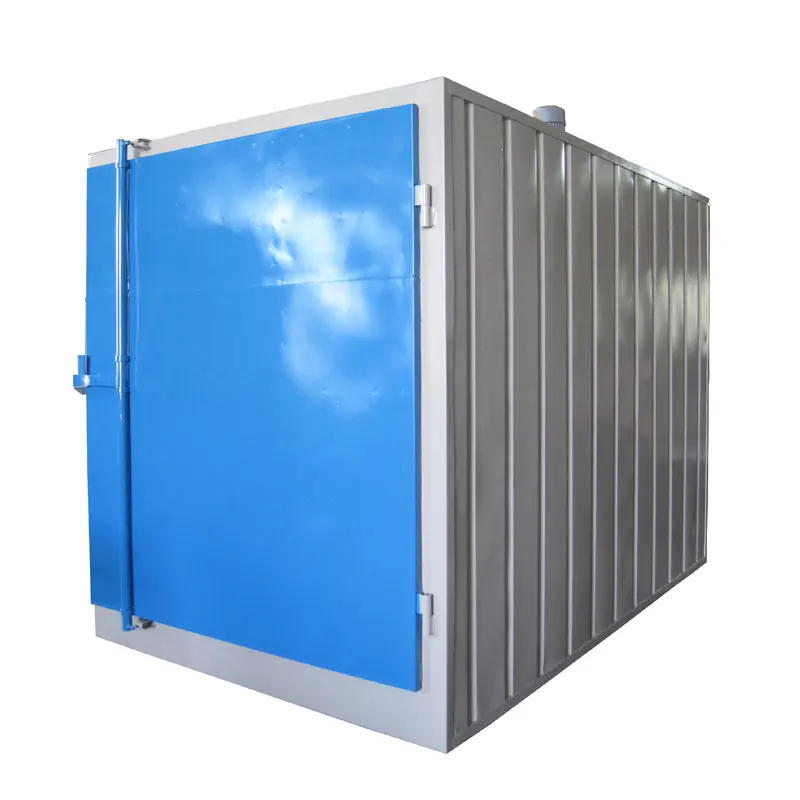

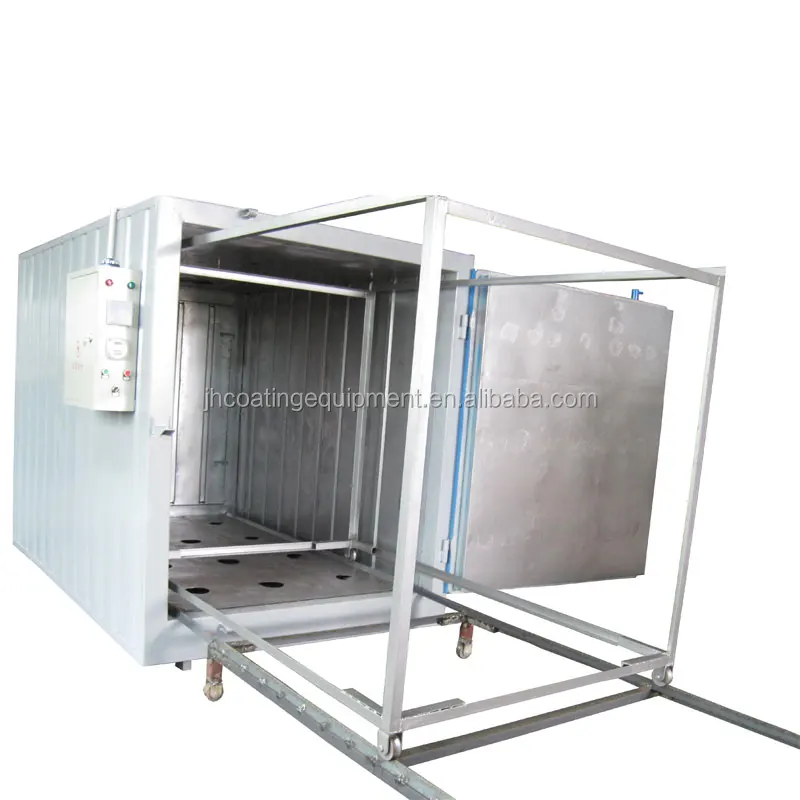

Electric Powder Coating Curing Oven
Heating source: could be Electric , Gas, Diesel oil
Powder coating oven have a galvanized steel sheet on outside and steel sheet on the inside.
Excellent Features
* Electric heating features simple-operated, efficient and environment-friendly.
* Superior powder curing due to very even temperature
* Minimised powder 'blow off' due to uniform air circulation
* Pre-assembled, Test Run and Data Logged
* Electric heating features simple-operated, efficient and environment-friendly.
* Superior powder curing due to very even temperature
* Minimised powder 'blow off' due to uniform air circulation
* Pre-assembled, Test Run and Data Logged
Specification | ||
Model | JH-181515D | |
Inner Size(DxWxH) | 1800 x 1500 x 1500 mm | |
Material | Galvanized steel sheet | |
Heating source | Electric | |
Work temperature | 180~250 ℃ | |
Insulation material | A grade rock wool | |
Rock wool thickness | 100mm | |
Voltage | 110V/220V/380V, 2 phase or 3 phase | |
Blower power | 1.1kw | |
Accessories (inner) | Moving trolley | |
Packing | Nude packing(if you need wooden case packing,pls contact with us ) | |
We could customized any size and specifications for you. | ||
Details Images

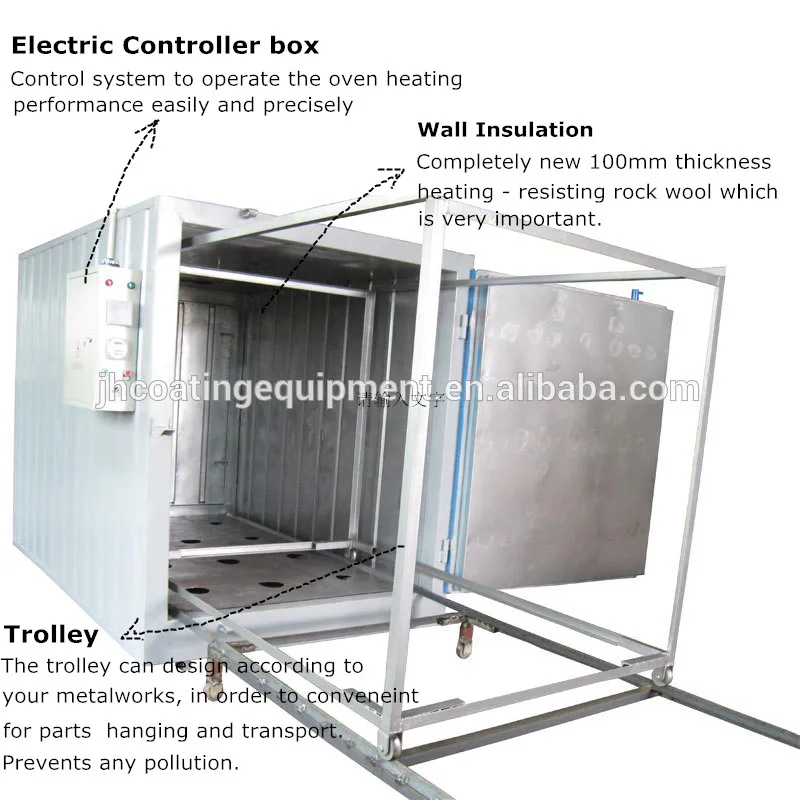

PLC Controller
1. Simple buttons ,very easy for operation .
Fan ON /Fan Off
Heating On /Heating off
Power ON/OFF
1. Simple buttons ,very easy for operation .
Fan ON /Fan Off
Heating On /Heating off
Power ON/OFF
2. Two indicator lights.
The user-friendly PLC panel gives you an easy access to set heating temperature, time and working of fan. Once the curing time arrive, the oven will stop heating automatically.
Simple and low fault rate.
Simple and low fault rate.
Circulation Fan
The main function of circulation fan is to ensure the uniform temperature in oven chamber. When the heating element creates hot
air the circulation fan cycles the heat through entire chamber and ensures workparts to be heated evenly.
The main function of circulation fan is to ensure the uniform temperature in oven chamber. When the heating element creates hot
air the circulation fan cycles the heat through entire chamber and ensures workparts to be heated evenly.

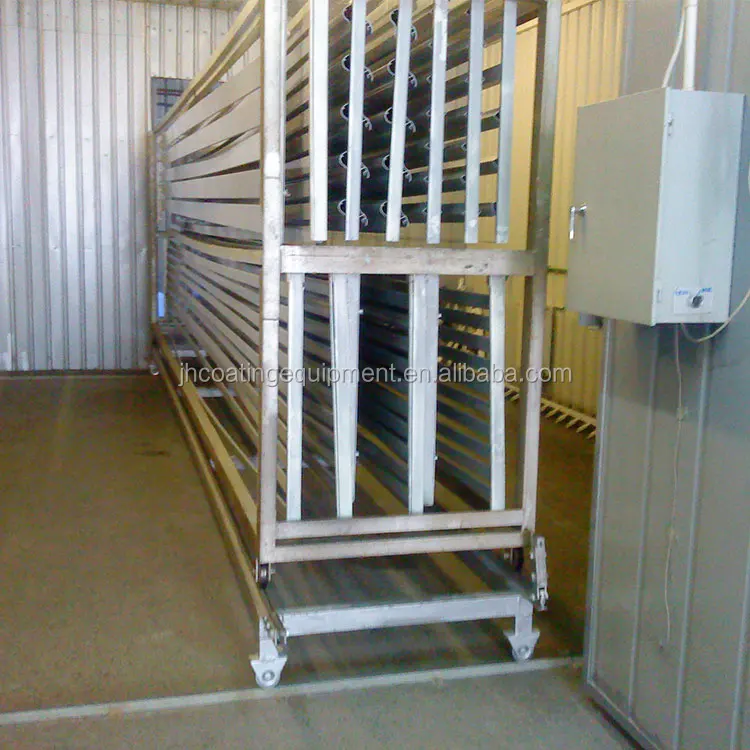

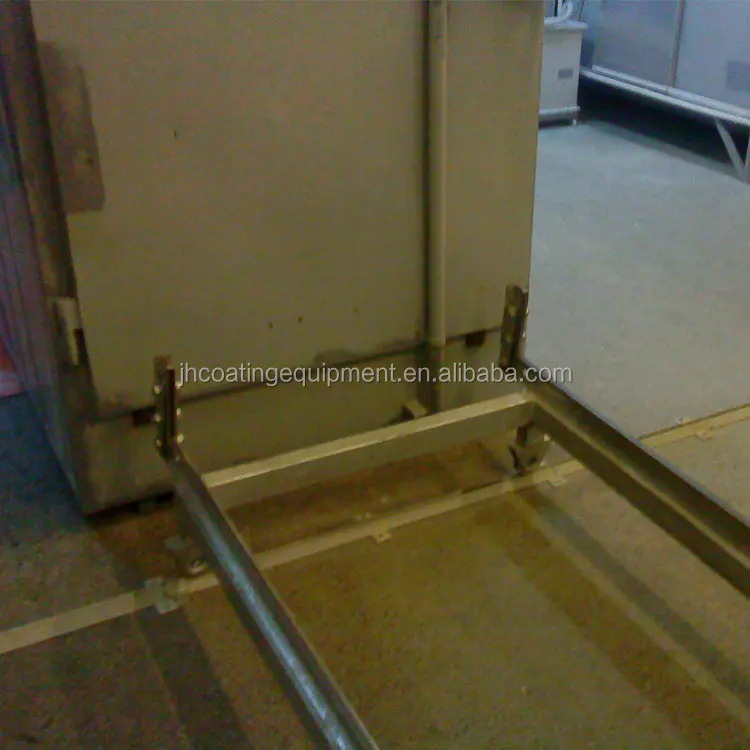

Moving trolley
Product hang on the metal shelf, the metal shelf will be into the oven.
The trolley can design according to your metalworks,in order to conveneint for parts hanging and transport. This transporting
system will not pollute the inner chamber and workparts, ensure the clean environment in powder curing process and purity of
workparts.
system will not pollute the inner chamber and workparts, ensure the clean environment in powder curing process and purity of
workparts.
Related Products
Company Profile
Linhai Jinhai Coating Equipment Co.;Ltd
founded in 2010,located in Linhai city,Zhejiang province. Which is professional manufacturer and export that is concerned with the design, development and production of different kinds of powder coating equipment. Covering Electrophoresis Line, Liquid Paint Line, Dip Device, Powder Coating Line, Spray Booth Oven,Powder Gun Spare Parts, Powder Coating Machine, etc.
Certifications
Order Process
1. Order
2. Raw Materials
3. Cutting
4. Drilling
5. Welding
6. Assembling
7. Inspection
8. Packing
9. Shipping
Why Choose Us
Our Advantages
*Pollution free operation.
*Safe to operate.
*Maximum recovery efficiency.
*Durability.
*Quick colour change.
1. JINHAI intelligent gun, unique circuit board design, Solve the problem of workpiece powder grooves on the corner, groove with powder.
2. JINHAI unique to the wind system which make the effective temperature difference control furnace temperature fluctuate 3 ℃, ensure that products without color difference,coating dose not fall off.
3. JINHAI big cyclone recovery system powder recovery rate as high as 99.2%,ensure no dust spillover.Unique fast color change powder supply center, change color only 10 to 15 minutes.
Our Services
* Professional Design
* Professional Scheme
* Professional Installation
* The warranty period of the equipment is one years, Our company will replace the Circuit boards and modules free of charge during the quality guarantee period (except for man-made damage, consumables and wear parts). .The quality assurance period will provide the life service after the expiration.
* Within 24 hours after receiving service demand, by technical staff, has a rich experience by phone, email, video and other forms to provide project consulting, fault diagnosis and other instructional technology services, to achieve customer satisfaction.
Product After Sale Management System
* Training operation and maintenance personnel in organization;
* Tracking understand and maintenance of mechanical equipment performance and use effect;
* Assist customers to manage the production process and select the specification of process management;
* Providing vulnerable parts at the factory price;
* Lifetime after-sales service;
* If equipment failure, in 24 hours (provincial) to solve the problem, and do a good record;
* One year warranty, lifelong repair.
*Pollution free operation.
*Safe to operate.
*Maximum recovery efficiency.
*Durability.
*Quick colour change.
1. JINHAI intelligent gun, unique circuit board design, Solve the problem of workpiece powder grooves on the corner, groove with powder.
2. JINHAI unique to the wind system which make the effective temperature difference control furnace temperature fluctuate 3 ℃, ensure that products without color difference,coating dose not fall off.
3. JINHAI big cyclone recovery system powder recovery rate as high as 99.2%,ensure no dust spillover.Unique fast color change powder supply center, change color only 10 to 15 minutes.
Our Services
* Professional Design
* Professional Scheme
* Professional Installation
* The warranty period of the equipment is one years, Our company will replace the Circuit boards and modules free of charge during the quality guarantee period (except for man-made damage, consumables and wear parts). .The quality assurance period will provide the life service after the expiration.
* Within 24 hours after receiving service demand, by technical staff, has a rich experience by phone, email, video and other forms to provide project consulting, fault diagnosis and other instructional technology services, to achieve customer satisfaction.
Product After Sale Management System
* Training operation and maintenance personnel in organization;
* Tracking understand and maintenance of mechanical equipment performance and use effect;
* Assist customers to manage the production process and select the specification of process management;
* Providing vulnerable parts at the factory price;
* Lifetime after-sales service;
* If equipment failure, in 24 hours (provincial) to solve the problem, and do a good record;
* One year warranty, lifelong repair.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are manufacturer which exported to many countries and we are specialized in producing powder
coating equipment more than 10 years in China.
Q2: What about the lead time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to product and quantity.
Q3: Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT for the smaller goods. It usually takes 3-9 days to arrive. Airline and sea shipping are also optional.
Q5: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q6: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
A: We are manufacturer which exported to many countries and we are specialized in producing powder
coating equipment more than 10 years in China.
Q2: What about the lead time ?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to product and quantity.
Q3: Can I customized the machines?
Yes, we are a professional team for powder coating equipments, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT for the smaller goods. It usually takes 3-9 days to arrive. Airline and sea shipping are also optional.
Q5: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
Q6: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
