online density meter device used to measure density

online density meter device used to measure density

1. Product description

For a variety of liquid or liquid mixture conduct online density measurement . In the petrochemical industry can be widely used in petroleum, oil refining, oil, oil-water interface detection; In the food industry used for grape juice, tomato juice and soft drinks, fruit syrup, vegetable oil processing and other production spot; Dairy industry; The paper industry. Black slurry, green paste, white pulp, alkali solution test; Brew alcohol; Chemical class of urea, detergents, ethylene glycol, acid and alkali and polymer density test. Can also be used in mining, brine potash, natural gas, oil, and so on the biopharmaceutical industry.

(1) Using integrated structure of two-wire transmitter , no moving parts simple maintenance.

(2) 5 digital LCD

(3) Installation and using aspect, insert into the liquid can display density readings.

(4) Used in fluid or stationary liquid, suitable for pipes and tanks installed.

(5) Continuous on-line measuring liquid density without interruption, can be directly used in the production process control.

(6) Contact liquid components are all stainless steel materials manufacturing, safety, hygiene.

QQ20150728150205

2. Relevant parameter

Measuring object	Liquid or liquid mixture
Measuring range	according to selection specification table
Power supply	12~36 VDC
Output Method	4-20Ma + HART (digital communication)
Temperature range	Electronic circuit board work in - 40 ~ 85 ℃ Sensitive components work in - 40 ~ 85 ℃ (normal) 0 ~ 280 ℃ (high temperature) Storage temperature -40~85℃ With digital display - 25 ~ 65 ℃ (normal operation) - 40 ~ 85 ℃ (no damage)
Pressure limit	normal type can reach 5MPa(300LB)
Error	±0.2%~0.5%
Repeatability	±0.2%FS
Resolution ratio	±0.1%FS
Delaying	±0.1%FS
Explosive-proof grade	ExiaIICT6 ExdIIBT5

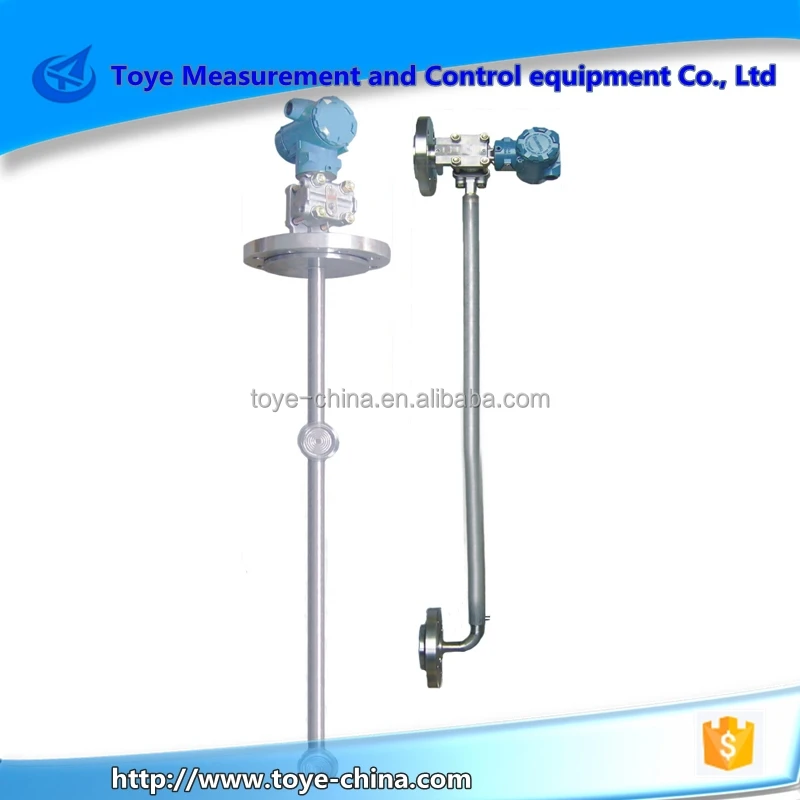

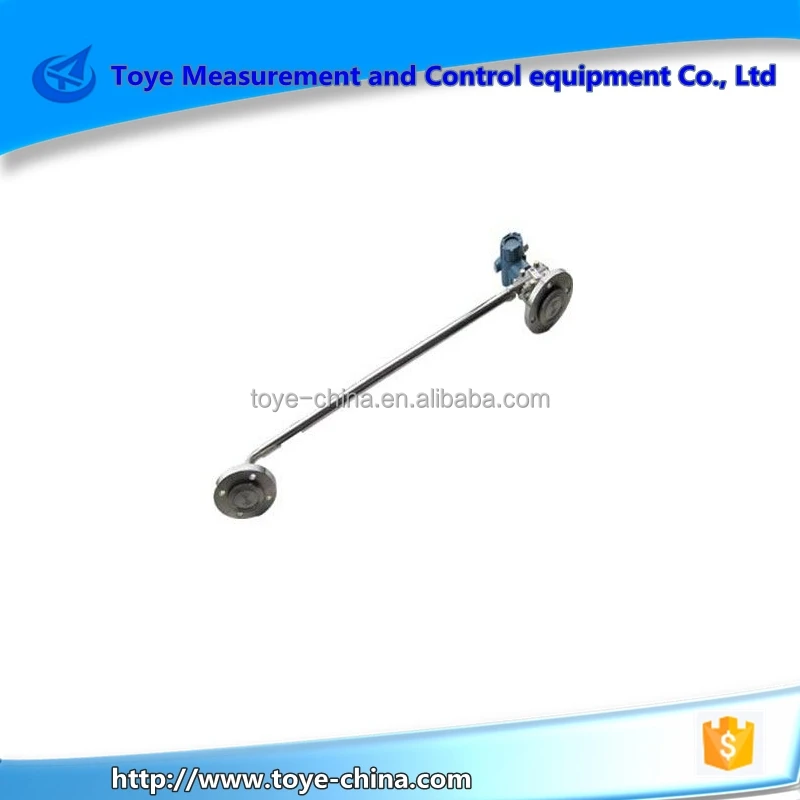

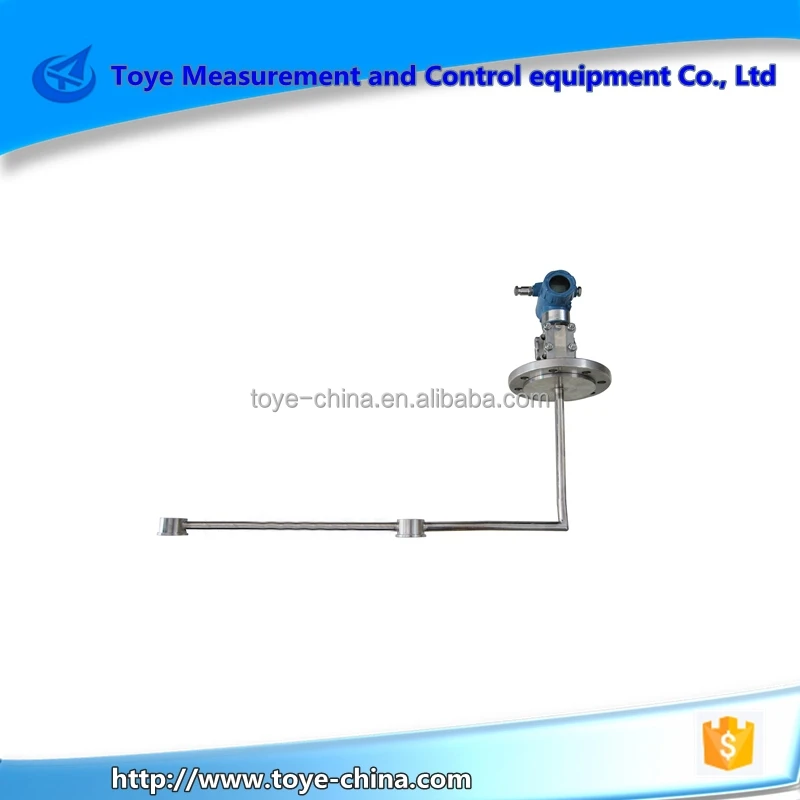

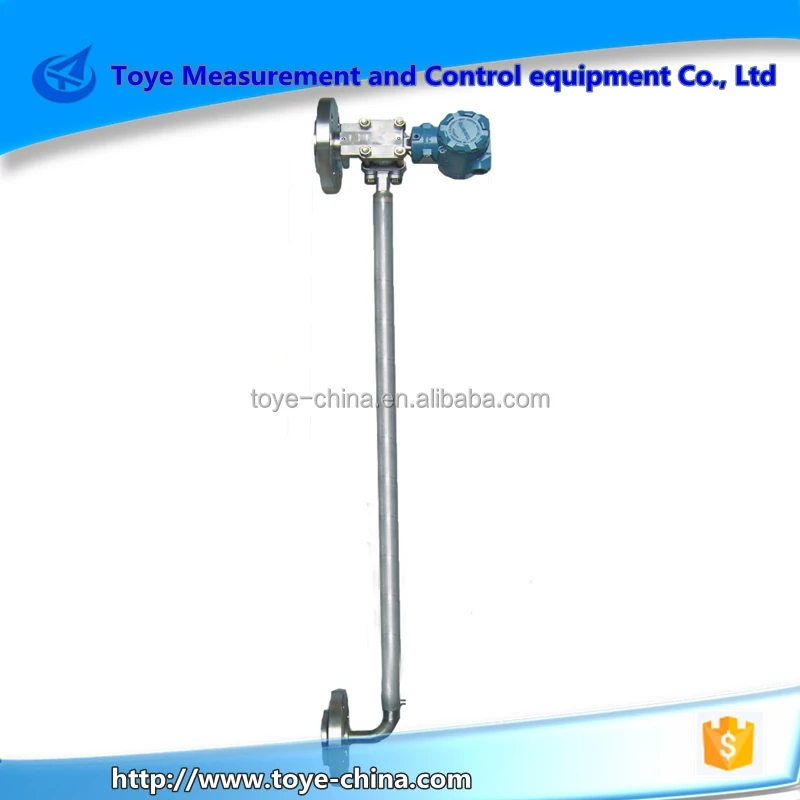

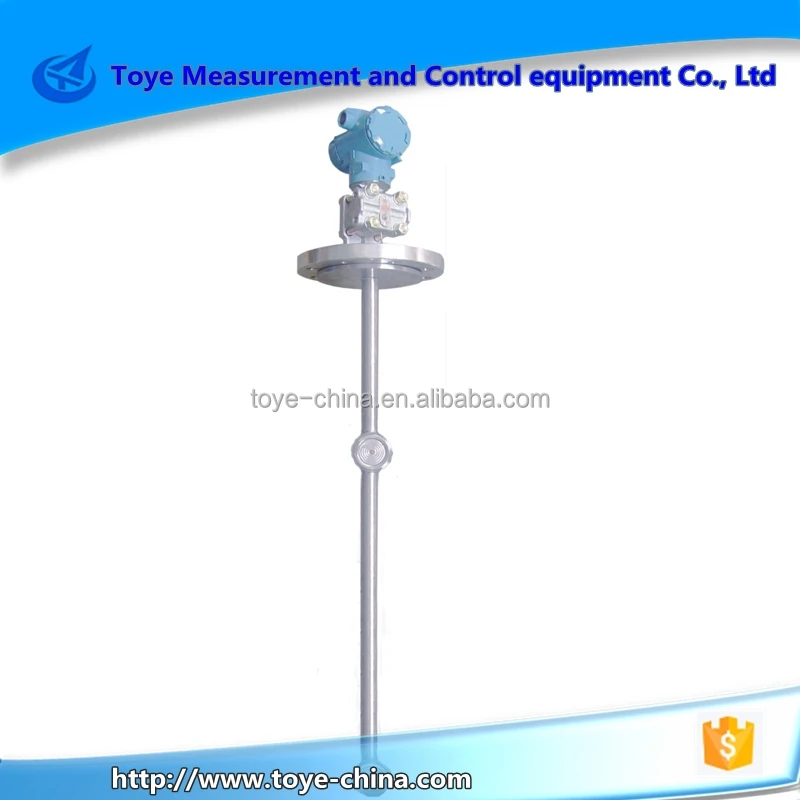

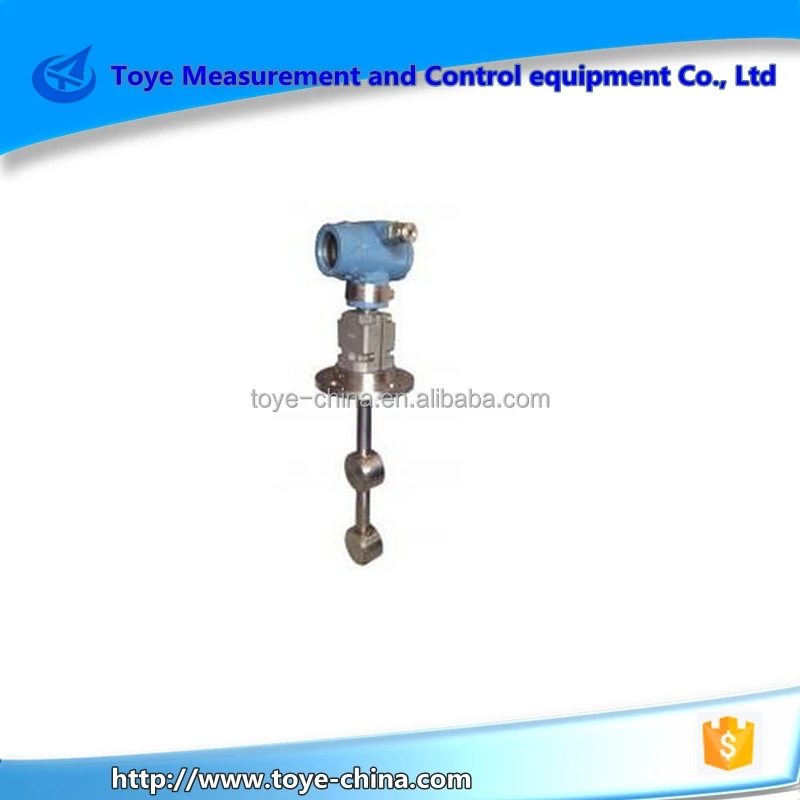

3. product picture

QQ20150728154353

QQ20150728154726

QQ20150728154710

4. Product selection

Item	Specification code	state
TY- Smart Online Density Transmitter
Mounting	A	Plug-in straight pipe mounting
	B	Plug-in elbow pipe mounting
	C	Outside-mounted hard pipe mounting
	D	Outside-mounted hosepipe mounting
Differential pressure sensor location	500	500mm
	1000	1000mm
	1500	1500mm
	XX	Special requirements
Insertion depth	1000	Insertion depth(for insertion type)
Insertion depth	XX	unit:mm
Measuring range	1	0~1g/cm³
	2	0~2g/cm³
	3	0~3g/cm³
Mounting flange	F50	DN50(outside-mounted)
	F80	DN80
	F100	DN100
Display header	M4	LCDintelligent instrument
Signal output	SF	4-20mA+HART
Diaphragm structure materials	22	316stainless steel(can order other material)
	23	H-C(hastelloy)
	24	MON
	25	TAN
Selection example	TY-C1000-2F80-M4SF22

5. Certificate

QQ20150724090546

Packaging & Shipping

Packaging :standard(export)packing or as customers' need

Delivery :Delivery in 30 days after receive your (the)payment./after get t

Shipping:Sea, air and other modes of transport
